Starting System: Overhaul

NOTE: Use illustration for exploded view of starter. See Fig 1 .

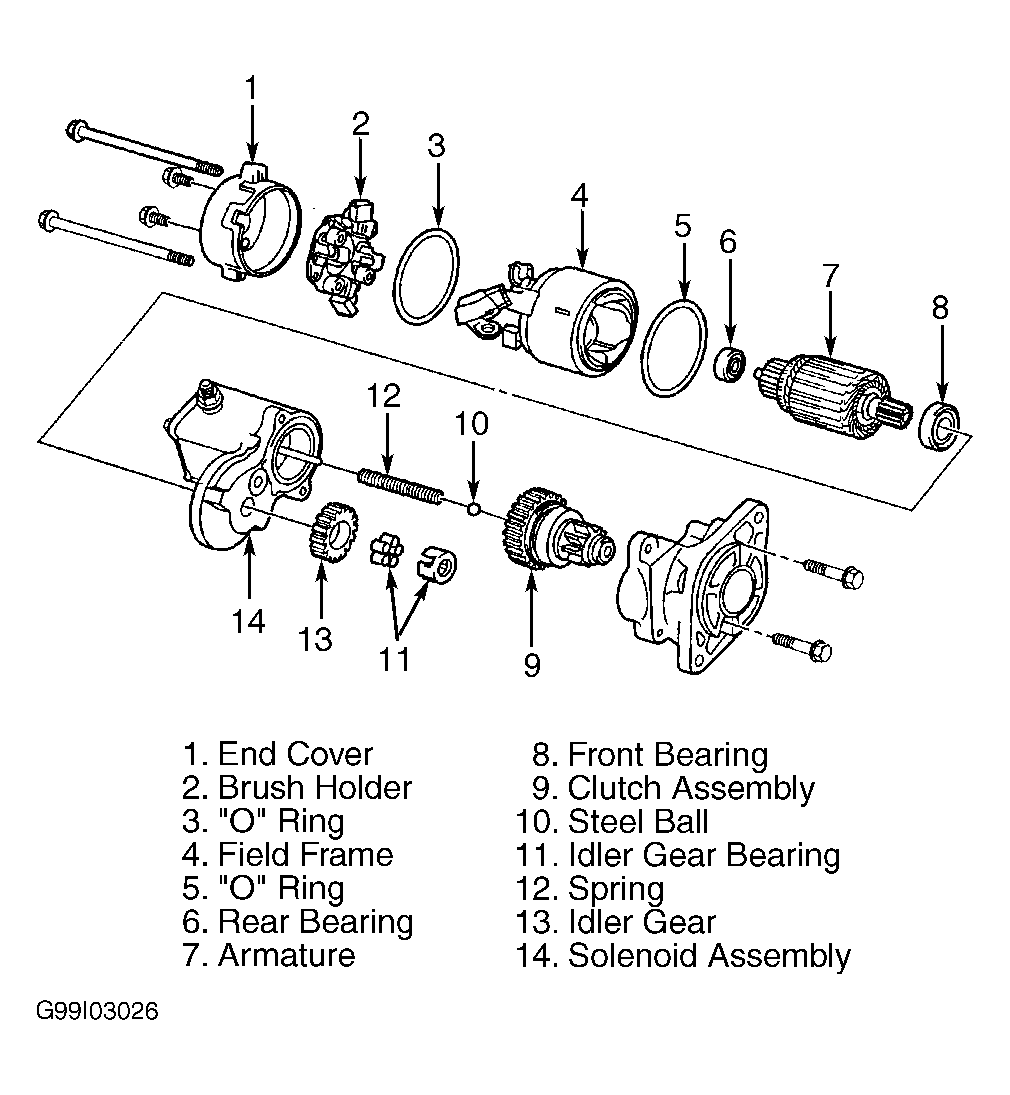

Fig 1: Exploded View Of Nippondenso Starter

G99I03026

Courtesy of GENERAL MOTORS CORP.
