Rotor Test

  1. Using an ohmmeter, measure resistance between slip rings. Perform STEP 1. See Fig 1 . If resistance is more than 3.5 ohms, replace rotor.
  2. Using an ohmmeter, measure resistance between rotor and slip rings. Perform STEP 2. See Fig 1 . If resistance is less than 5 ohms, replace rotor.

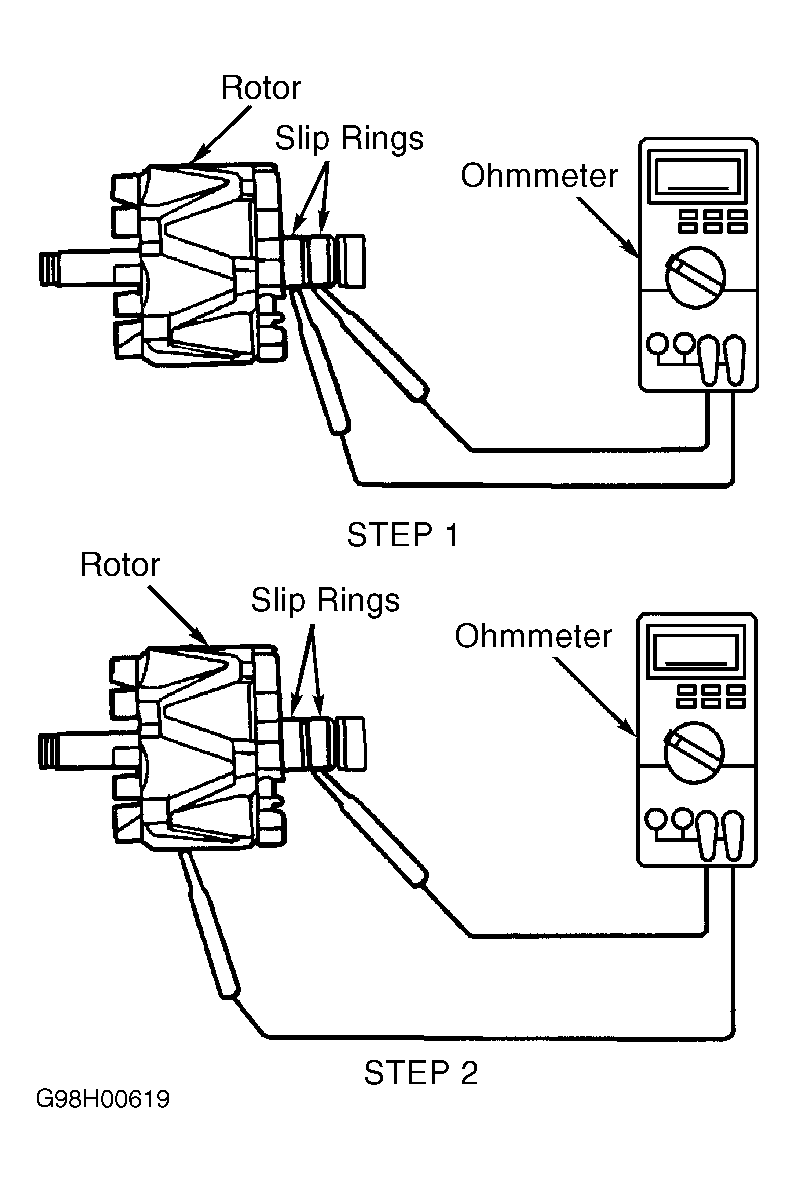

Fig 1: Testing Generator Rotor
G98H00619Courtesy of GENERAL MOTORS CORP.
