Home >> Chevrolet >> 2001 >> Prizm Base, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window System >> Removal & Installation >> Front Window Motor/Regulator Assembly >> Installation

Front Window Motor/Regulator Assembly: Installation

  1. Apply a multipurpose grease to all lubrication and sliding points.

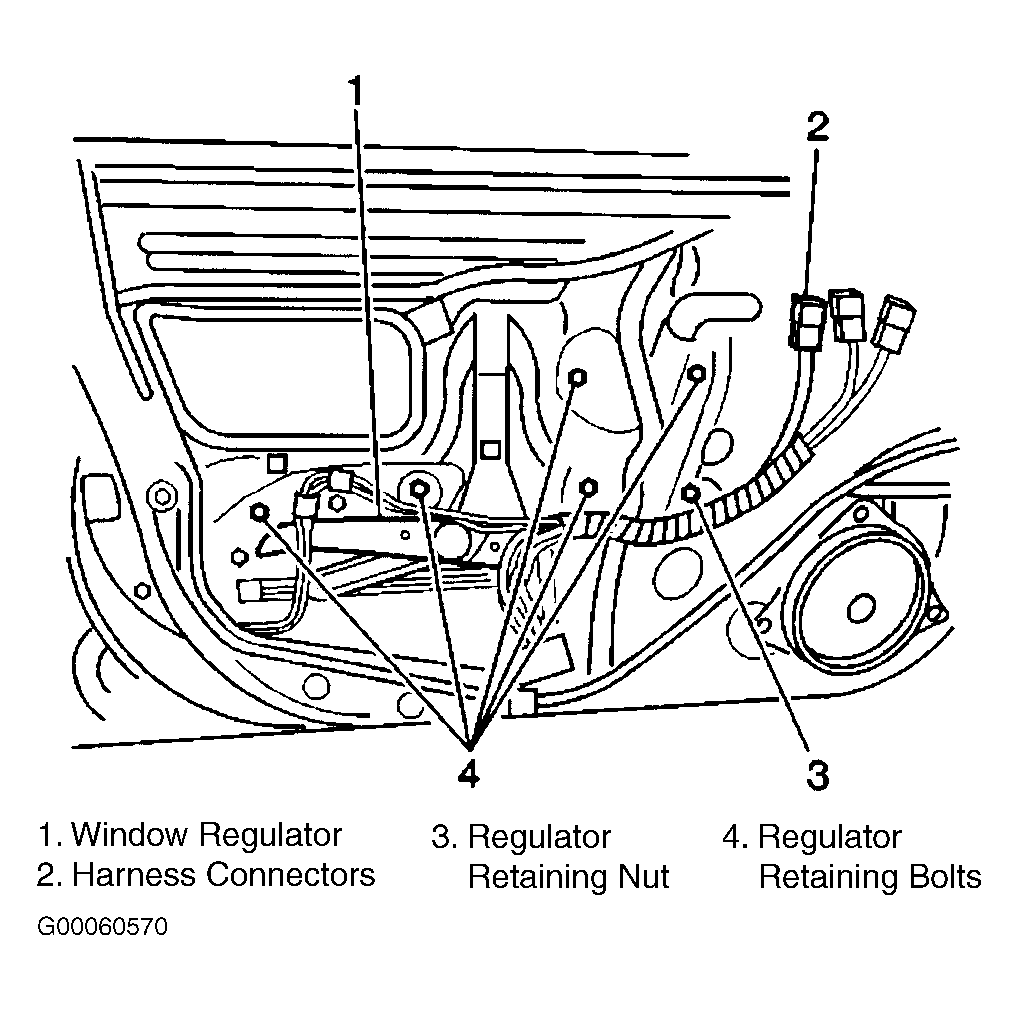

  2. Install window regulator (1) to door. Secure regulator with 5 bolts (4) and nut (3). Tighten regulator bolts and nut to 71 INCH lbs. (8 N.m). See Figure .
  3. Connect power window motor electrical connector (2). Install front door window.
