Power Window Master Switch: Installation

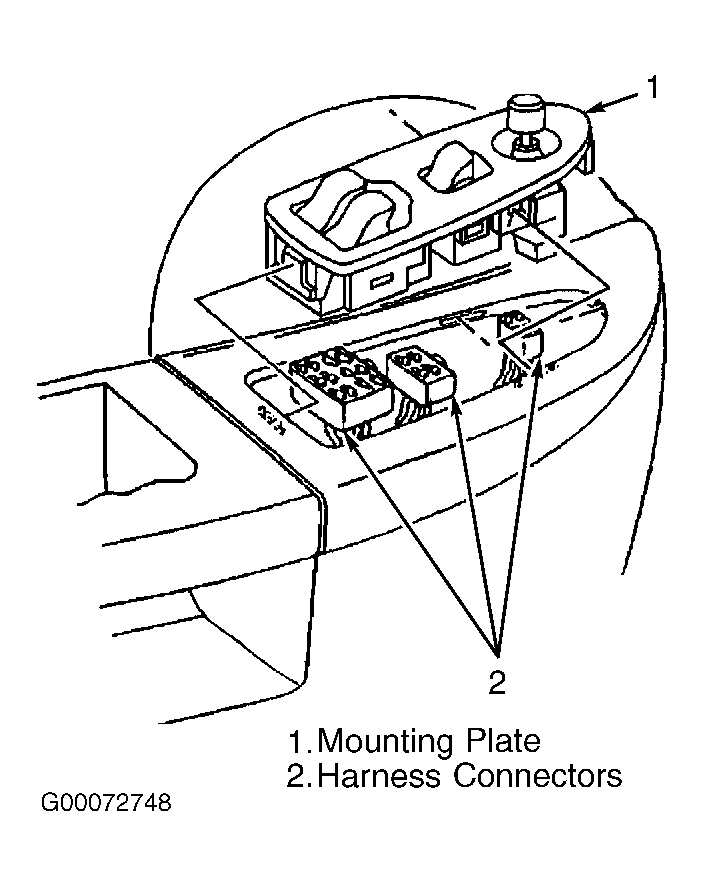

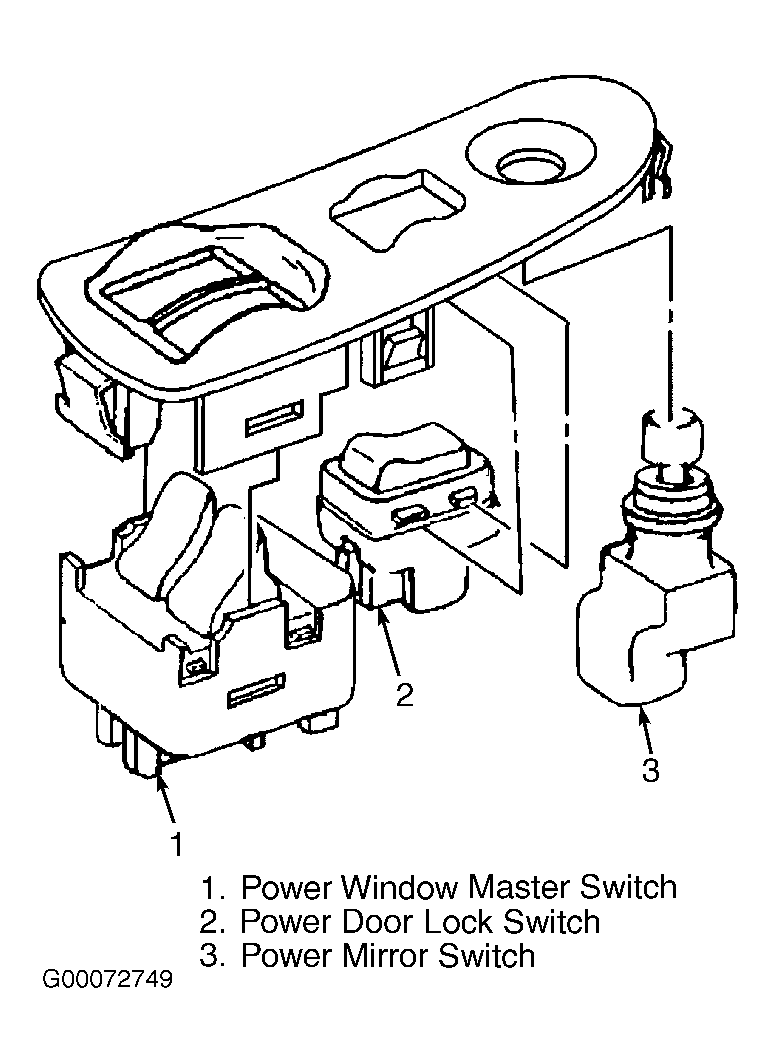

  1. Install power window master switch (1) to switch mounting plate. See Figure .
  2. Connect harness connectors (2).
  3. Install switch mounting plate to front door trim panel. See Figure .
  4. Insert front edge into trim panel and snap down rear of switch mounting plate to front door trim panel.
