Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the remote keyless entry module to the carrier.
  2. Install the remote keyless entry module screws to the bracket (3). Tighten:  Tighten the remote keyless entry module screws to the bracket (3) to 2 N.m (18 lb in).
  3. Connect the remote keyless entry antenna (2) to the receiver (5).
  4. Connect the remote keyless entry electrical connector (4) to the receiver (5).
  5. Install the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT -- LEFT in Instrument Panel, Gages & Console.
  6. Reprogram the transmitter. Refer to Transmitter Programming .
  7. Verify that the system operates properly.

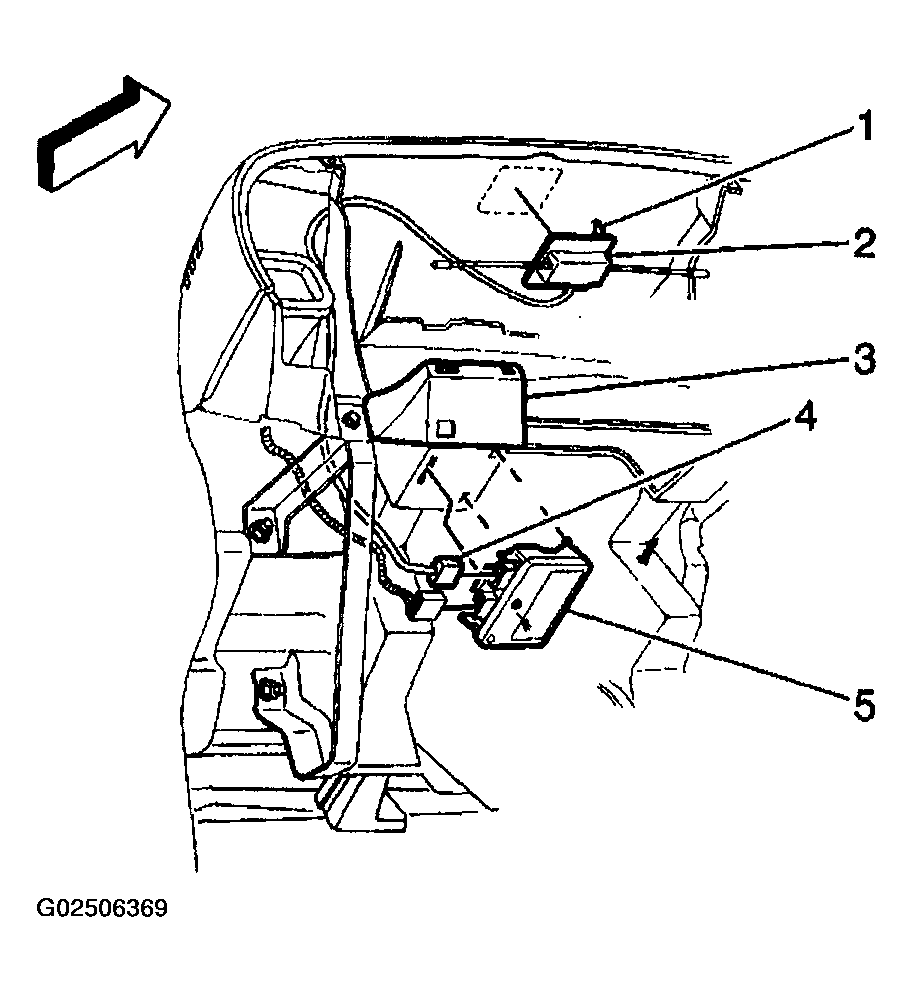

    8. Fig 1: Removing & Installing Remote Control Door Lock Receiver
    G02506369Courtesy of GENERAL MOTORS CORP.
