Connector Identification

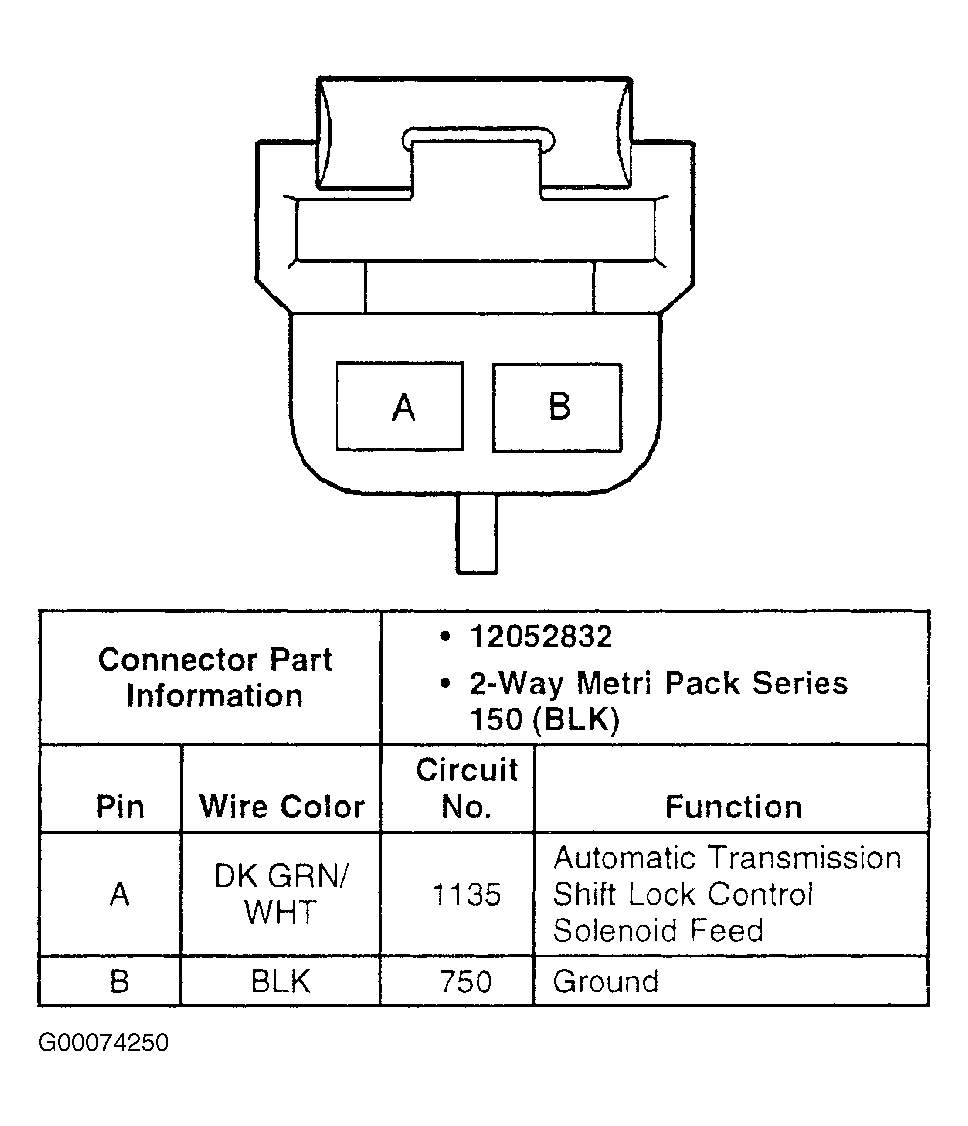

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector Terminals
G00074250Courtesy of GENERAL MOTORS CORP.

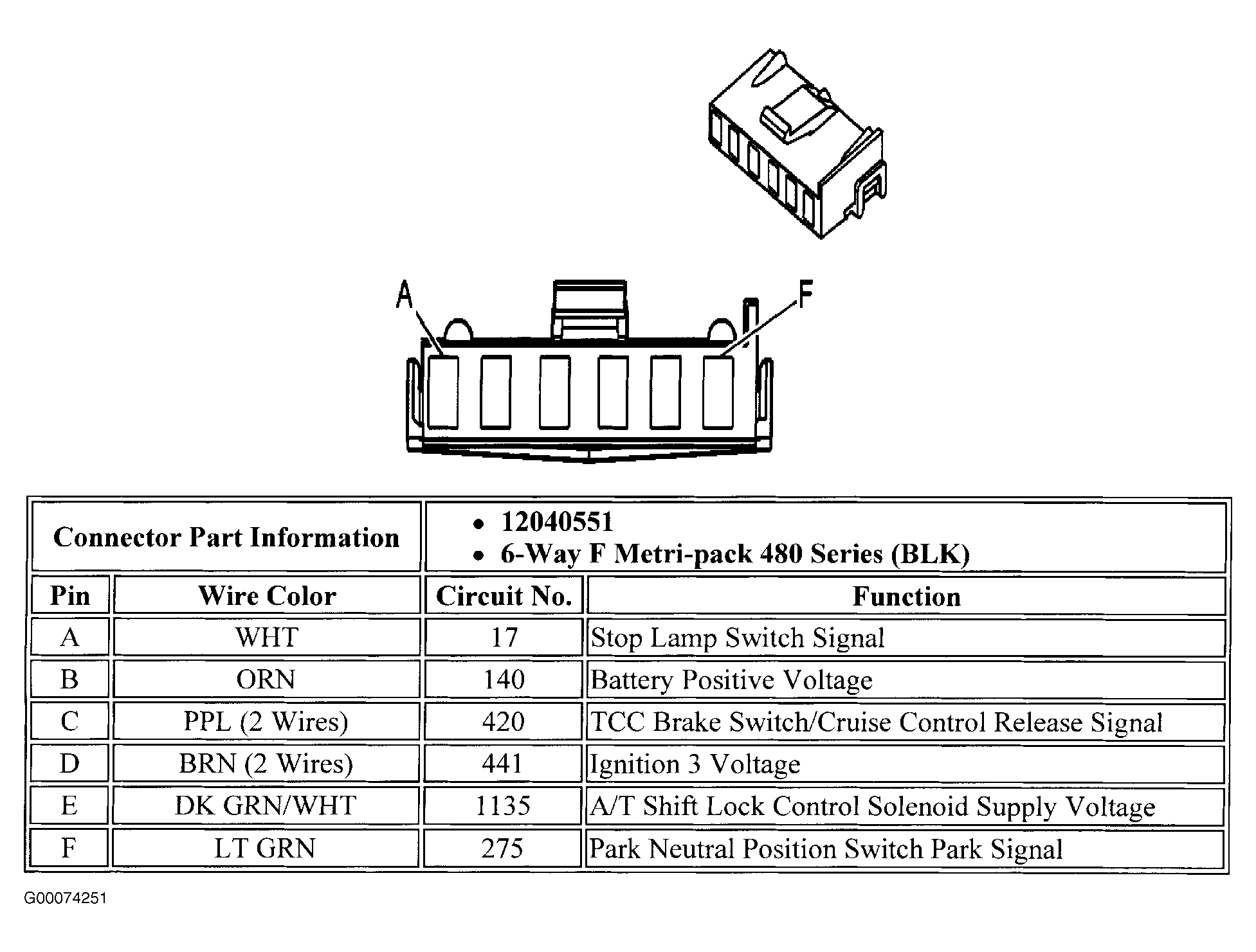

Fig 2: Identifying Stoplamp Switch Connector Terminals
G00074251Courtesy of GENERAL MOTORS CORP.
