ABS Component Views

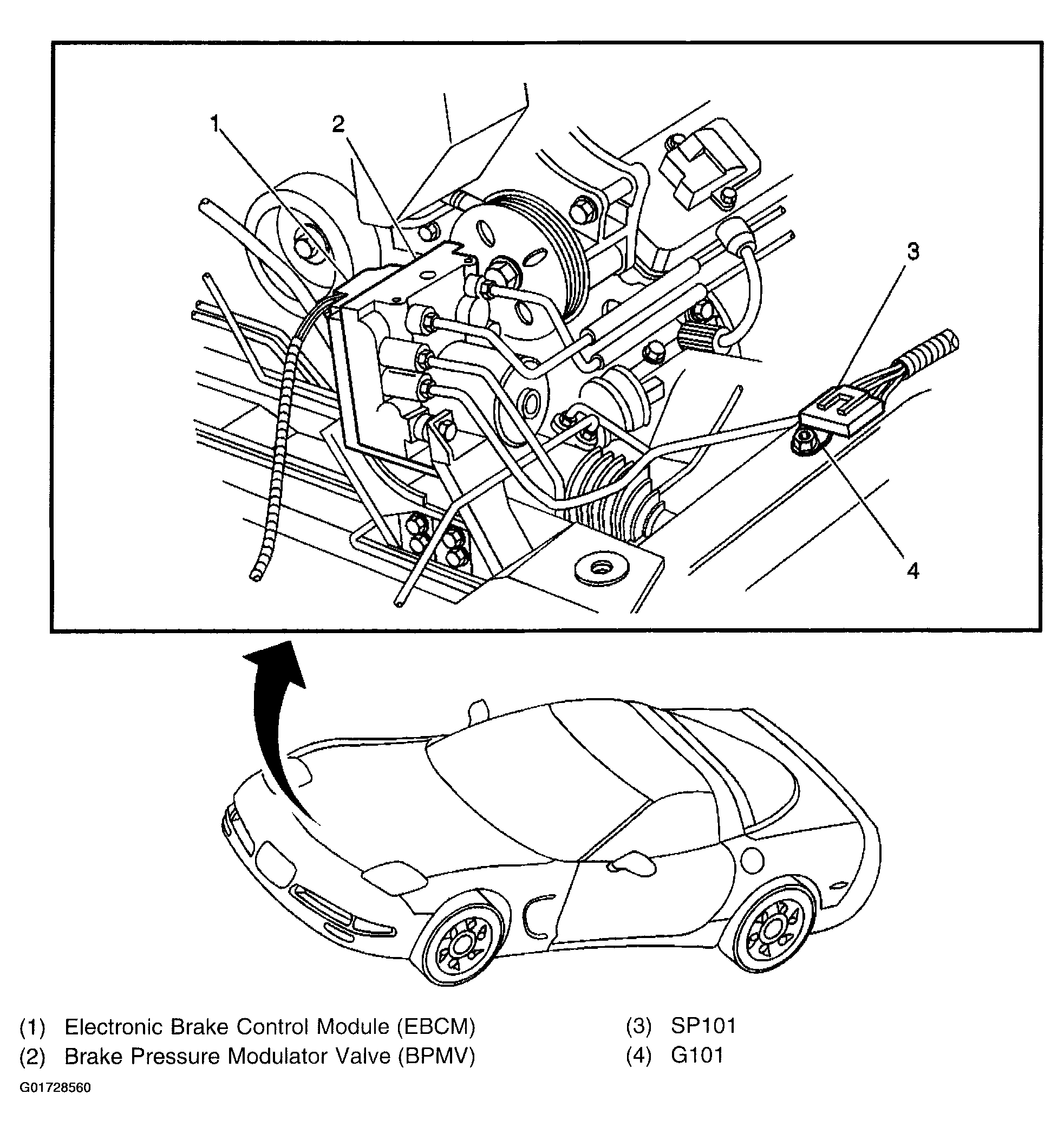

Fig 1: Left Front Of Engine Compartment
G01728560Courtesy of GENERAL MOTORS CORP.

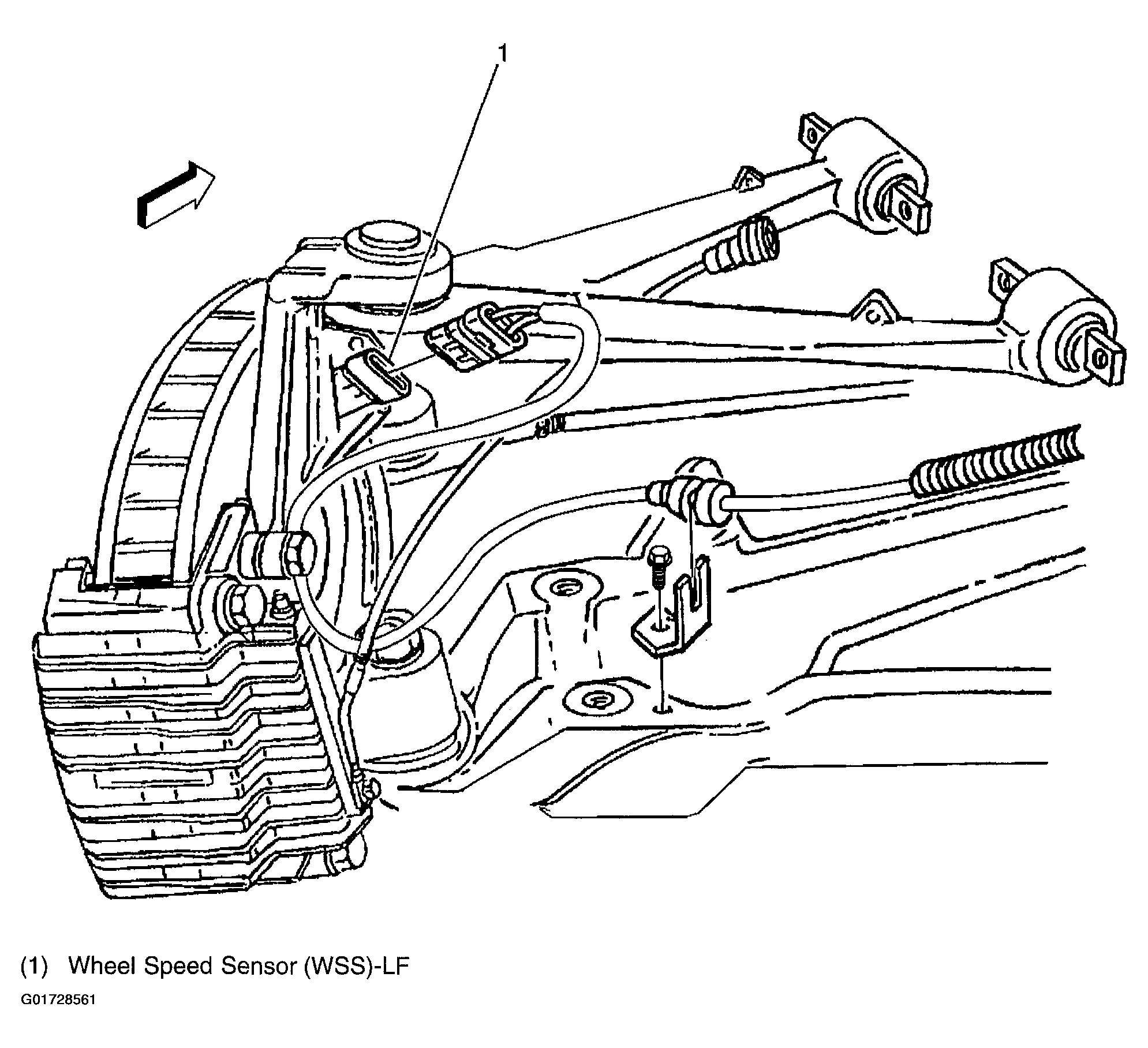

Fig 2: Behind Brake Rotor - LF (Rotor - RF Similar)
G01728561Courtesy of GENERAL MOTORS CORP.

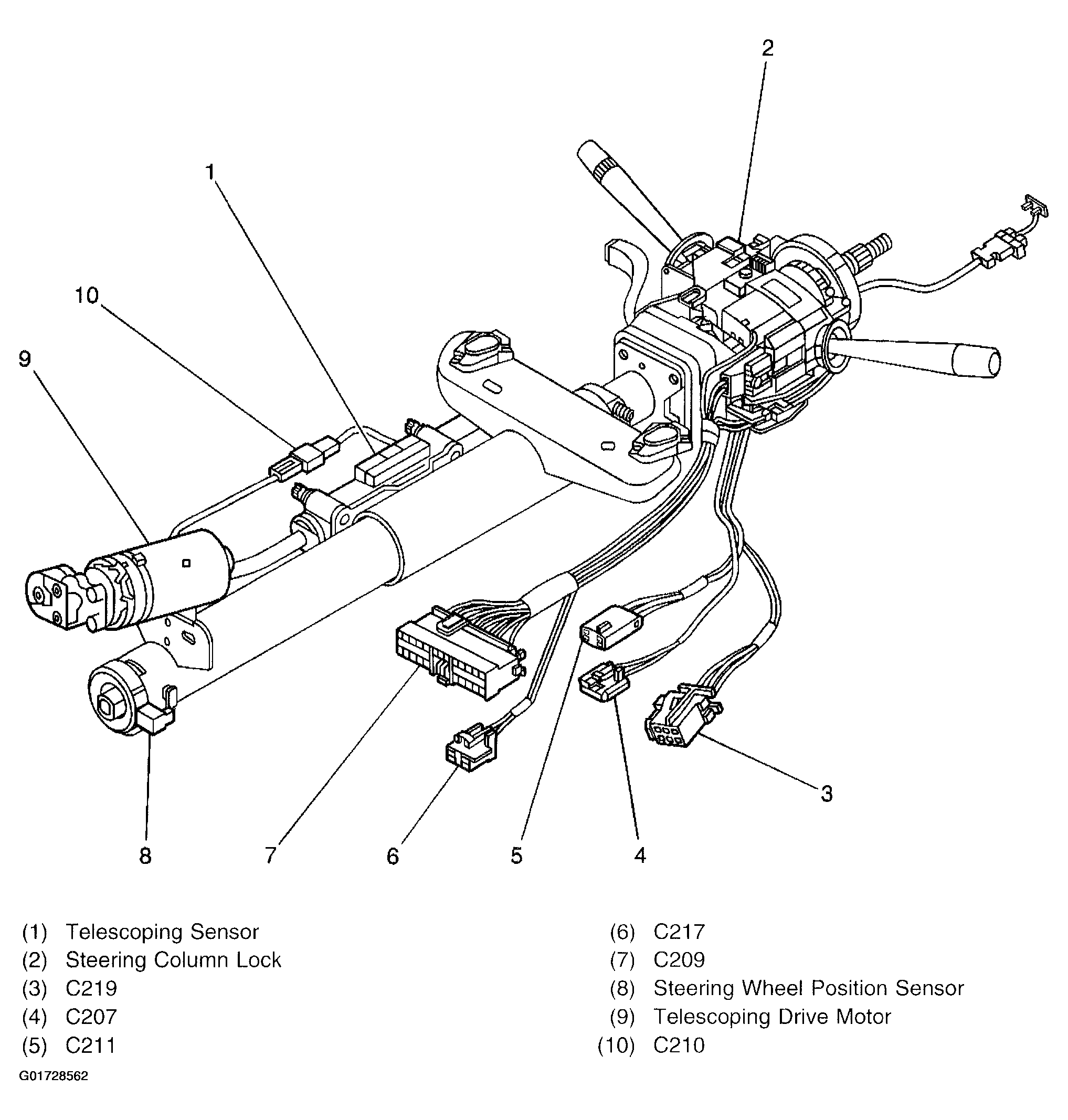

Fig 3: Steering Column
G01728562Courtesy of GENERAL MOTORS CORP.
