Connector Identification

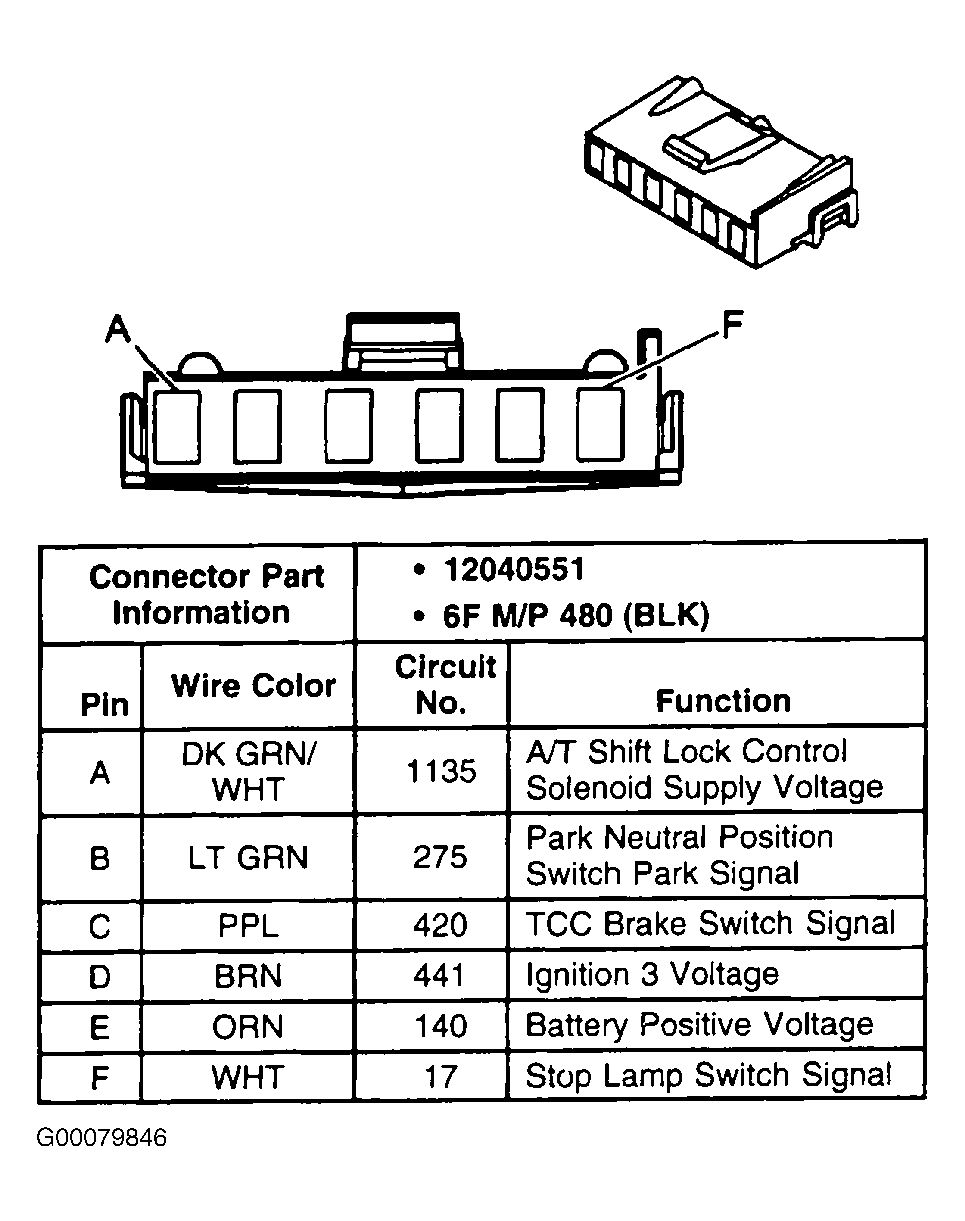

Fig 1: Identifying Stoplamp Switch Harness Connector Terminals
G00079846Courtesy of GENERAL MOTORS CORP.

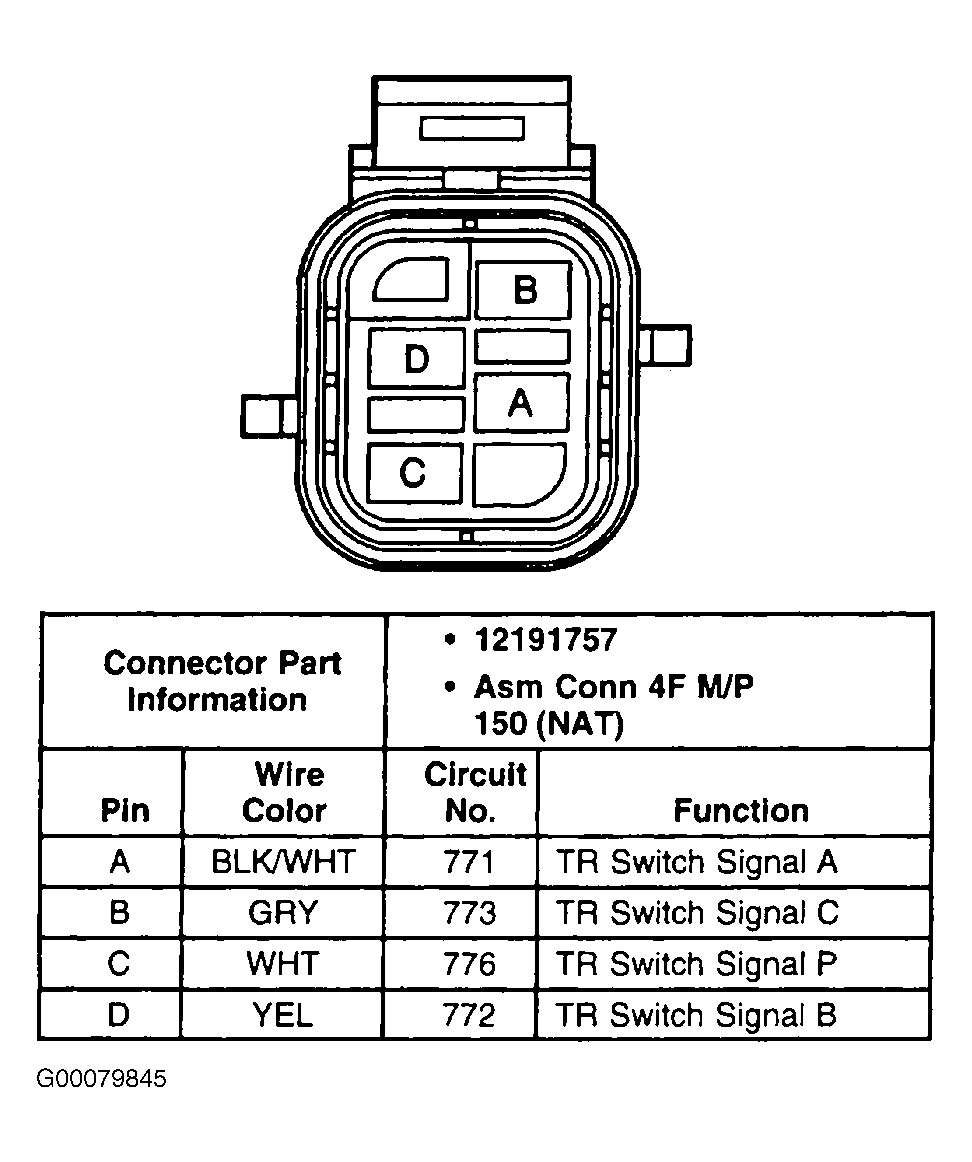

Fig 2: Identifying PNP Switch Harness Connector Terminals
G00079845Courtesy of GENERAL MOTORS CORP.

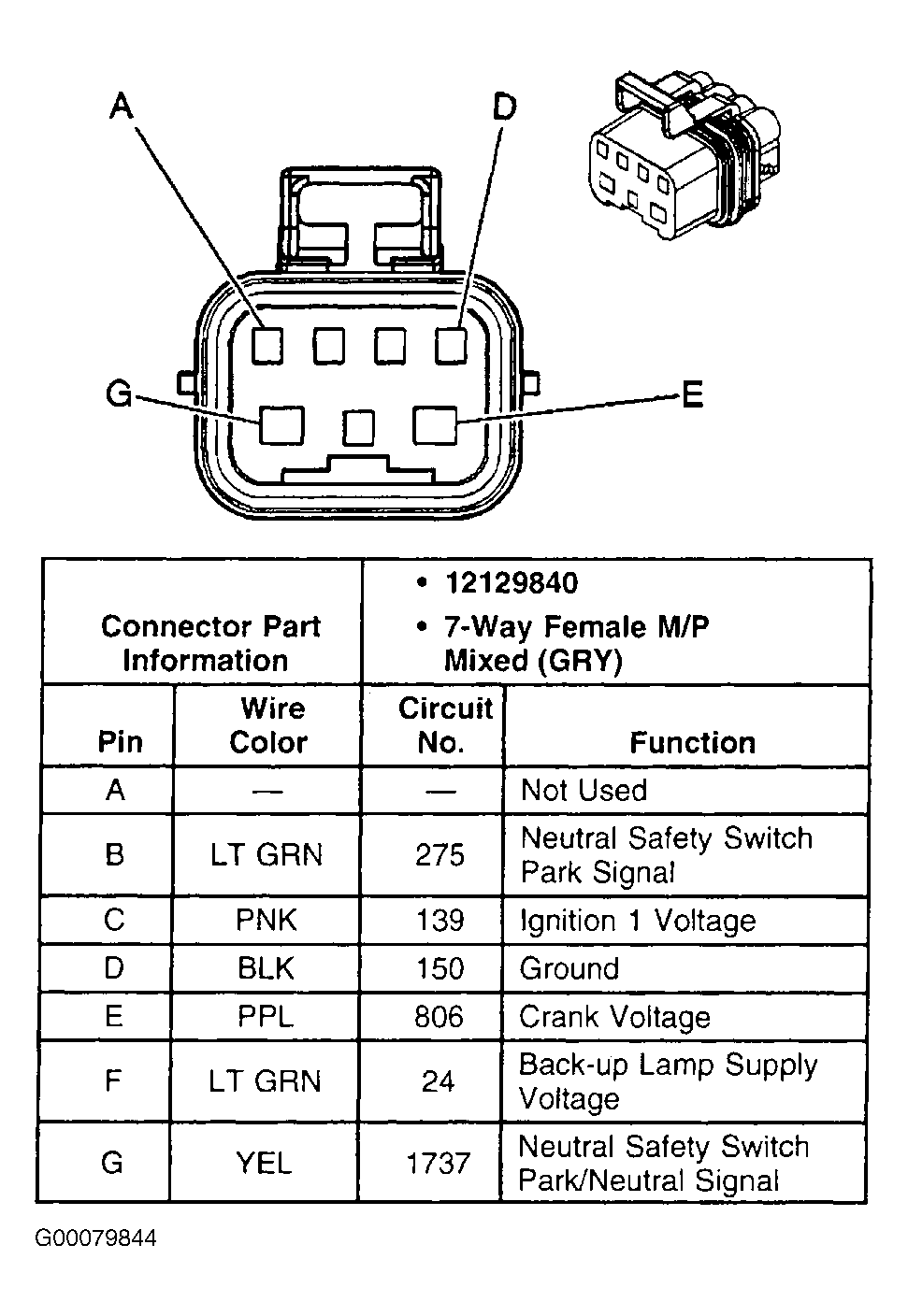

Fig 3: Identifying PNP Switch Harness Connector (C1) Terminals
G00079844Courtesy of GENERAL MOTORS CORP.

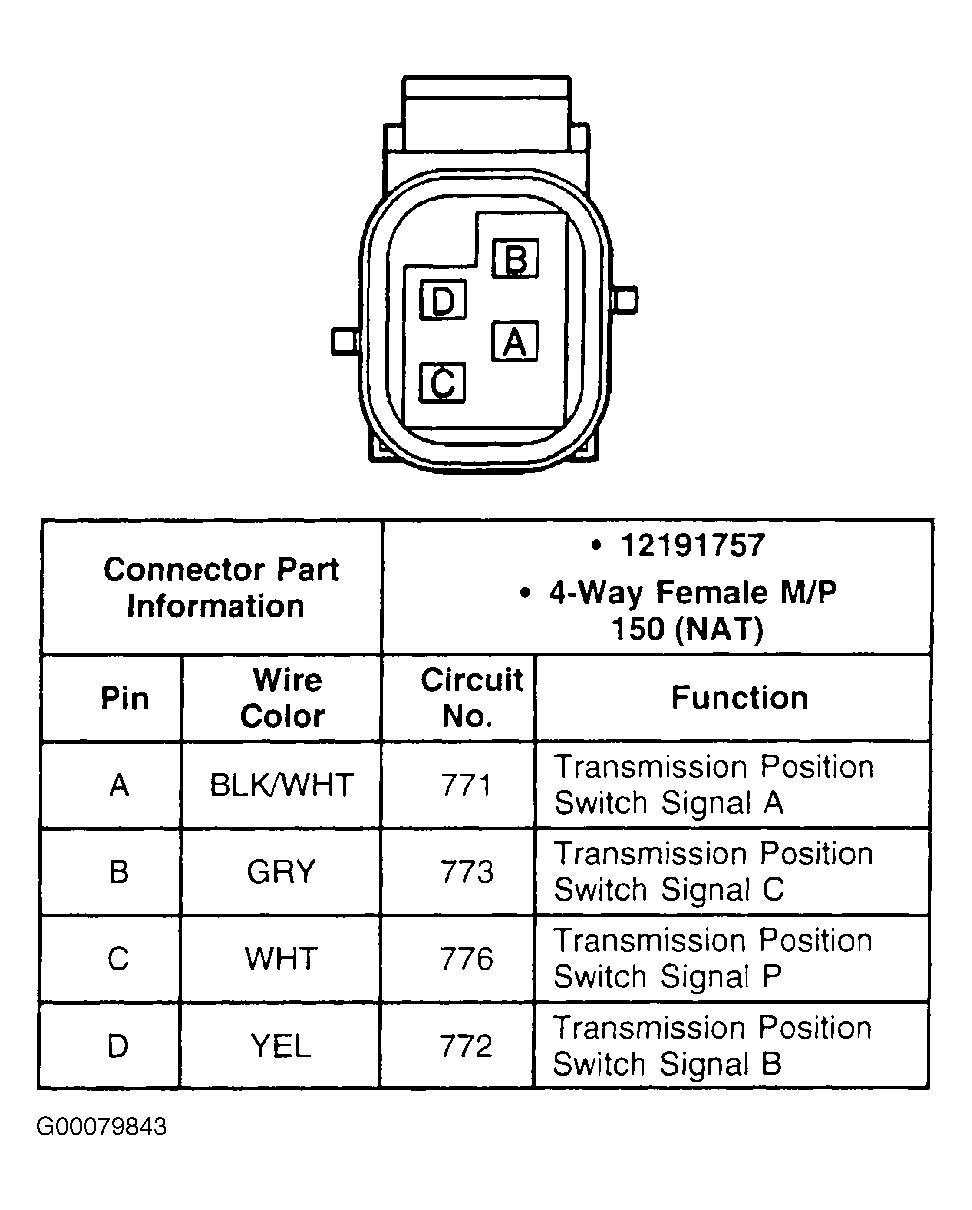

Fig 4: Identifying PNP Switch Harness Connector (C2) Terminals
G00079843Courtesy of GENERAL MOTORS CORP.

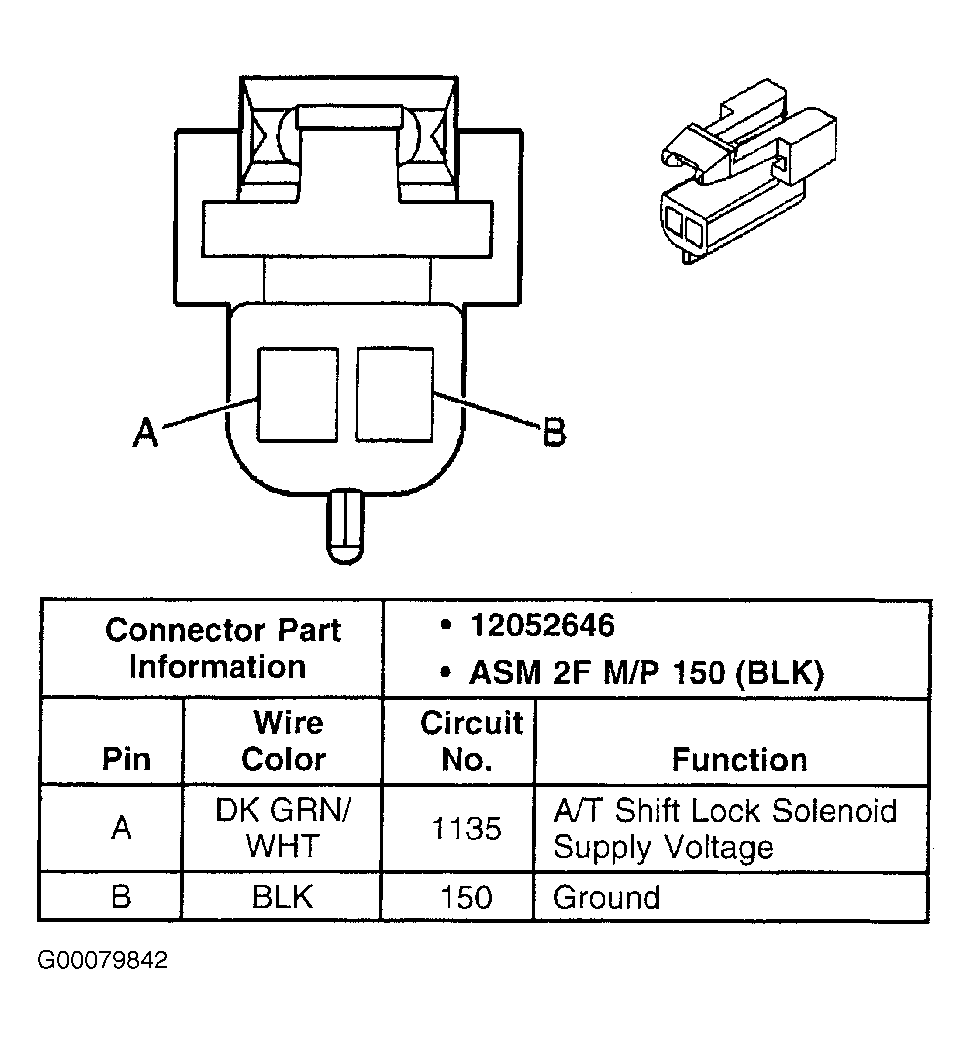

Fig 5: Identifying Shift Lock Solenoid Harness Connector Terminals
G00079842Courtesy of GENERAL MOTORS CORP.
