Horns Component Views

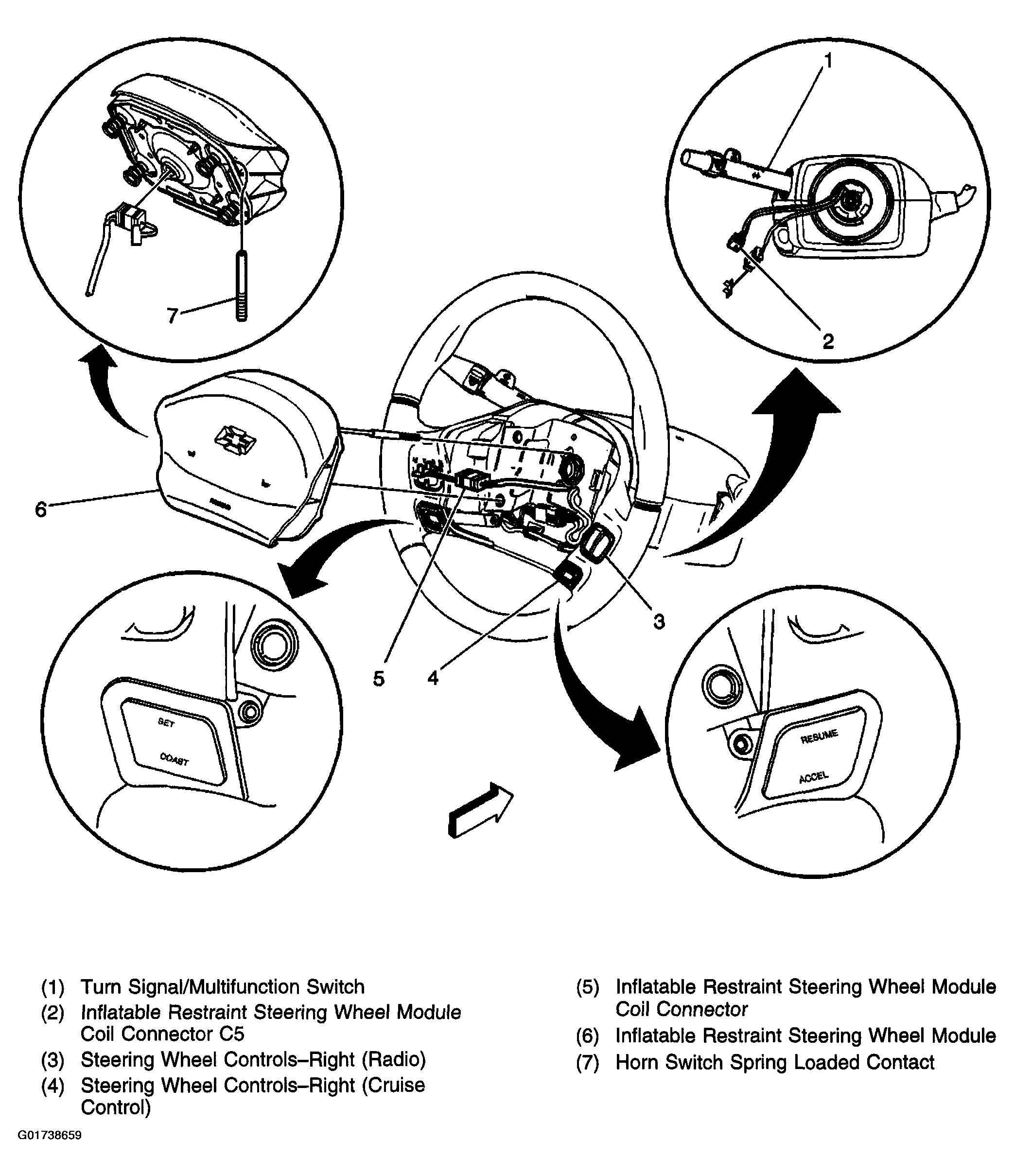

Fig 1: Identifying Steering Wheel Components (Impala)
G01738659Courtesy of GENERAL MOTORS CORP.

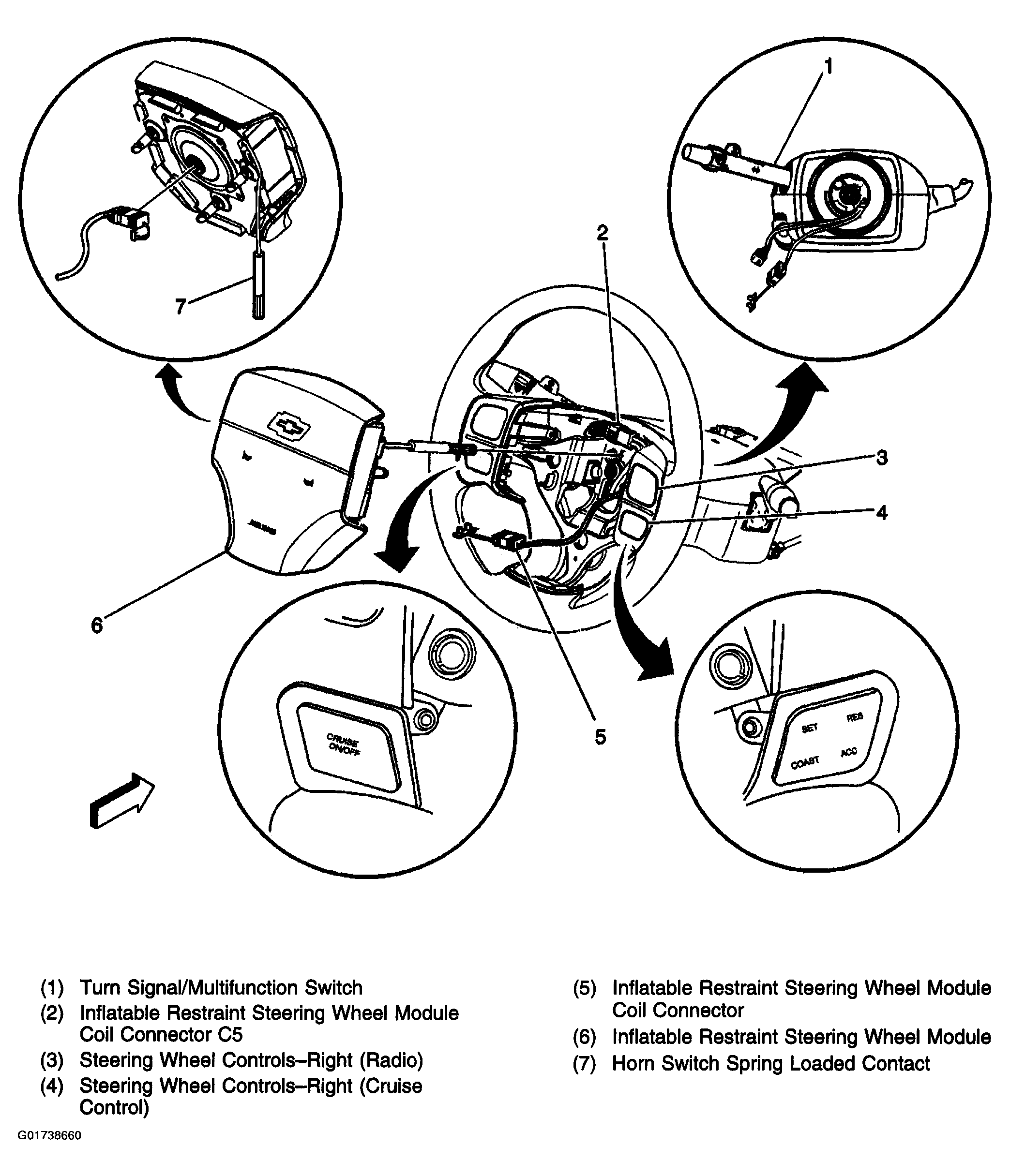

Fig 2: Identifying Steering Wheel Components (Monte Carlo)
G01738660Courtesy of GENERAL MOTORS CORP.

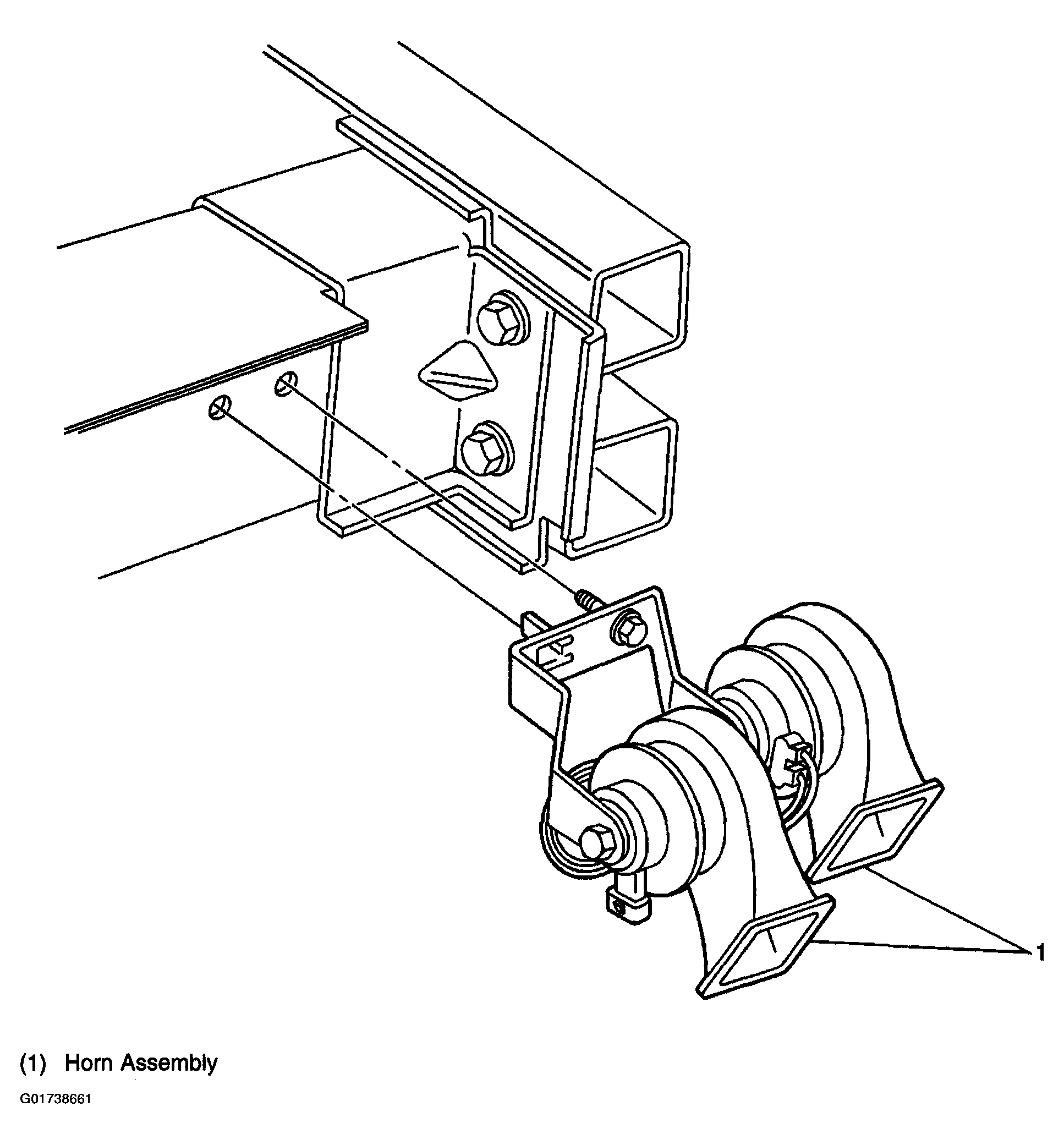

Fig 3: Locating Horns
G01738661Courtesy of GENERAL MOTORS CORP.
