Installation Procedure

  1. Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
  2. Install the EBCM (1) to the BPMV (2).
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the 4 screws that attach the EBCM (1) to the BPMV (2).

    Tighten

    Tighten the screws to 5 N.m (44 lb in).

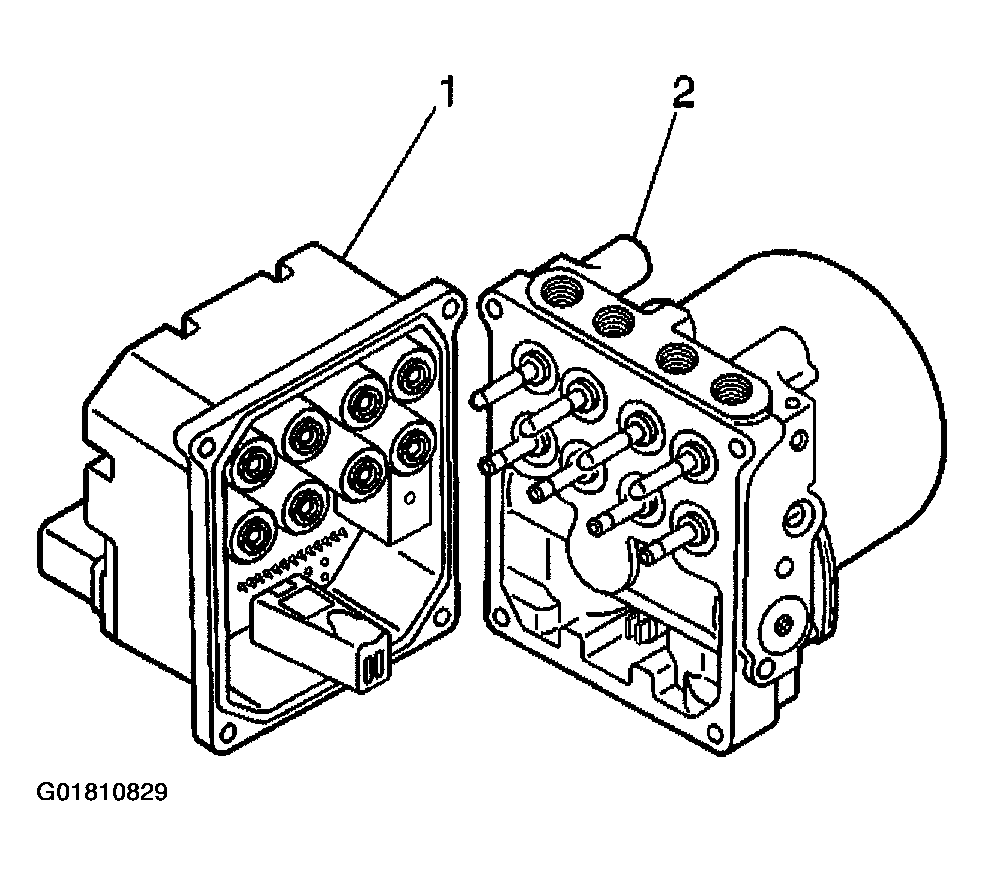

    Fig 1: Installing EBCM To BPMV
    G01810829Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector (2) to the EBCM (1).

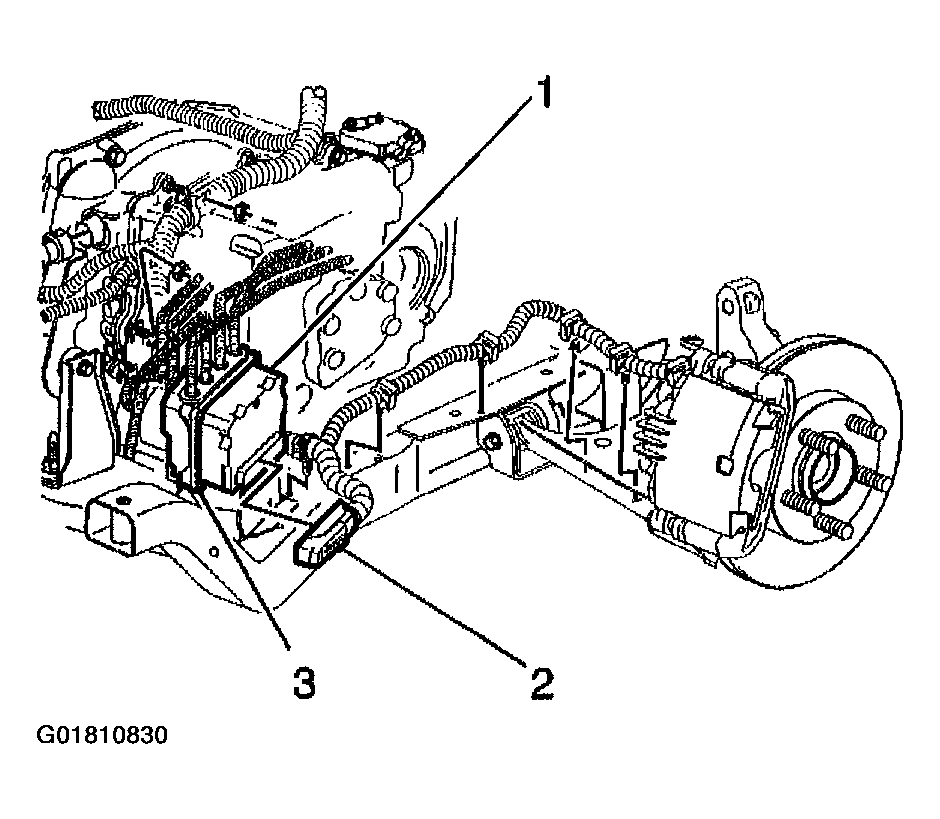

    Fig 2: Connecting EBCM Harness Connector
    G01810830Courtesy of GENERAL MOTORS CORP.
  5. Push down the harness connector lock tab (1) and then move the sliding connector cover back in the home position to lock.
  6. Push the CPA (2) back into place.
  7. Install the left engine splash shield.
  8. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  9. Perform the Diagnostic System Check - ABS  .

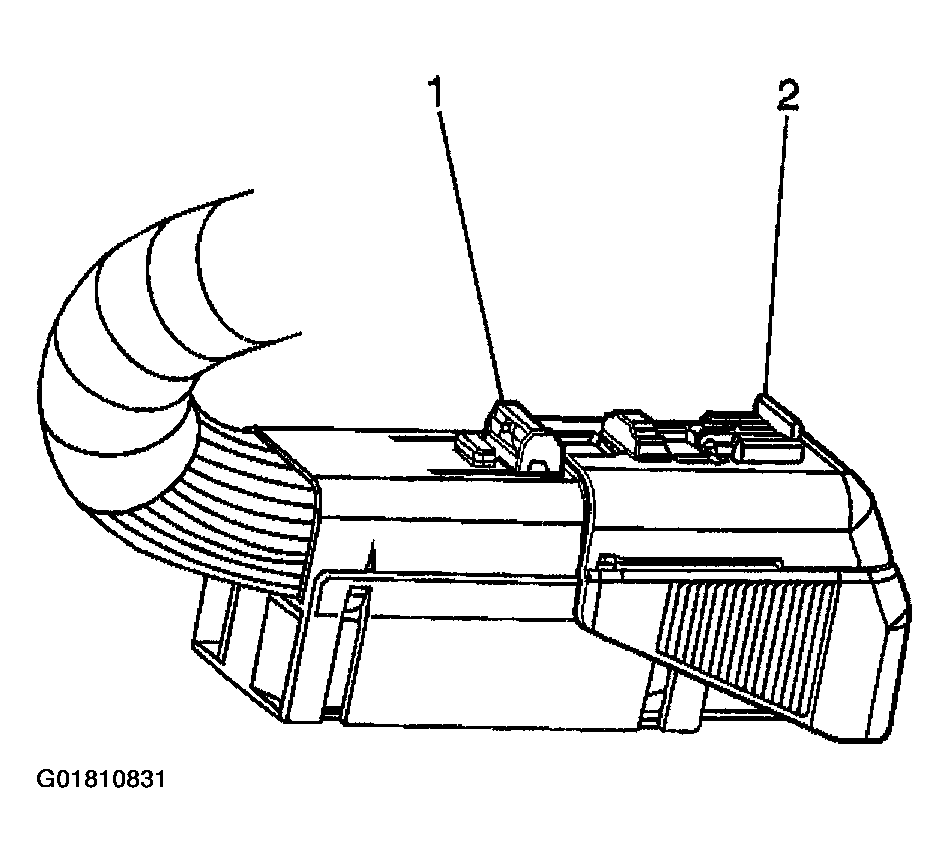

    Fig 3: Installing Harness Connector Lock Tab
