Engine Control System Self-Diagnostics - 3.4L
>>
Connector Identification
Connector Identification

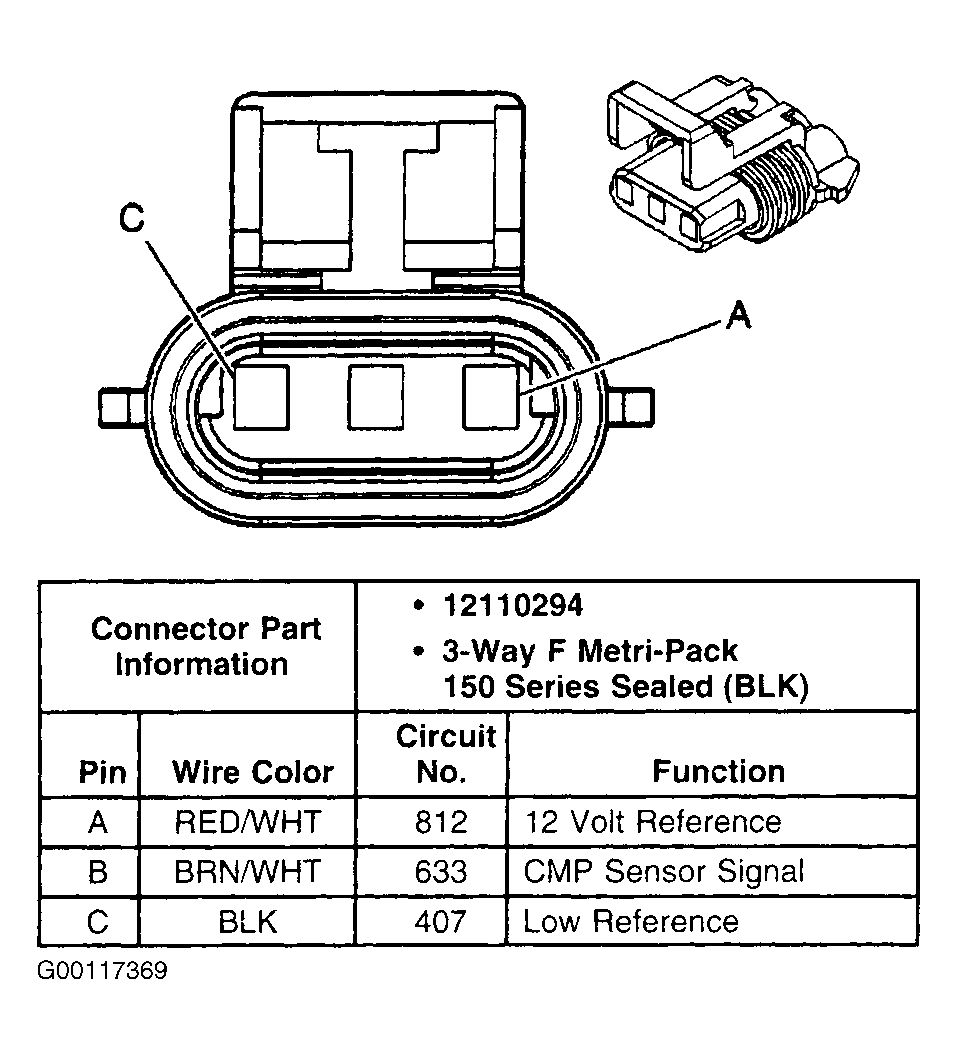

Fig 1: Identifying Camshaft Position Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

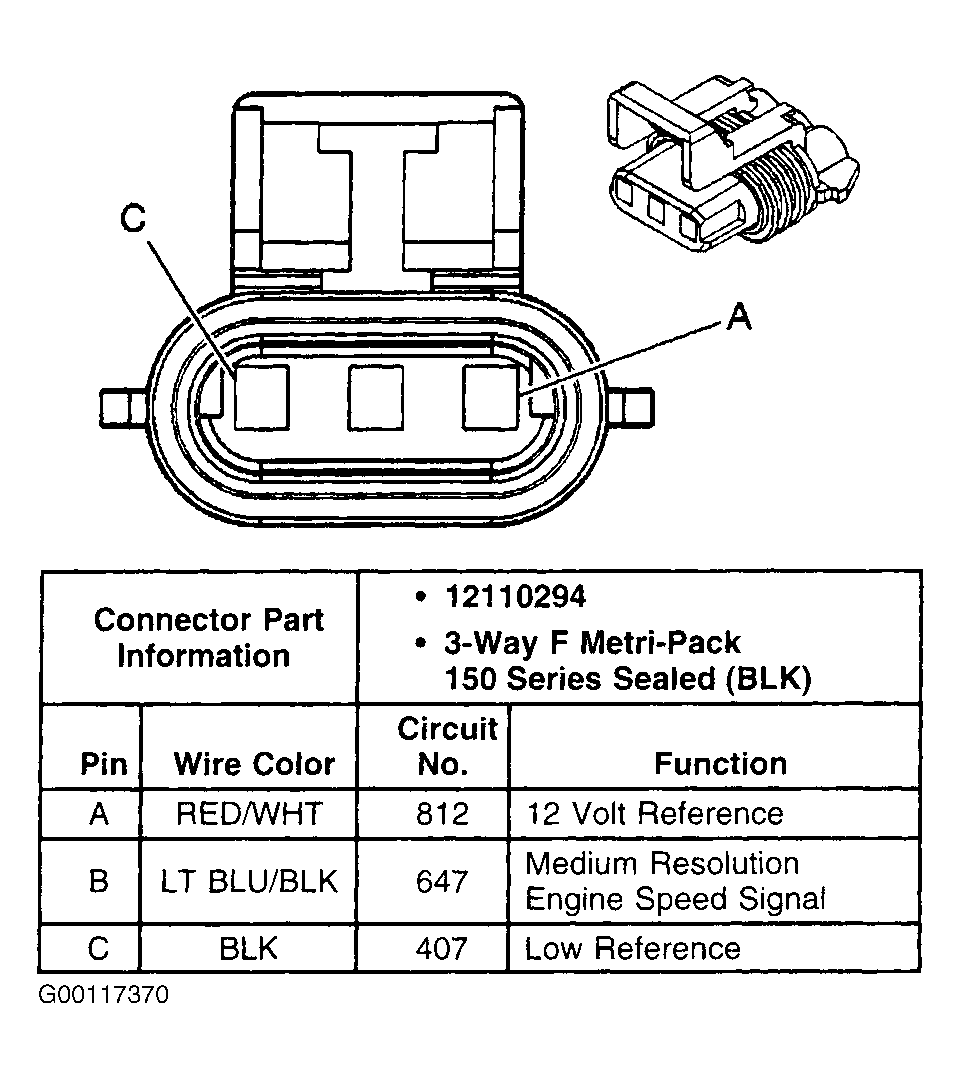

Fig 2: Identifying Crankshaft Position Sensor "A" Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

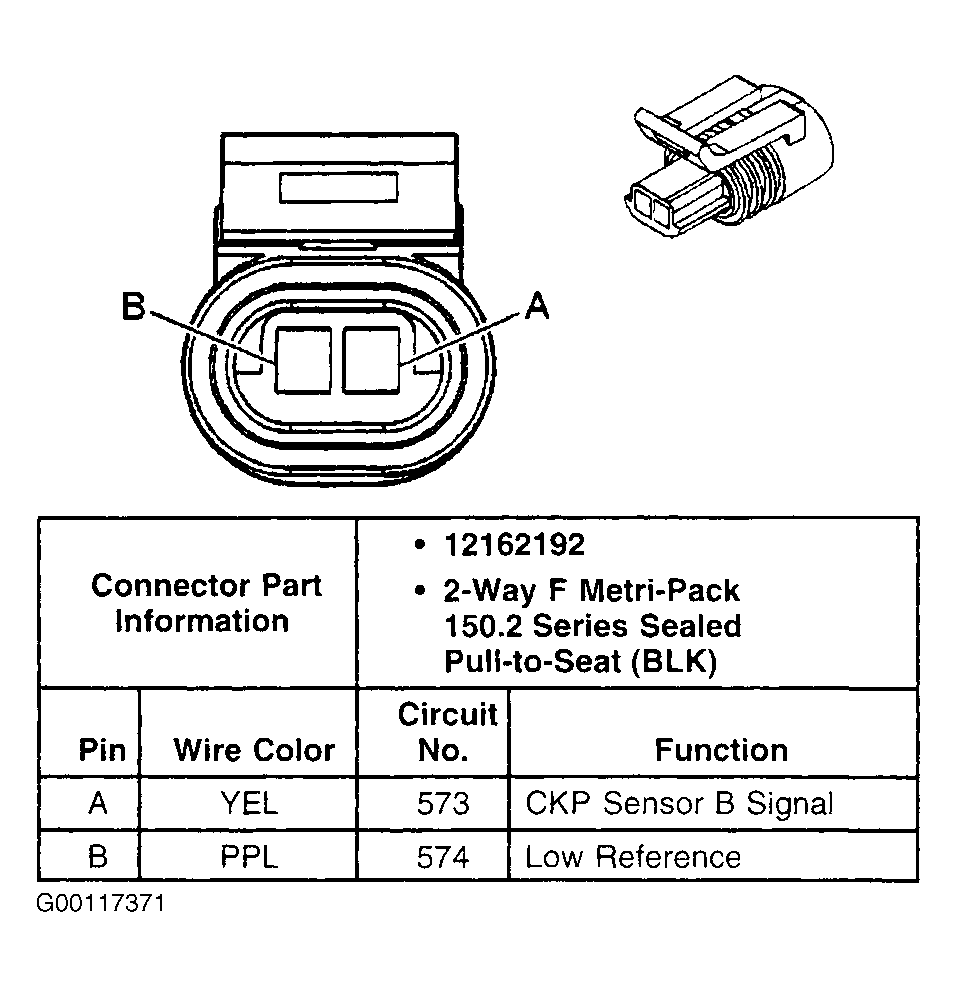

Fig 3: Identifying Crankshaft Position Sensor "B" Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

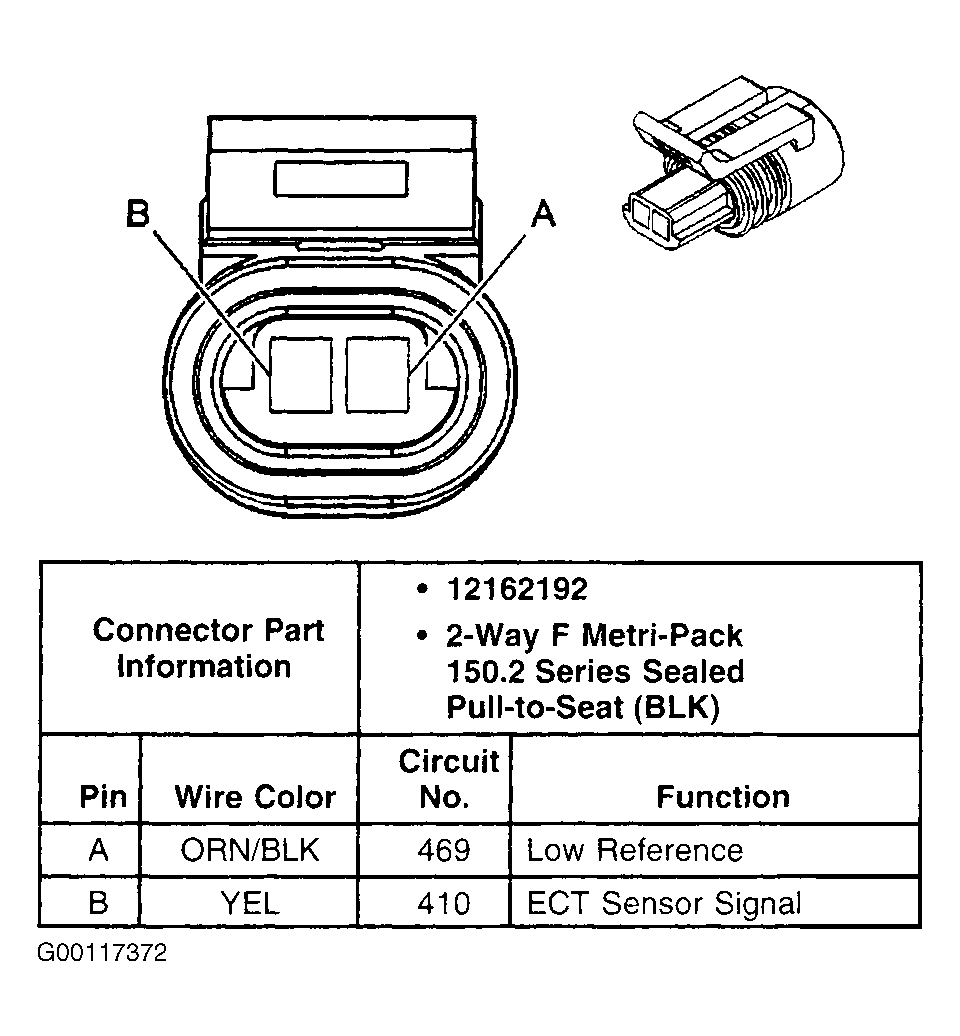

Fig 4: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

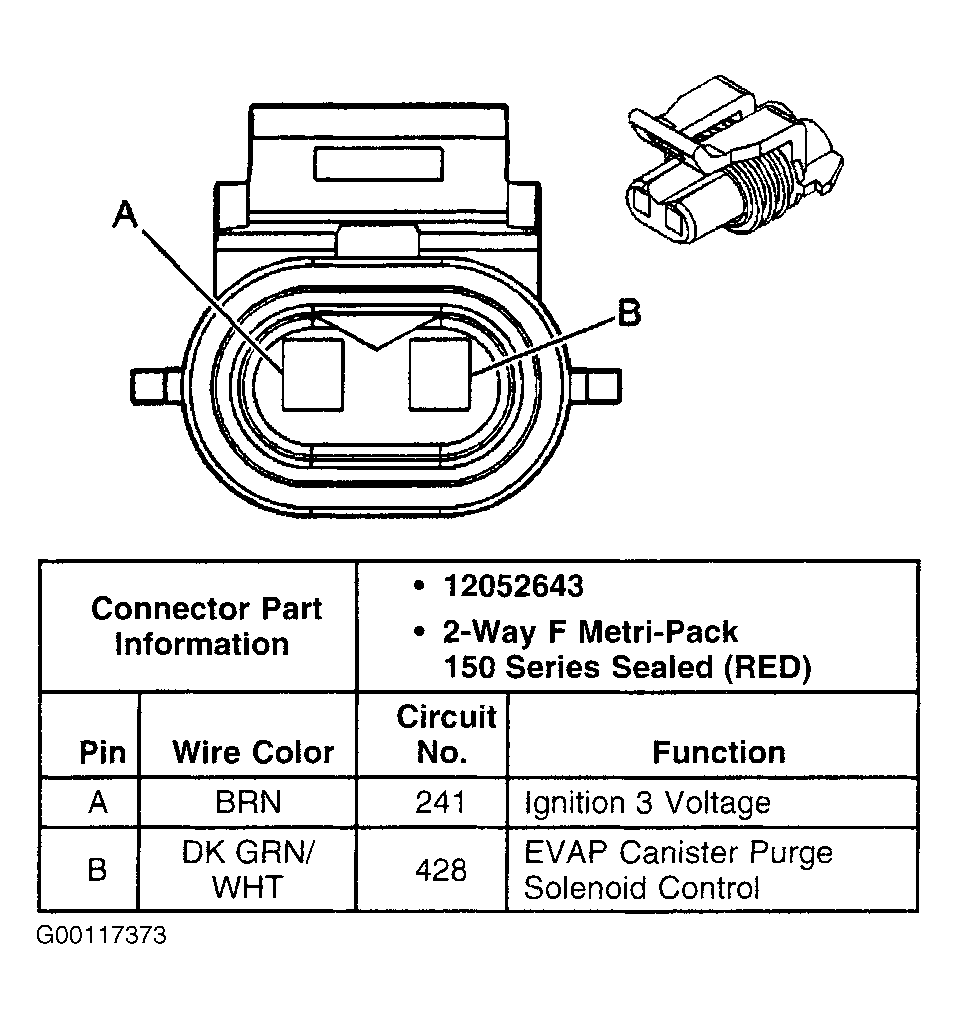

Fig 5: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

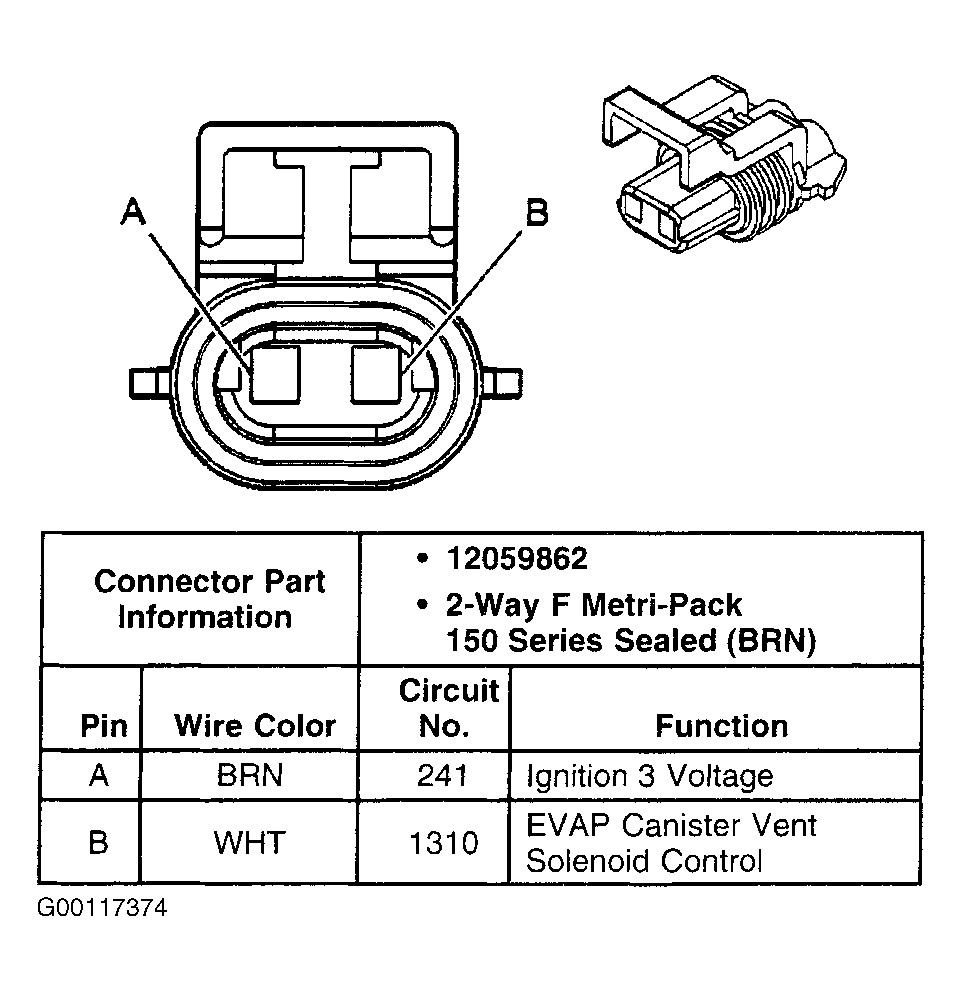

Fig 6: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

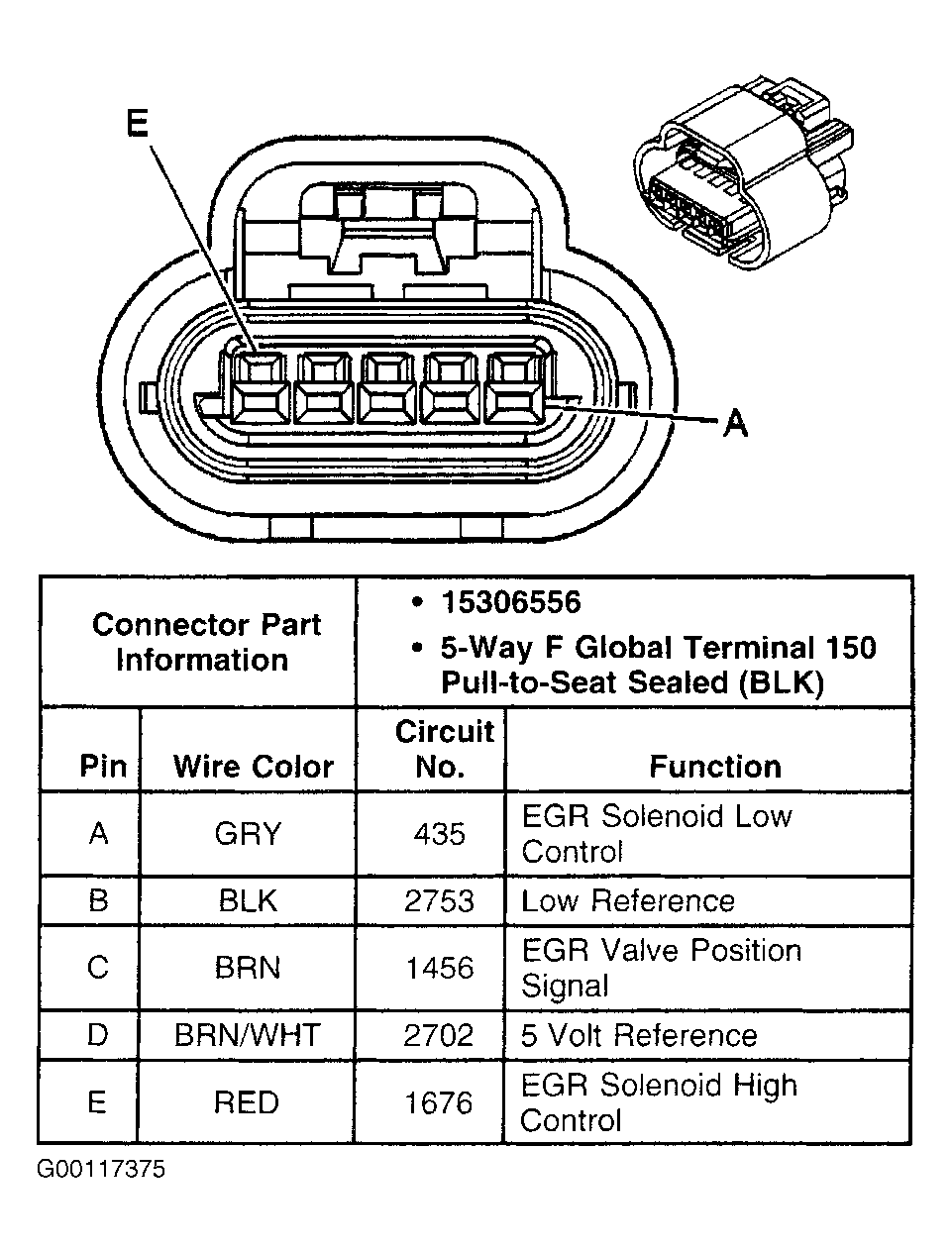

Fig 7: Identifying EGR Valve Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

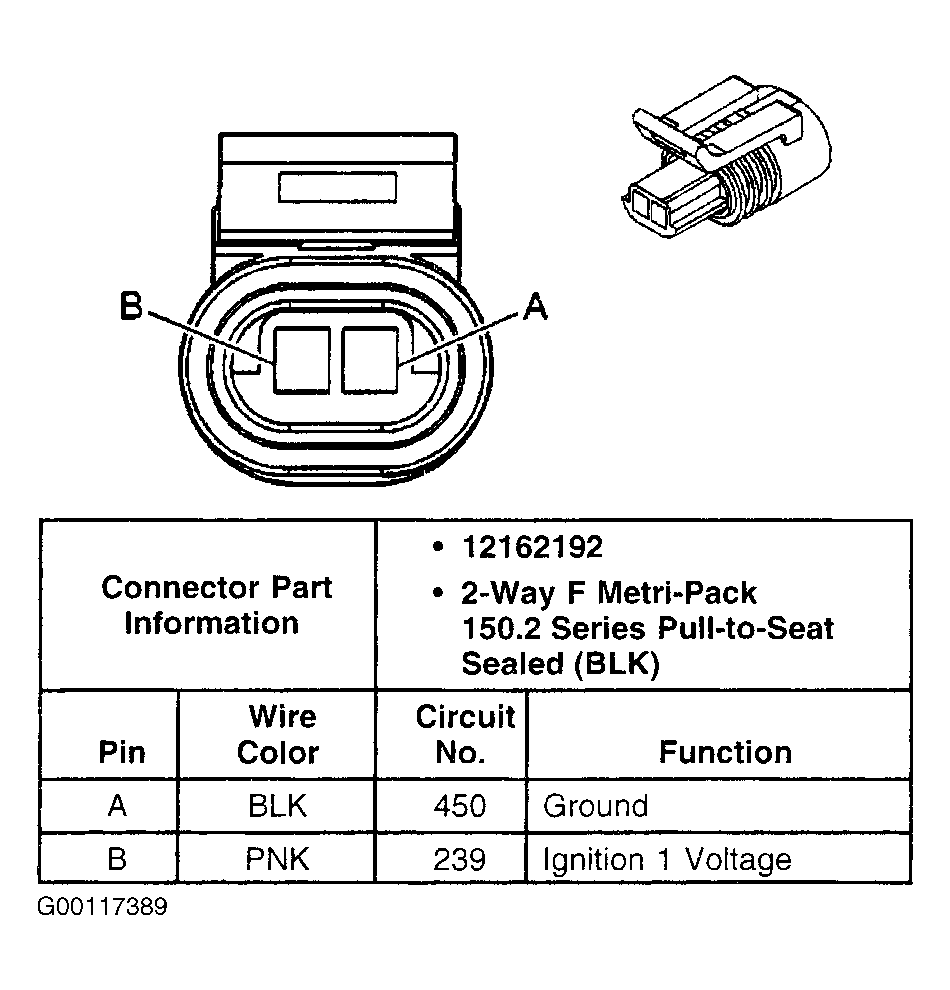

Fig 8: Identifying Fuel Injector No. 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

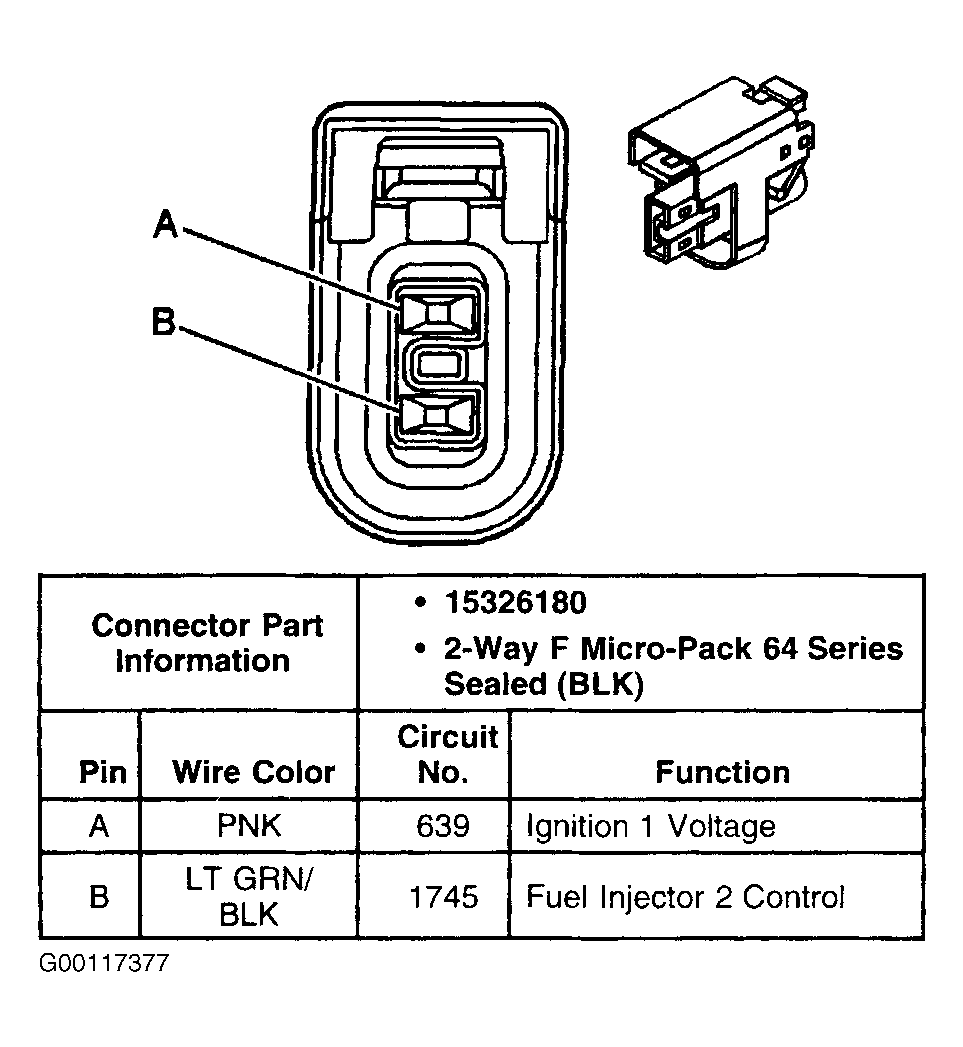

Fig 9: Identifying Fuel Injector No. 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Fuel Injector No. 3 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

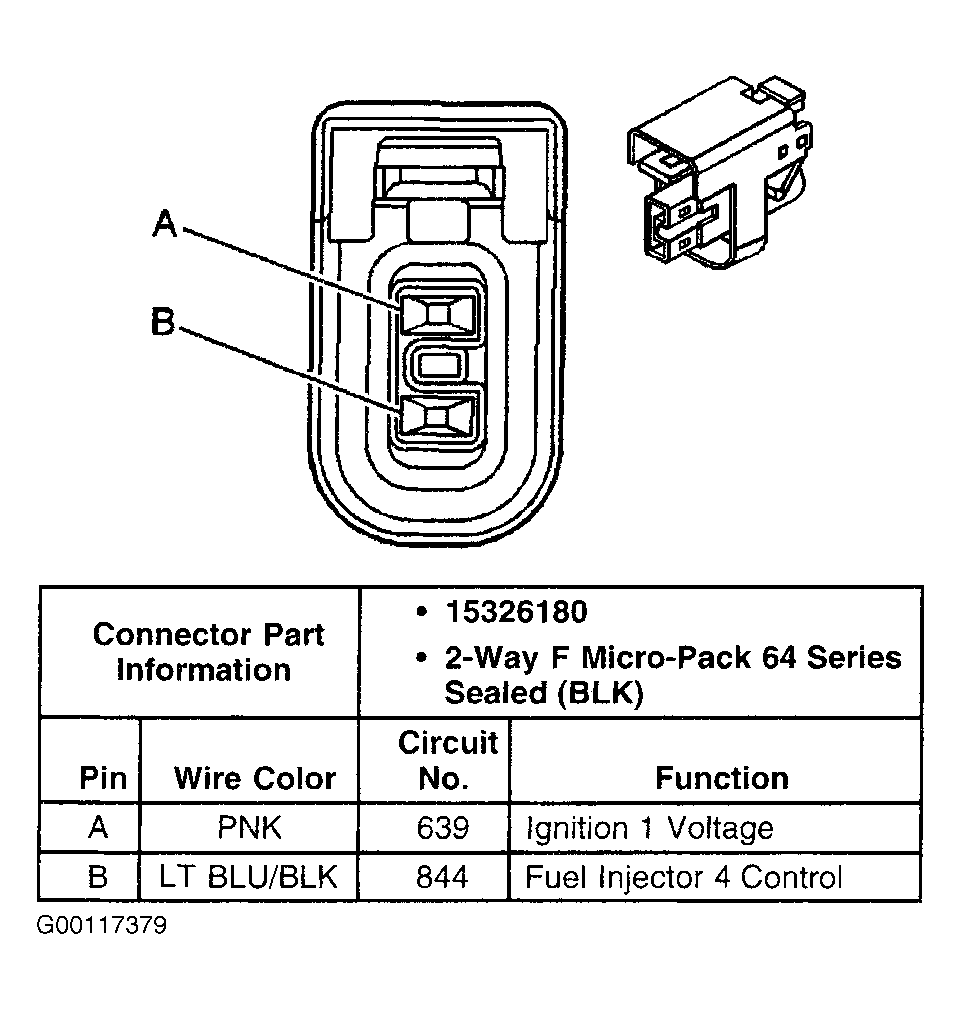

Fig 11: Identifying Fuel Injector No. 4 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Fuel Injector No. 5 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Fuel Injector No. 6 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

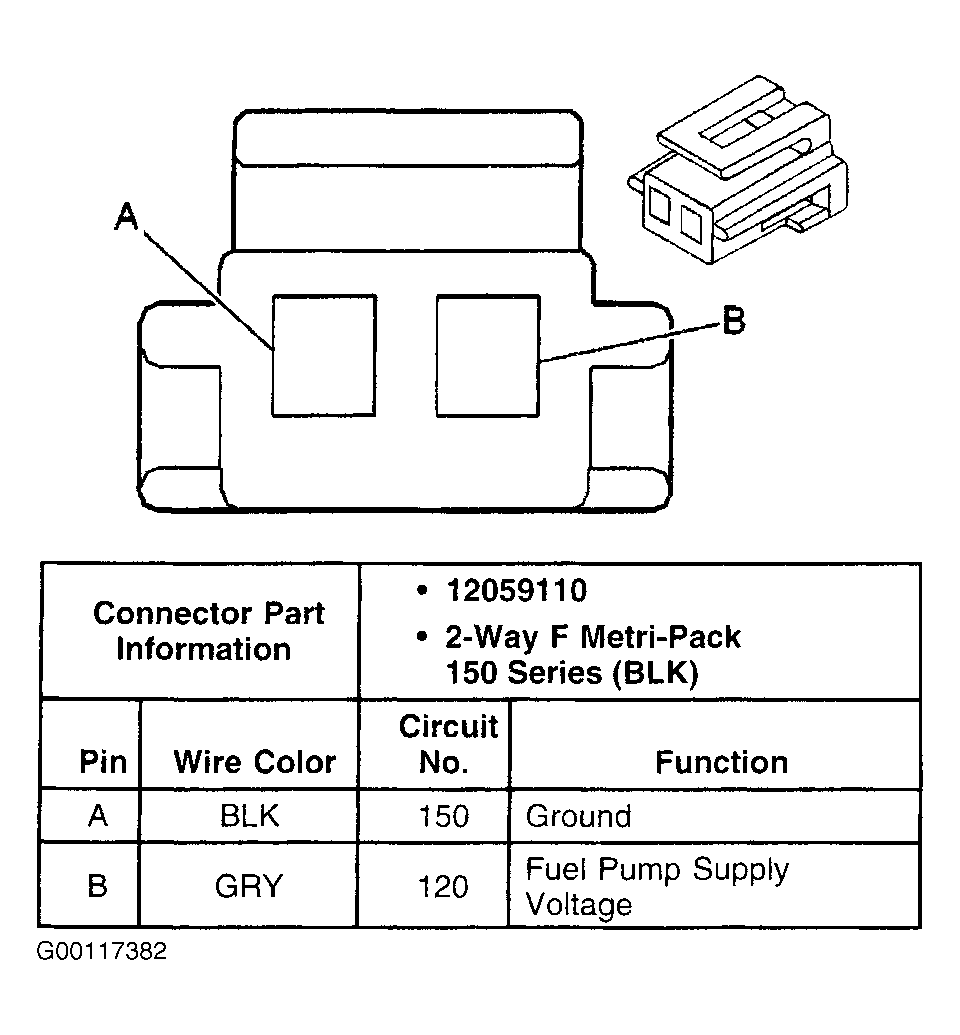

Fig 14: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

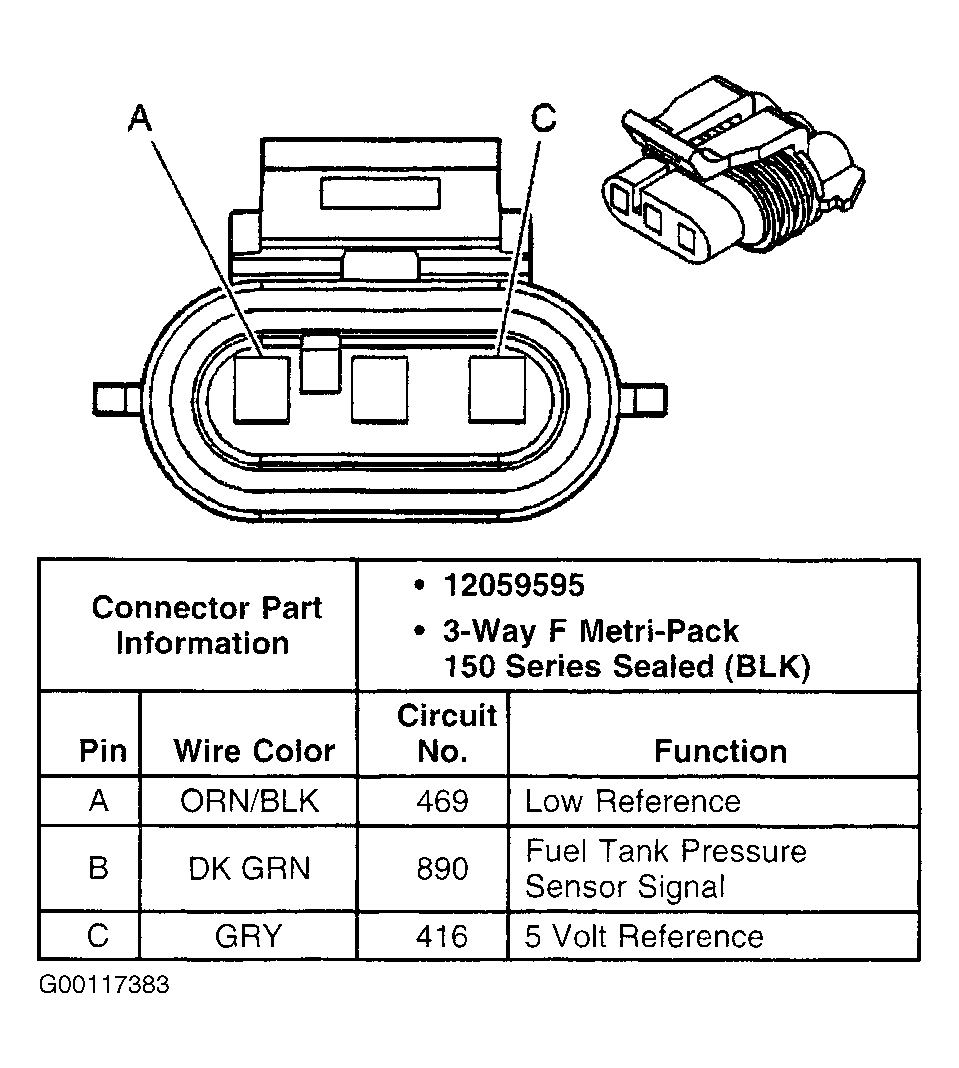

Fig 15: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

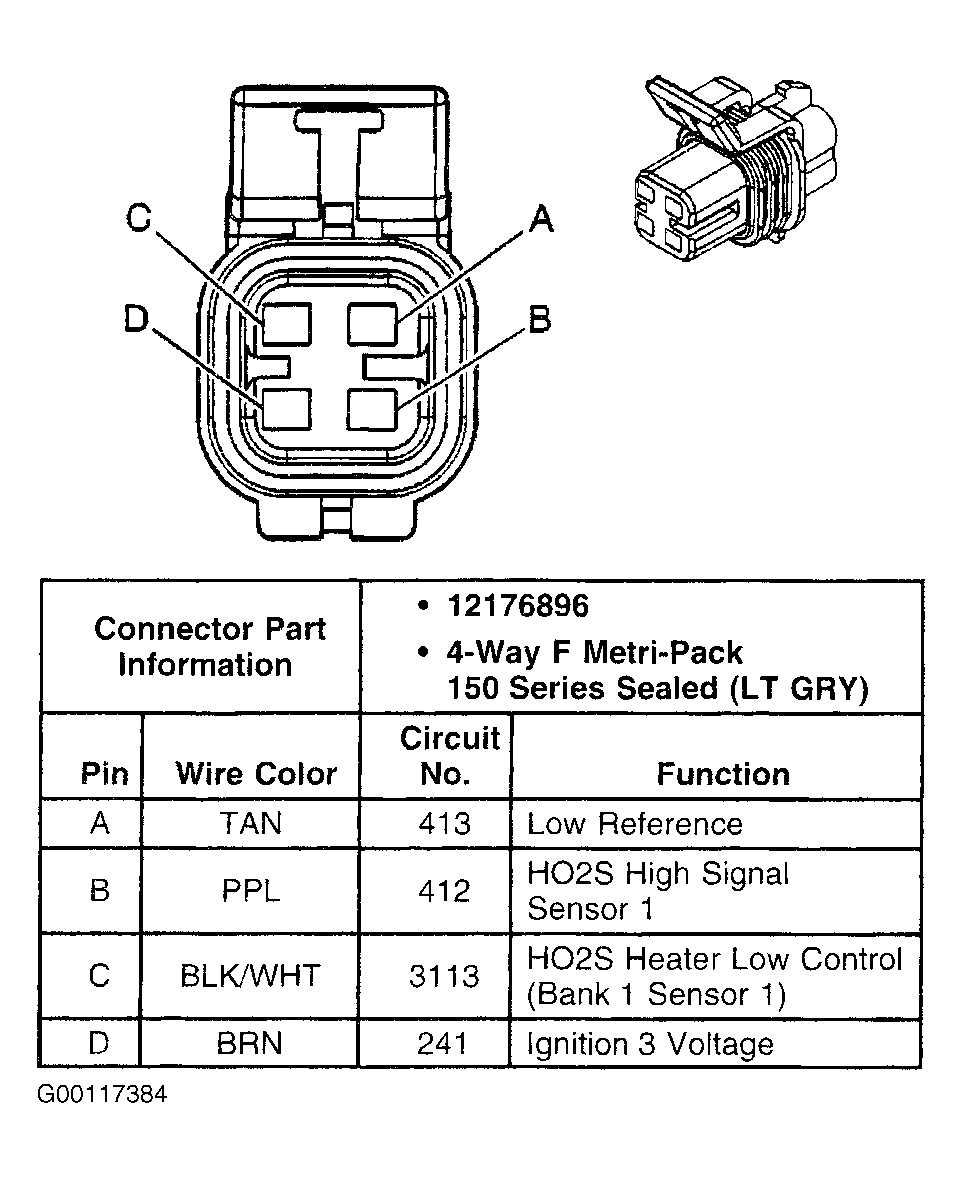

Fig 16: Identifying HO2S 1 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

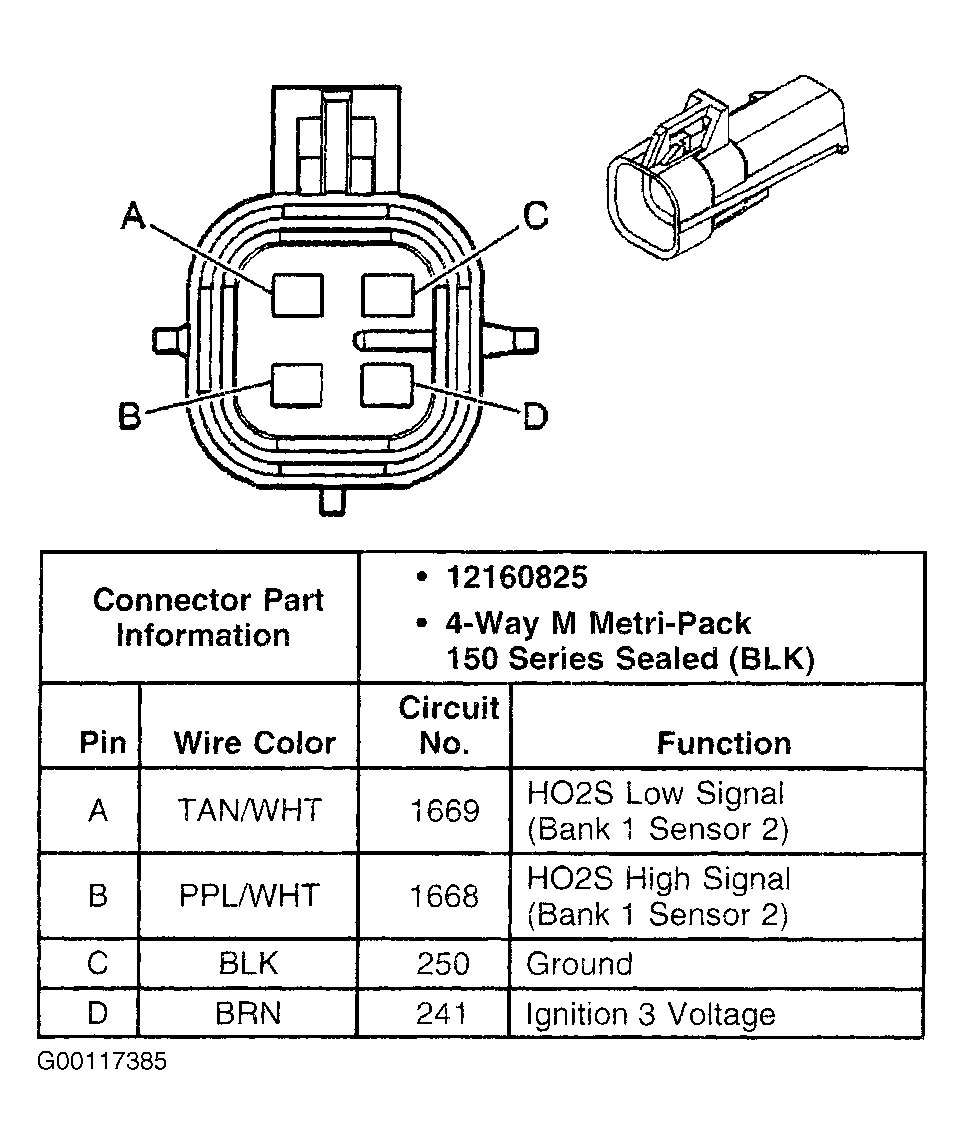

Fig 17: Identifying HO2S 2 Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

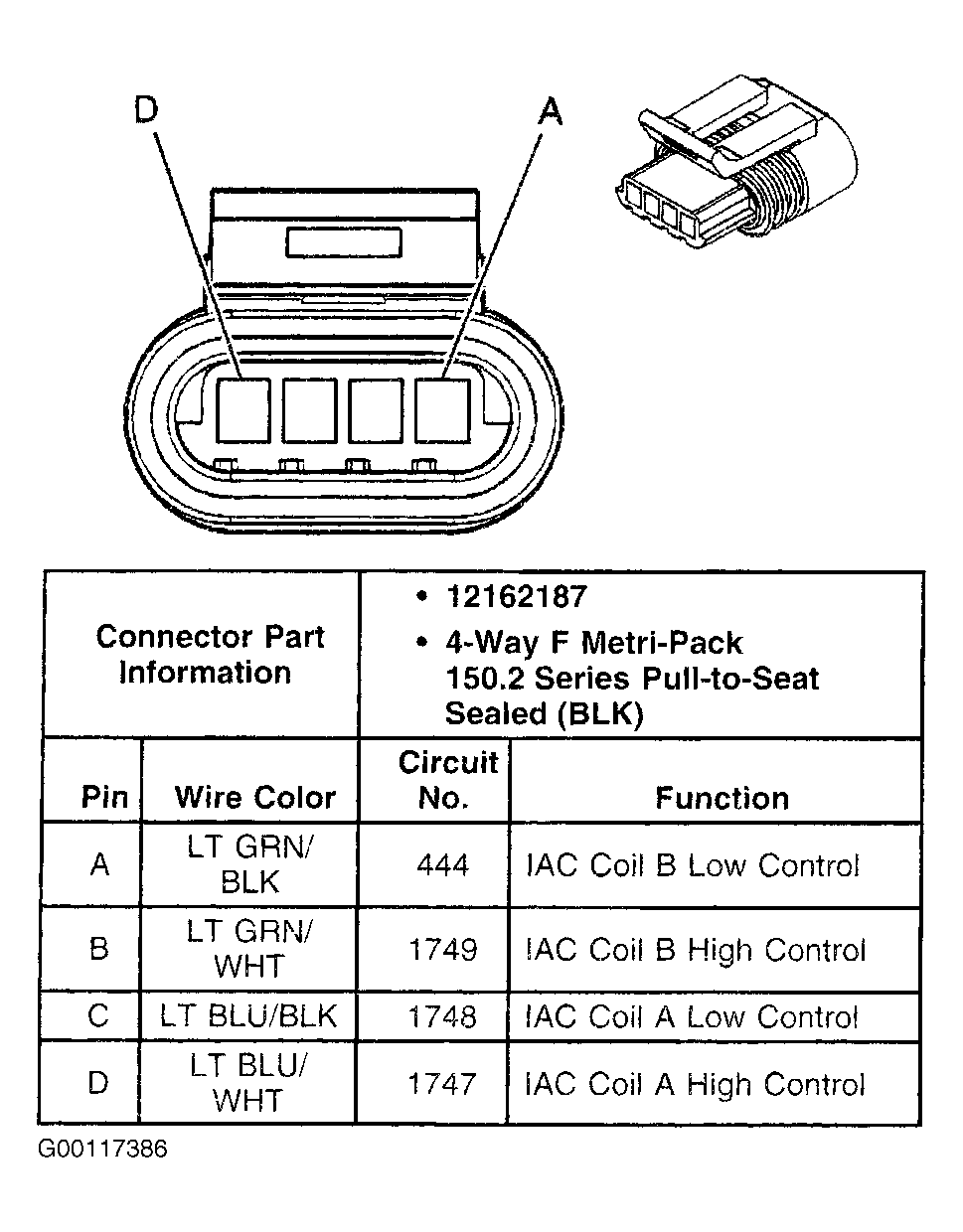

Fig 18: Identifying Idle Air Control Valve Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

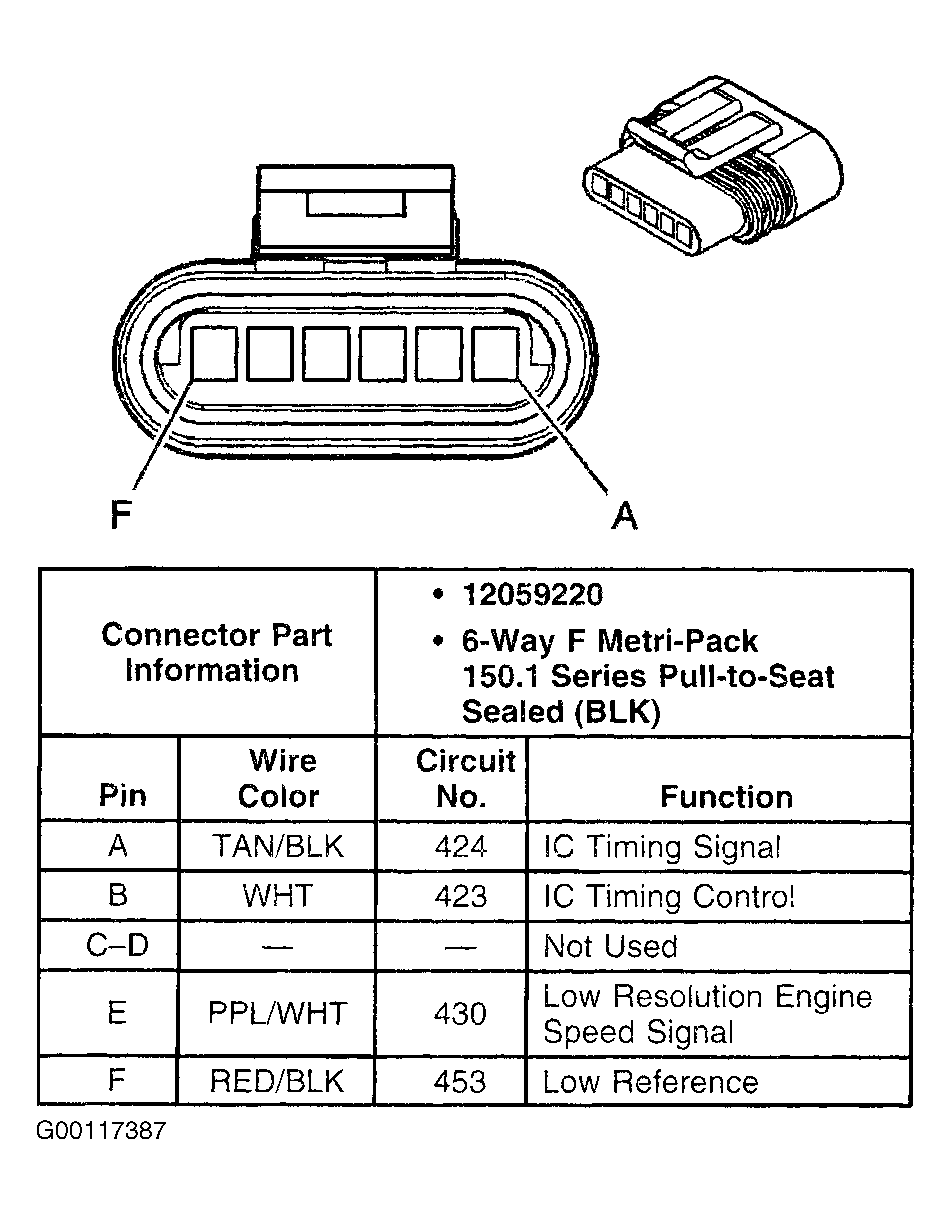

Fig 19: Identifying Ignition Control Module Harness Connector C1 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Ignition Control Module Harness Connector C2 Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 21: Identifying Ignition Control Module Harness Connector C3 Terminals
Courtesy of GENERAL MOTORS CORP.

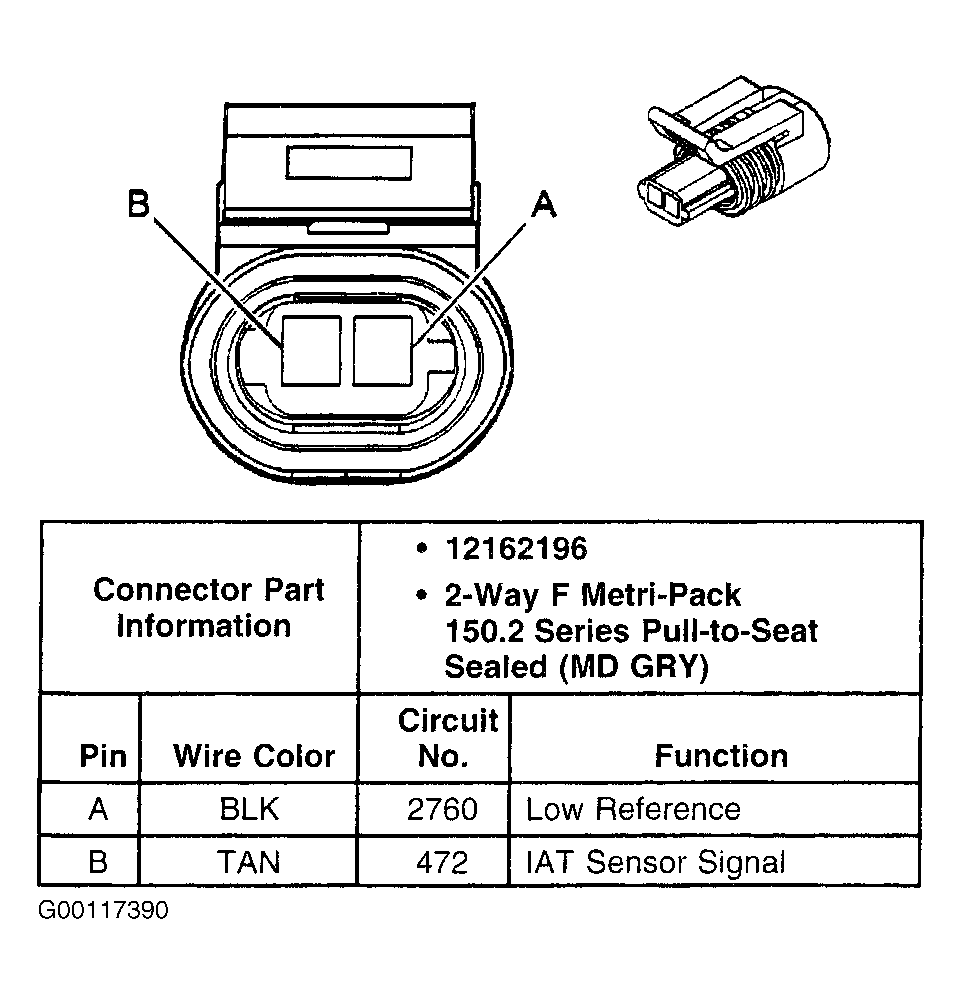

Fig 22: Identifying Intake Air Temperature Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

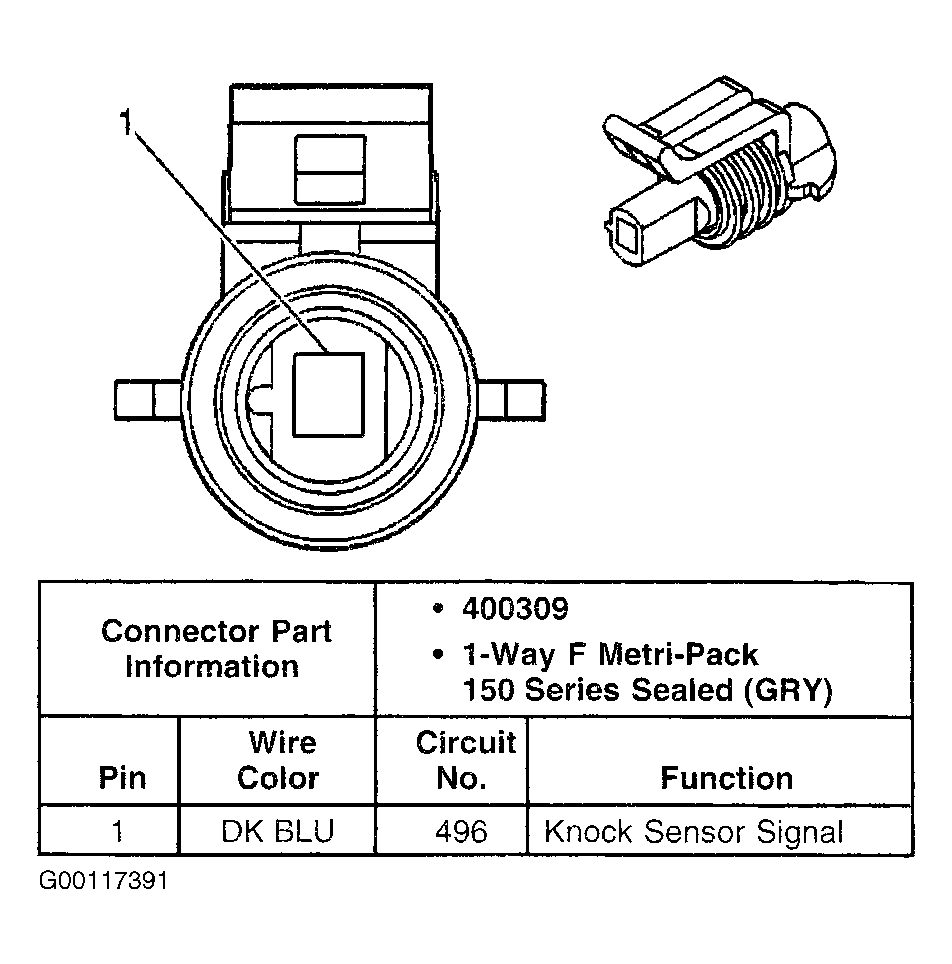

Fig 23: Identifying Knock Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

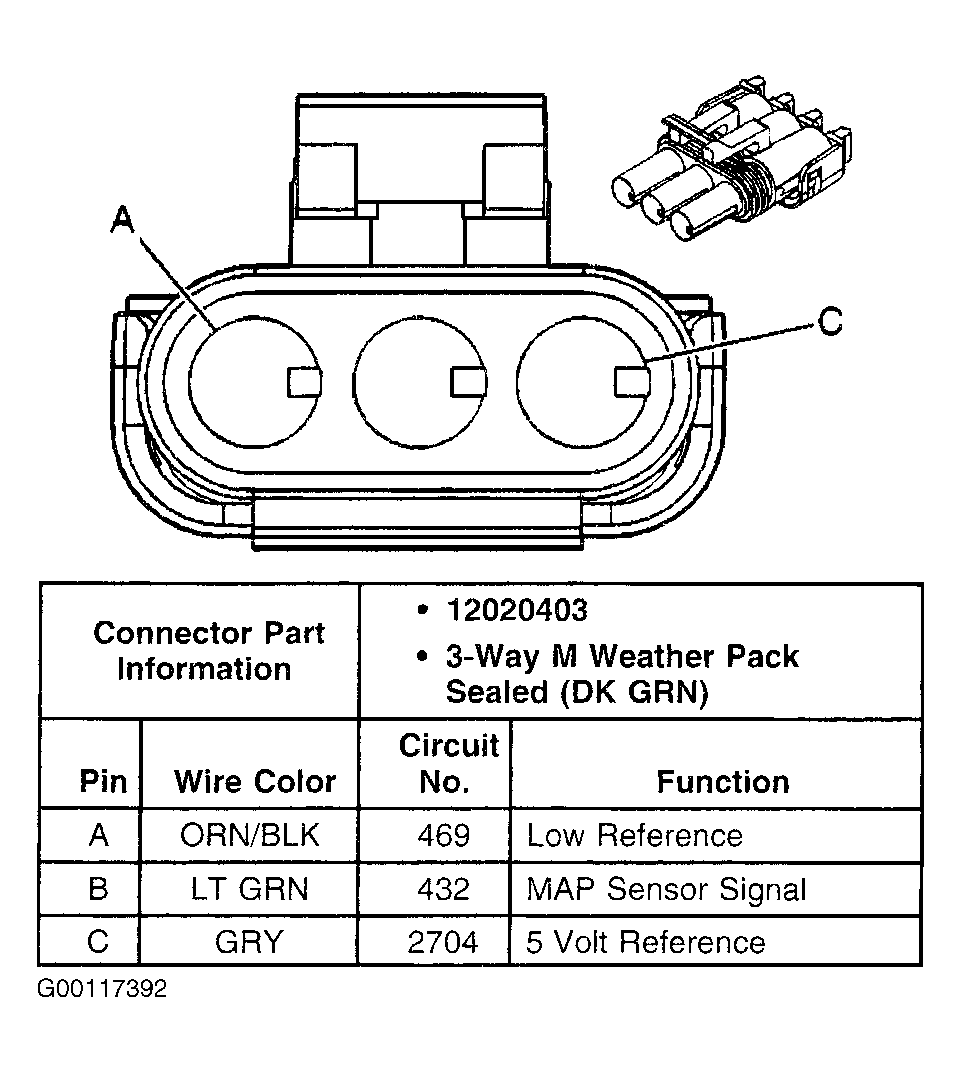

Fig 24: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

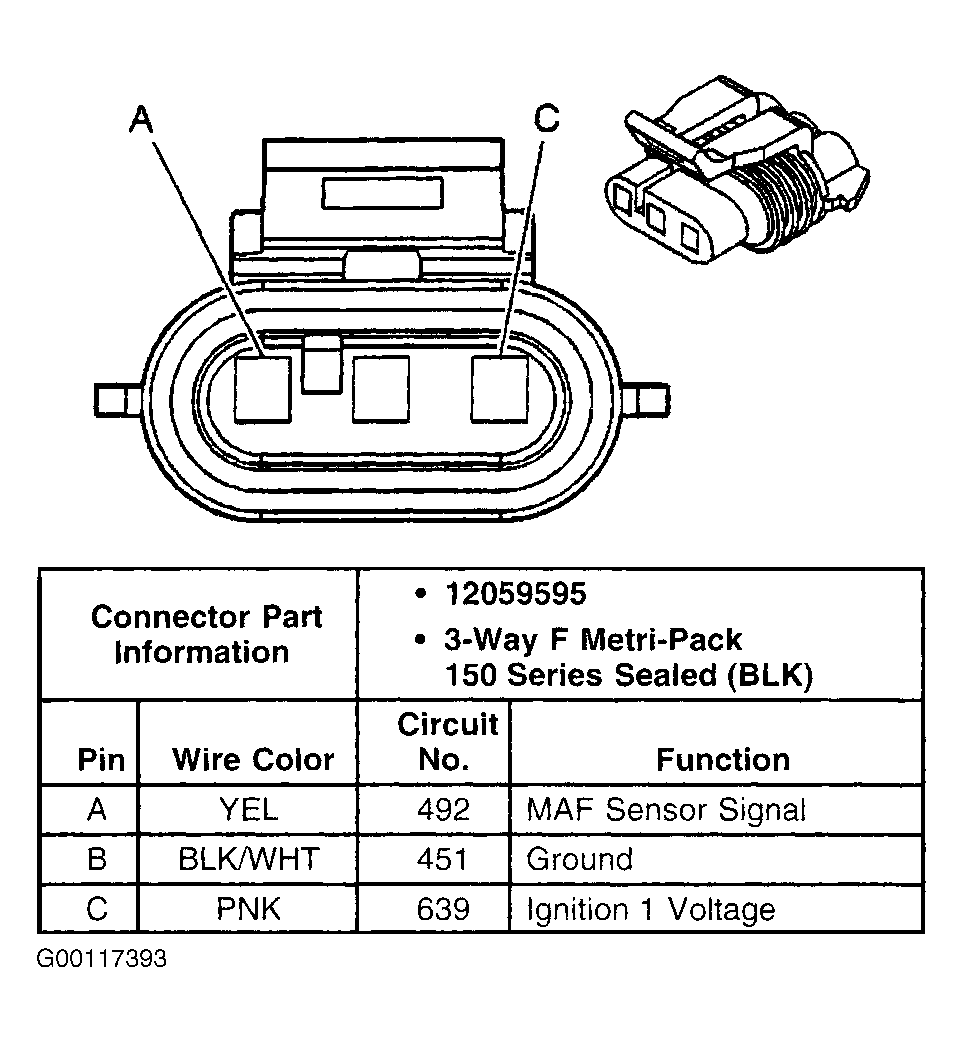

Fig 25: Identifying Mass Airflow Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.

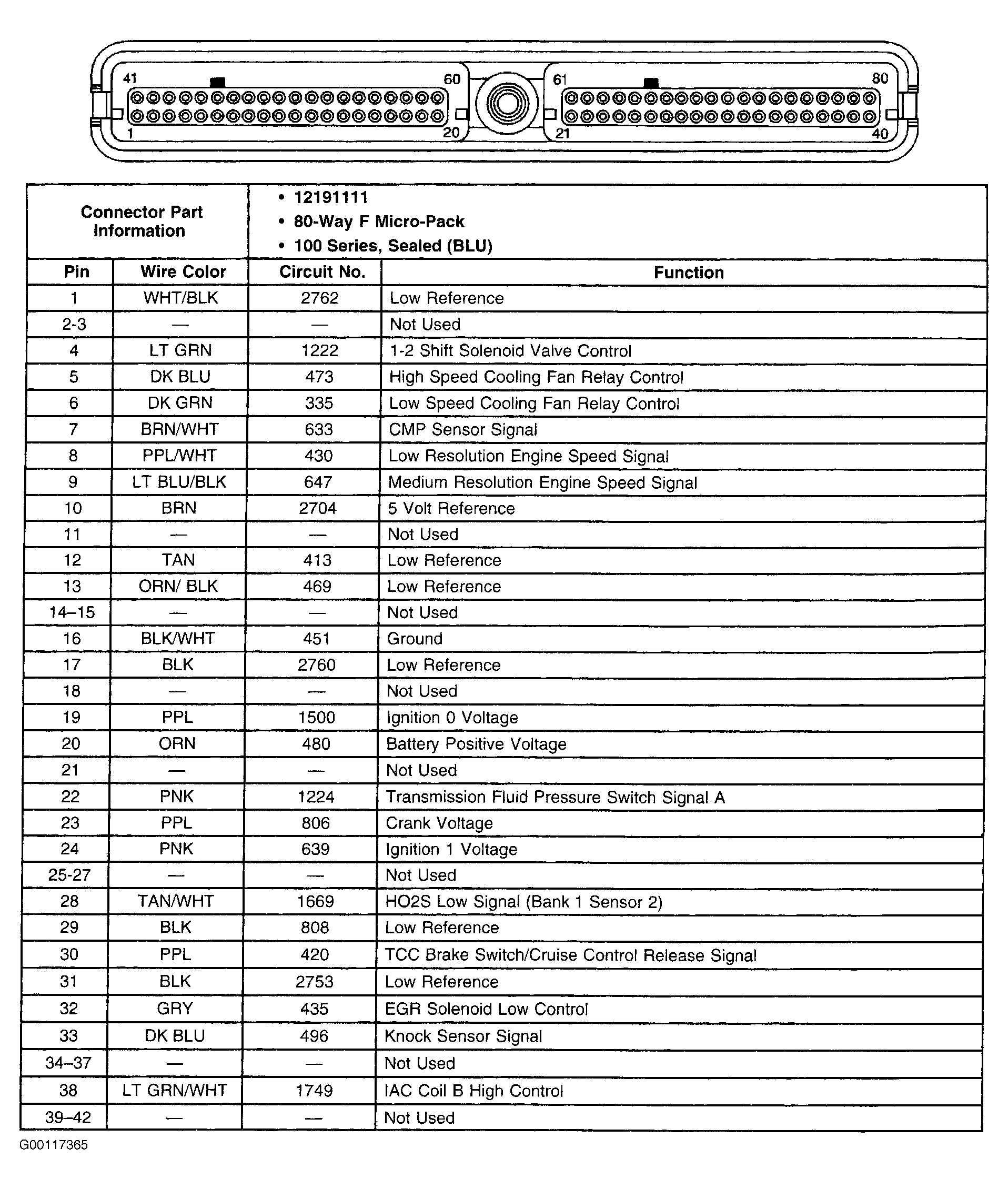

Fig 26: Identifying PCM Harness Connector C1 Terminals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

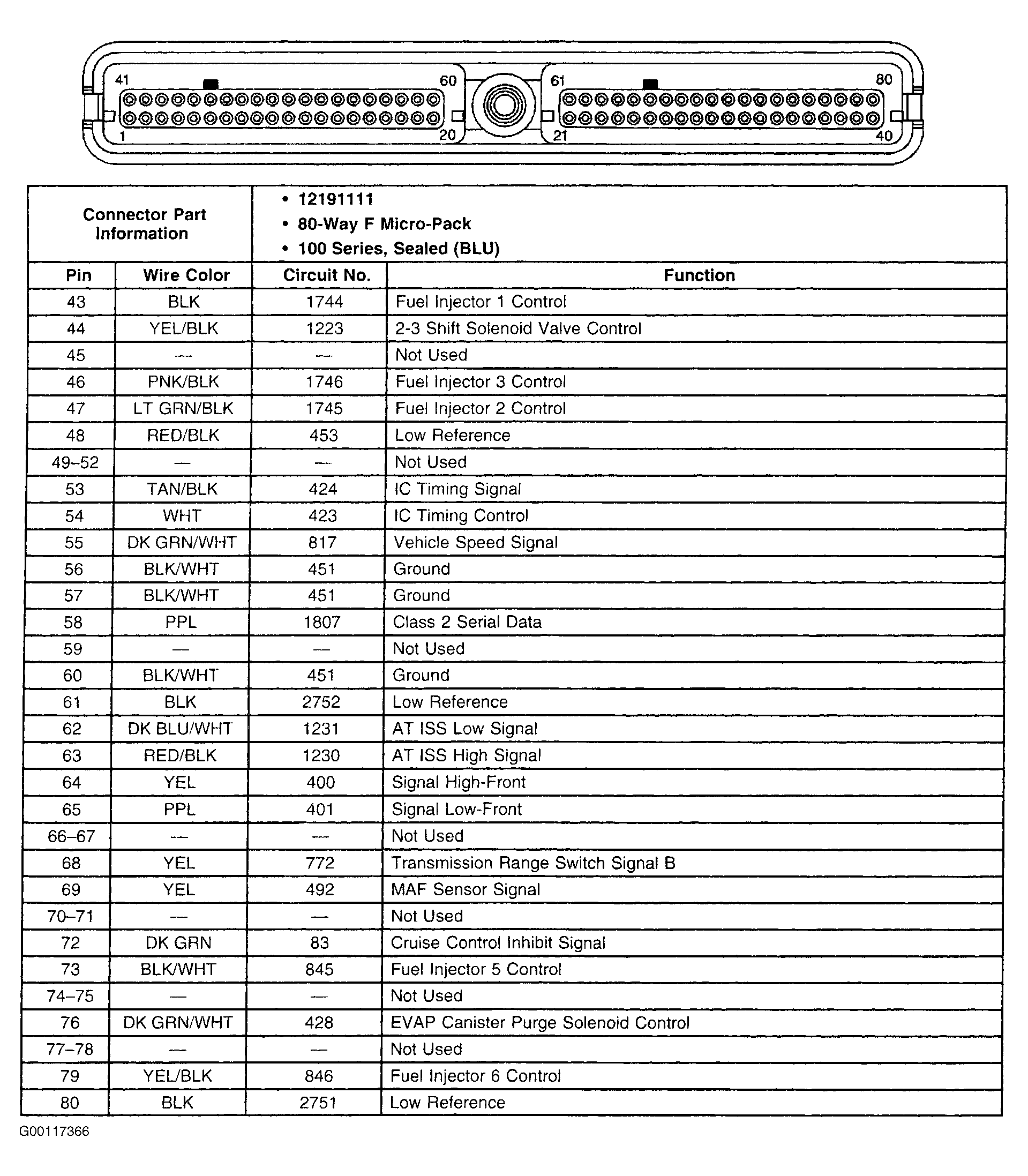

Fig 27: Identifying PCM Harness Connector C1 Terminals (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

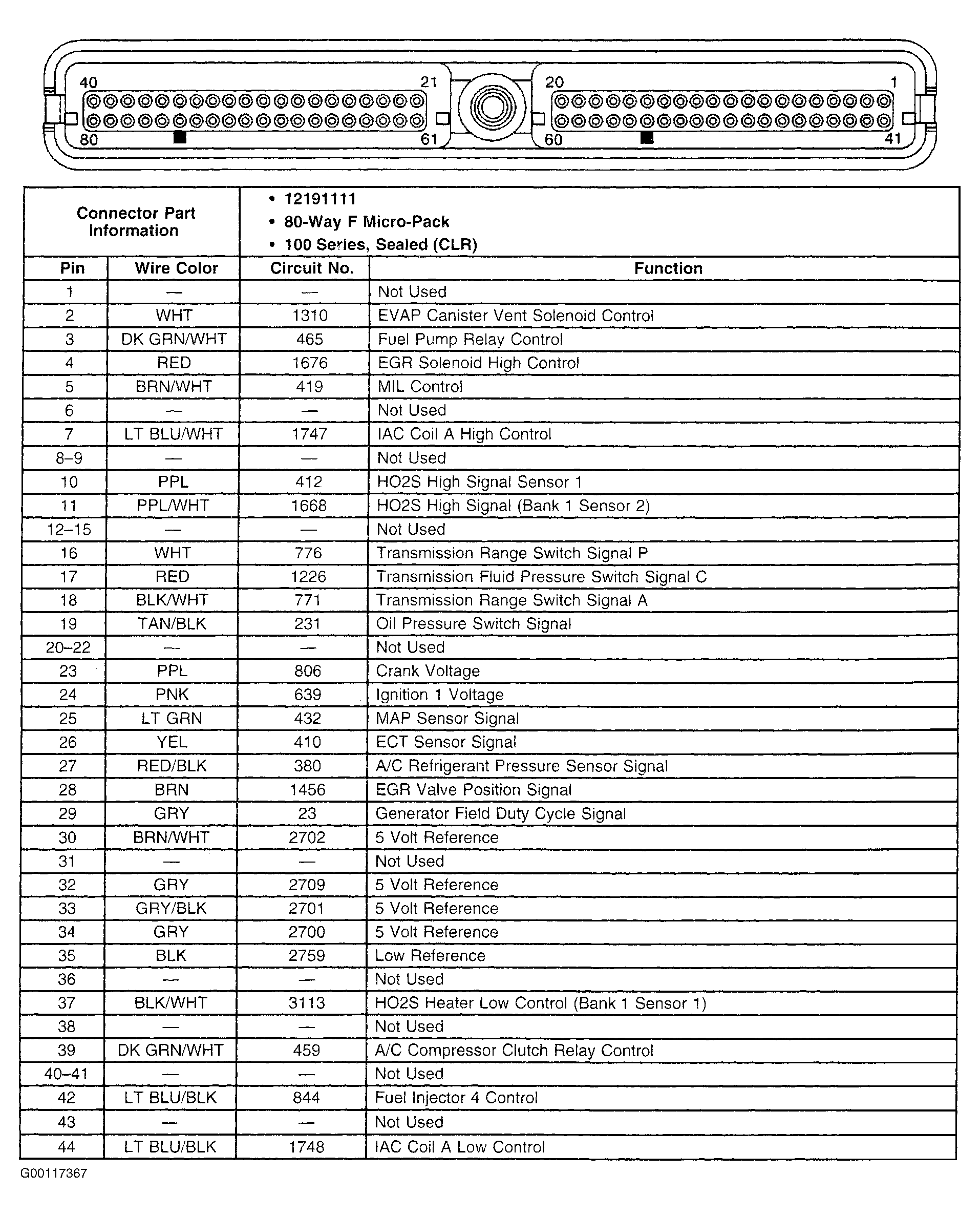

Fig 28: Identifying PCM Harness Connector C2 Terminals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

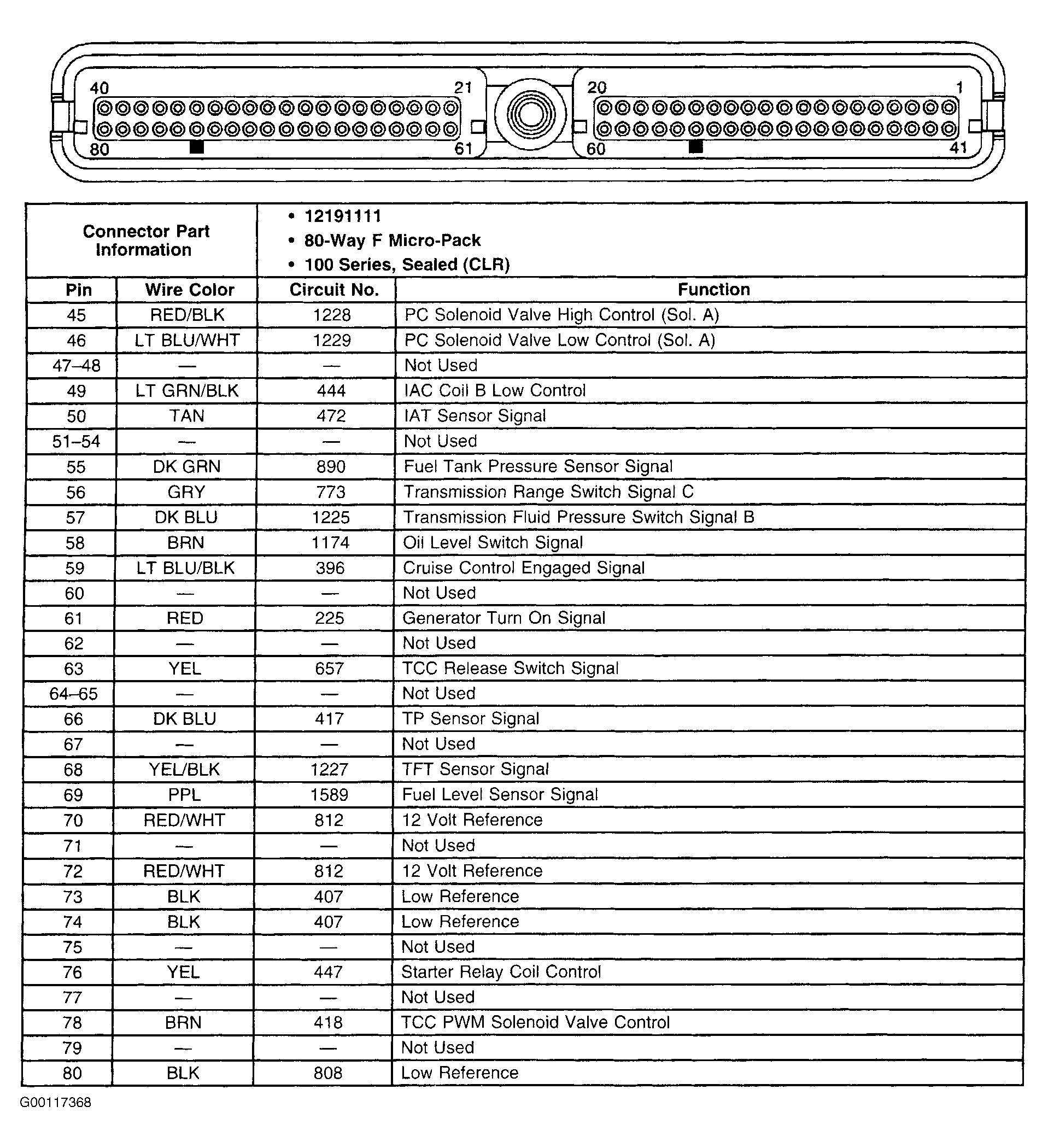

Fig 29: Identifying PCM Harness Connector C2 Terminals (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

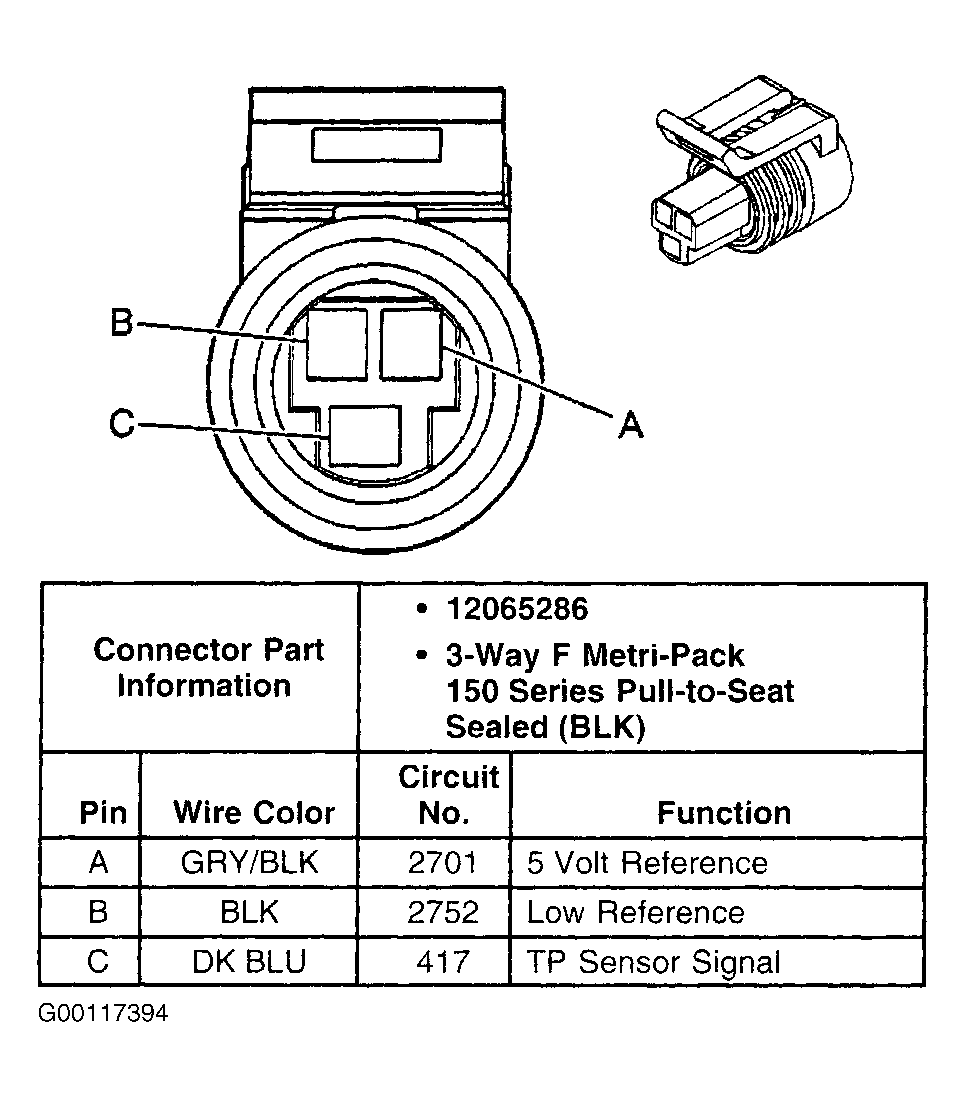

Fig 30: Identifying Throttle Position Sensor Harness Connector Terminals
Courtesy of GENERAL MOTORS CORP.
