Keyless Entry Component Views

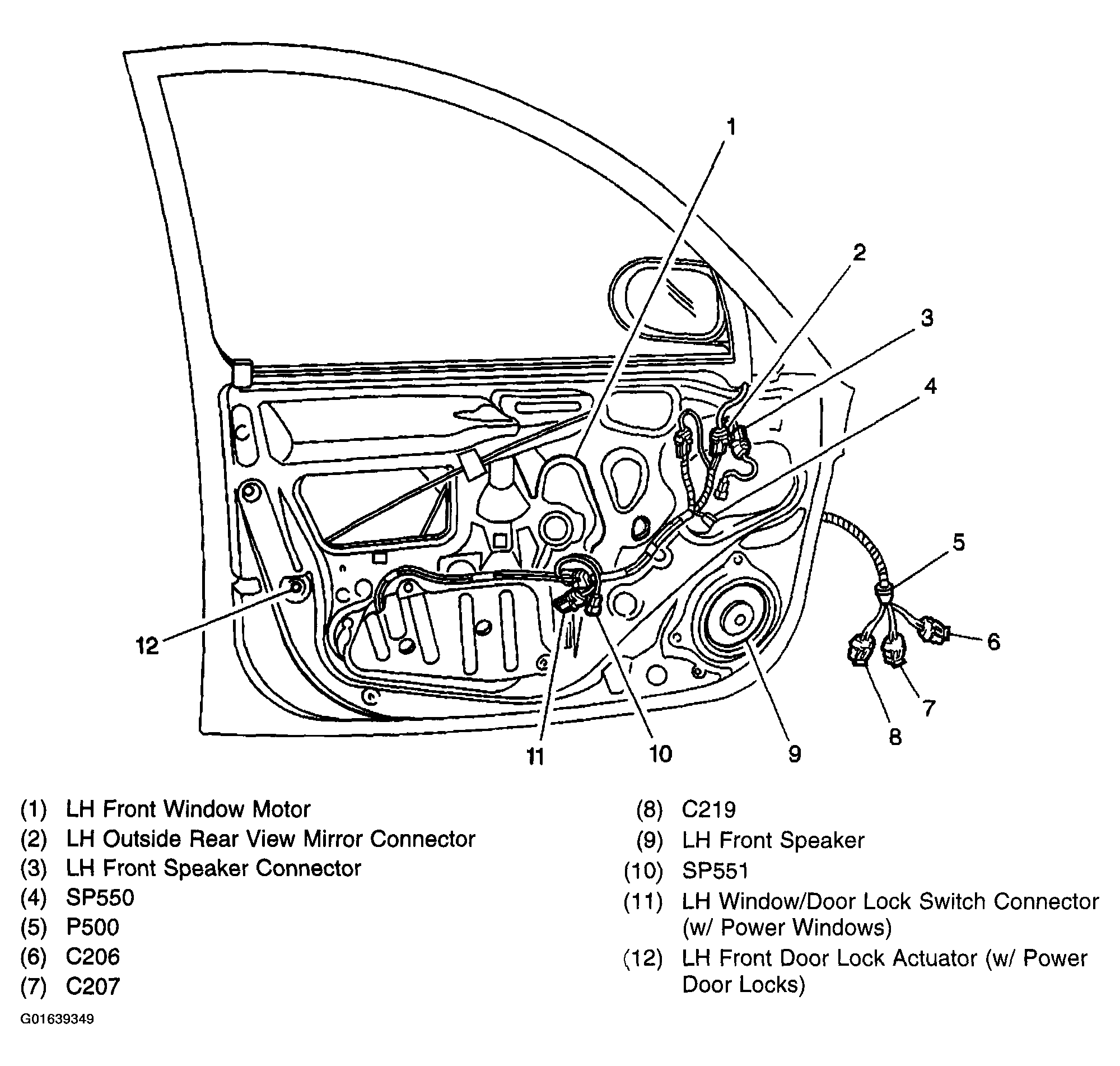

Fig 1: LH Front Door View
G01639349Courtesy of GENERAL MOTORS CORP.

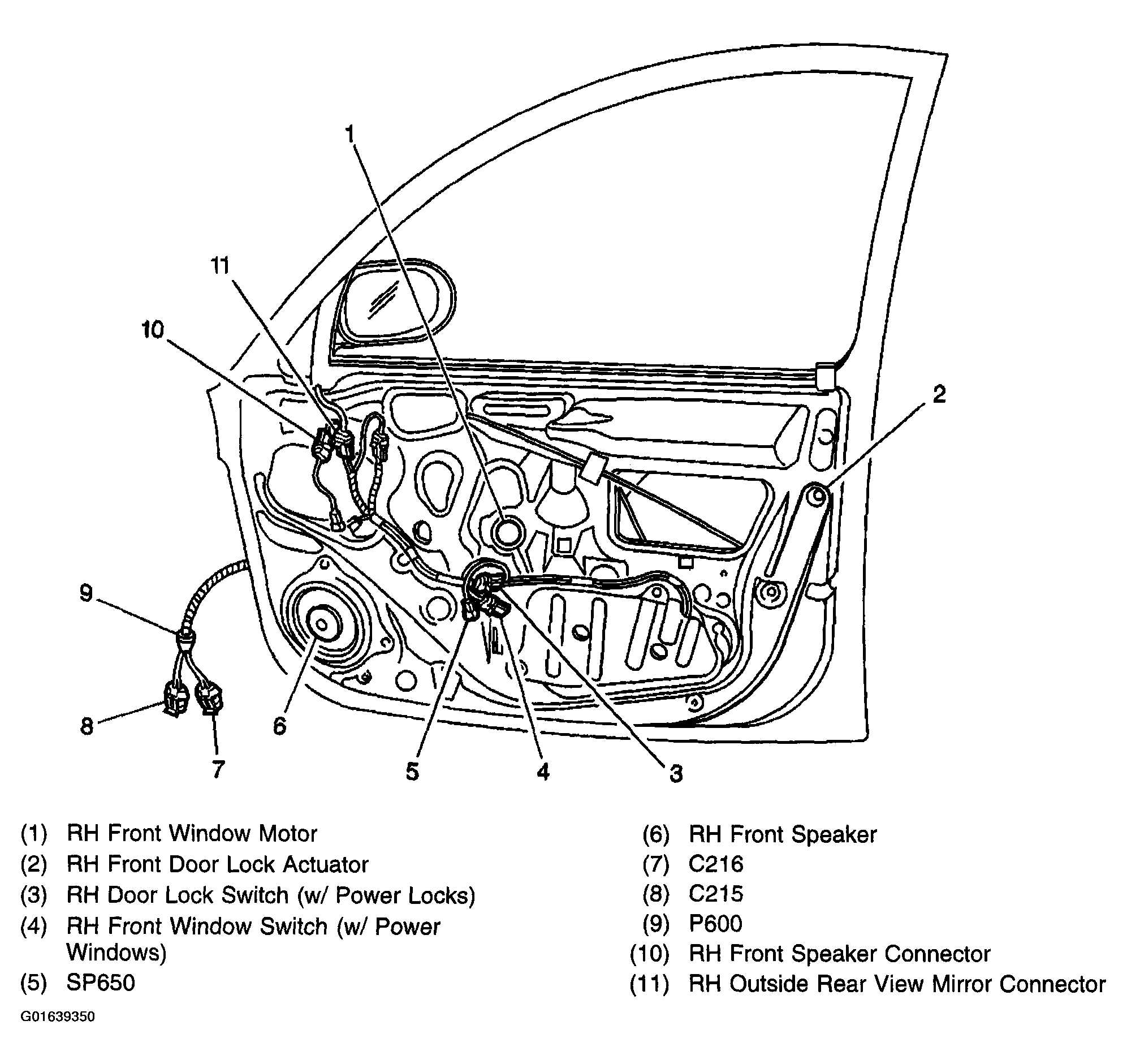

Fig 2: RH Front Door View
G01639350Courtesy of GENERAL MOTORS CORP.

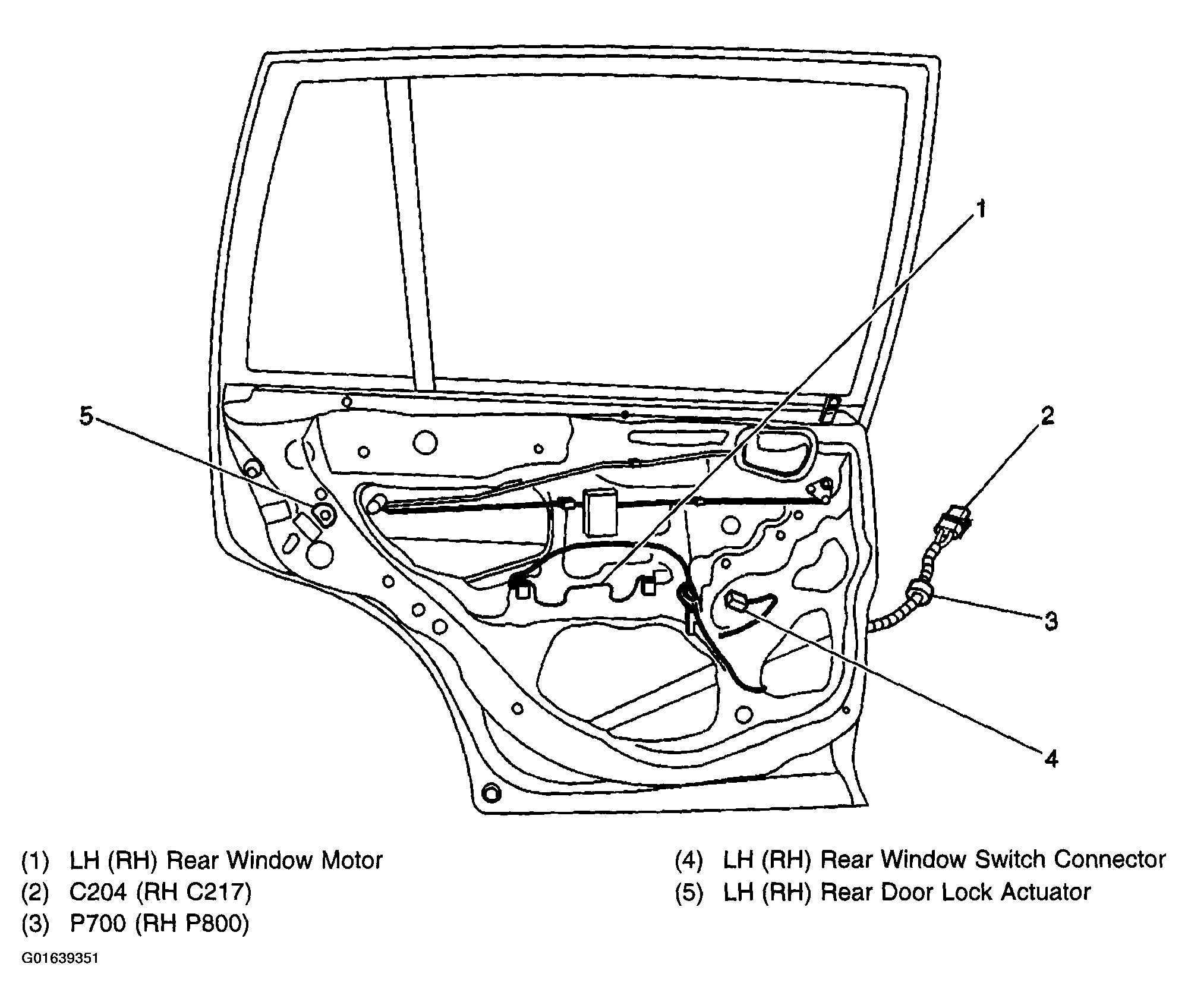

Fig 3: LH Rear Door View (RH Similar)
G01639351Courtesy of GENERAL MOTORS CORP.
