Installation Procedure

  1. Install a stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Install the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  3. Install the rearview mirror. Refer to Rearview Mirror Replacement .
  4. Install the windshield side garnish molding (1) to the vehicle. Ensure that the plastic retainers are fully engaged.
  5. Remove the double layer of masking tape from around the perimeter of the painted surfaces and the interior trim.
  6. Close the door.

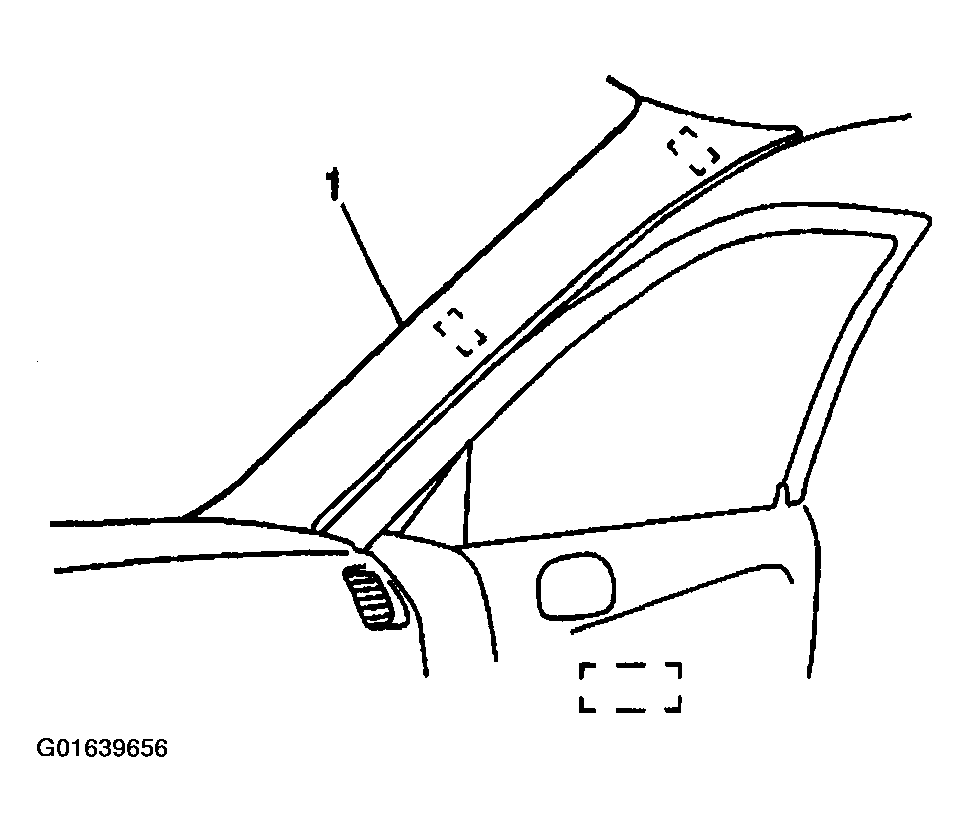

    Fig 1: Installing Windshield Side Garnish Molding
    G01639656Courtesy of GENERAL MOTORS CORP.
