Removal Procedure

  1. Remove the Instrument Cluster Assembly (1). Refer to INSTRUMENT PANEL CLUSTER .
  2. Remove the Lamp Driver Module (LDM) (2) from the printed circuit.

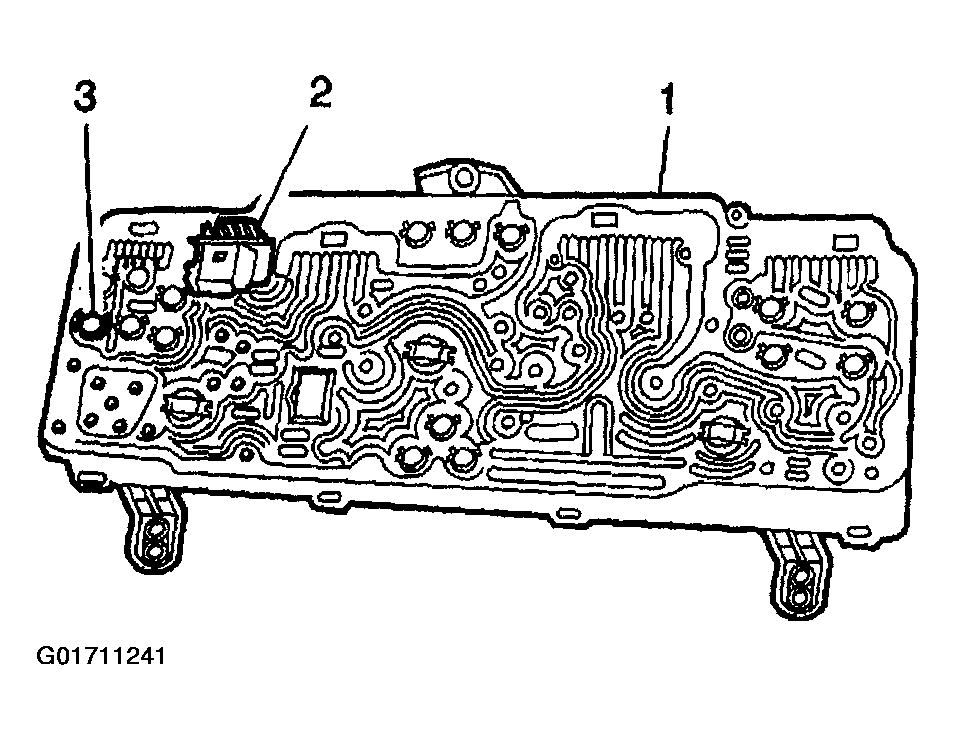

    Fig 1: Removing Lamp Driver Module
    G01711241Courtesy of GENERAL MOTORS CORP.
