Stator Test

  1. Using an ohmmeter, measure resistance between stator leads. Perform STEP 1 in figure. See Fig 1 . If resistance is more than 5 ohms for any measurement, replace stator.
  2. Using an ohmmeter, measure resistance between each stator lead and stator core. Perform STEP 2 in figure. See Fig 1 . If resistance is less than 5 ohms, replace stator.

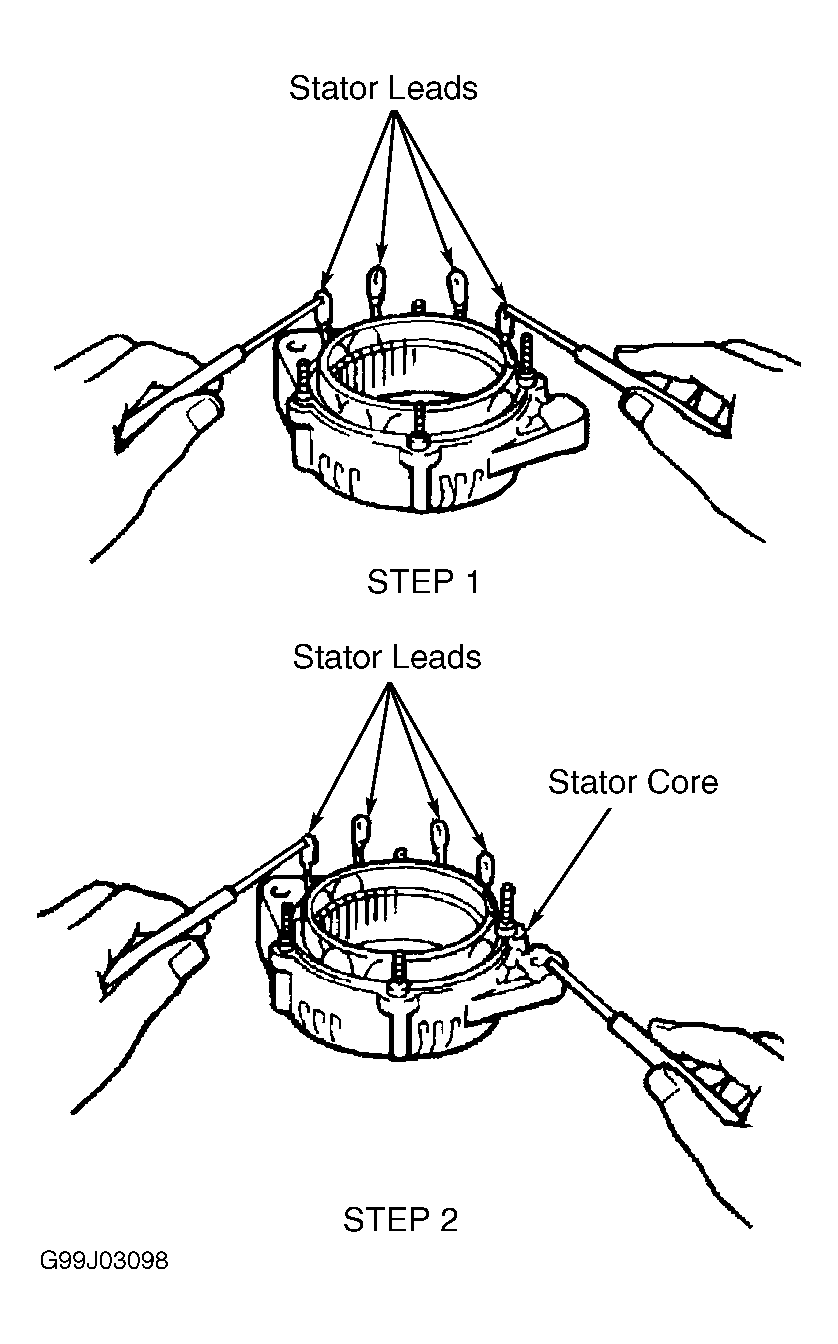

Fig 1: Testing Generator Stator
G99J03098Courtesy of GENERAL MOTORS CORP.
