Connector Identification

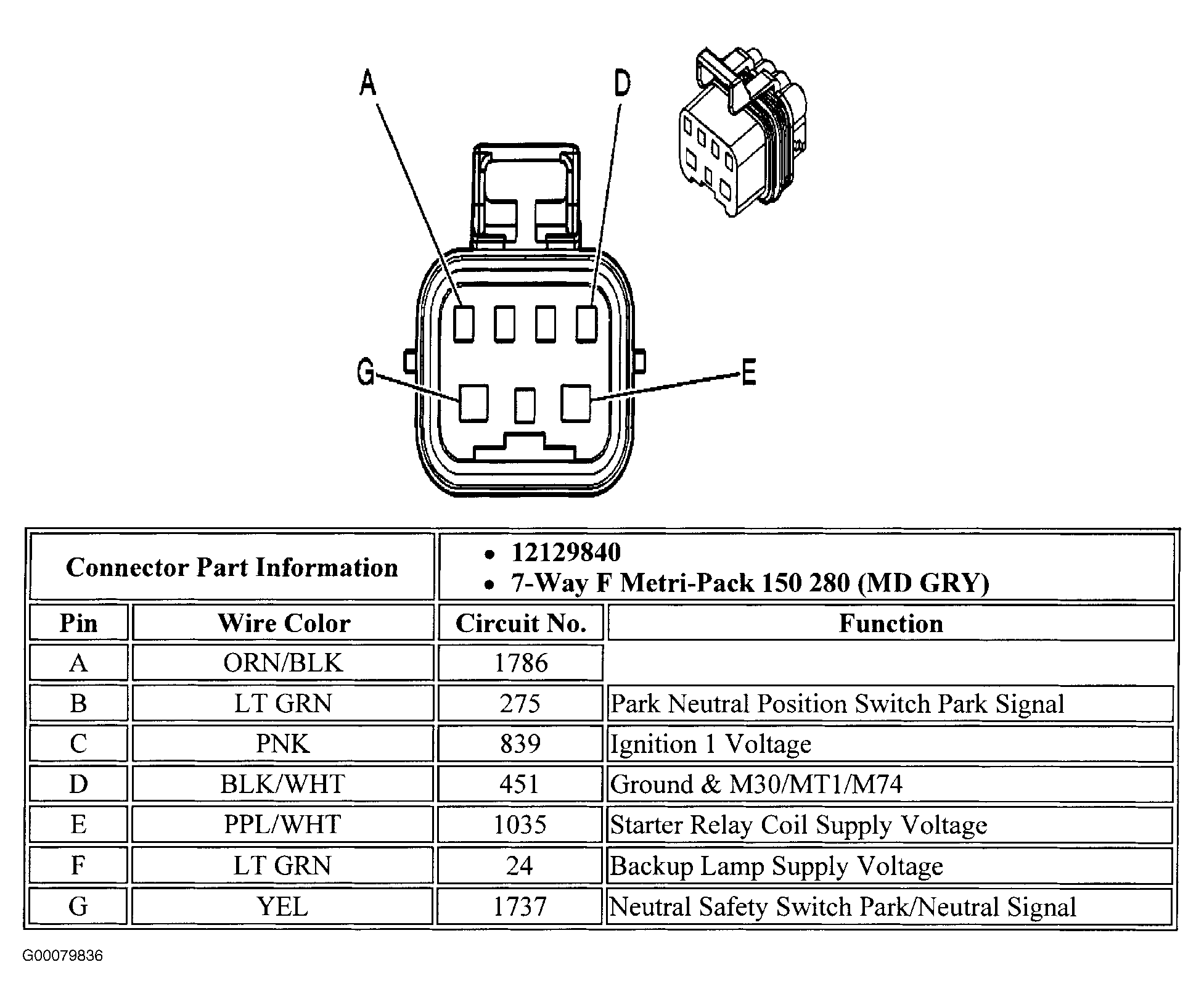

Fig 1: Identifying PNP Switch Harness Connector Terminals
G00079836Courtesy of GENERAL MOTORS CORP.

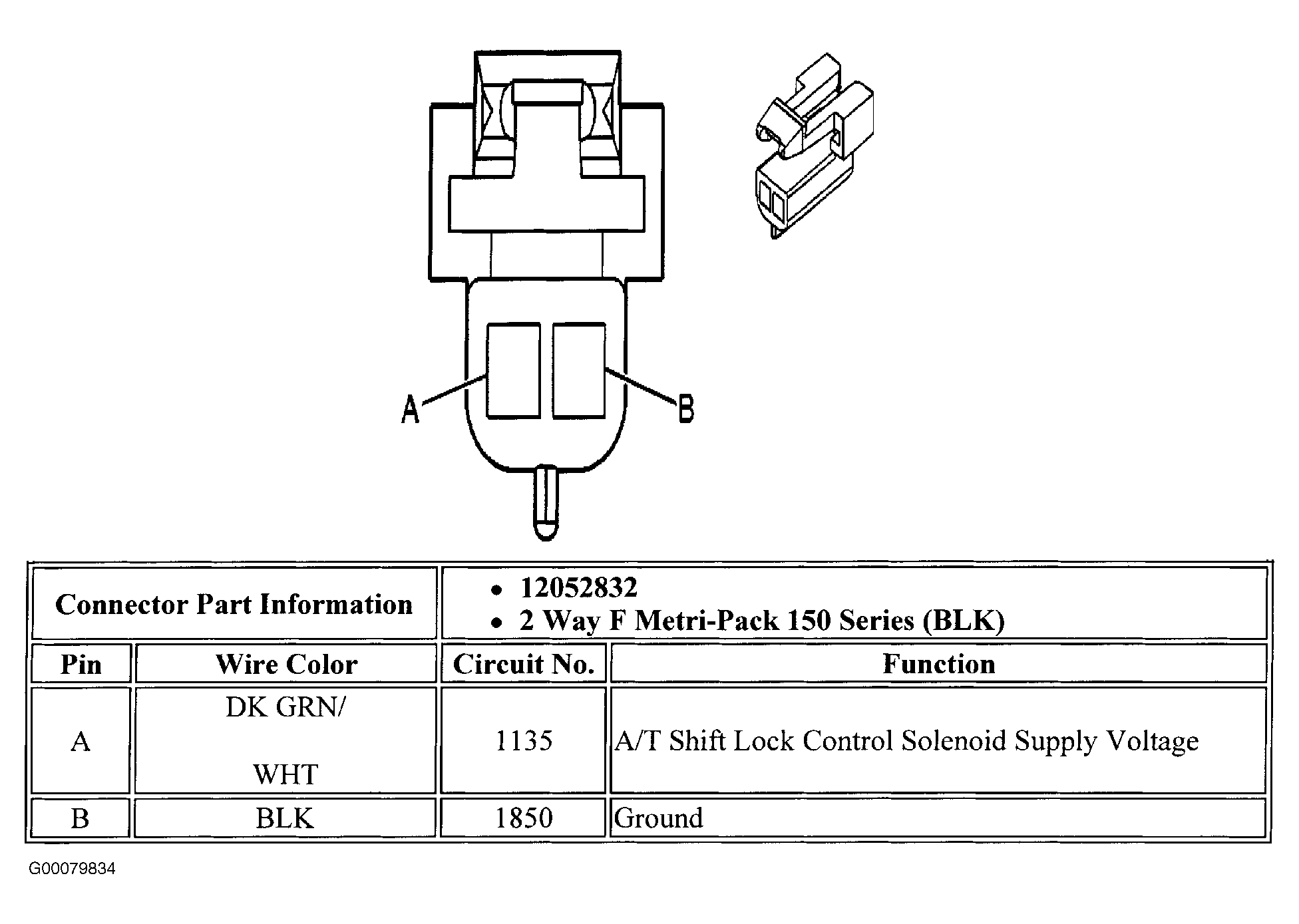

Fig 2: Identifying Shift Lock Solenoid Harness Connector Terminals
G00079834Courtesy of GENERAL MOTORS CORP.

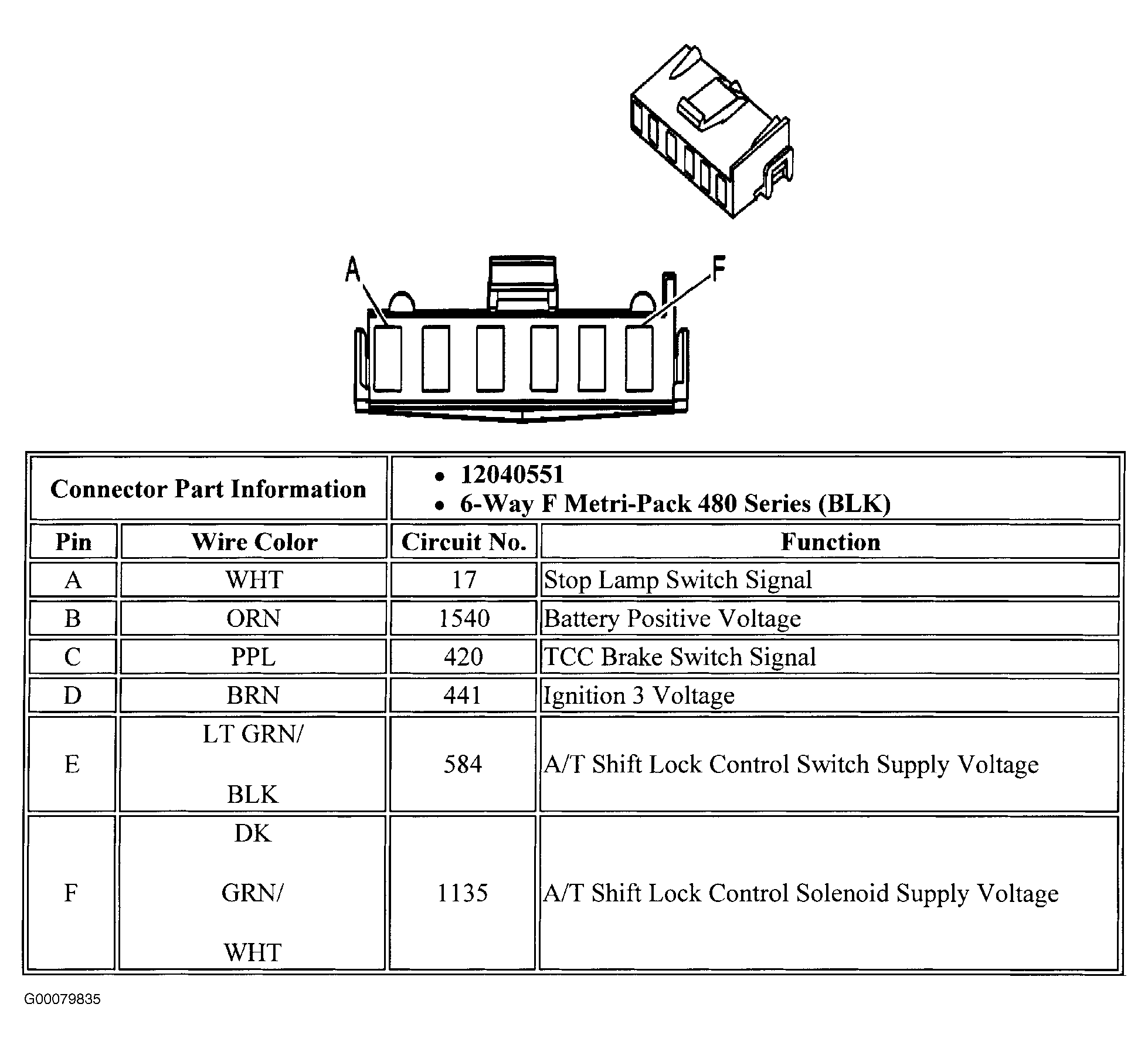

Fig 3: Identifying Stoplamp Switch Harness Connector Terminals
G00079835Courtesy of GENERAL MOTORS CORP.
