Removal Procedure

  1. Disconnect the negative battery cable(s).
  2. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT (NON-LUXURY) or KNEE BOLSTER REPLACEMENT (LUXURY) .

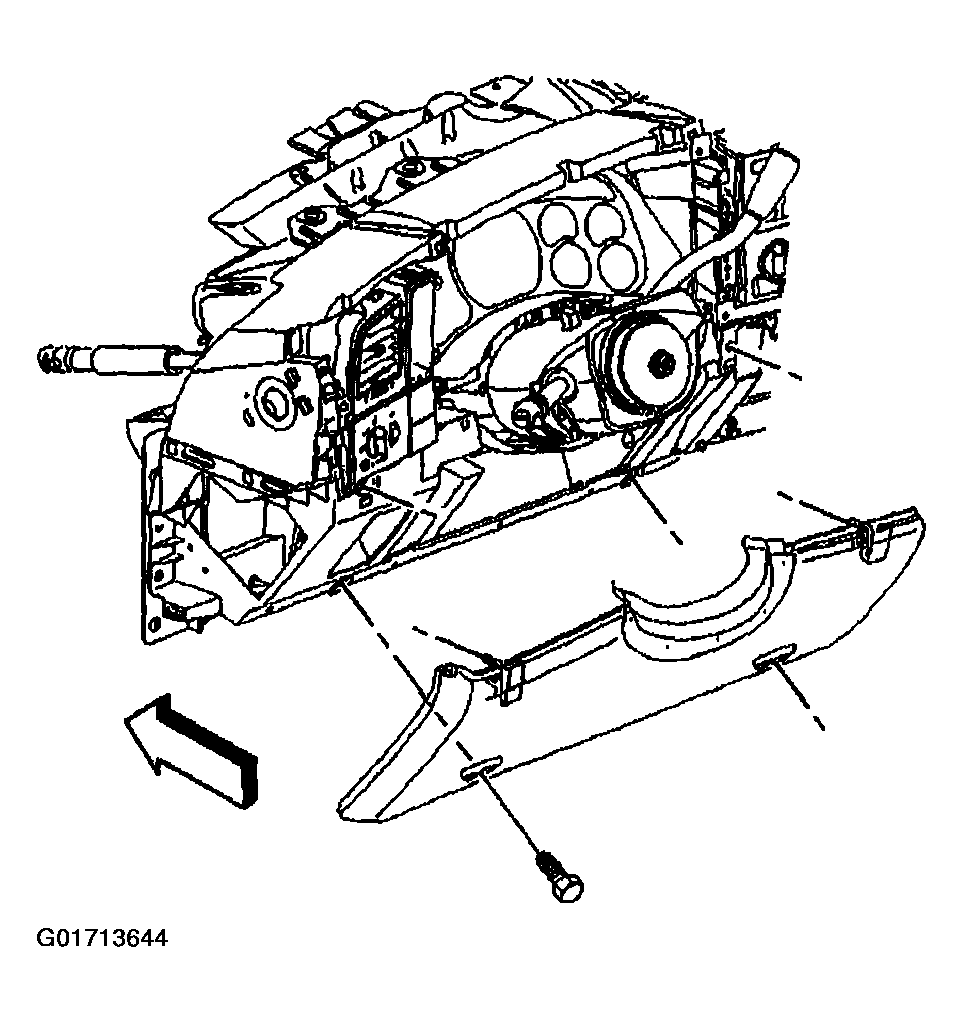

    Fig 1: Knee Bolster
    G01713644Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the brown connector.
  4. Disconnect all other connectors (1).
  5. Remove the BCM from the sliding bracket.

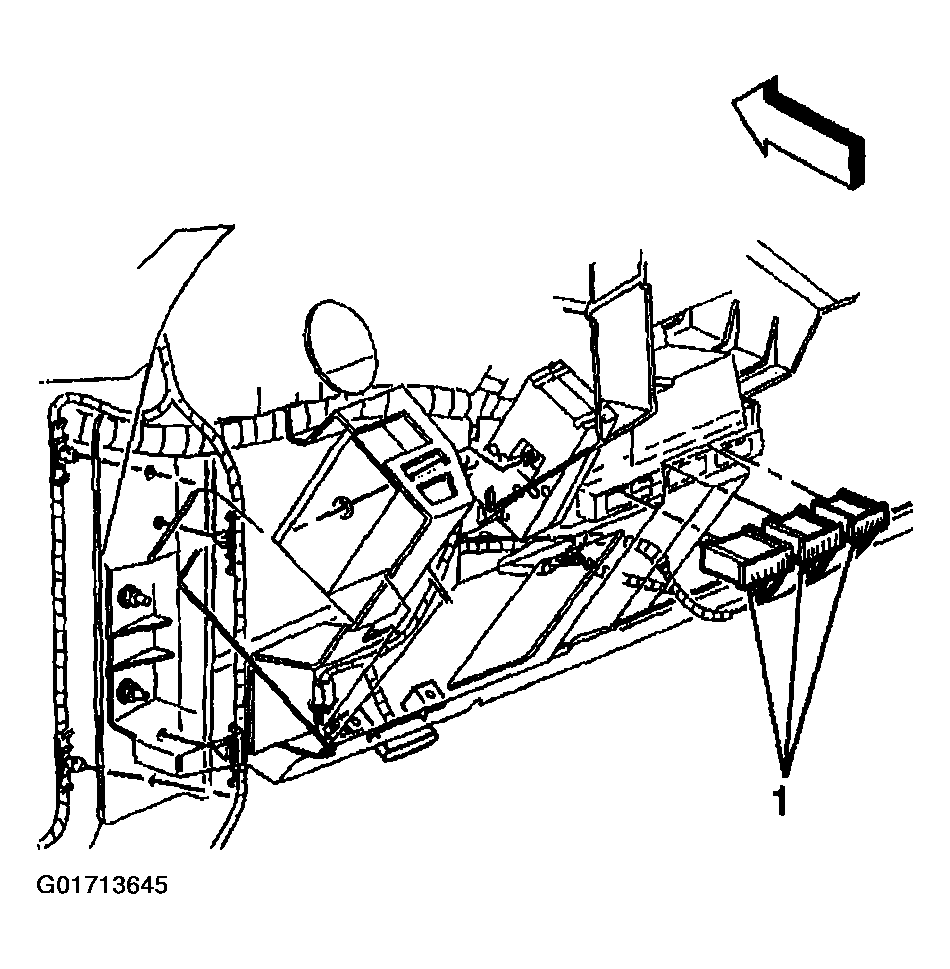

    Fig 2: Removing BCM From Sliding Bracket
    G01713645Courtesy of GENERAL MOTORS CORP.
