Connector Identification

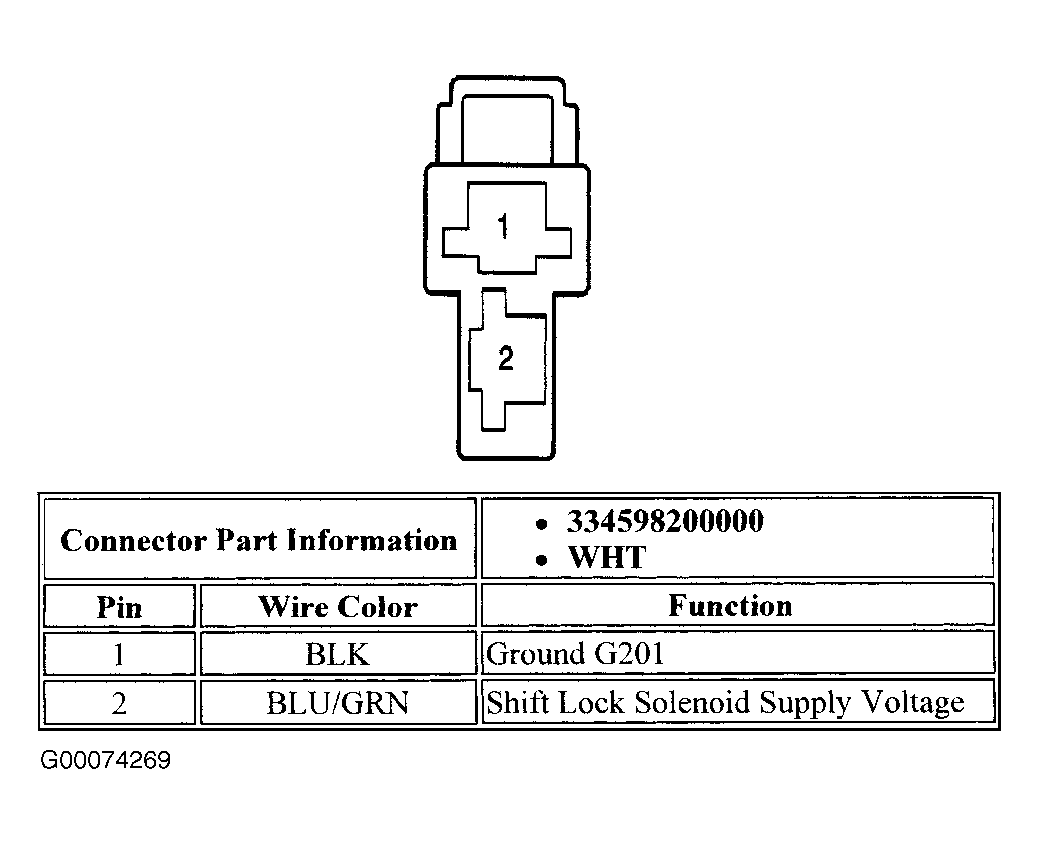

Fig 1: Identifying Shift Lock Diode Connector Terminals
G00074269Courtesy of GENERAL MOTORS CORP.

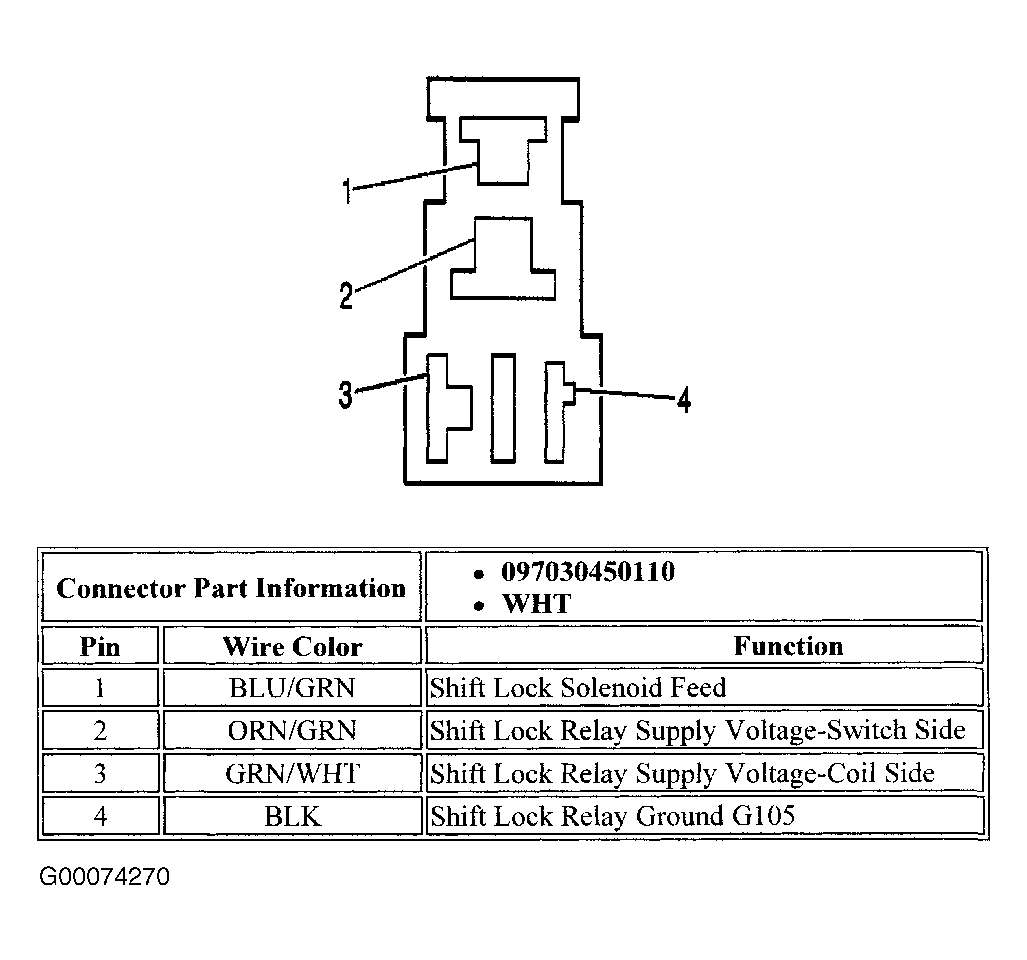

Fig 2: Identifying Shift Lock Relay Connector Terminals
G00074270Courtesy of GENERAL MOTORS CORP.

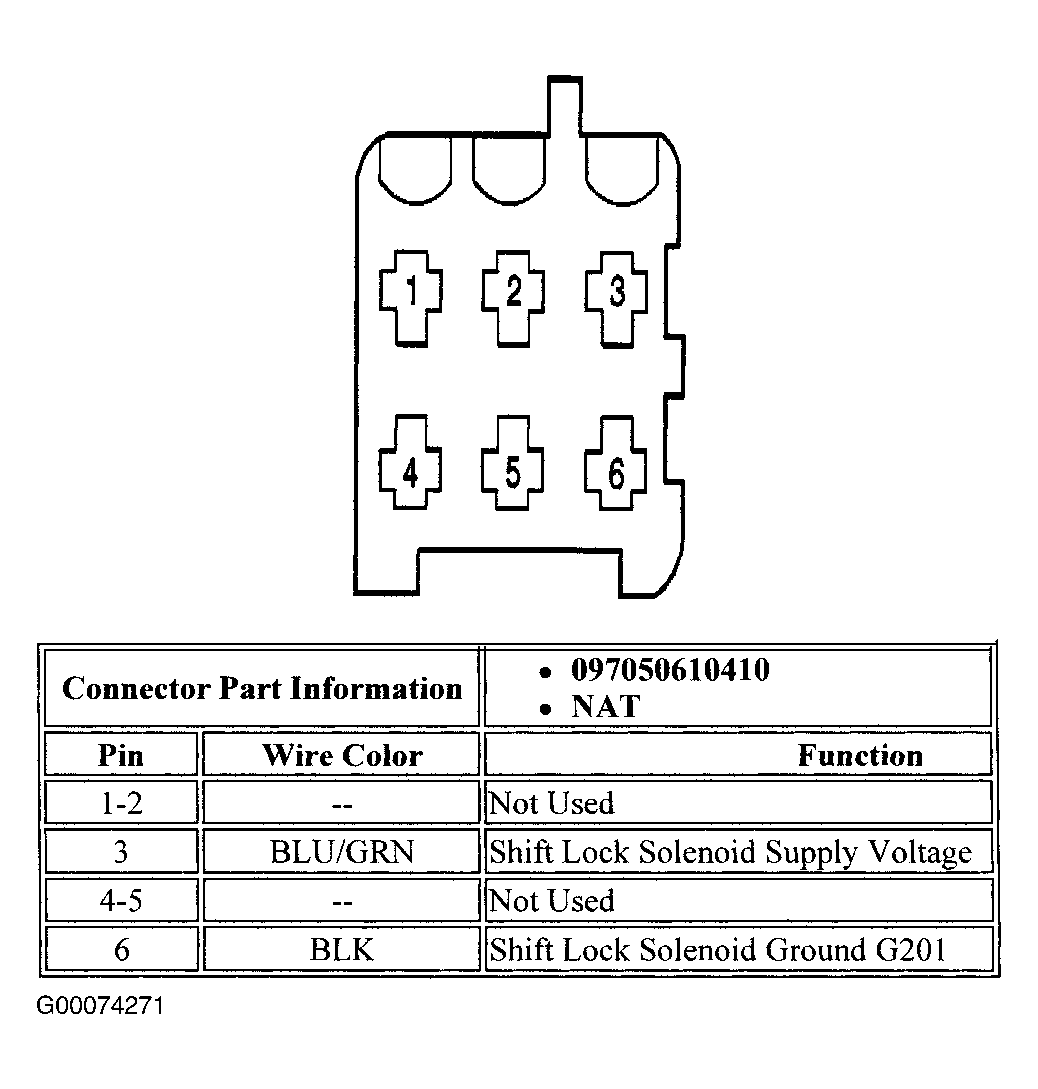

Fig 3: Identifying Shift Lock Solenoid Connector Terminals
G00074271Courtesy of GENERAL MOTORS CORP.

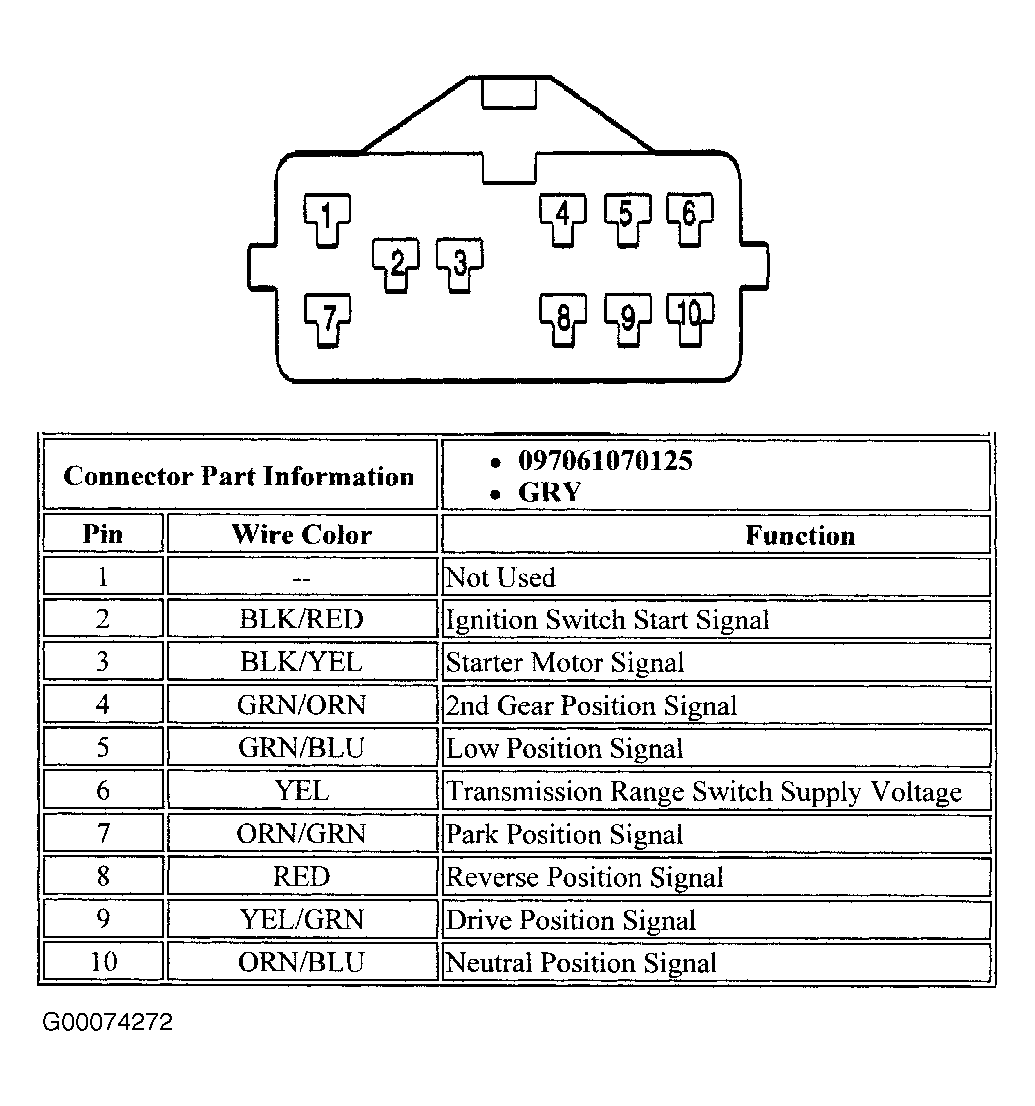

Fig 4: Identifying Transmission Range Switch Connector Terminals
G00074272Courtesy of GENERAL MOTORS CORP.
