Removal Procedure

  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .
  2. Remove the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  3. Push the release tab on the bottom of the bracket to release the body control module.
  4. Slide the body control module from the bracket.

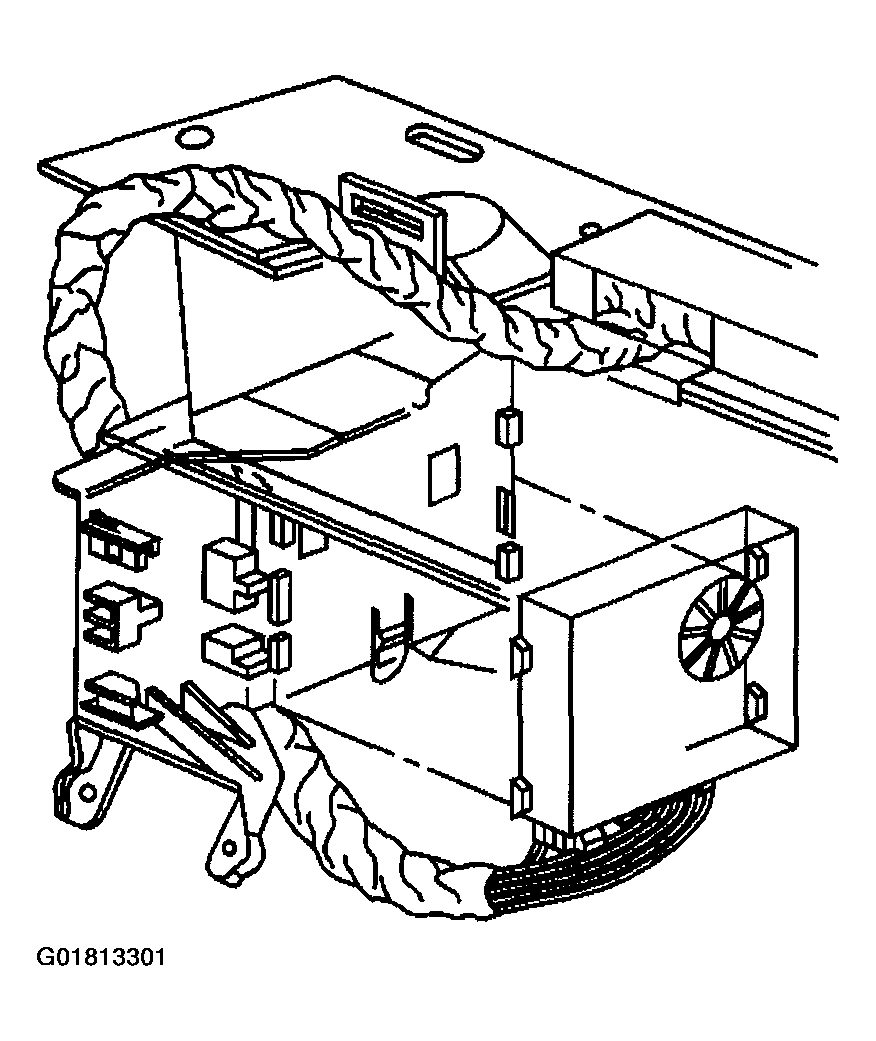

    Fig 1: Removing Body Control Module
    G01813301Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connectors.

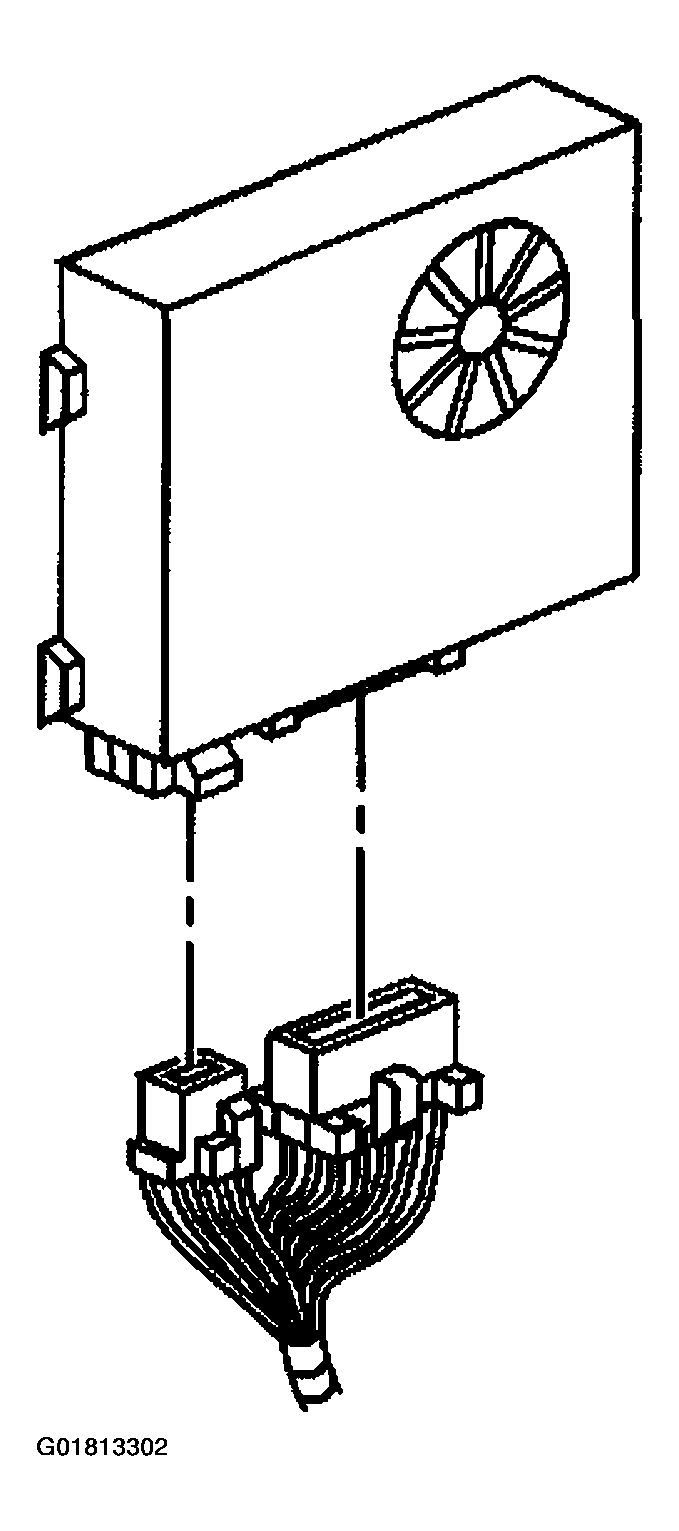

    Fig 2: Disconnecting Body Control Module Electrical Connectors
    G01813302Courtesy of GENERAL MOTORS CORP.
