ABS Component Views

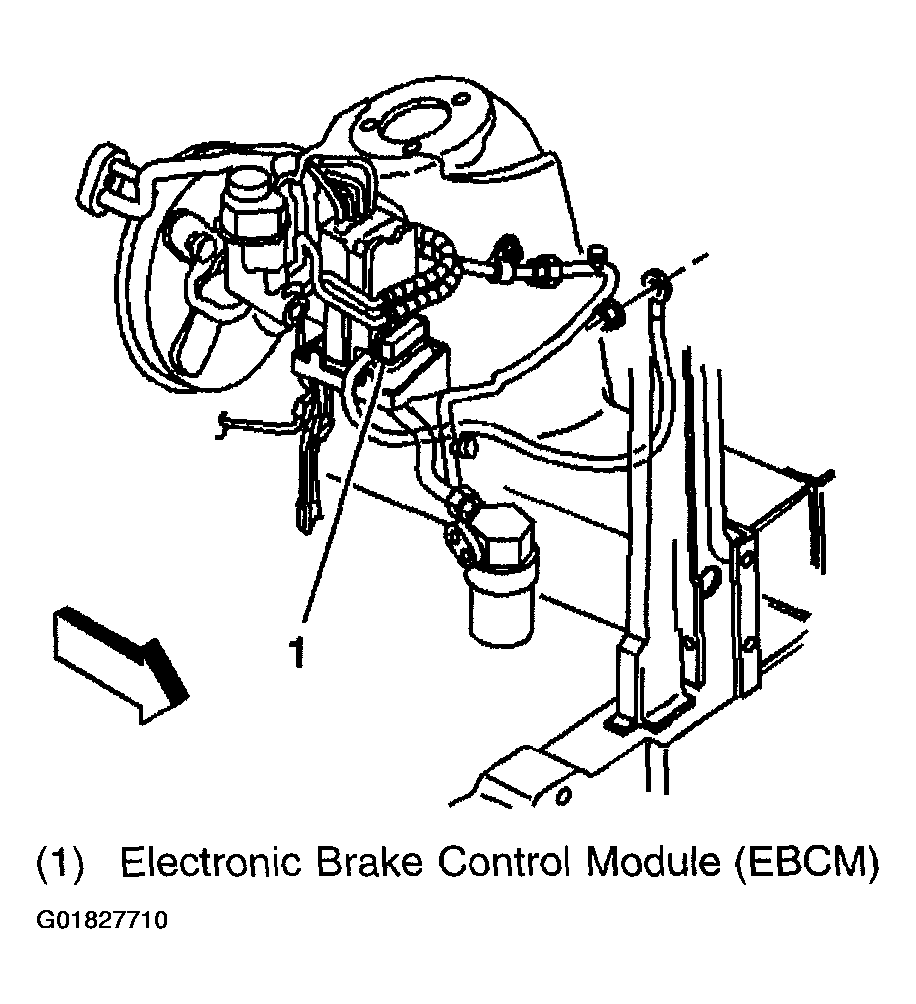

Fig 1: LH Side Of Engine Compartment
G01827710Courtesy of GENERAL MOTORS CORP.

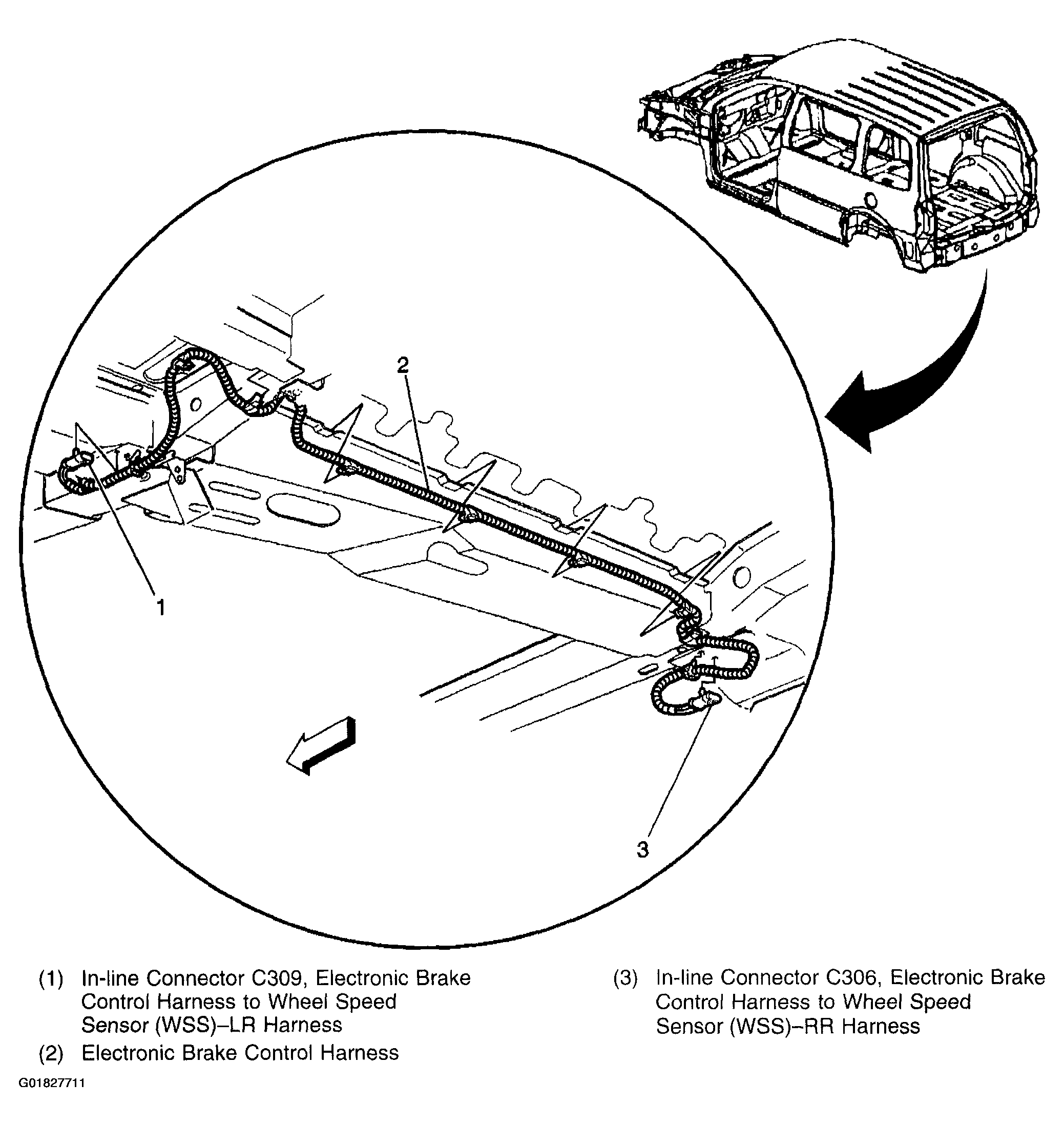

Fig 2: Underneath Rear Of Vehicle
G01827711Courtesy of GENERAL MOTORS CORP.

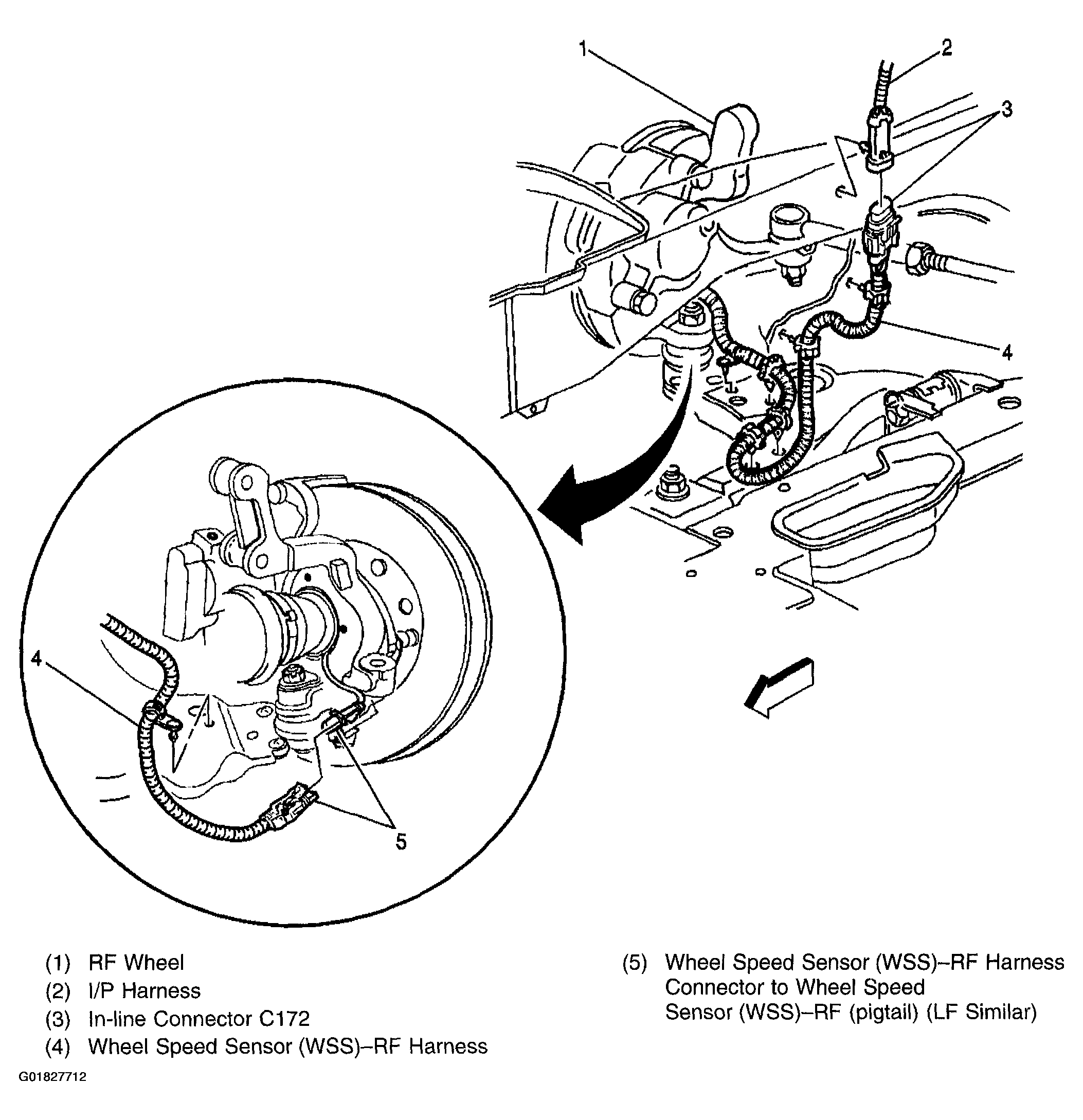

Fig 3: Wheel Speed Sensor (WSS) - RF (LF Similar)
G01827712Courtesy of GENERAL MOTORS CORP.

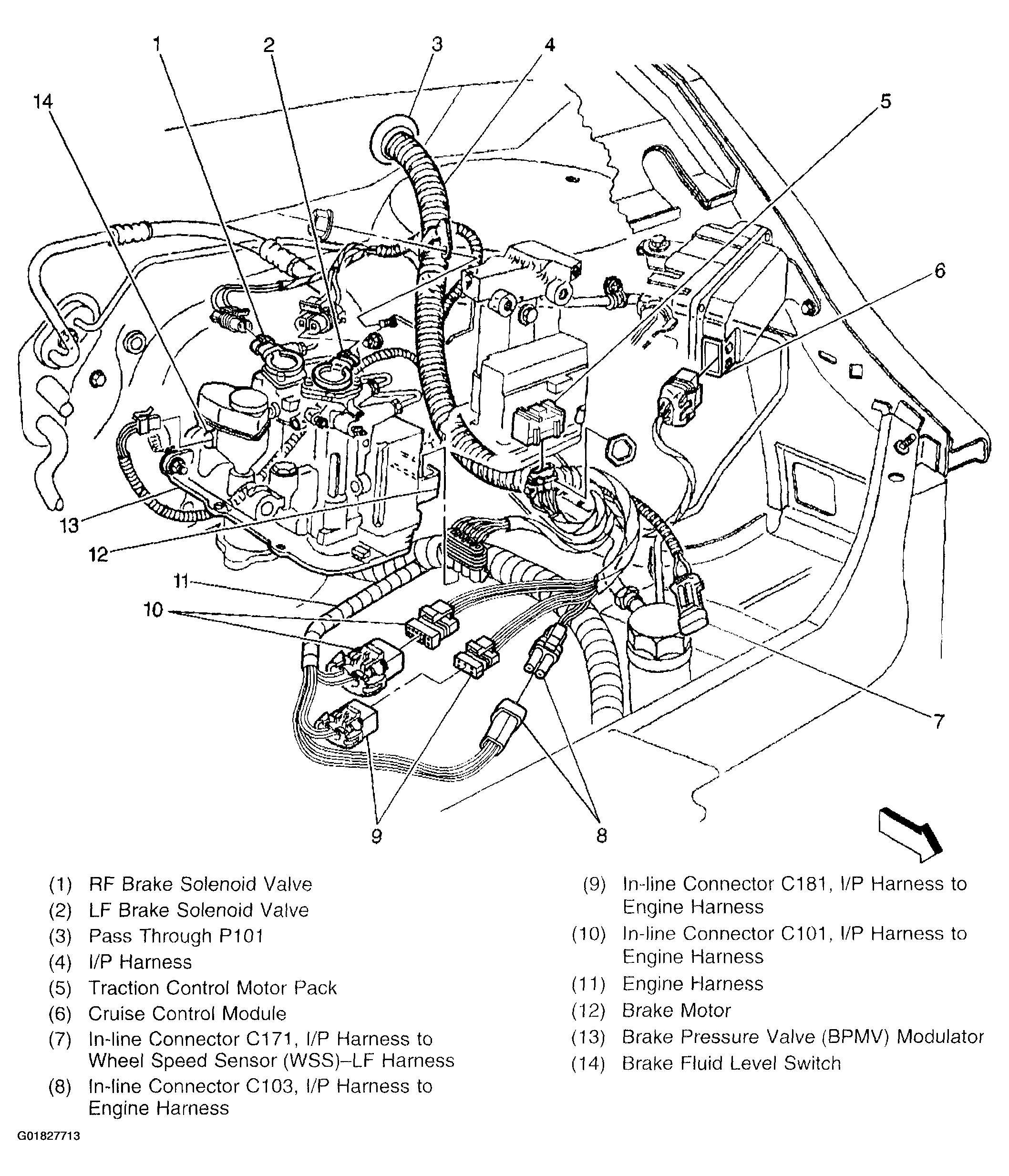

Fig 4: LH Side Of Engine Compartment
G01827713Courtesy of GENERAL MOTORS CORP.
