HVAC Control Module Connector End View C2

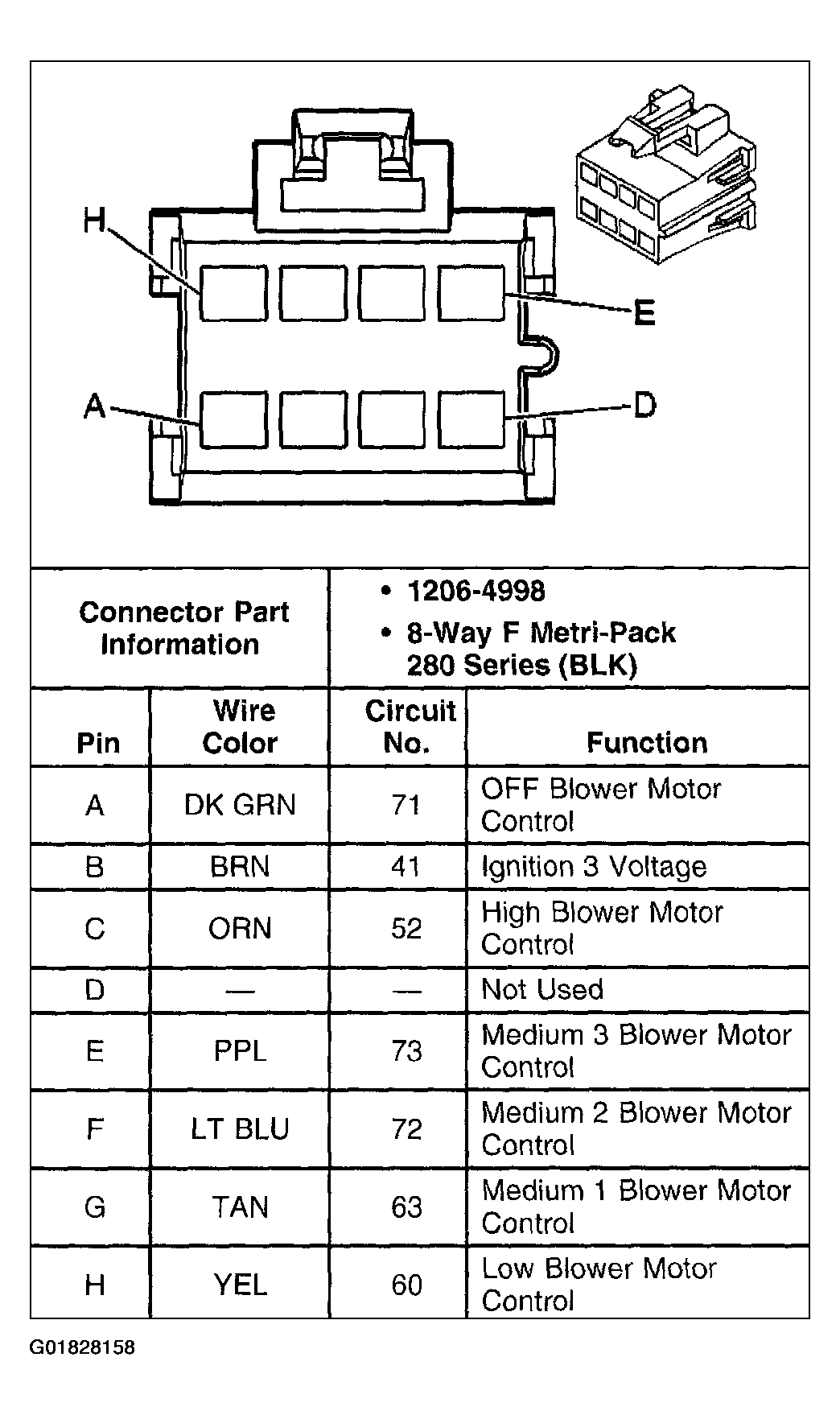

Fig 1: HVAC Control Module C2

G01828158

Courtesy of GENERAL MOTORS CORP.
