Installation Procedure

  1. Install the generator bracket.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the generator bracket bolts.

    Tighten

    Tighten the generator bracket bolts in the sequence shown to 50 N.m (37 lb ft).

  3. Install the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT .
  4. Install the generator. Refer to Generator Replacement .

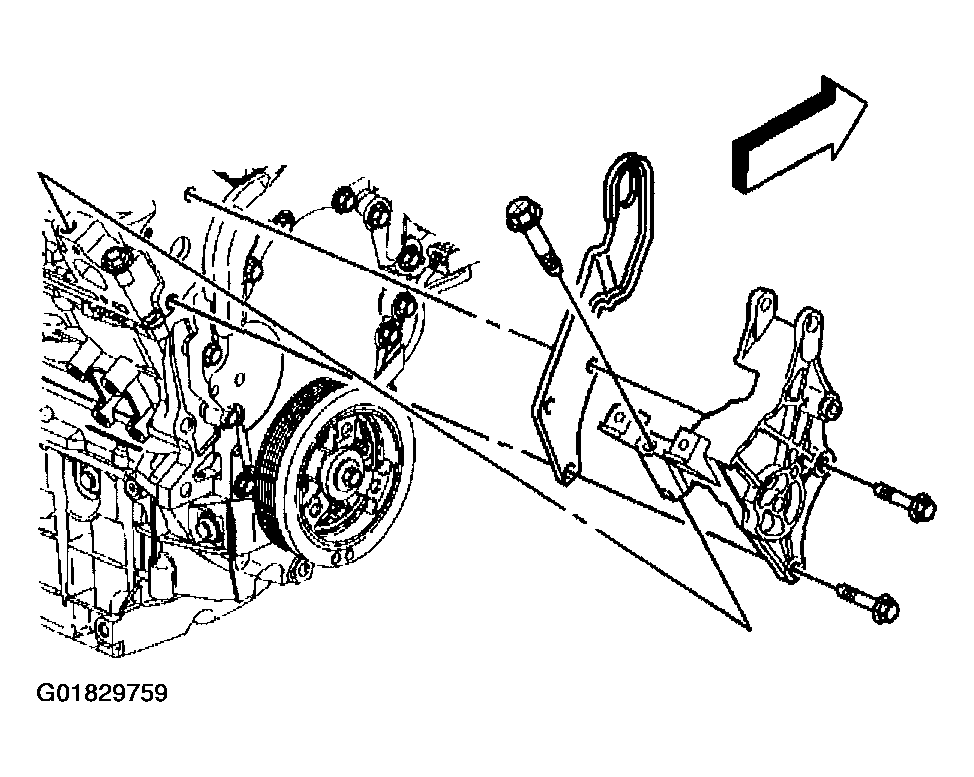

    Fig 1: Installing Generator Bracket & Bolts
    G01829759Courtesy of GENERAL MOTORS CORP.
