Disassembled Views

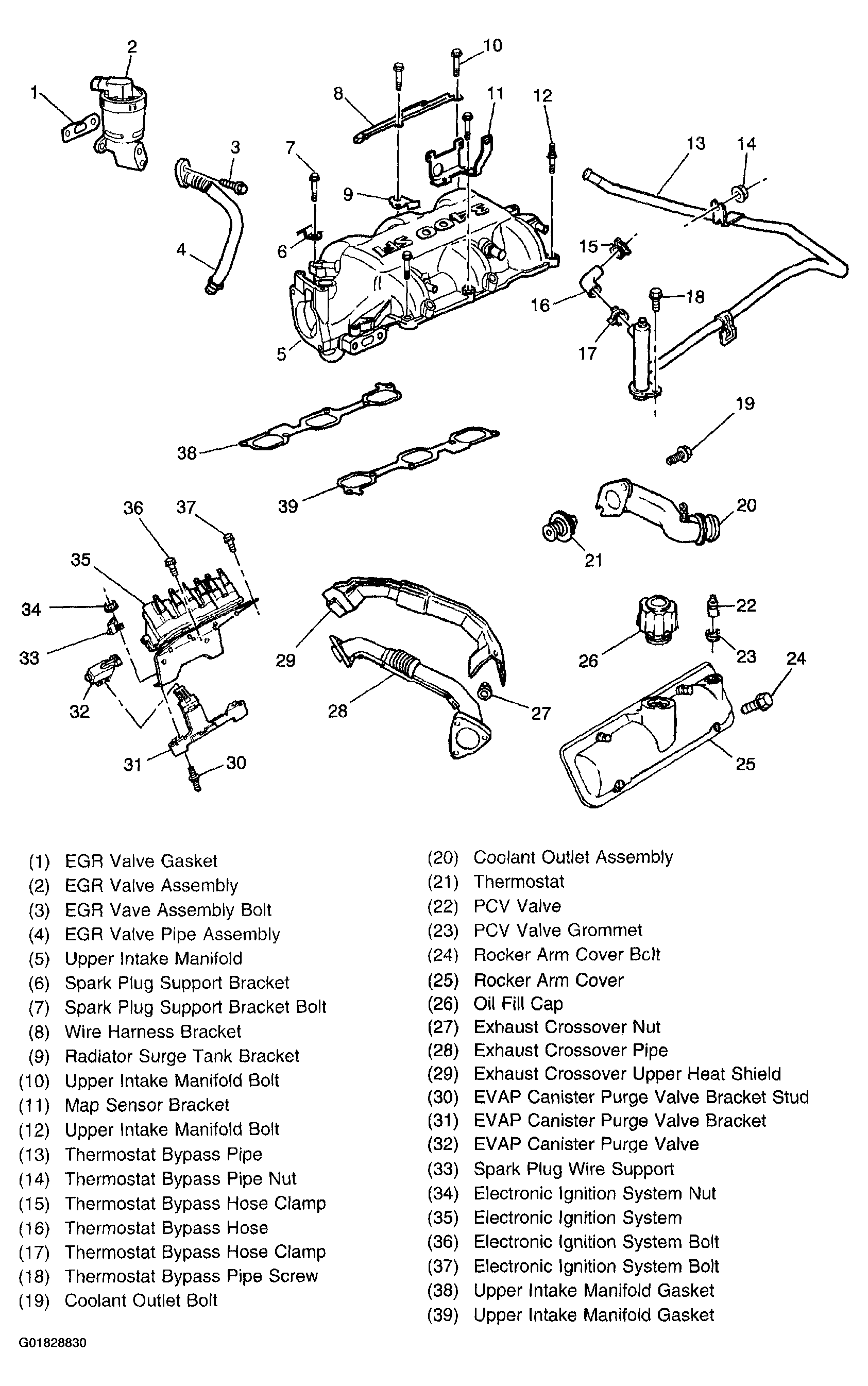

Fig 1: Upper Intake Manifold and Components
G01828830Courtesy of GENERAL MOTORS CORP.

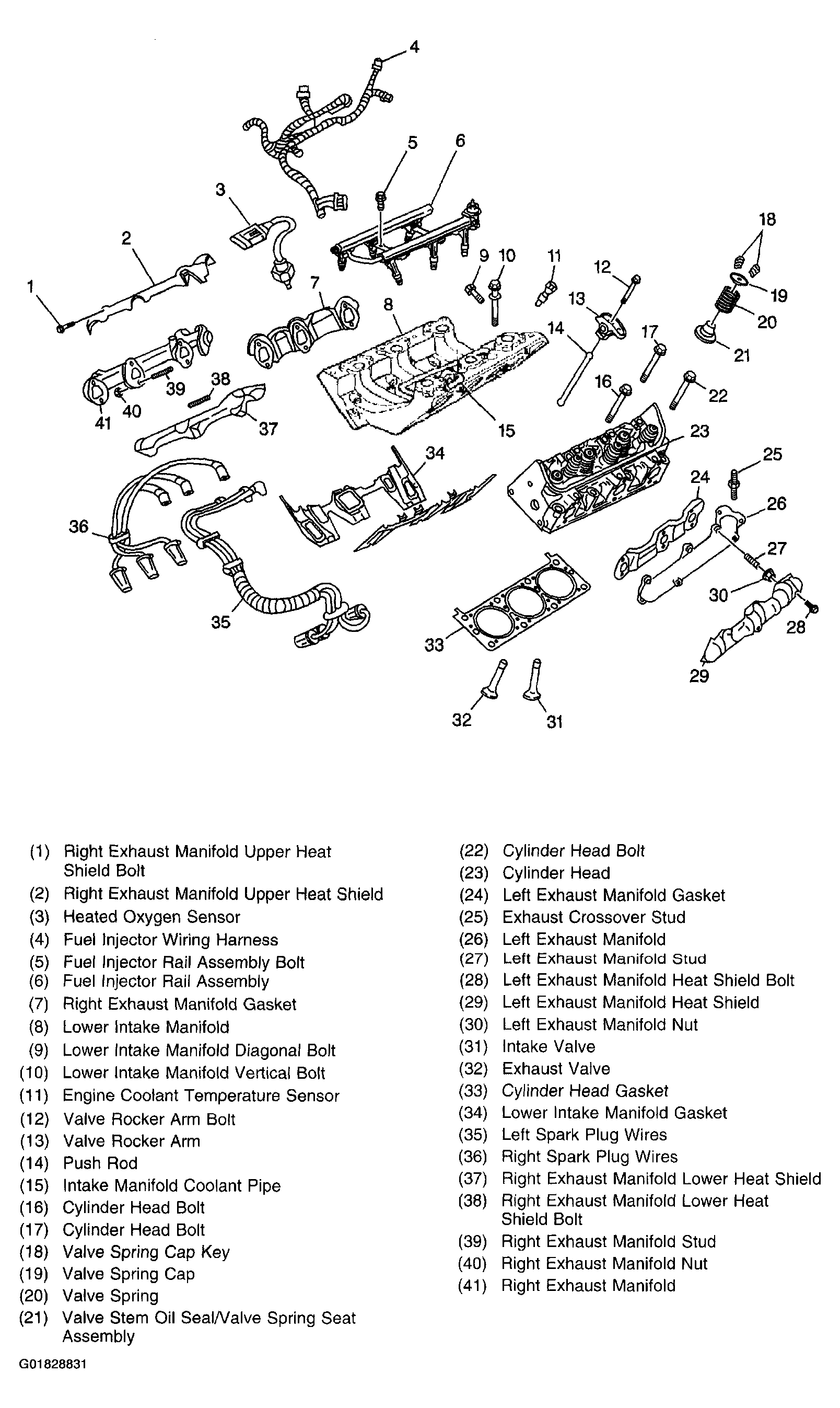

Fig 2: Lower Intake Manifold, Cylinder Head, and Components
G01828831Courtesy of GENERAL MOTORS CORP.

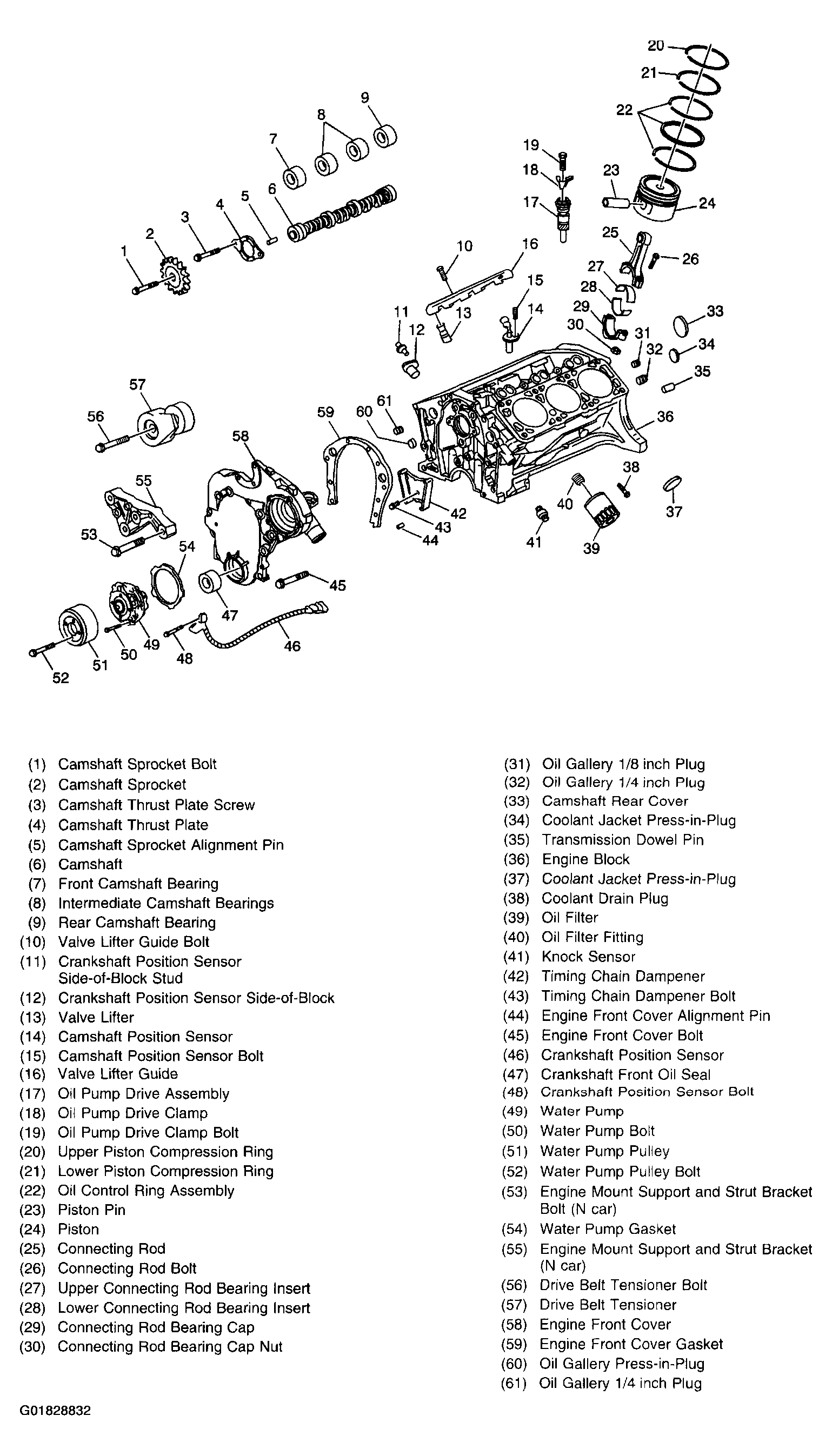

Fig 3: Engine Block and Components
G01828832Courtesy of GENERAL MOTORS CORP.

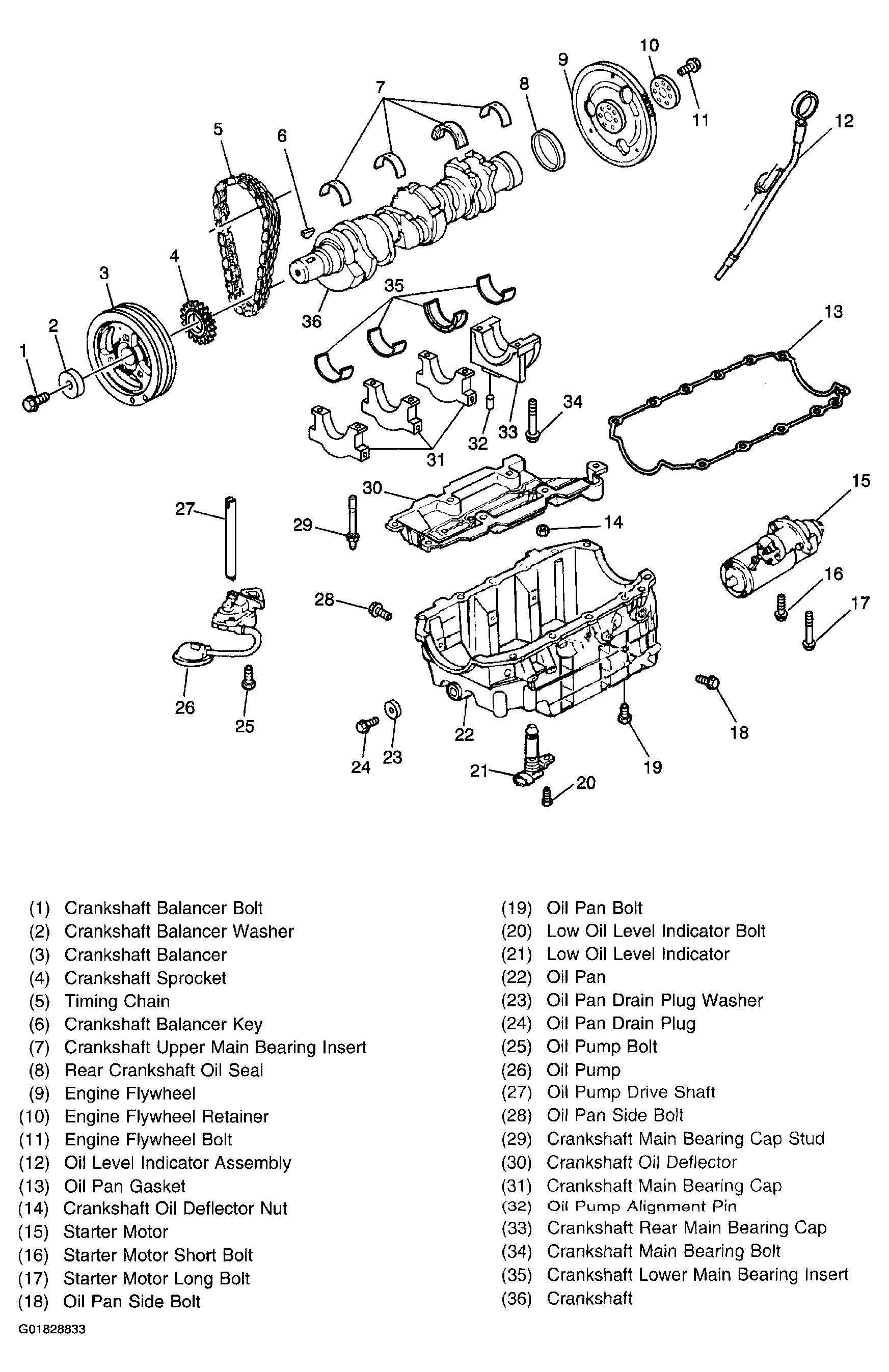

Fig 4: Crankshaft and Components
G01828833Courtesy of GENERAL MOTORS CORP.
