Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

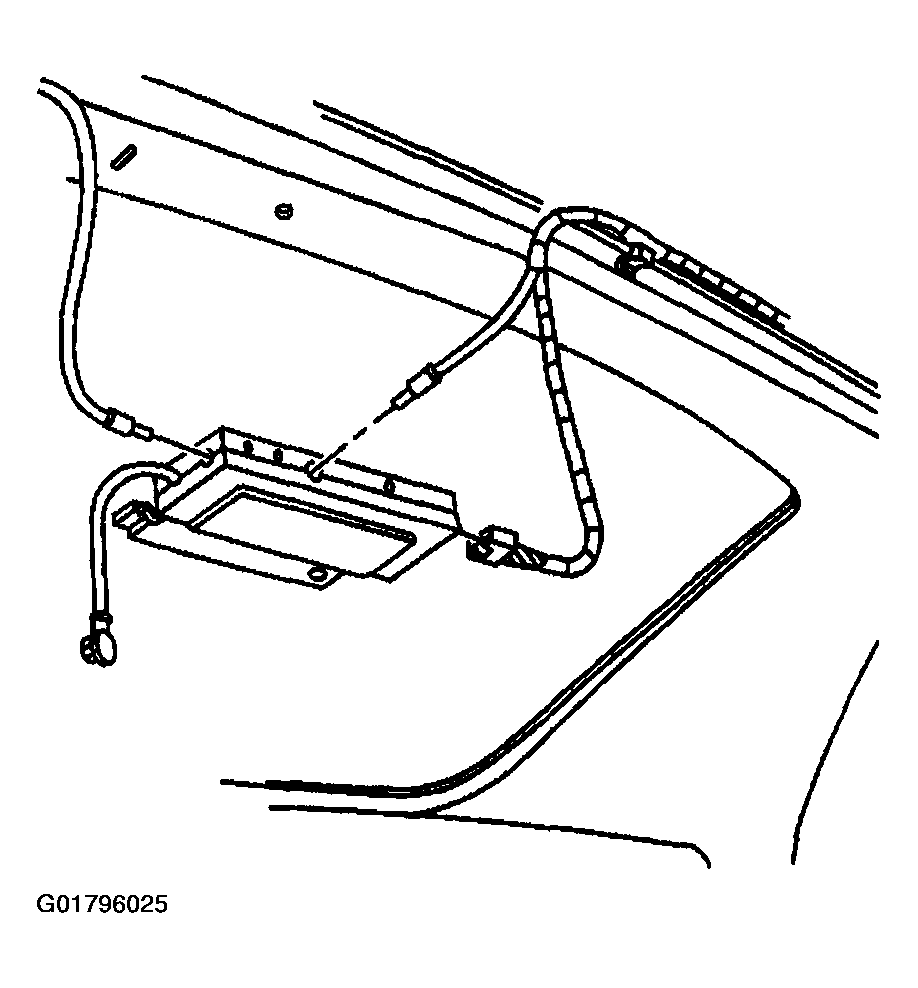

Fig 1: Installing Antenna Module

Courtesy of GENERAL MOTORS CORP.

Install the radio antenna module to the roof beam, ensuring that the alignment tab is properly located.
NOTE: Refer to FASTENER NOTICE .
Install radio module retaining fastener.
Tighten

Tighten the fastener to 9 N.m (80 lb in).
Connect the electrical connectors to the radio antenna module.
Install the rear assist handles. Refer to ASSIST HANDLE REPLACEMENT .
Install the left rear sail panel. Refer to SAIL PANEL REPLACEMENT .
