Cellular Communication Component Views

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

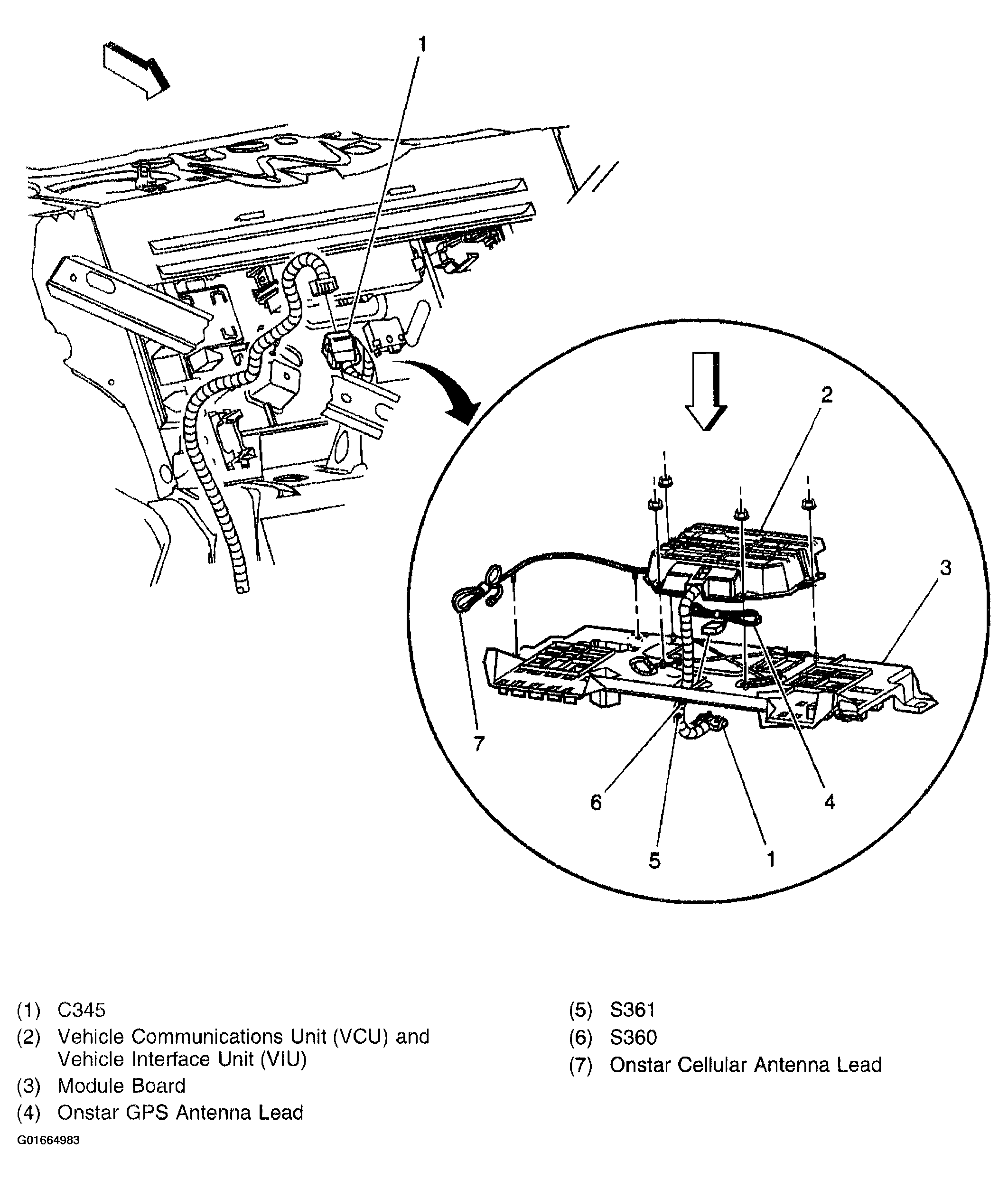

Fig 1: Rear Compartment, Behind Rear Seat Back (w/UE1) Component View

Courtesy of GENERAL MOTORS CORP.
