Automatic Level Control Suspension Component Views

Fig 1: Below Vehicle, Rear Of LR Wheelhouse

Courtesy of GENERAL MOTORS CORP.

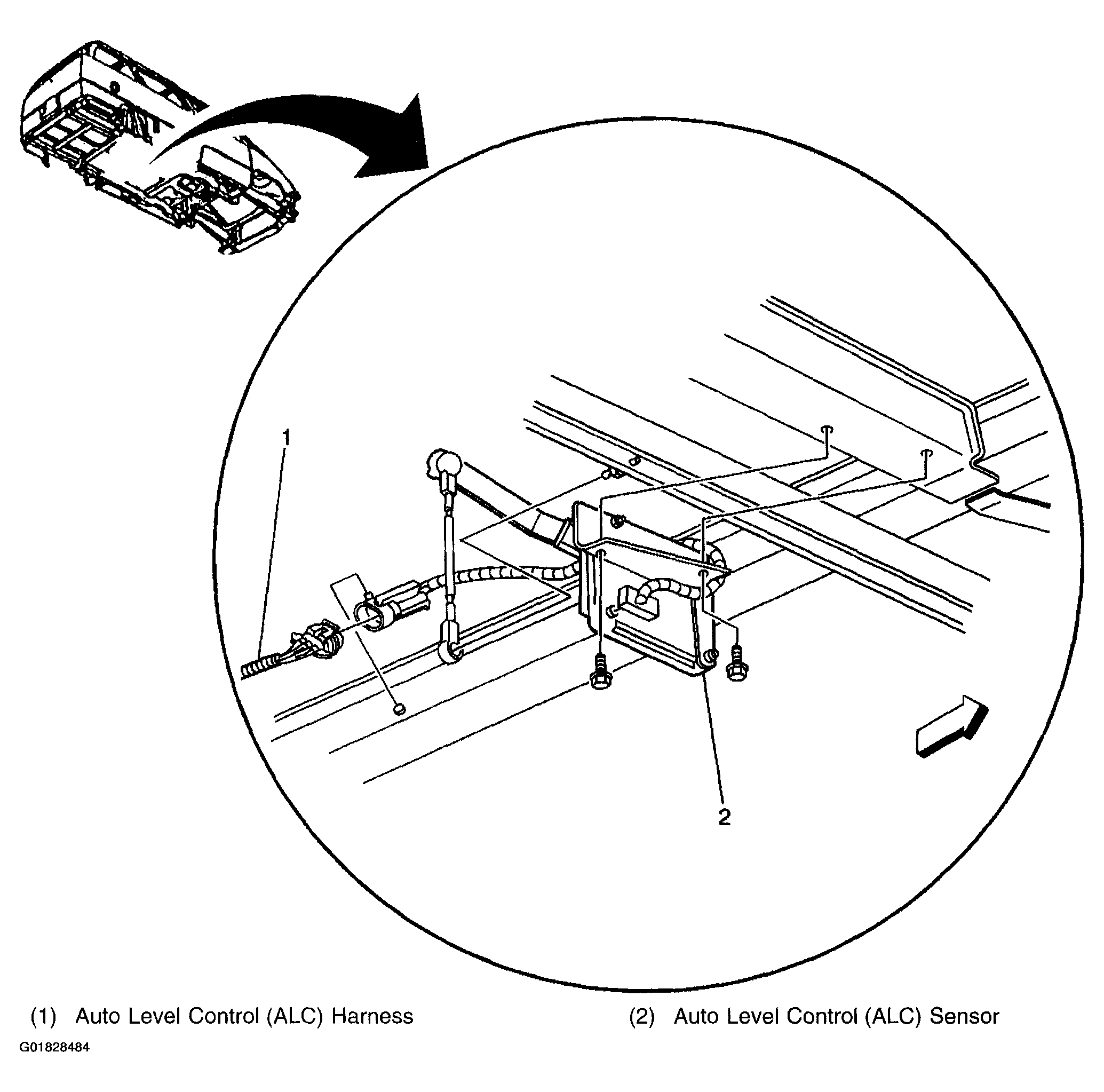

Fig 2: Underneath Rear Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Fig 3: Behind Rear Left Wheelhouse

Courtesy of GENERAL MOTORS CORP.
