Removal Procedure

NOTE: When you are servicing the automatic level control sensor link, ensure that the sensor link and the sensor arm are not damaged. Ensure the sensor arm and the sensor link are properly oriented. Improper orientation of the sensor arm and the sensor link may cause damage to the automatic level control system or the vehicle.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .

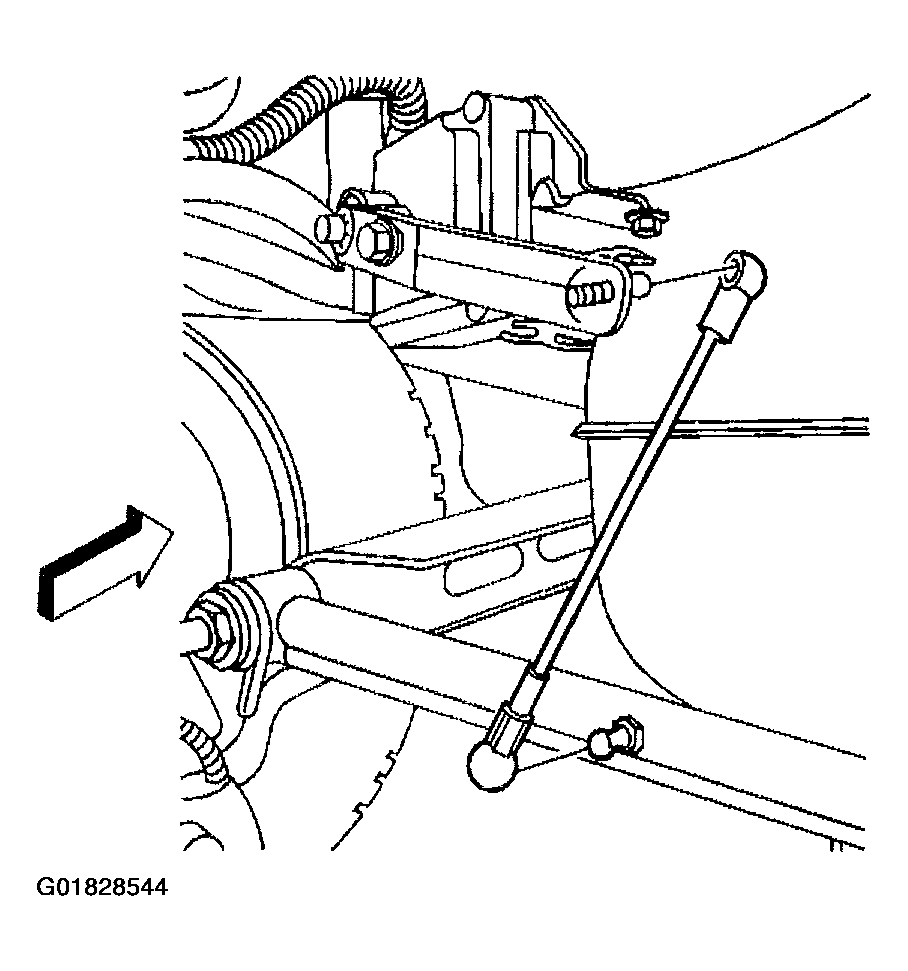

    2. Fig 1: Automatic Level Control Sensor Link
    G01828544Courtesy of GENERAL MOTORS CORP.
  2. Remove the ALC sensor link from the tie rod ball stud. Remove the ALC sensor link from the sensor arm ball stud.
