Removal Procedure

NOTE: When you are servicing the automatic level control sensor link, ensure that the sensor link and the sensor arm are not damaged. Ensure the sensor arm and the sensor link are properly oriented. Improper orientation of the sensor arm and the sensor link may cause damage to the automatic level control system or the vehicle.
  1. Remove the ELC/TRAILER fuse.
  2. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .

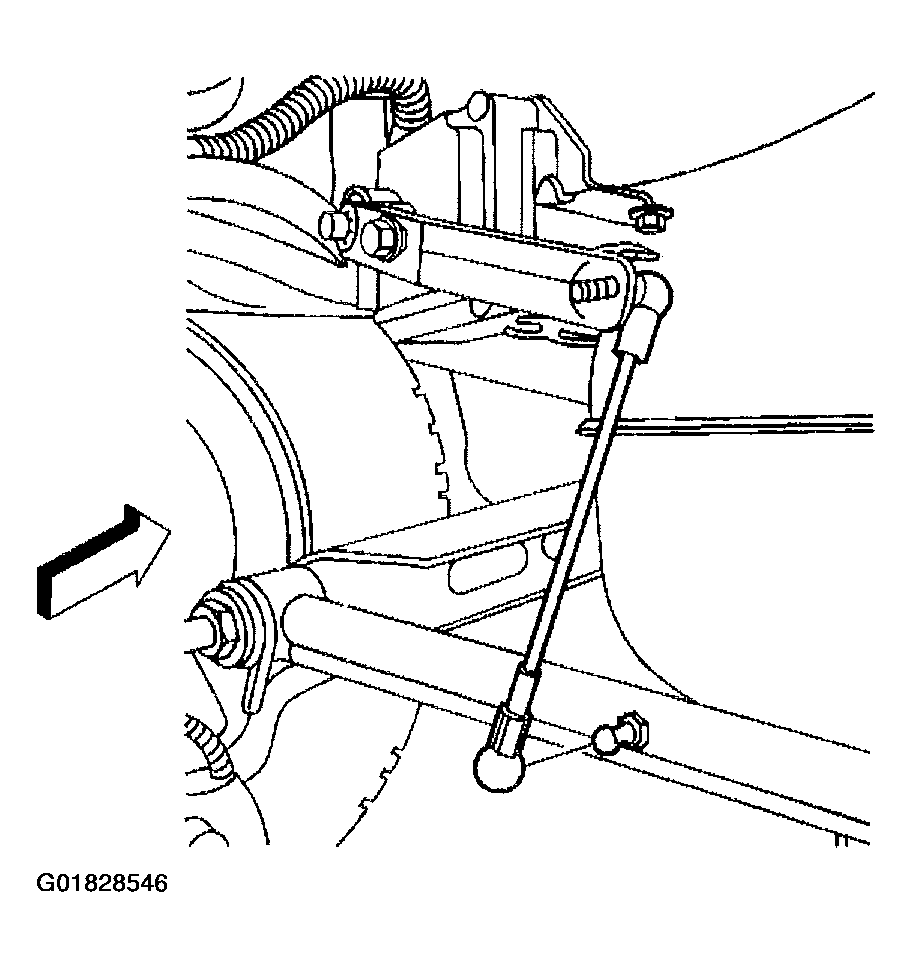

    3. Fig 1: Automatic Level Control Sensor Connector
    G01828546Courtesy of GENERAL MOTORS CORP.
  3. Remove the automatic level control sensor connector.

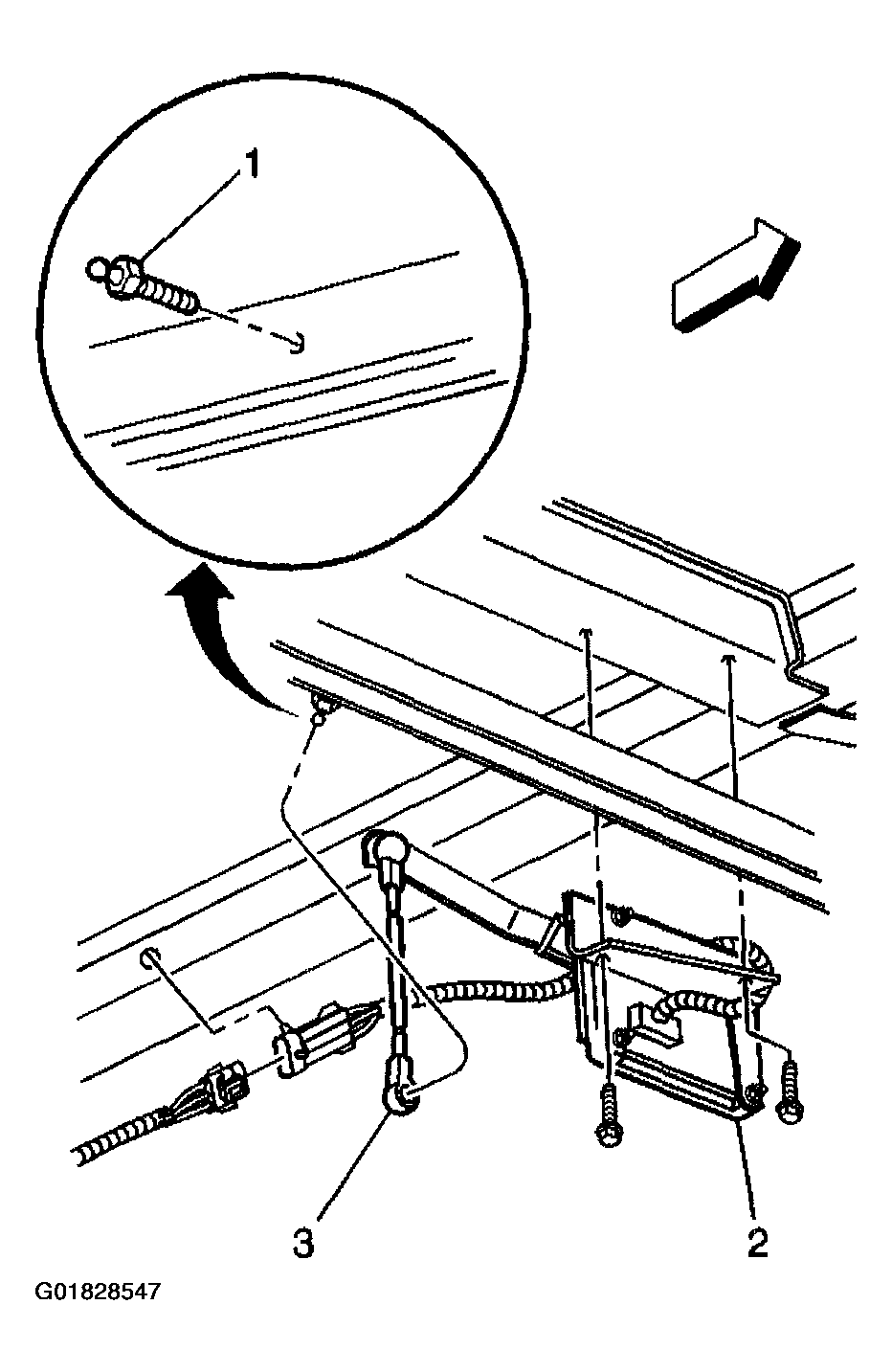

    4. Fig 2: Automatic Level Control Sensor Components
    G01828547Courtesy of GENERAL MOTORS CORP.
  4. Remove the automatic level control sensor connector from the underbody rail.
  5. Remove the automatic level control sensor link from the tie rod ball stud. Refer to Automatic Level Control Sensor Link Replacement .
  6. Remove the automatic level control sensor bracket bolts/screws.
  7. Remove the automatic level control sensor with the bracket (2) from the vehicle.

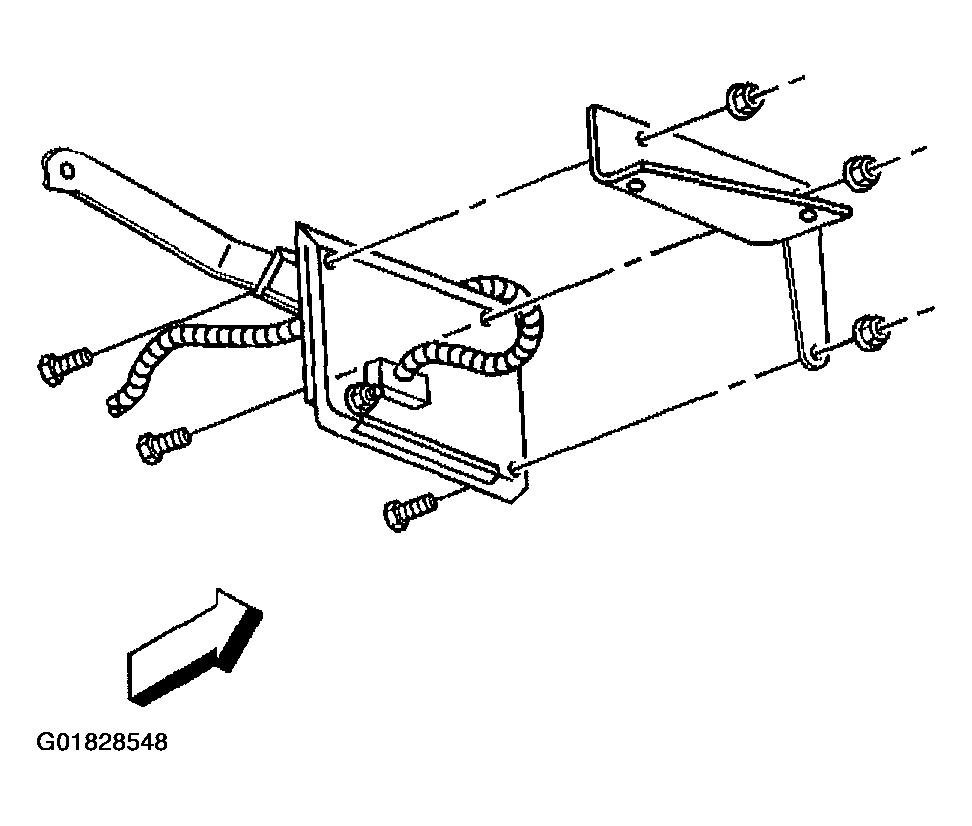

    8. Fig 3: Automatic Level Control Sensor
    G01828548Courtesy of GENERAL MOTORS CORP.
  8. Remove the automatic level control sensor bolts/screws.
  9. Remove the automatic level control sensor from the bracket.
