Installation Procedure

  1. Install the remote keyless entry module to the carrier.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the remote keyless entry module screws to the bracket (3).

    Tighten

    Tighten the remote keyless entry module screws to the bracket (3) to 2 N.m (18 lb in).

  3. Connect the remote keyless entry antenna (2) to the receiver (5).
  4. Connect the remote keyless entry electrical connector (4) to the receiver (5).
  5. Install the left knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT in Instrument Panel, Gages, and Console.
  6. Reprogram the transmitter. Refer to TRANSMITTER PROGRAMMING .
  7. Verify that the system operates properly.

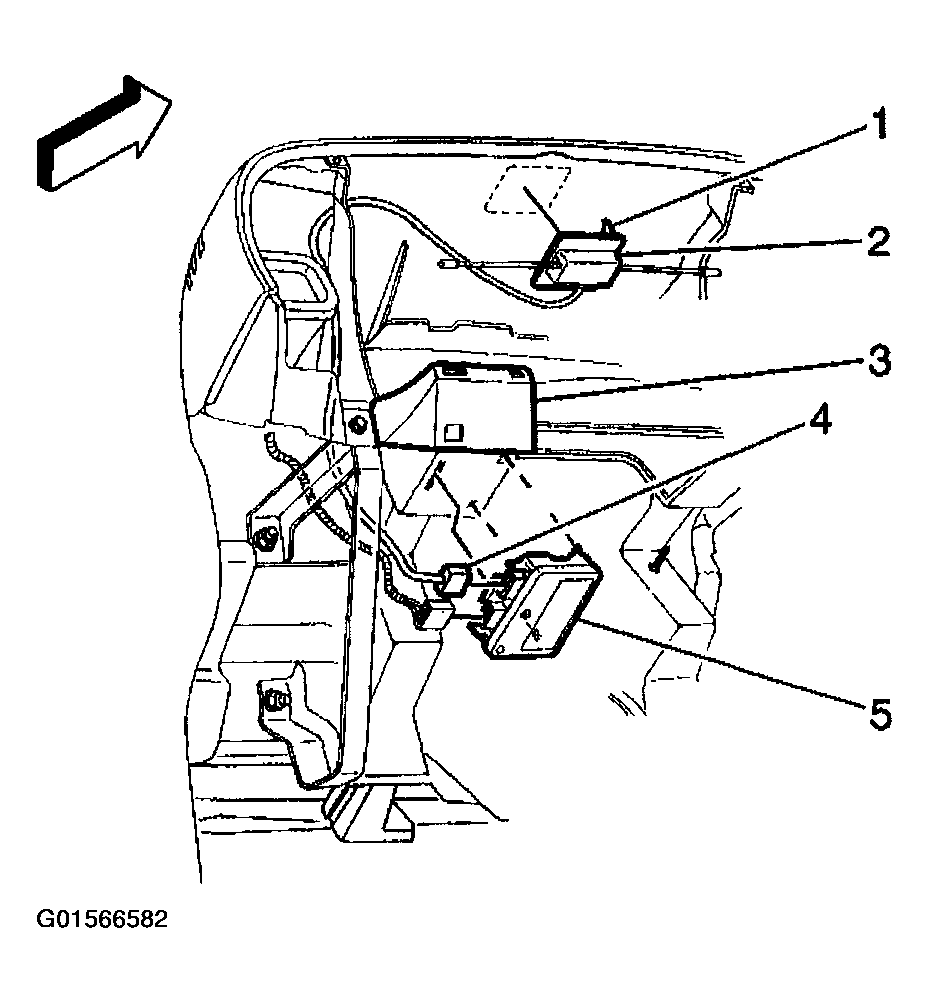

    Fig 1: Locating Remote Keyless Entry Components
    G01566582Courtesy of GENERAL MOTORS CORP.
