Engine Electrical Component Views

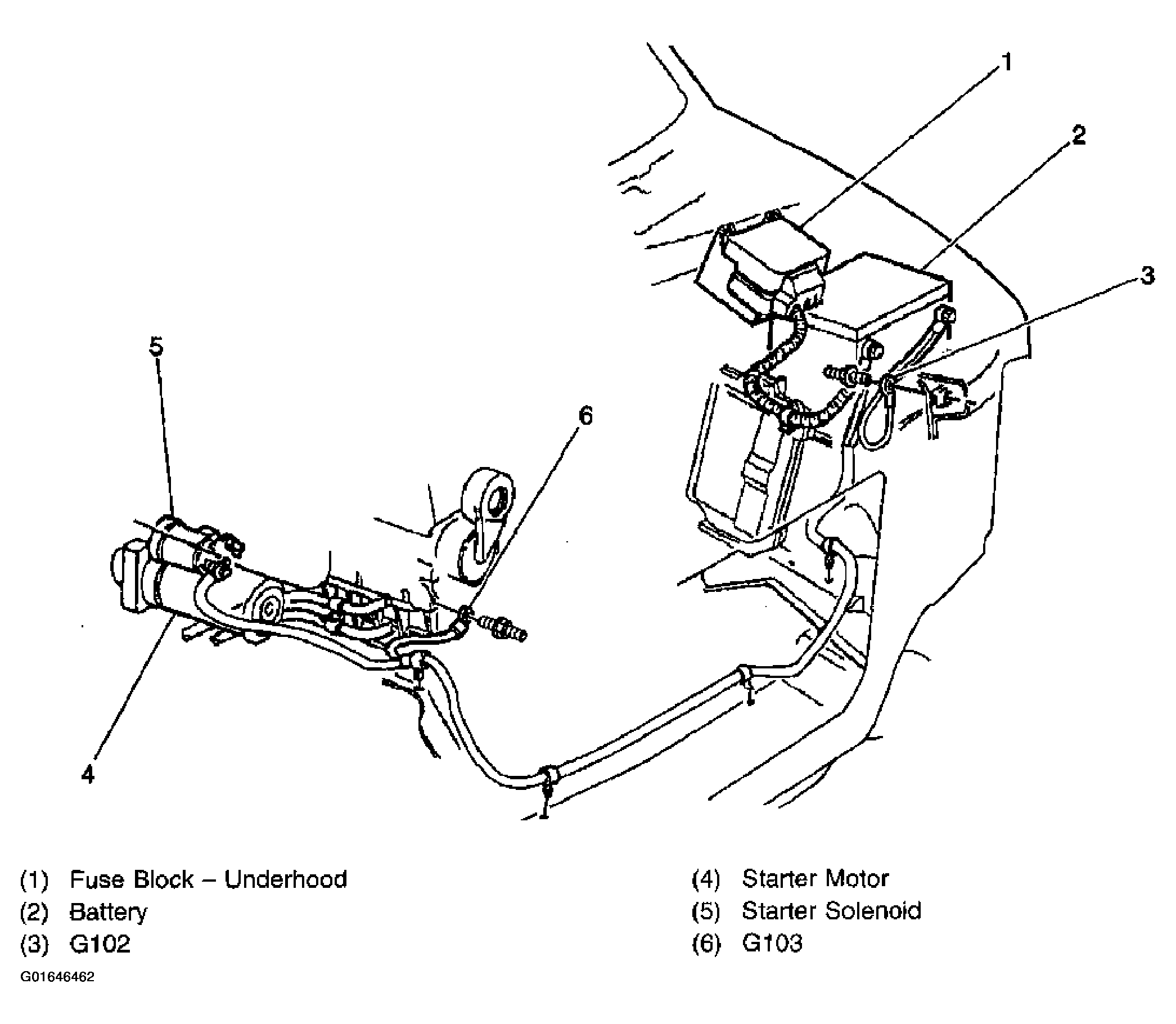

Fig 1: Locating Underhood Fuse Block, Battery & Starter (A4WD)
G01646462Courtesy of GENERAL MOTORS CORP.

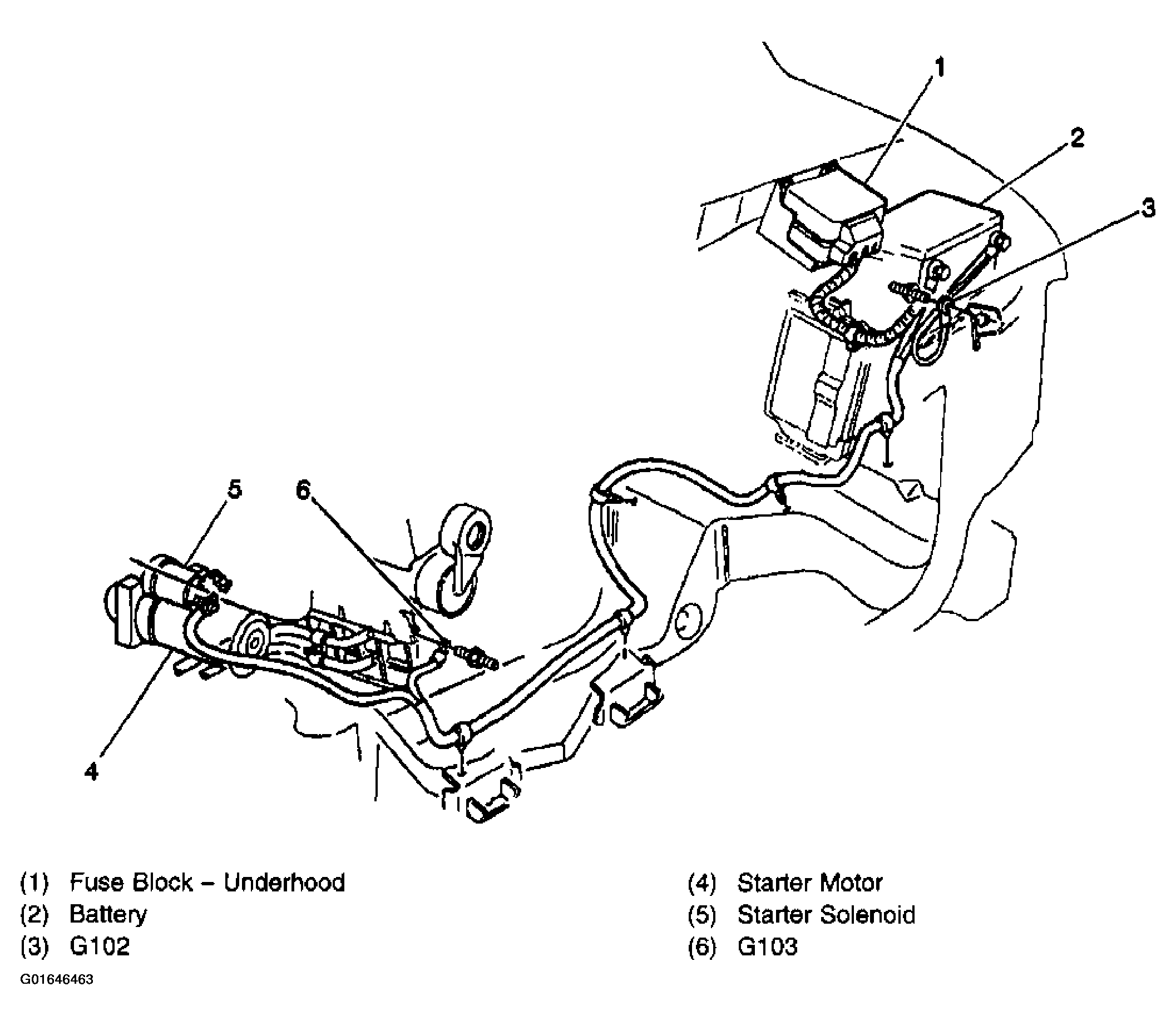

Fig 2: Locating Underhood Fuse Block, Battery & Starter (RWD)
G01646463Courtesy of GENERAL MOTORS CORP.

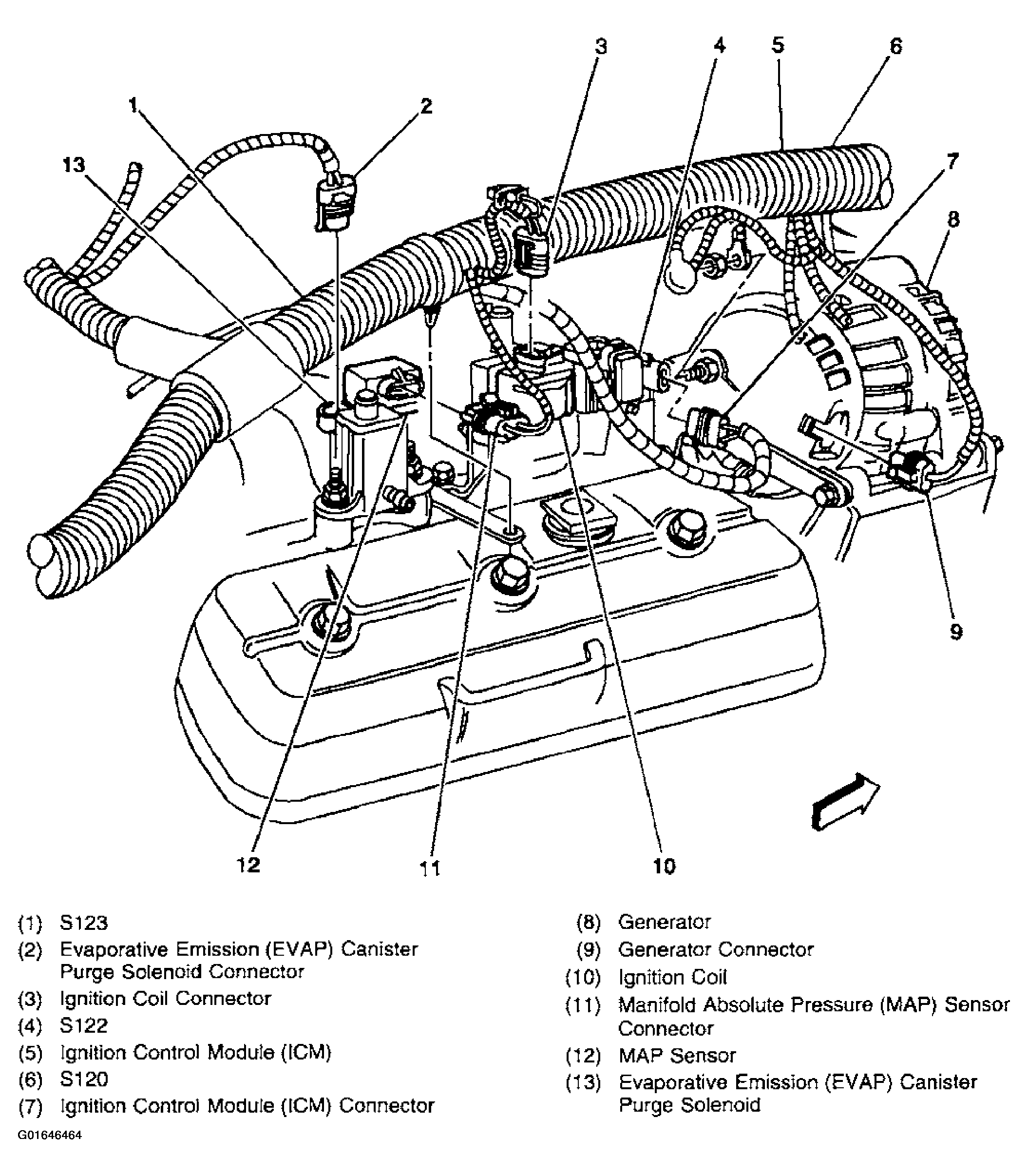

Fig 3: Locating Generator & Surrounding Components/Wiring, Right Side
G01646464Courtesy of GENERAL MOTORS CORP.
