Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Lower Front Of Engine

Courtesy of GENERAL MOTORS CORP.

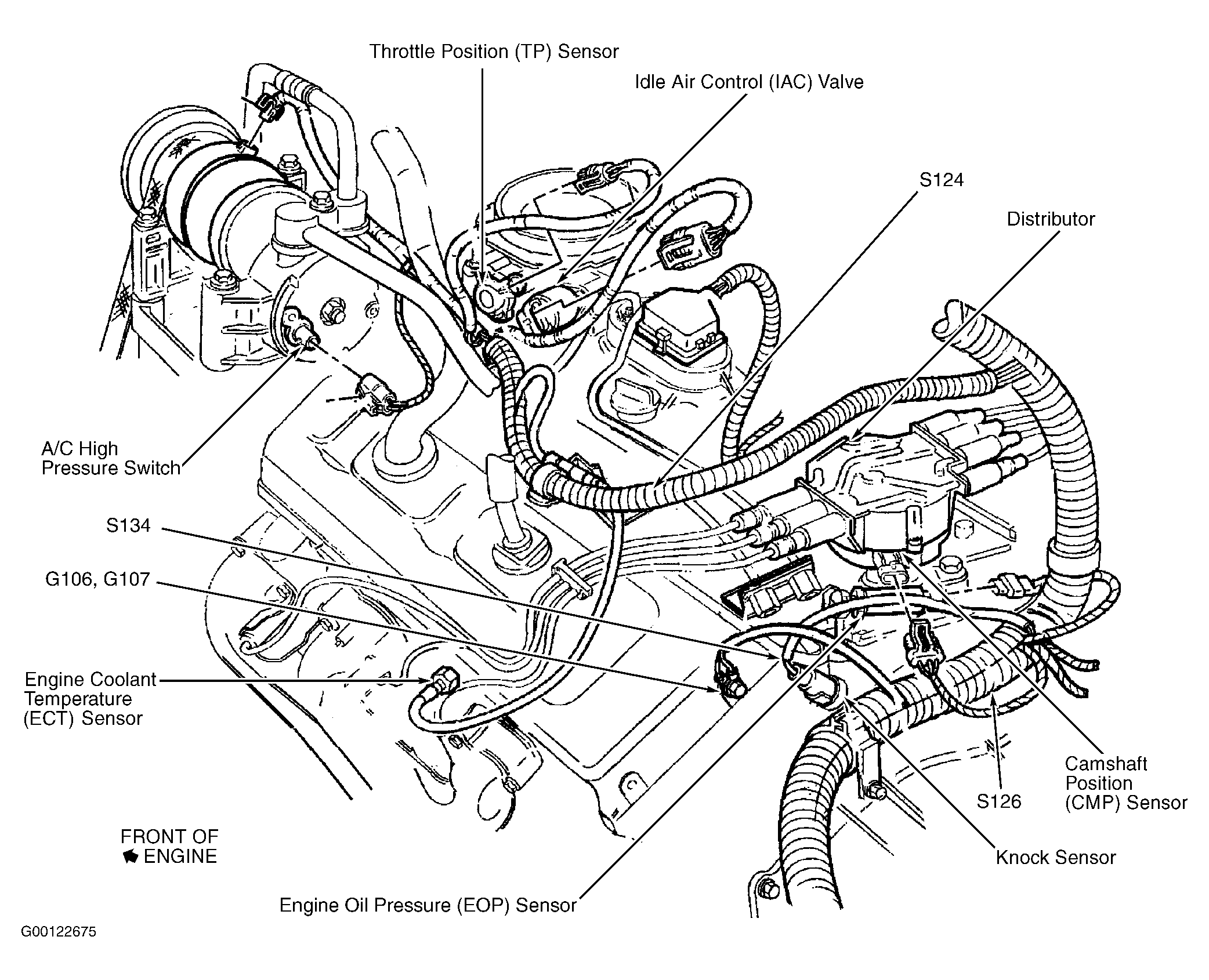

Fig 2: Top Left Rear Of Engine

Courtesy of GENERAL MOTORS CORP.

Fig 3: Right Side Of Engine

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Compartment

Courtesy of GENERAL MOTORS CORP.

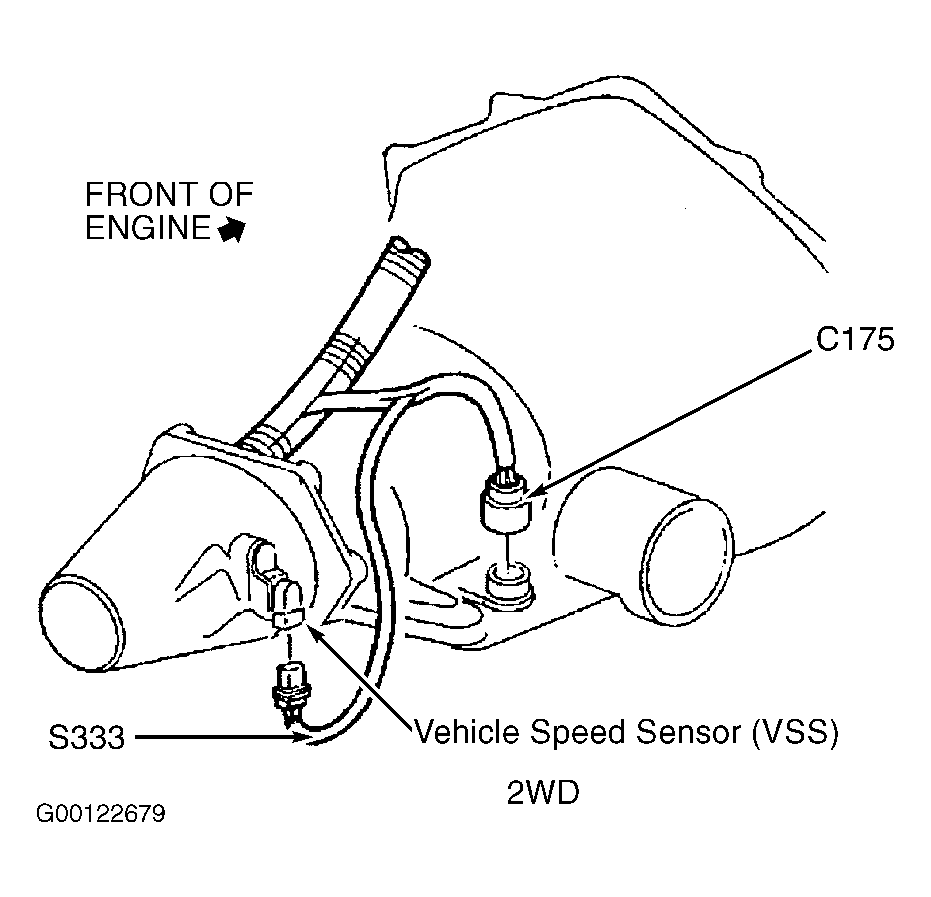

Fig 5: Right Side Of Transmission (2WD)

Courtesy of GENERAL MOTORS CORP.

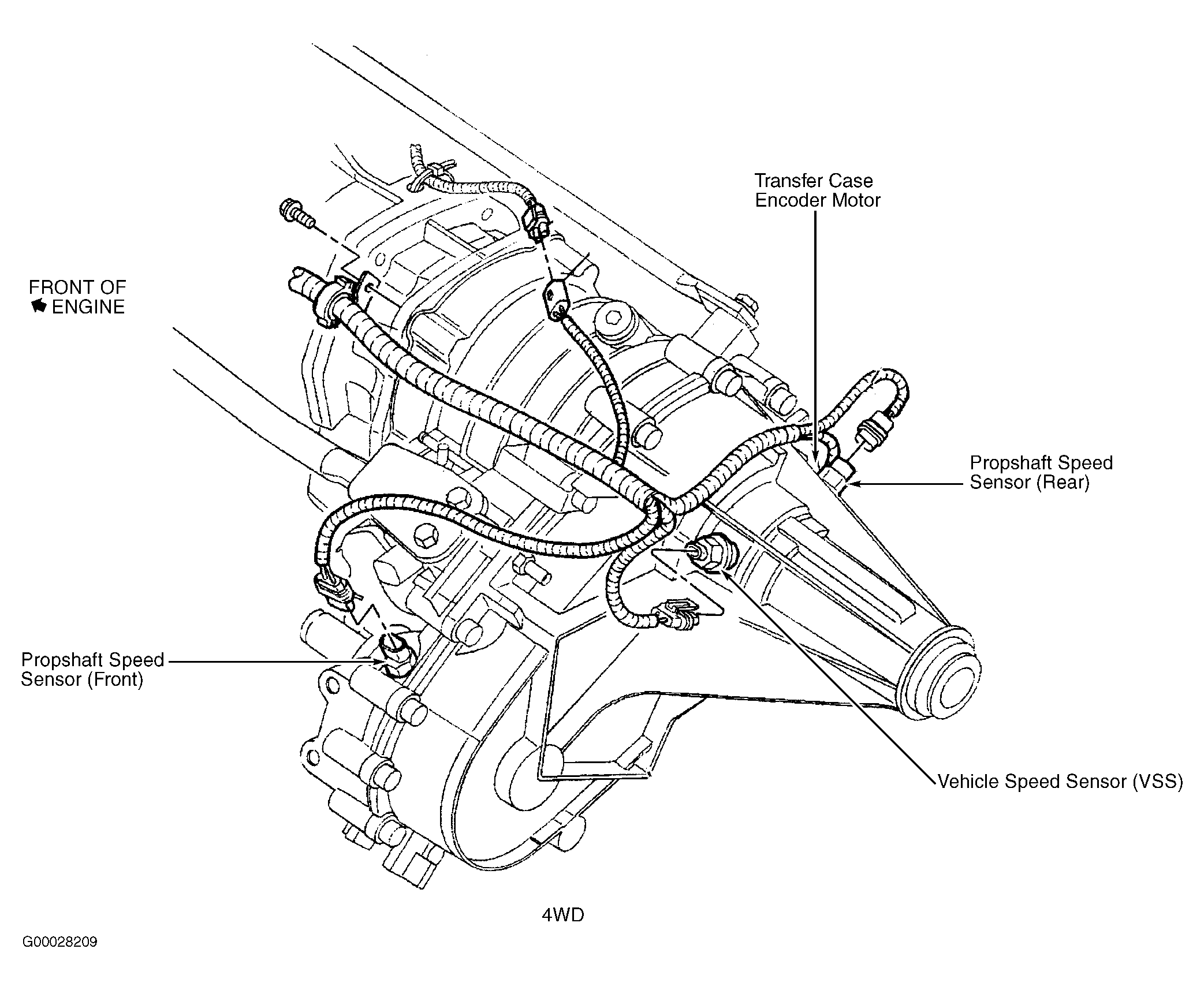

Fig 6: Transmission & Transfer Case (4WD)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Left Side Of Dash

Courtesy of GENERAL MOTORS CORP.

Fig 8: Center Of Liftgate

Courtesy of GENERAL MOTORS CORP.

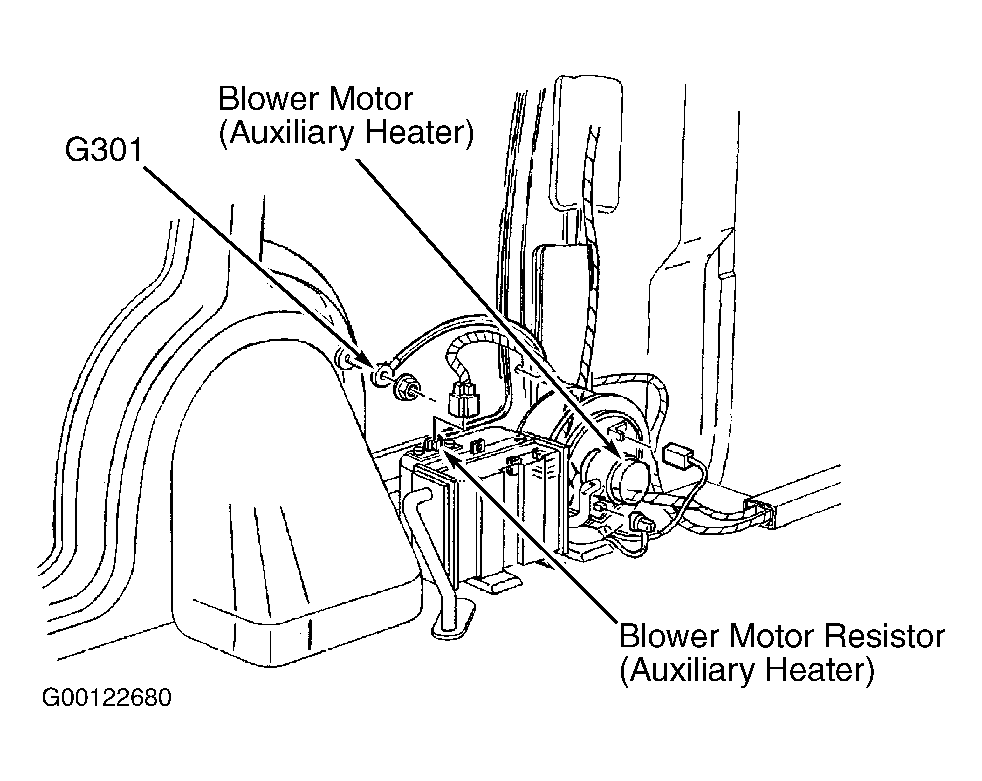

Fig 9: Left Side Of Vehicle

Courtesy of GENERAL MOTORS CORP.

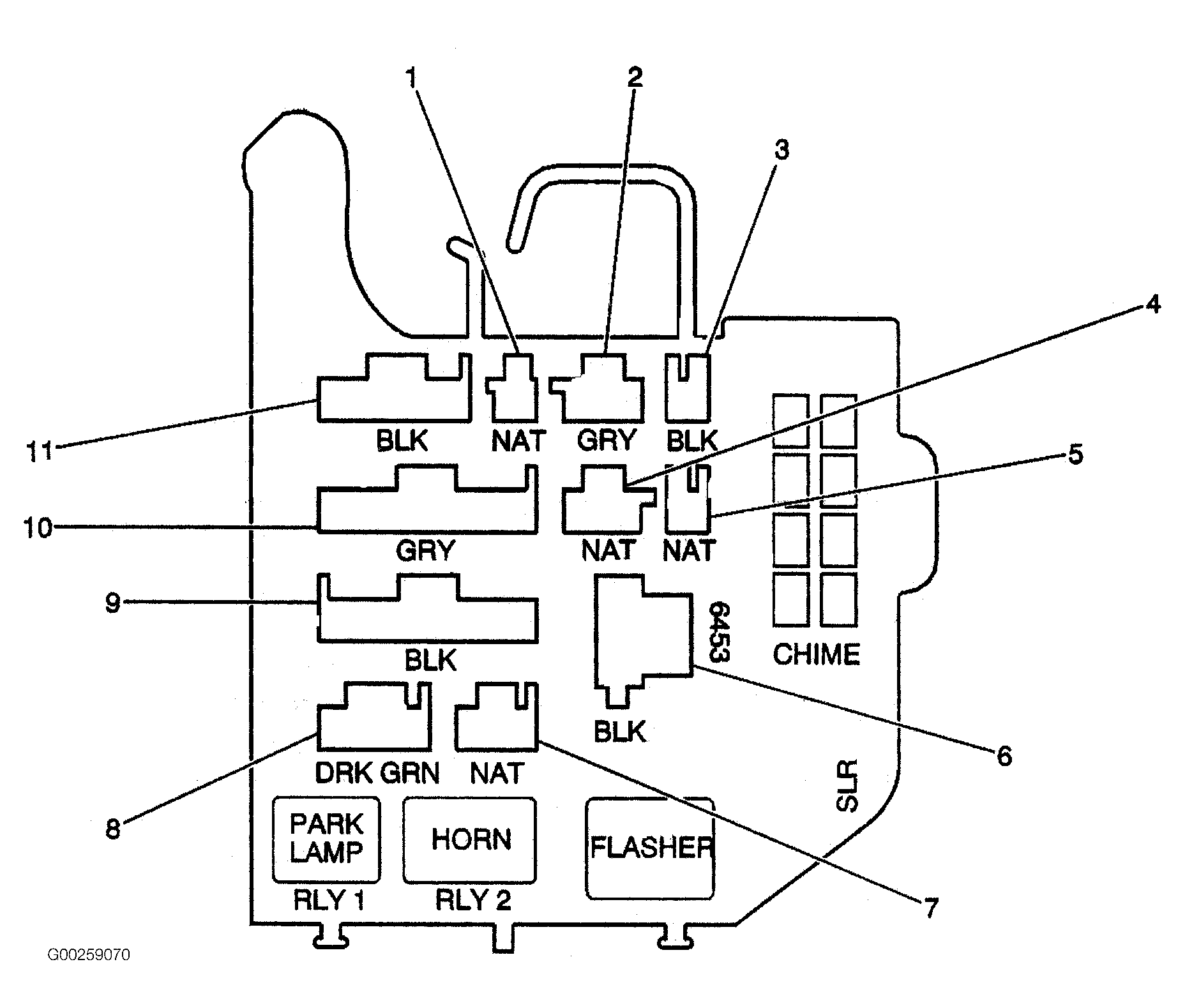

Fig 10: Convenience Center

Courtesy of GENERAL MOTORS CORP.
