Body Control System Connector End Views

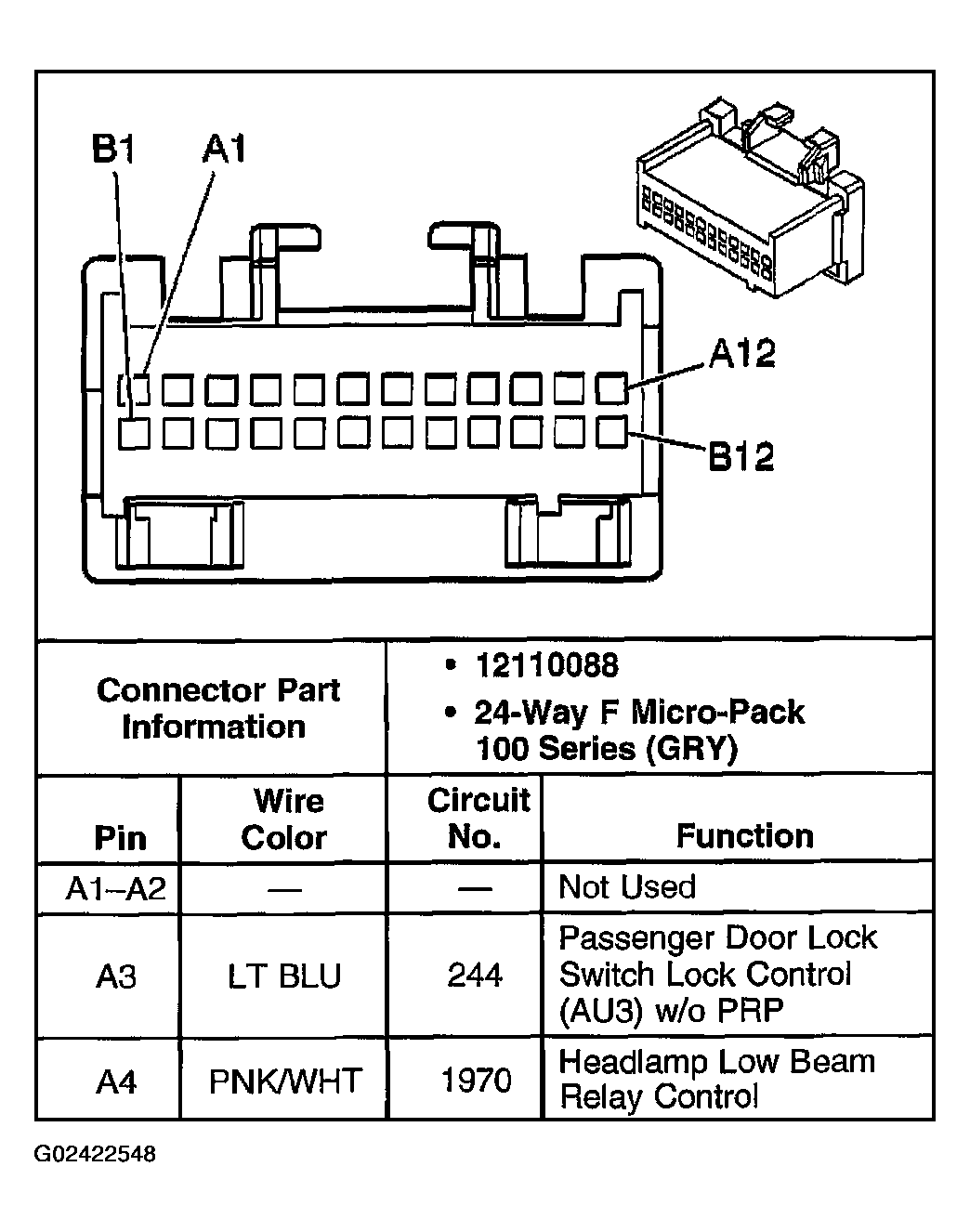

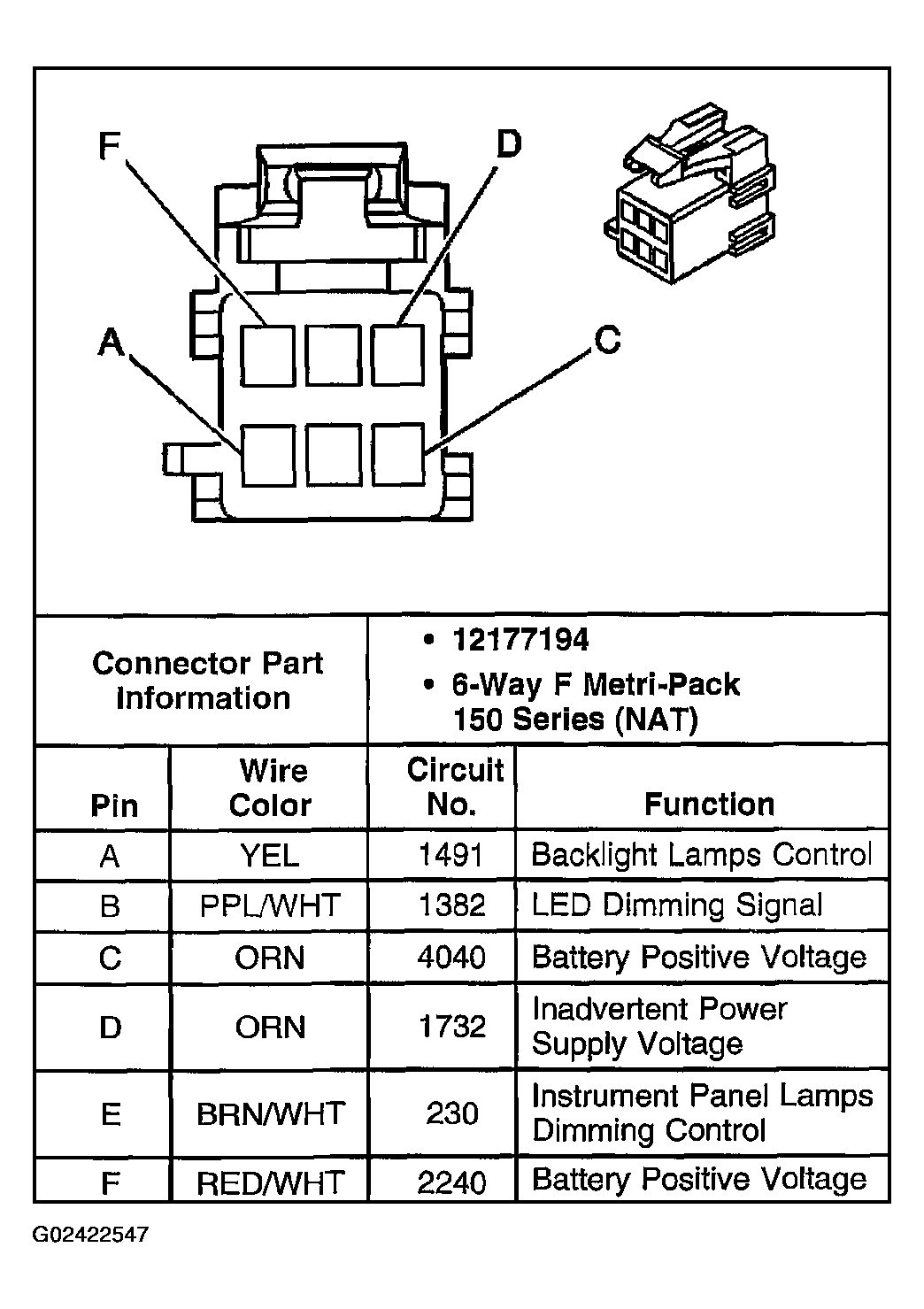

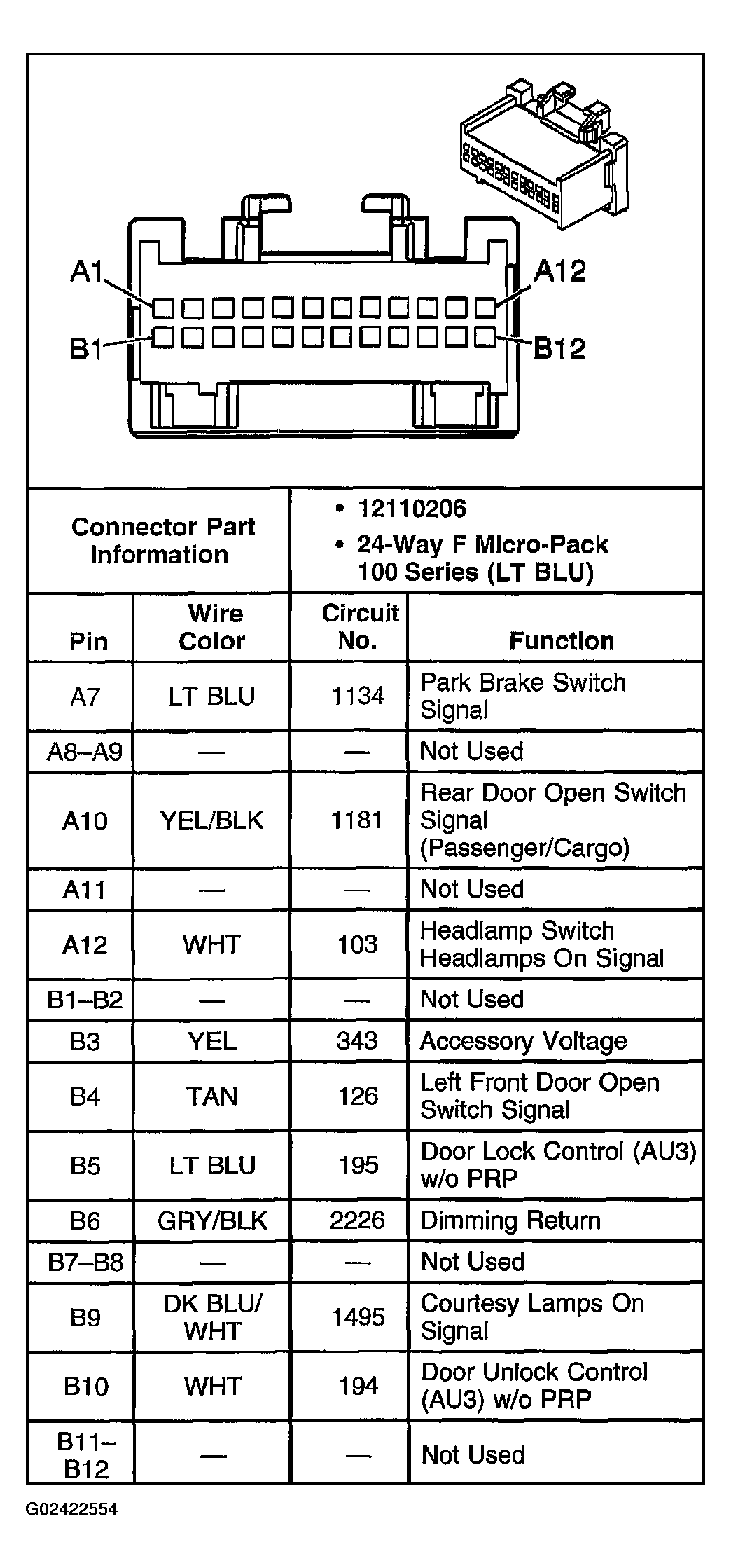

Fig 1: Body Control Module (BCM) Connector End View - C1

Courtesy of GENERAL MOTORS CORP.

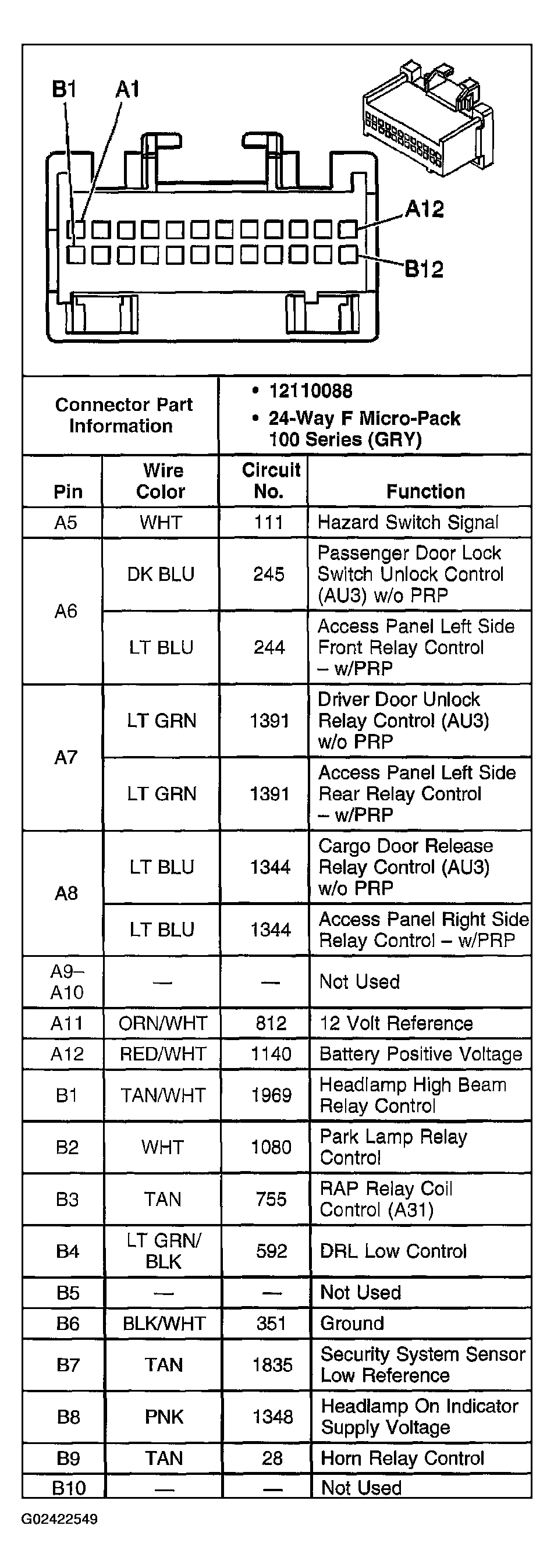

Fig 2: Body Control Module (BCM) Connector End View - C2 (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Body Control Module (BCM) Connector End View - C2 (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

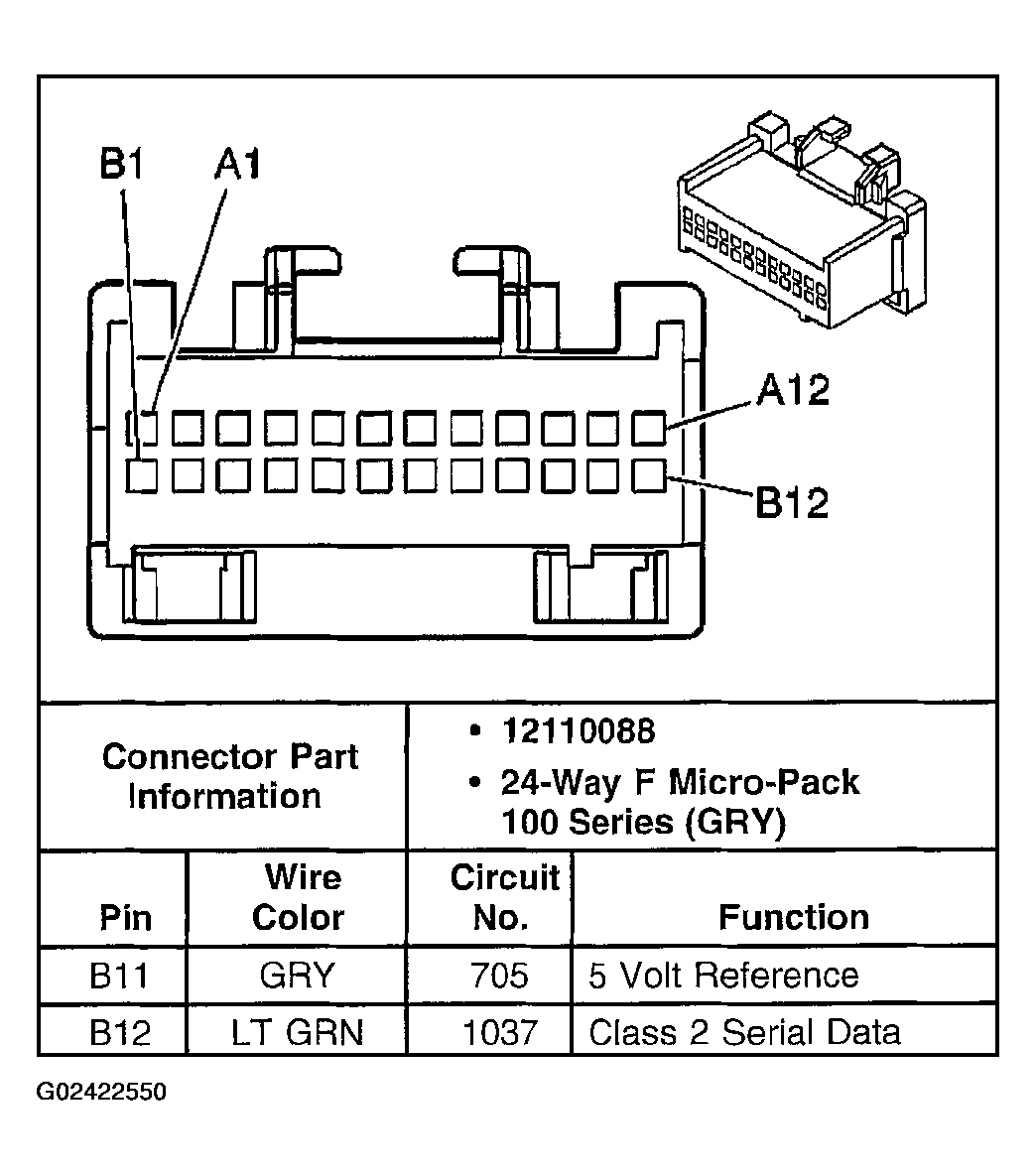

Fig 4: Body Control Module (BCM) Connector End View - C2 (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

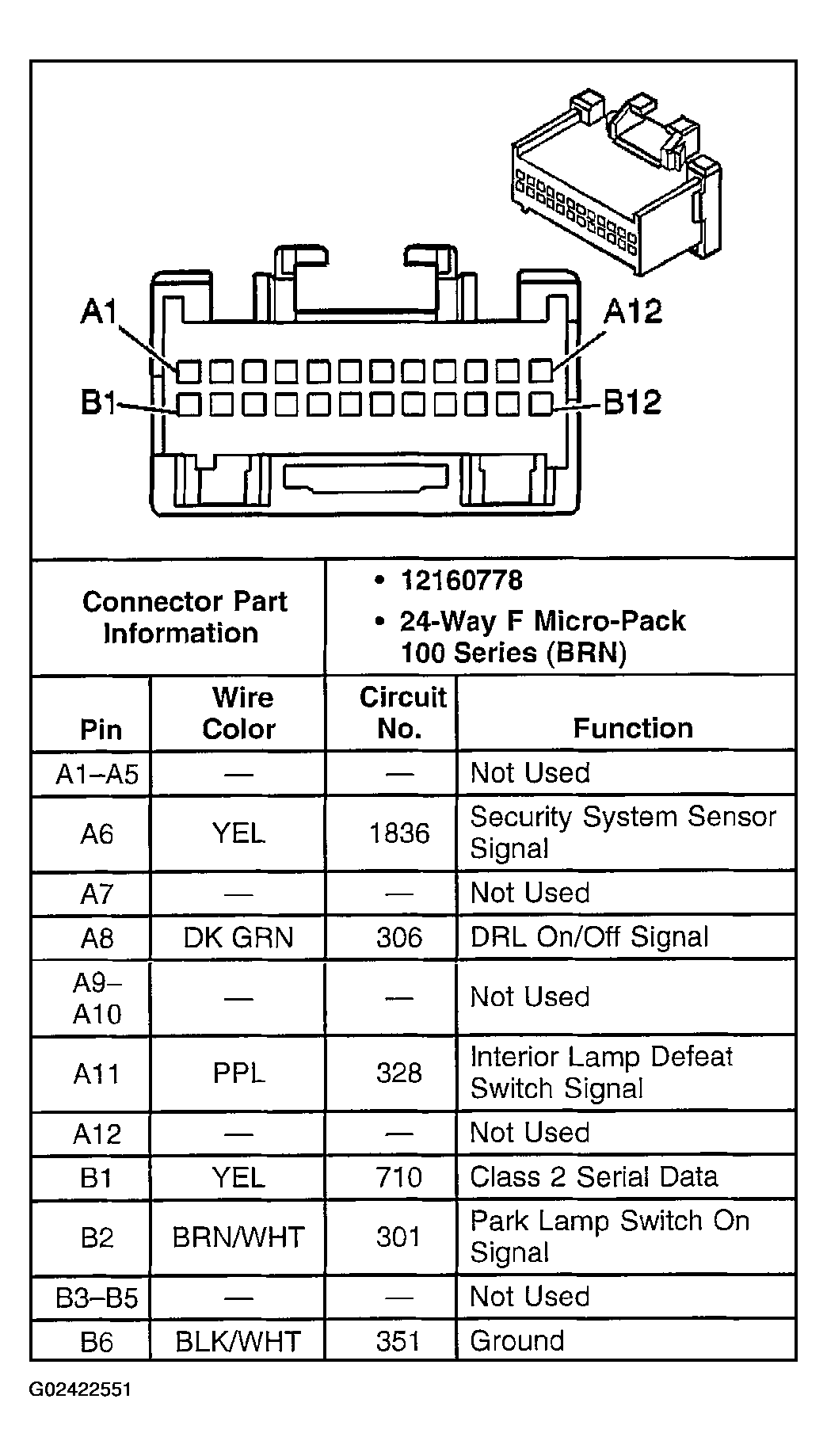

Fig 5: Body Control Module (BCM) Connector End View - C3 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

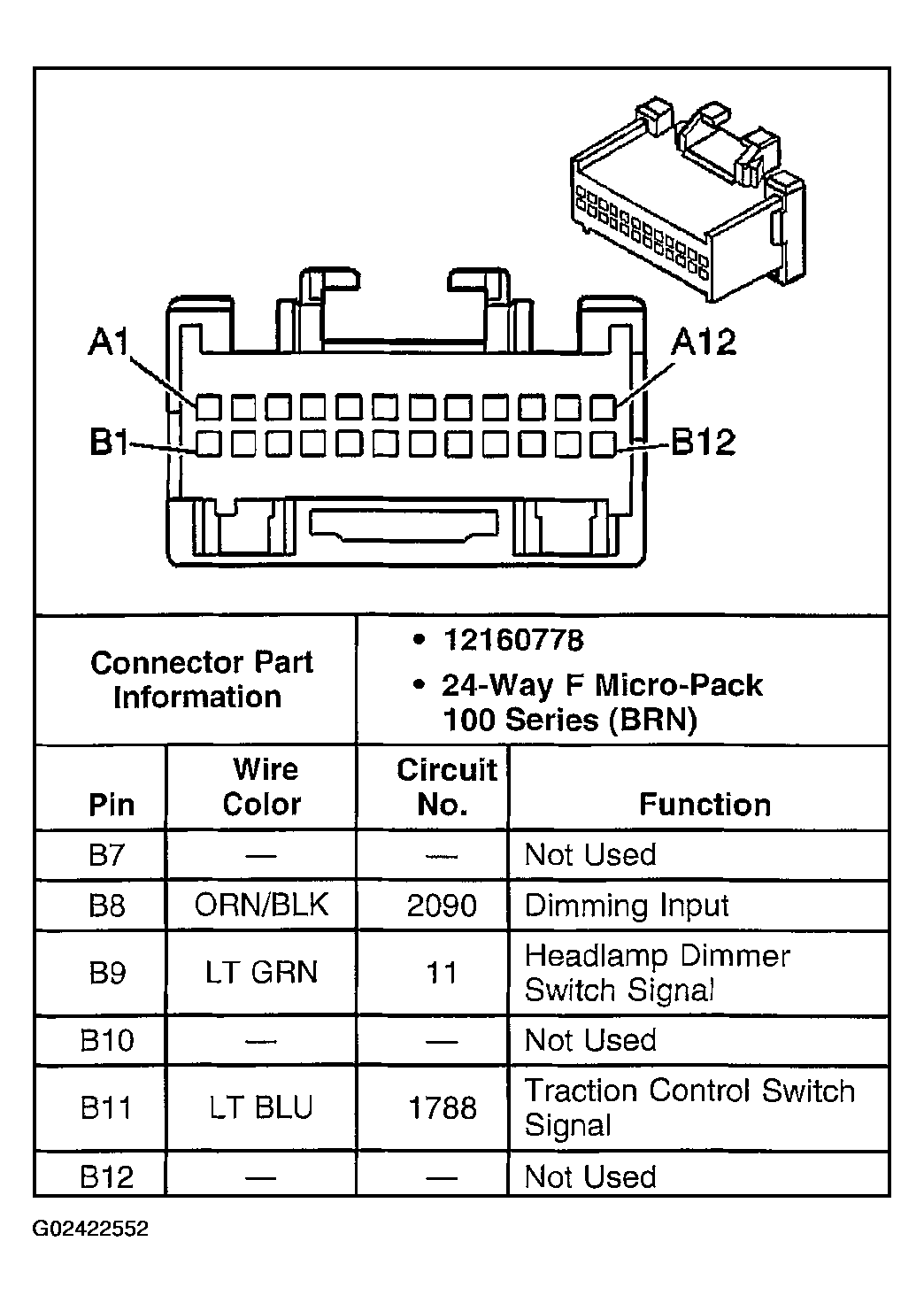

Fig 6: Body Control Module (BCM) Connector End View - C3 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

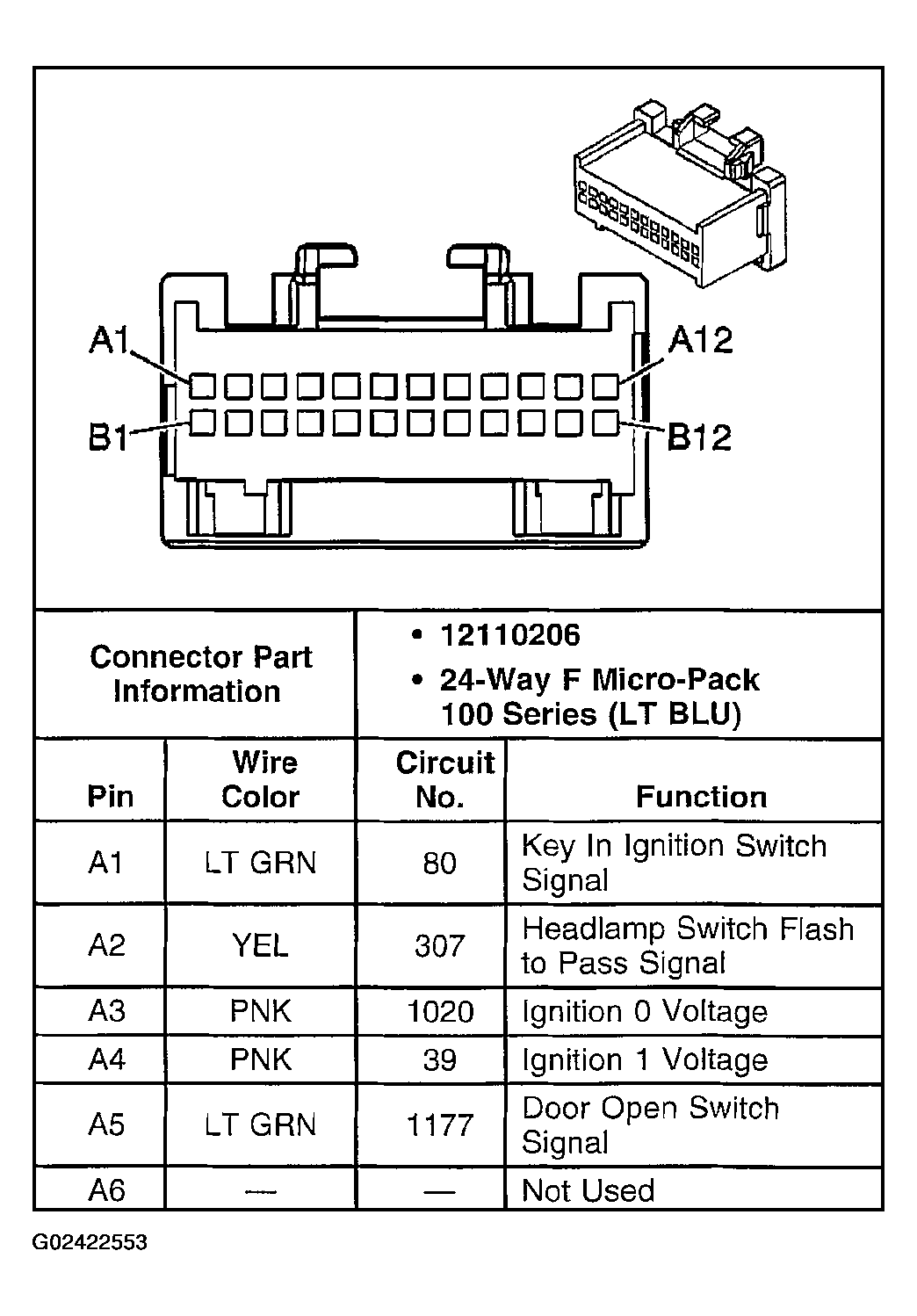

Fig 7: Body Control Module (BCM) Connector End View - C4 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Body Control Module (BCM) Connector End View - C4 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

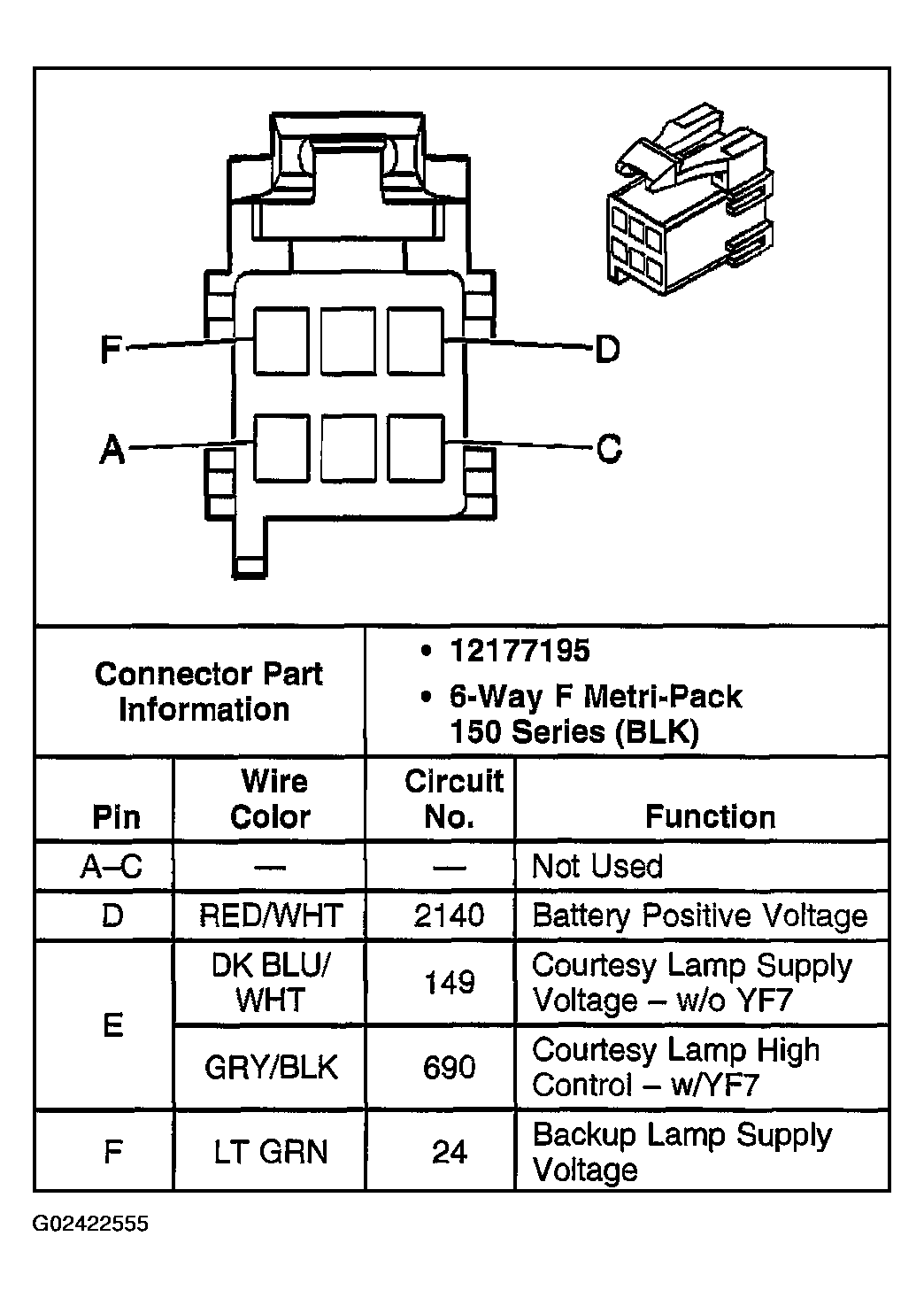

Fig 9: Body Control Module (BCM) Connector End View - C5

Courtesy of GENERAL MOTORS CORP.
