Component Locator
>>
ABS Component Views
ABS Component Views

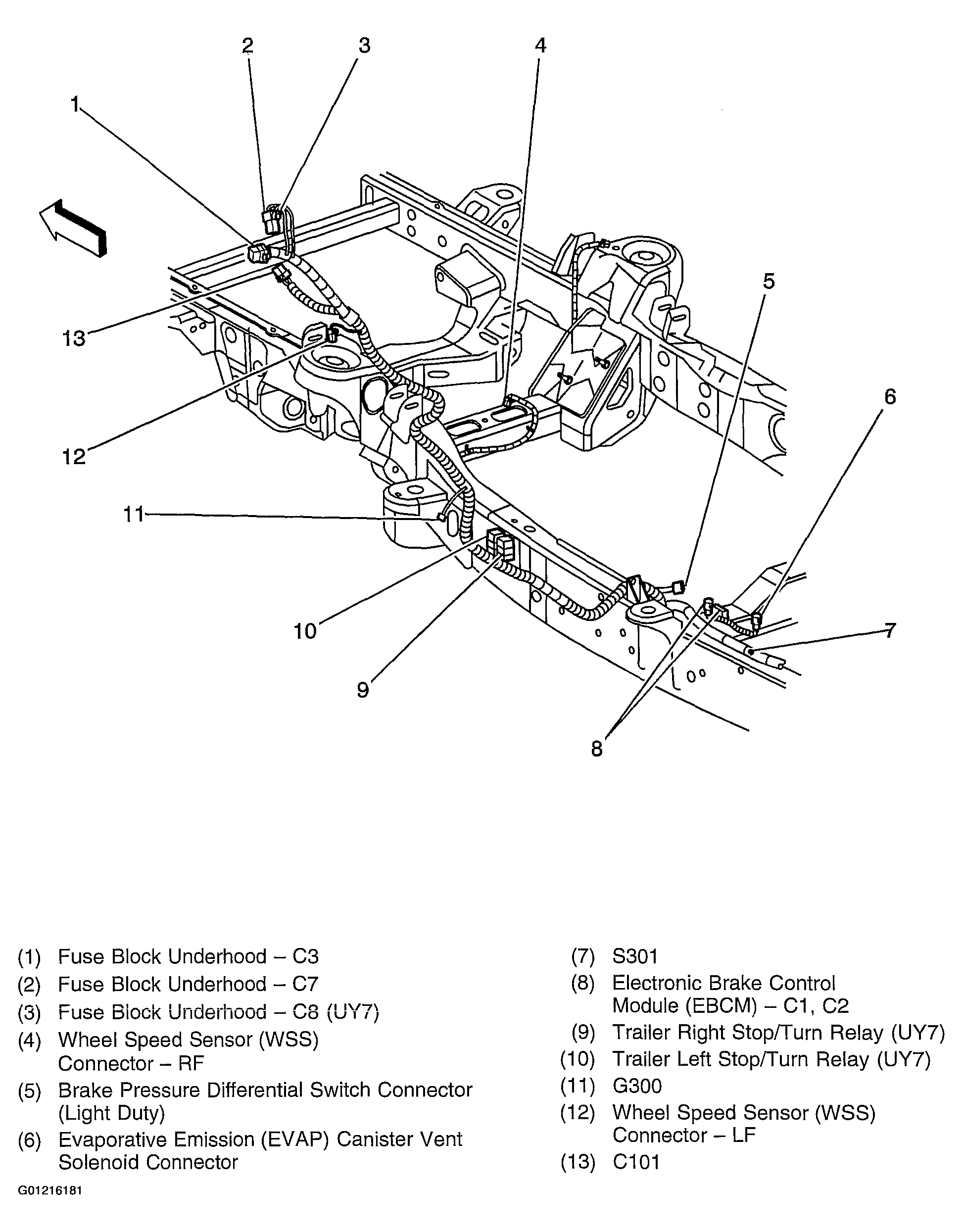

Fig 1: Chassis Harness Routing (Passenger/Cargo)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Side Frame
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
