Installation Procedure

Important  : Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

1. Install the EBCM (2) on to the BPMV (1).
   NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
2. Install the screws to the EBCM (2).

   Tighten

   Tighten the screws to 5 N.m (44 lb in) in an X-pattern.

   Fig 1: Installing EBCM

   Courtesy of GENERAL MOTORS CORP.
3. Connect the electrical connectors to the EBCM.

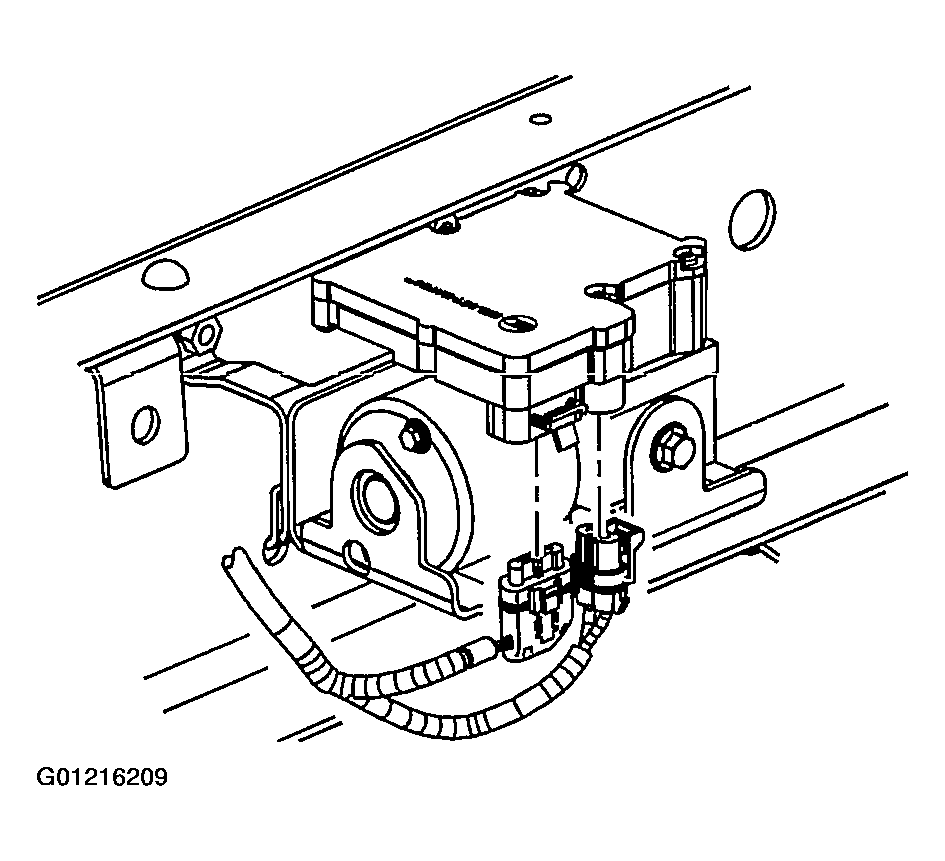

   Fig 2: Connecting Electrical Connectors To EBCM

   Courtesy of GENERAL MOTORS CORP.
4. For cutaway vehicles, install the splash shield.

   Tighten

   Tighten the splash shield bolts to 25 N.m (18 lb ft).

5. Lower the vehicle.
6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
7. Revise the tire calibration using the Scan Tool  Tire Size Calibration function.
8. Verify correct system operation. Refer to Diagnostic Starting Point - Anti-Lock Brake System .

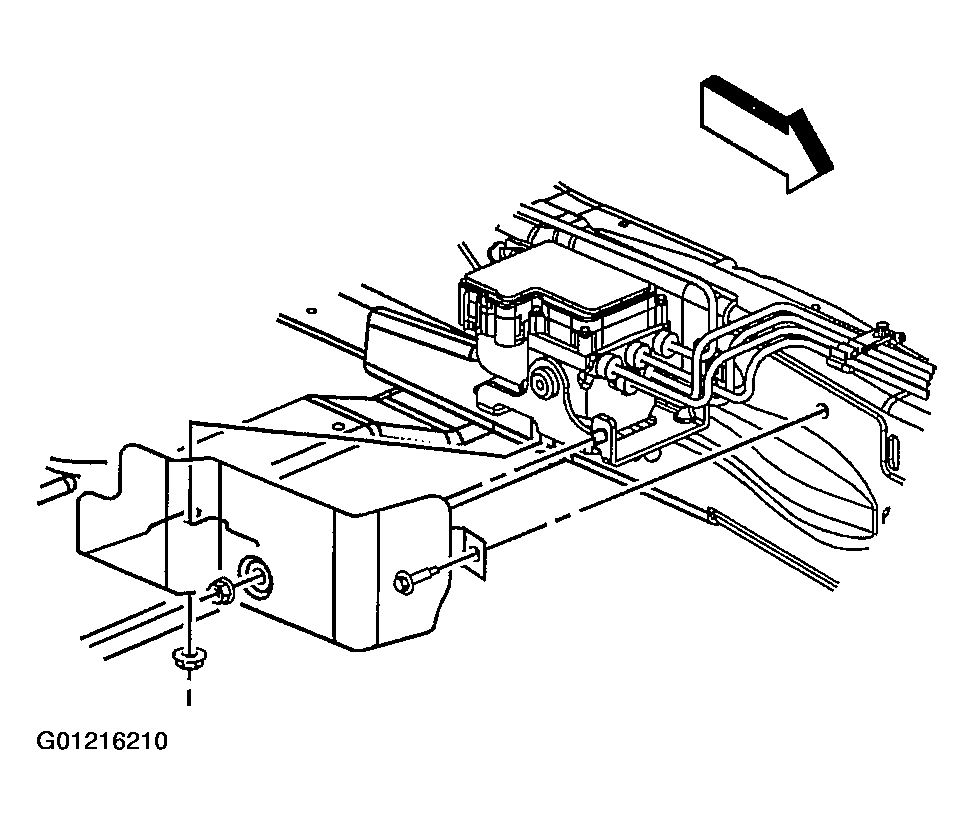

   Fig 3: Installing Splash Shield

   Courtesy of GENERAL MOTORS CORP.
