Connector Identification

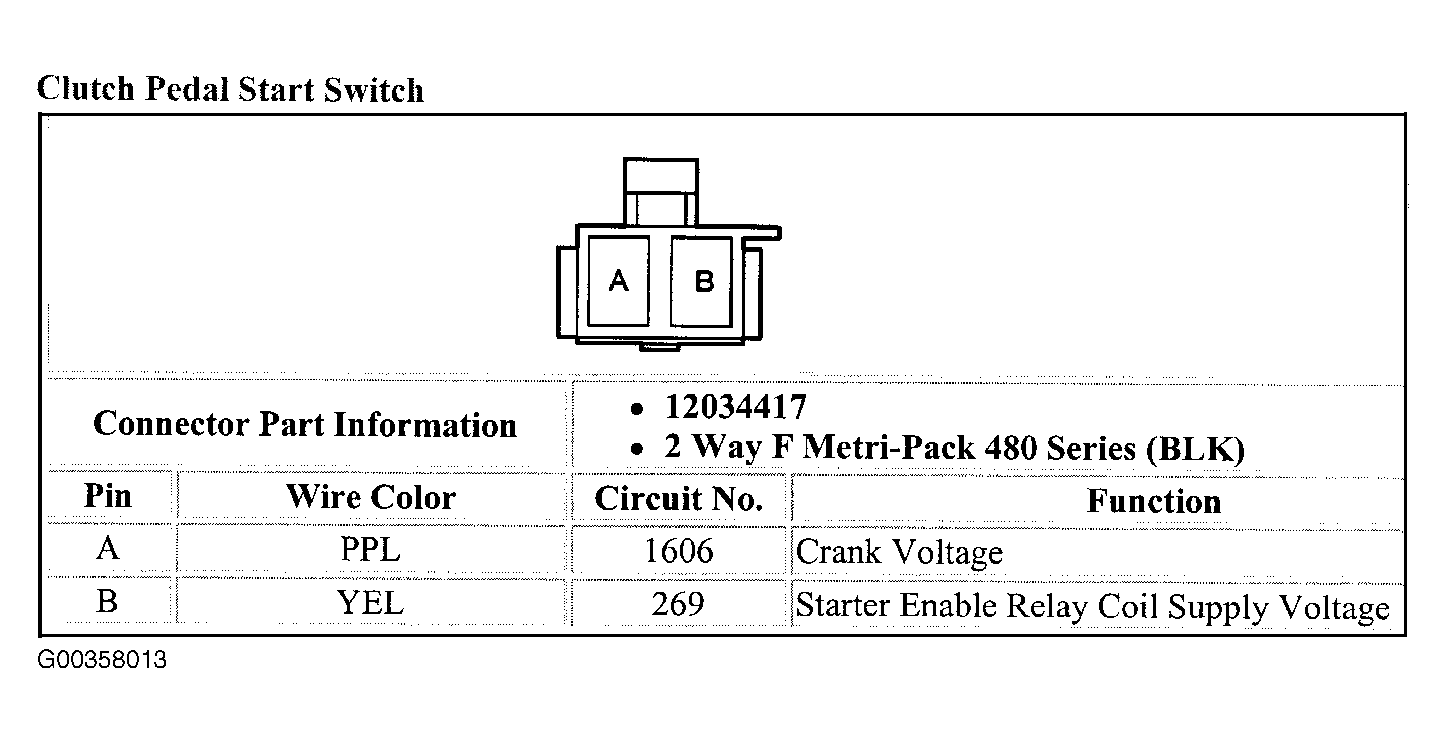

Fig 1: Identifying Clutch Pedal Start Switch Connector
G00358013Courtesy of GENERAL MOTORS CORP.
