Automatic Transmission Shift Lock Control Connector End Views
Automatic Transmission Shift Lock Control Connector End Views

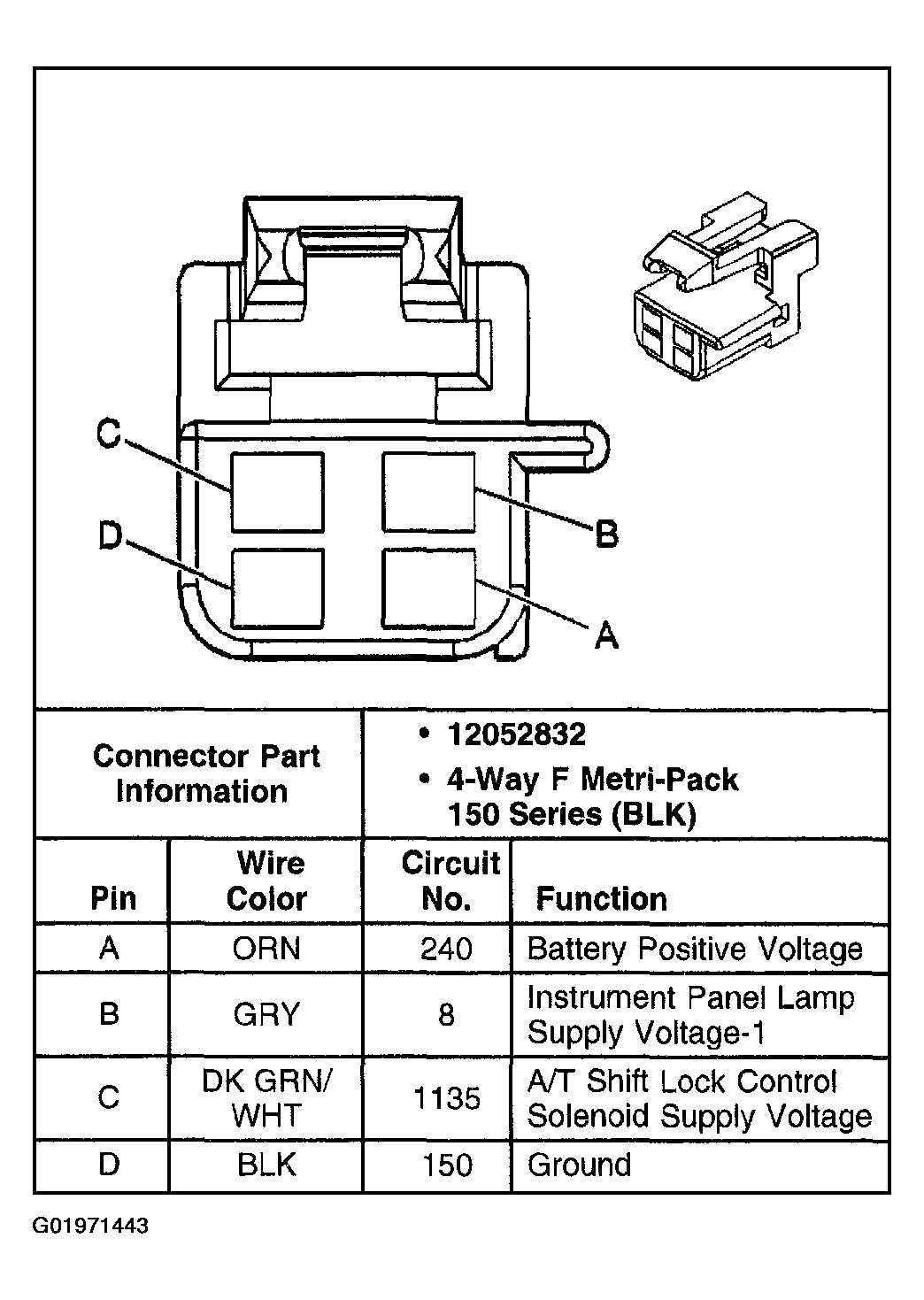

Fig 1: A/T Shift Lock Control Solenoid (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
