Home >> Chevrolet >> 2003 >> Impala LS >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System >> Repair Instructions >> Remote Control Door Lock Receiver Replacement >> Installation Procedure

Installation Procedure

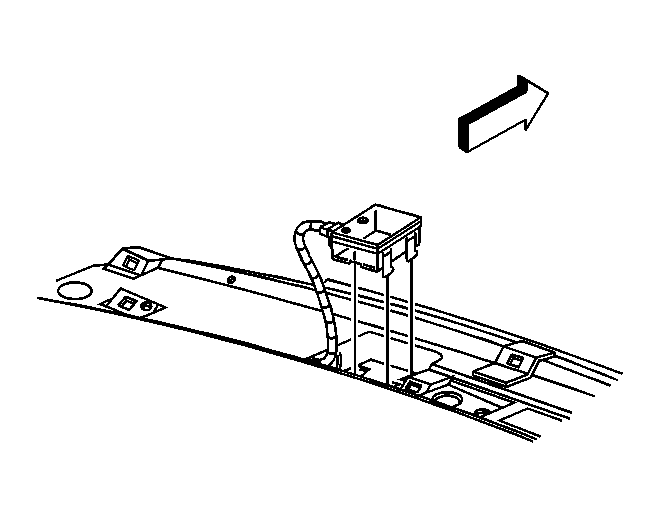

    Fig 1: Remote Control Door Lock Receiver
    GM443682Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Engage the receiver retainers to the IP upper trim pad.
  3. Install the IP upper trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper in Instrument Panel, Gages and Console.
  4. If a new remote control door lock receiver is being installed, program the transmitter. Refer to Transmitter Programming .
