Installation Procedure

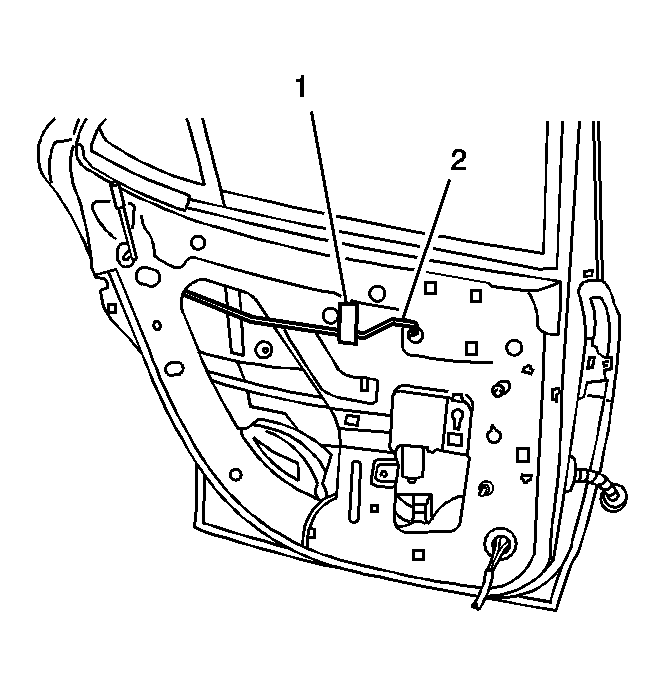

    Fig 1: Handle Lock Rod Guide Block
    GM794020Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Locate the opening in the retaining guide block (1).
  1. Install the inside handle rod to the retaining guide block (1), push inward to secure the rod.
  2. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Impala)  or Trim Panel Replacement - Side Front Door (Monte Carlo)  or Install the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
