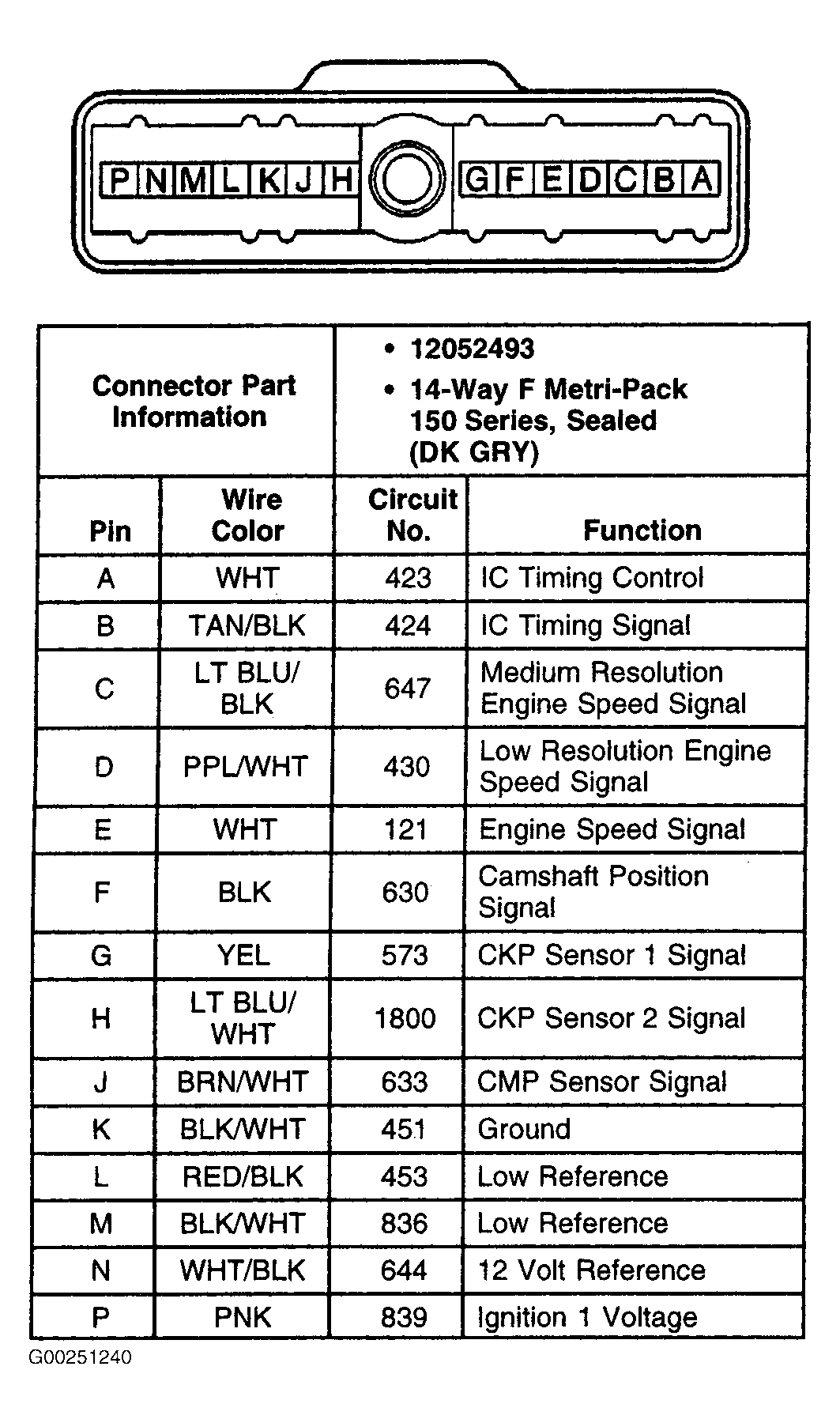

Ignition Control Module Connector End View

Fig 1: Ignition Control Module

G00251212

Courtesy of GENERAL MOTORS CORP.

Fig 1: Ignition Control Module

G00250667

Courtesy of GENERAL MOTORS CORP.

Fig 1: Ignition Control Module

G00251158

Courtesy of GENERAL MOTORS CORP.

Fig 1: Ignition Control Module

G00250701

Courtesy of GENERAL MOTORS CORP.

Fig 1: Ignition Control Module

G00251158

Courtesy of GENERAL MOTORS CORP.

Fig 1: Ignition Control Module

G00251240

Courtesy of GENERAL MOTORS CORP.

Fig 1: Ignition Control Module

G00250312

Courtesy of GENERAL MOTORS CORP.
