Horns Component Views

Fig 1: Steering Wheel Component View (Impala)
GM507620Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Inflatable Restraint Steering Wheel Module Coil Connector C5
3 Steering Wheel Controls-Right (Radio)
4 Steering Wheel Controls-Right (Cruise Control)
5 Inflatable Restraint Steering Wheel Module Coil Connector
6 Inflatable Restraint Steering Wheel Module
7 Horn Switch Spring Loaded Contact
Fig 2: Steering Wheel Component View (Monte Carlo)
GM507621Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Inflatable Restraint Steering Wheel Module Coil Connector C5
3 Steering Wheel Controls-Right (Radio)
4 Steering Wheel Controls-Right (Cruise Control)
5 Inflatable Restraint Steering Wheel Module Coil Connector
6 Inflatable Restraint Steering Wheel Module
7 Horn Switch Spring Loaded Contact

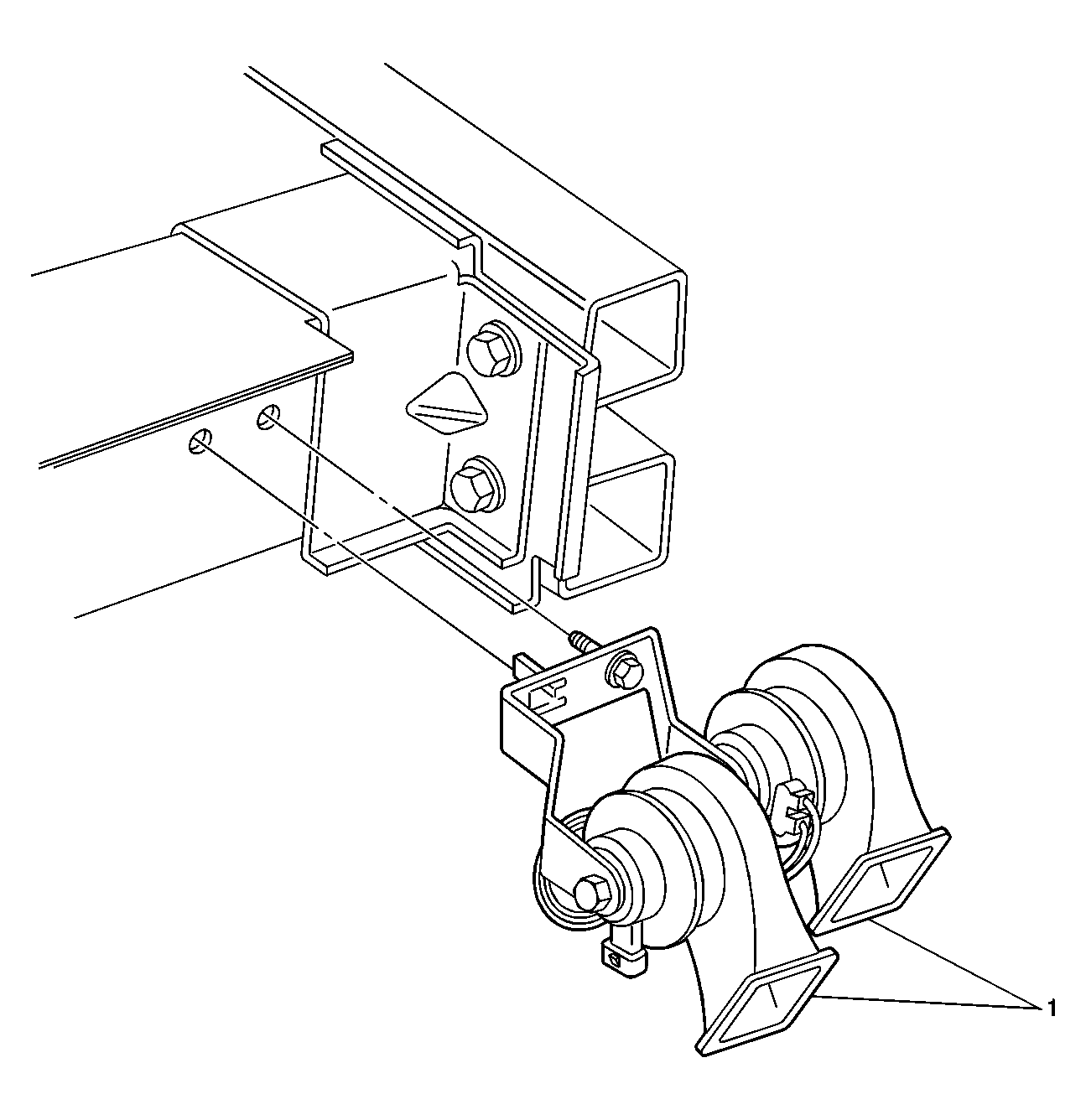

Fig 3: Lower Right Front Of Vehicle Component View
GM498354Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn Assembly
