Connector Identification
Connector Identification

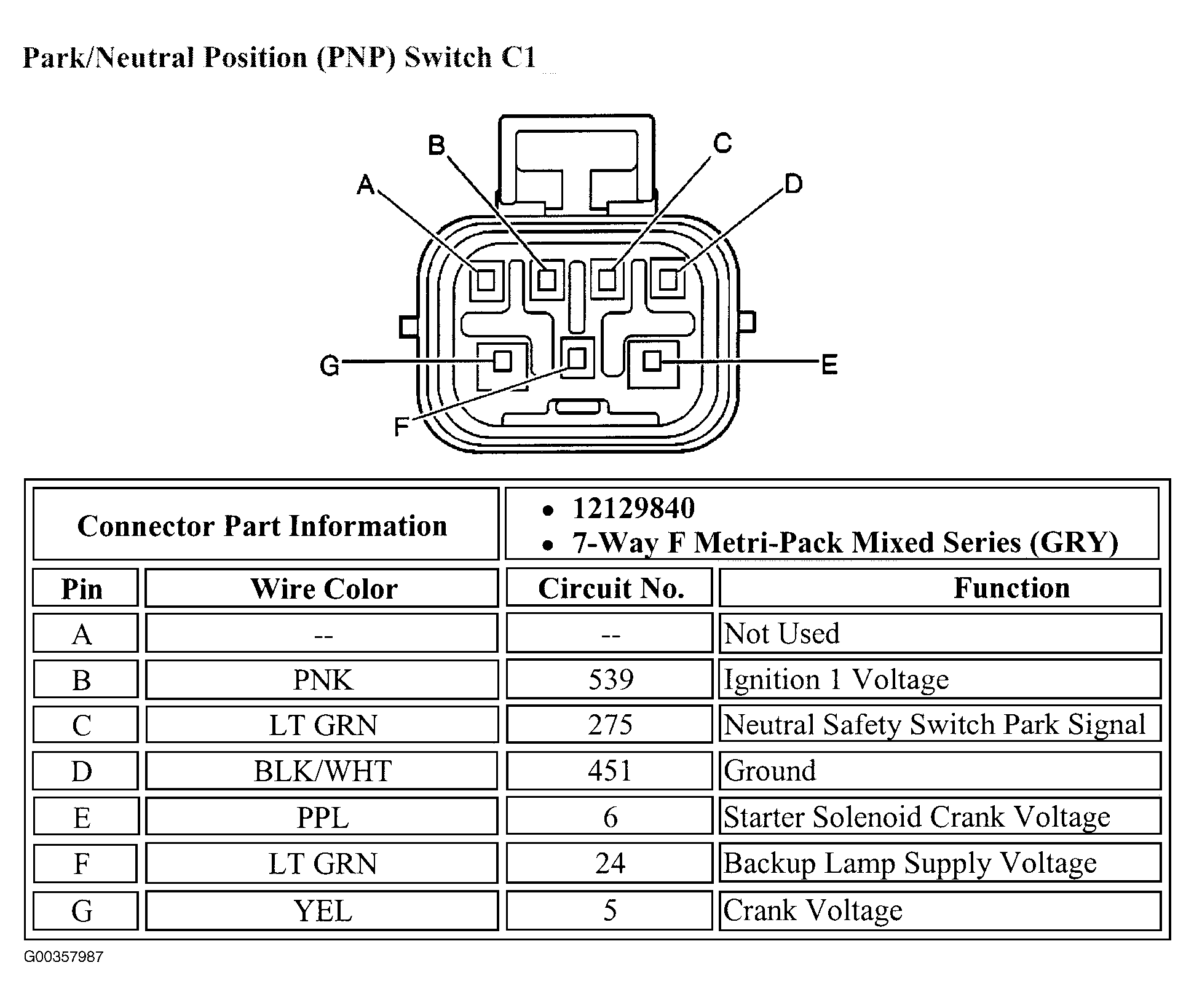

Fig 1: Identifying Park/Neutral Position Switch C1
Courtesy of GENERAL MOTORS CORP.

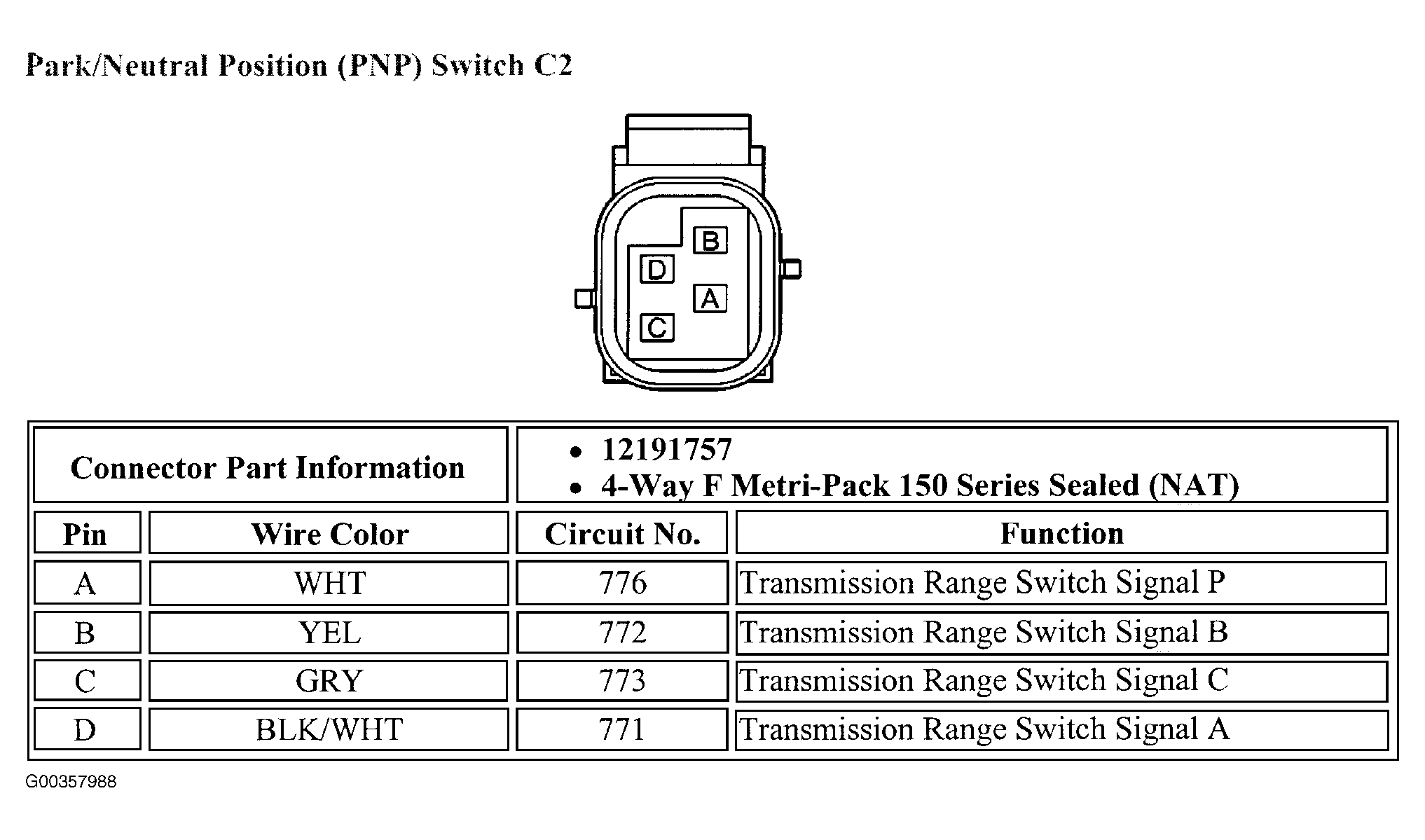

Fig 2: Identifying Park/Neutral Position Switch C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
