Installation Procedure

  1. Install the three-way catalytic converter seal.

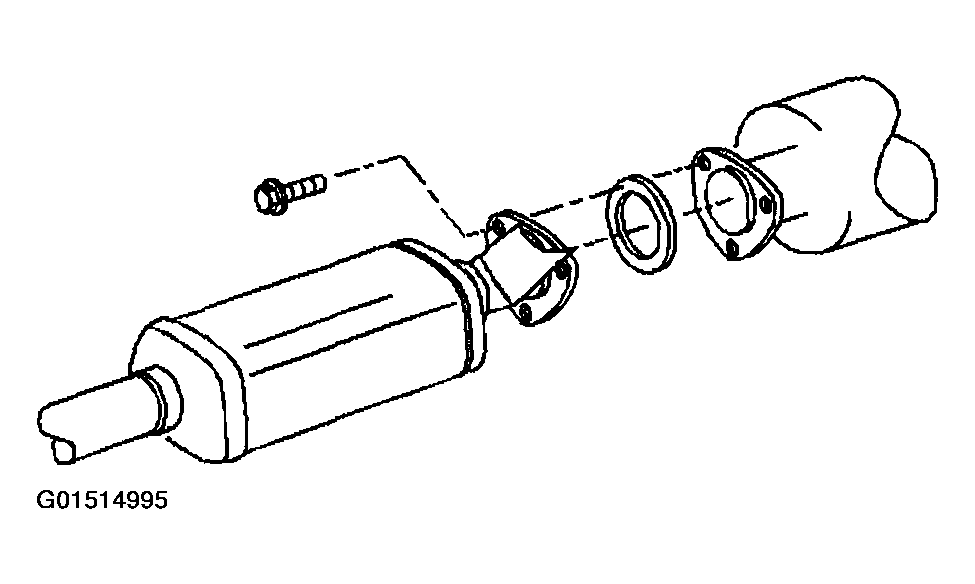

    Fig 1: Installing Three-Way Catalytic Converter Seal
    G01514995Courtesy of GENERAL MOTORS CORP.
  2. Install the intermediate pipe to the hanger.
  3. Install sway bar insulator, brackets and nuts.

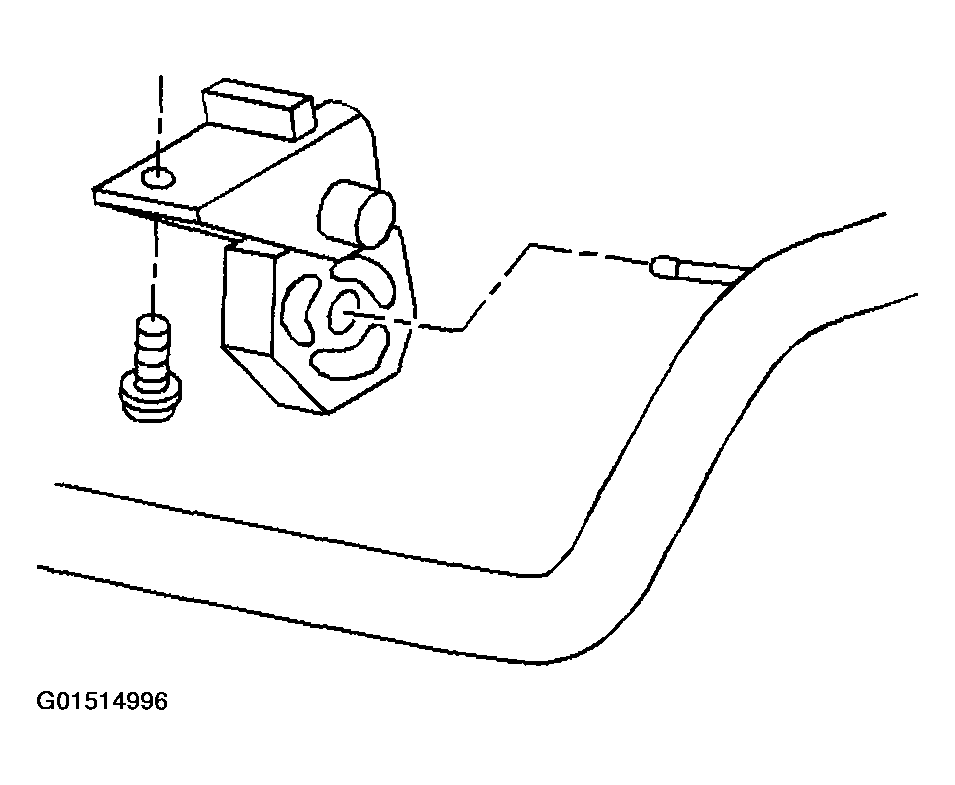

    Fig 2: Installing Intermediate Pipe To Hanger
    G01514996Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the intermediate pipe to the three-way catalytic converter bolts.

    Tighten

    Tighten bolts to 45 N.m (33 lb ft).

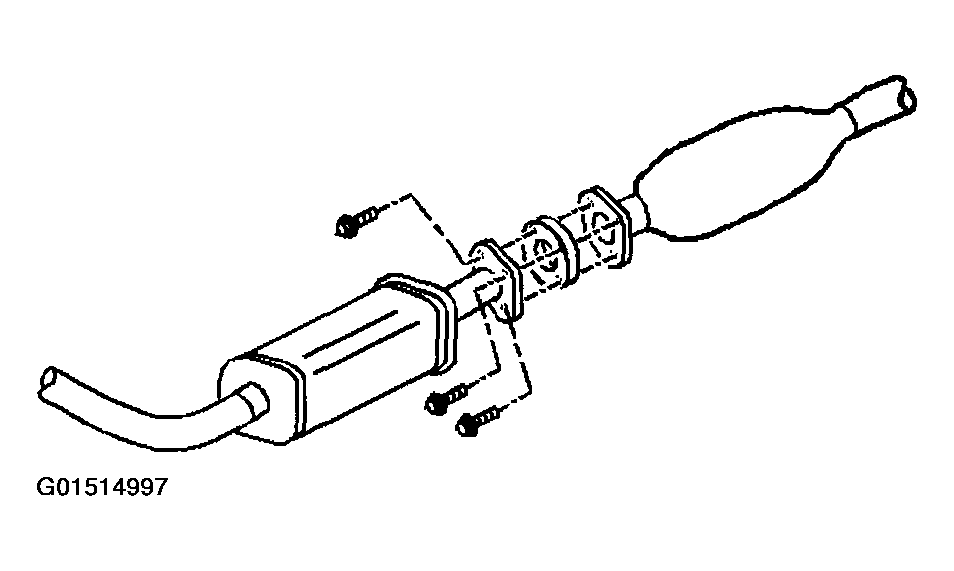

    Fig 3: Installing Intermediate Pipe To Three-Way Catalytic Converter Bolts
    G01514997Courtesy of GENERAL MOTORS CORP.
  5. Install the muffler to the intermediate pipe bolts.

    Tighten

    Tighten bolts to 50 N.m (37 lb ft).

  6. Lower the vehicle.

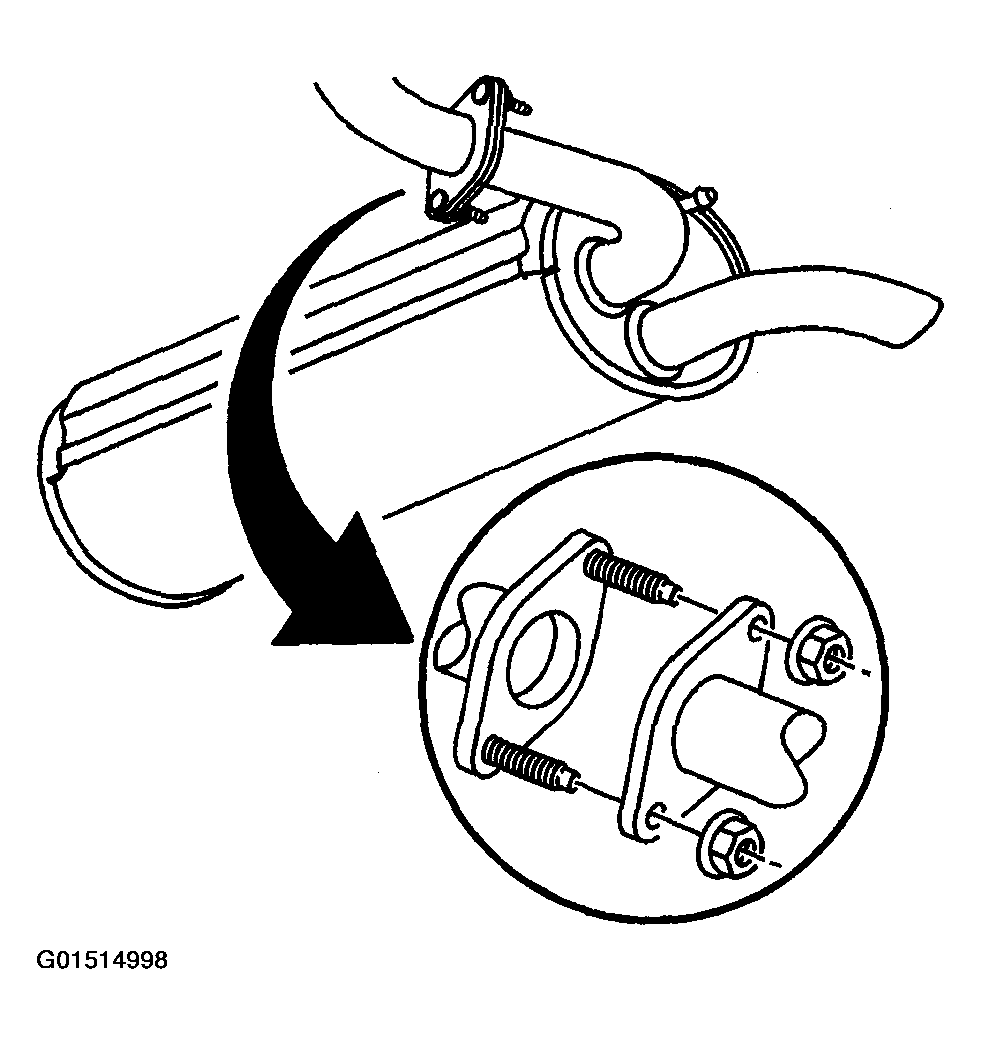

    Fig 4: Installing Muffler To Intermediate Pipe Bolts
    G01514998Courtesy of GENERAL MOTORS CORP.
