Shift Interlock System
>>
Component Locator
>>
Automatic Transmission Shift Lock Control Component Views
Automatic Transmission Shift Lock Control Component Views

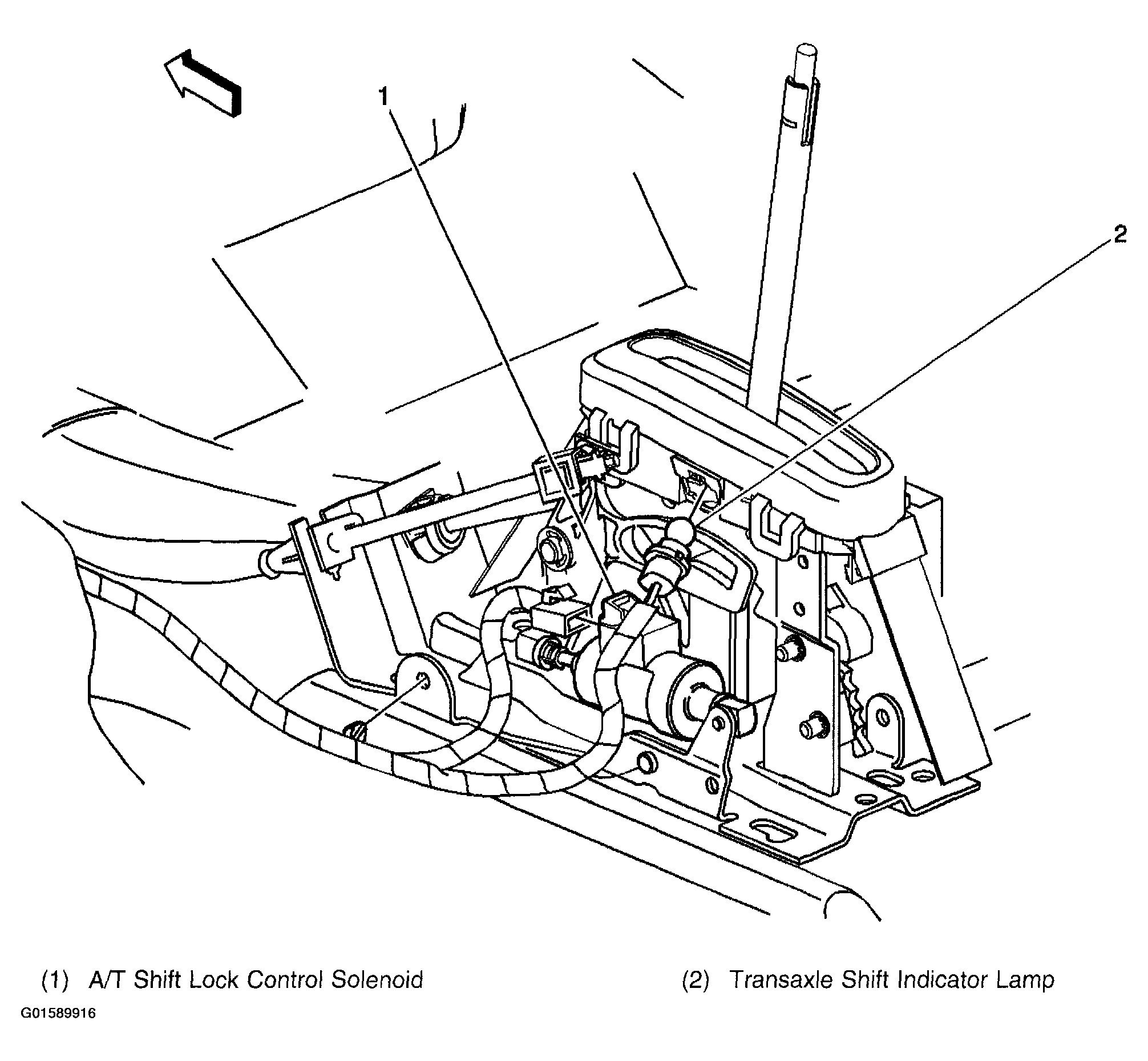

Fig 1: Automatic Transmission Shift Lock Control Component Views - Under Center Console
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
