Automatic Transmission Shift Lock Control Connector End Views
Automatic Transmission Shift Lock Control Connector End Views

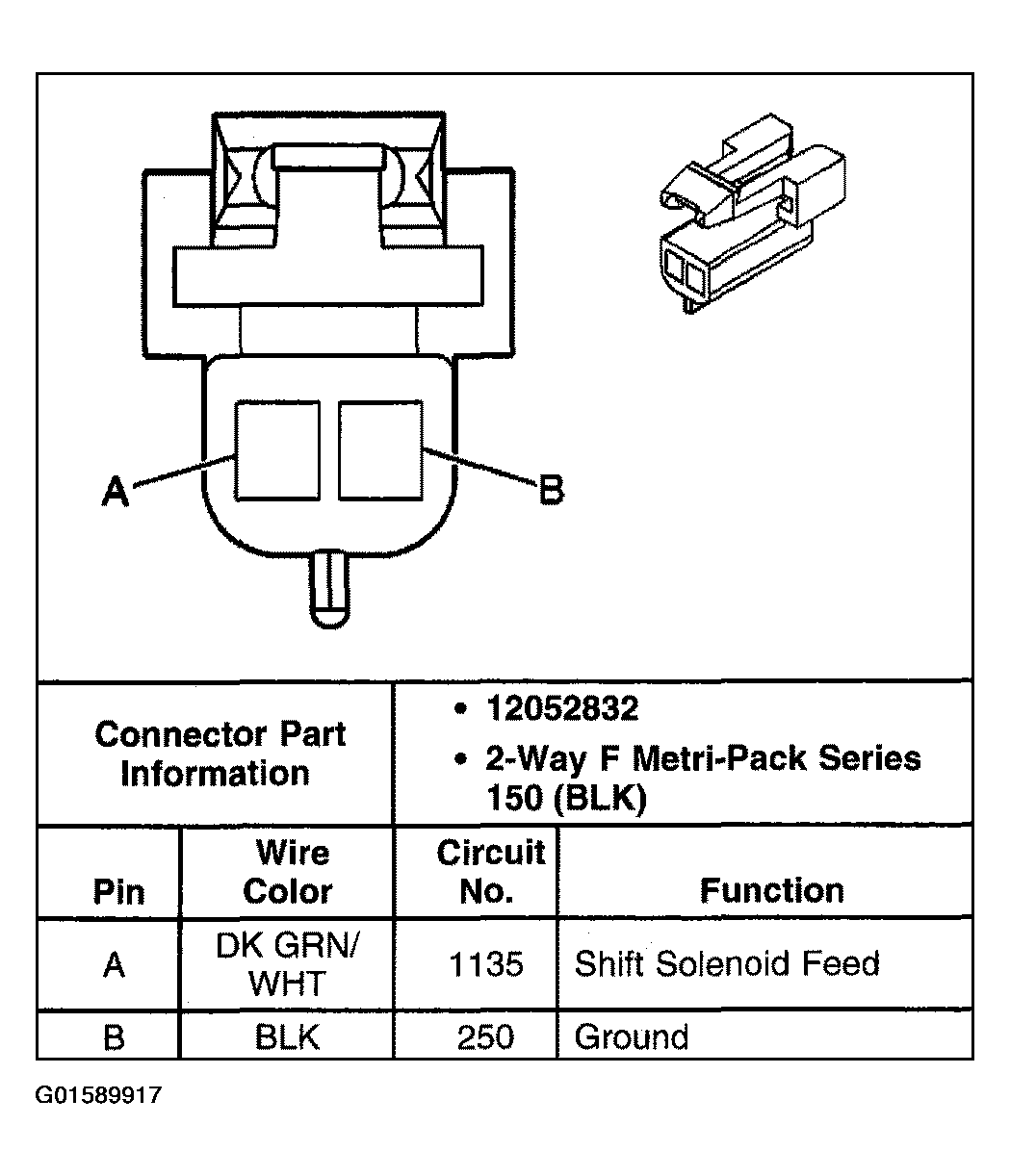

Fig 1: Automatic Transmission Shift Lock Control Connector End Views - A/T Shift Lock Control Solenoid
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
