Engine Controls Self-Diagnostics - 3.4L
>>
Component Locations
Component Locations

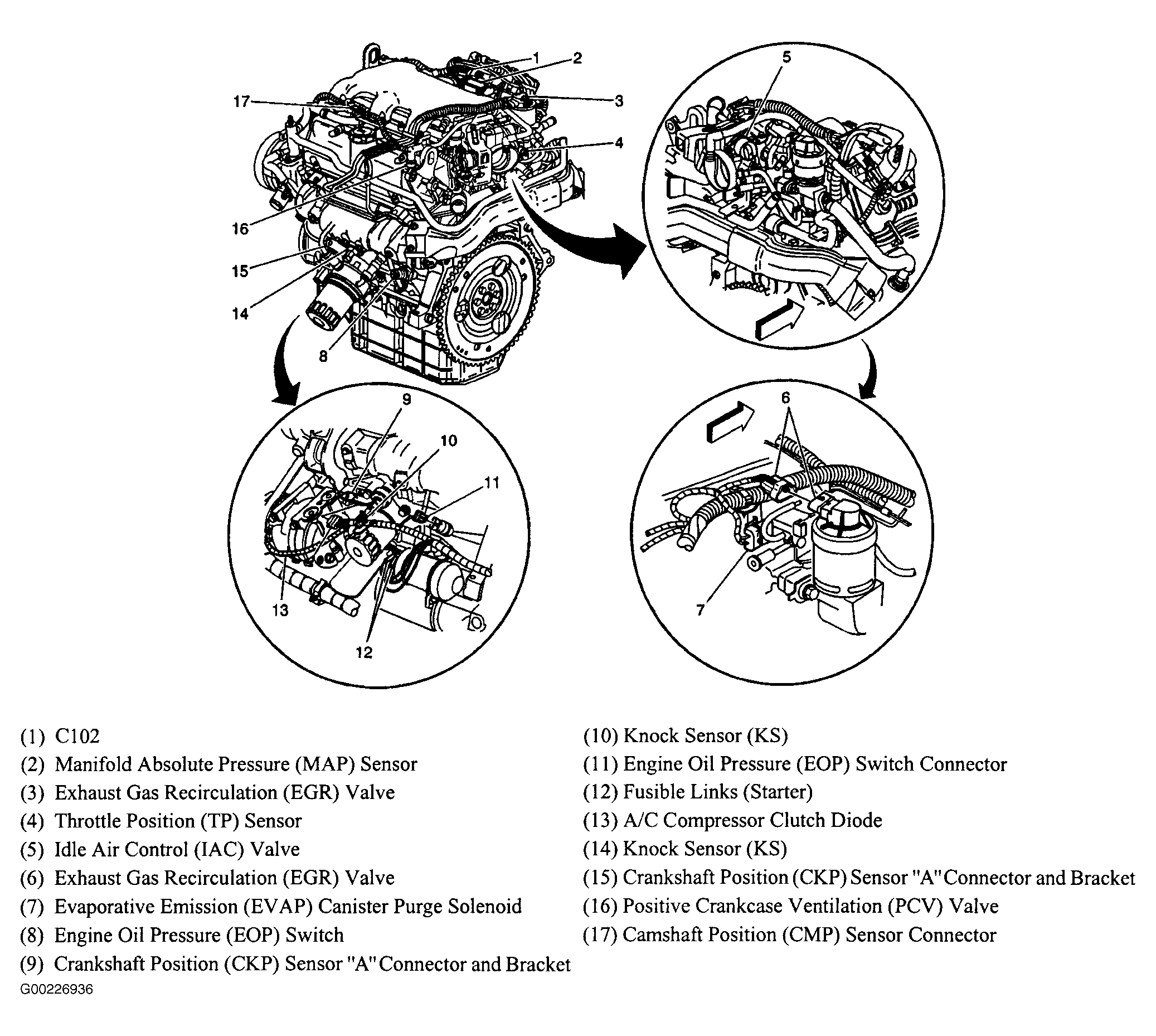

Fig 1: Locating Engine Control Components (Left Side Rear)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Engine Control Components (Right Side Rear)
Courtesy of GENERAL MOTORS CORP.

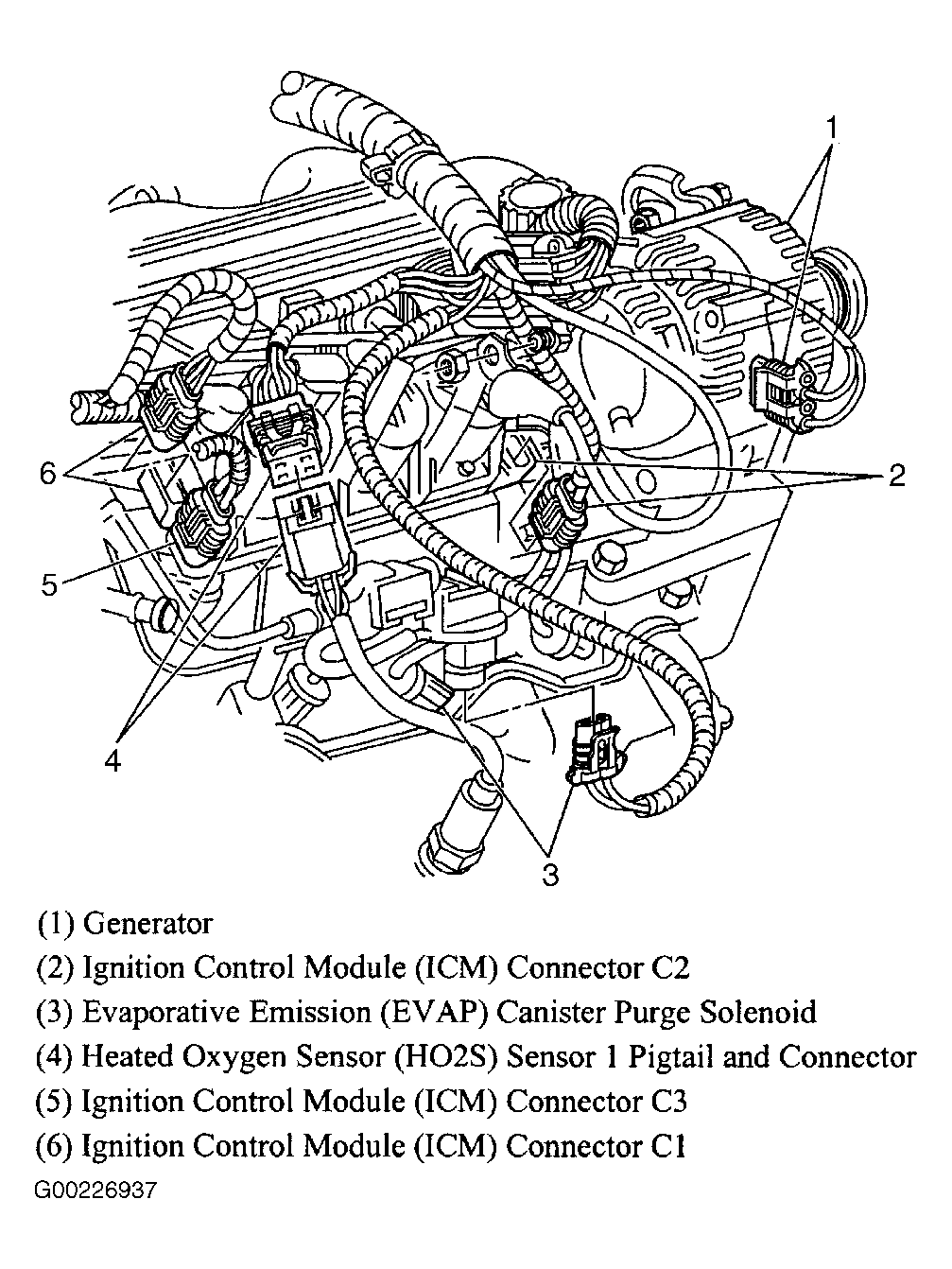

Fig 3: Locating ICM Connectors, EVAP Canister Purge Valve & HO2S 1 Connector
Courtesy of GENERAL MOTORS CORP.

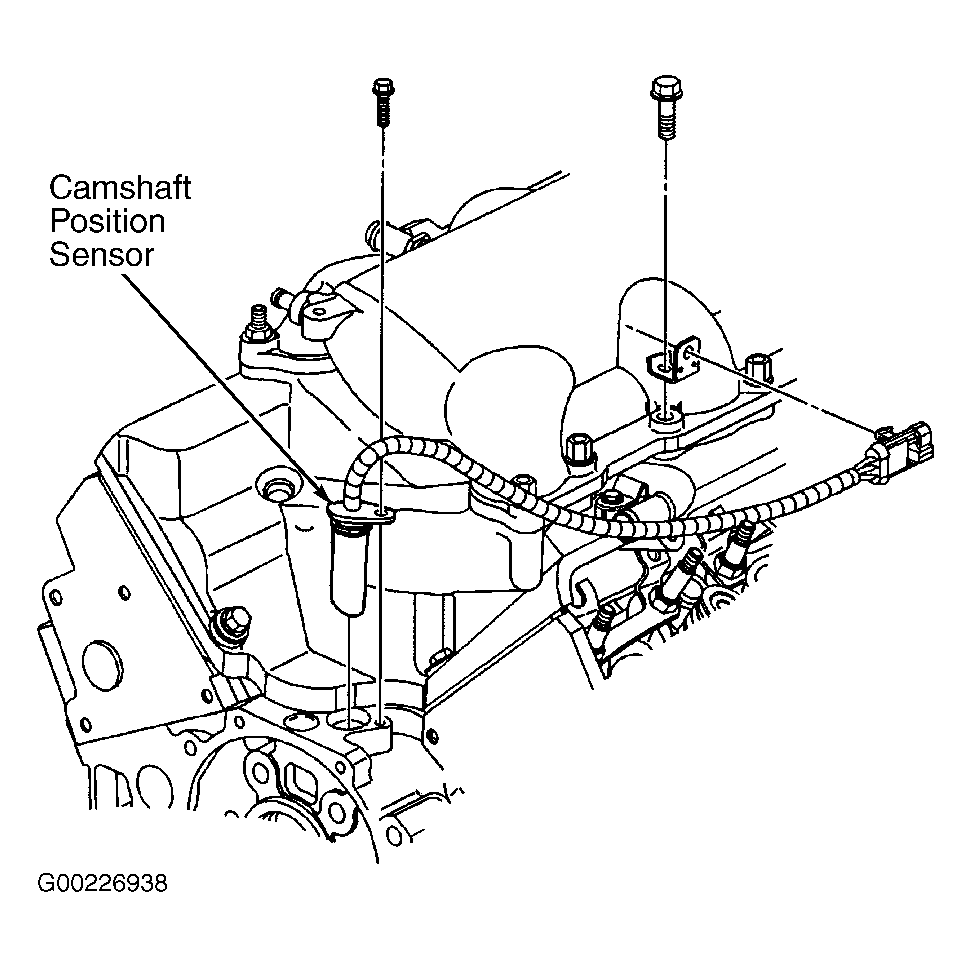

Fig 4: Locating Camshaft Position Sensor
Courtesy of GENERAL MOTORS CORP.

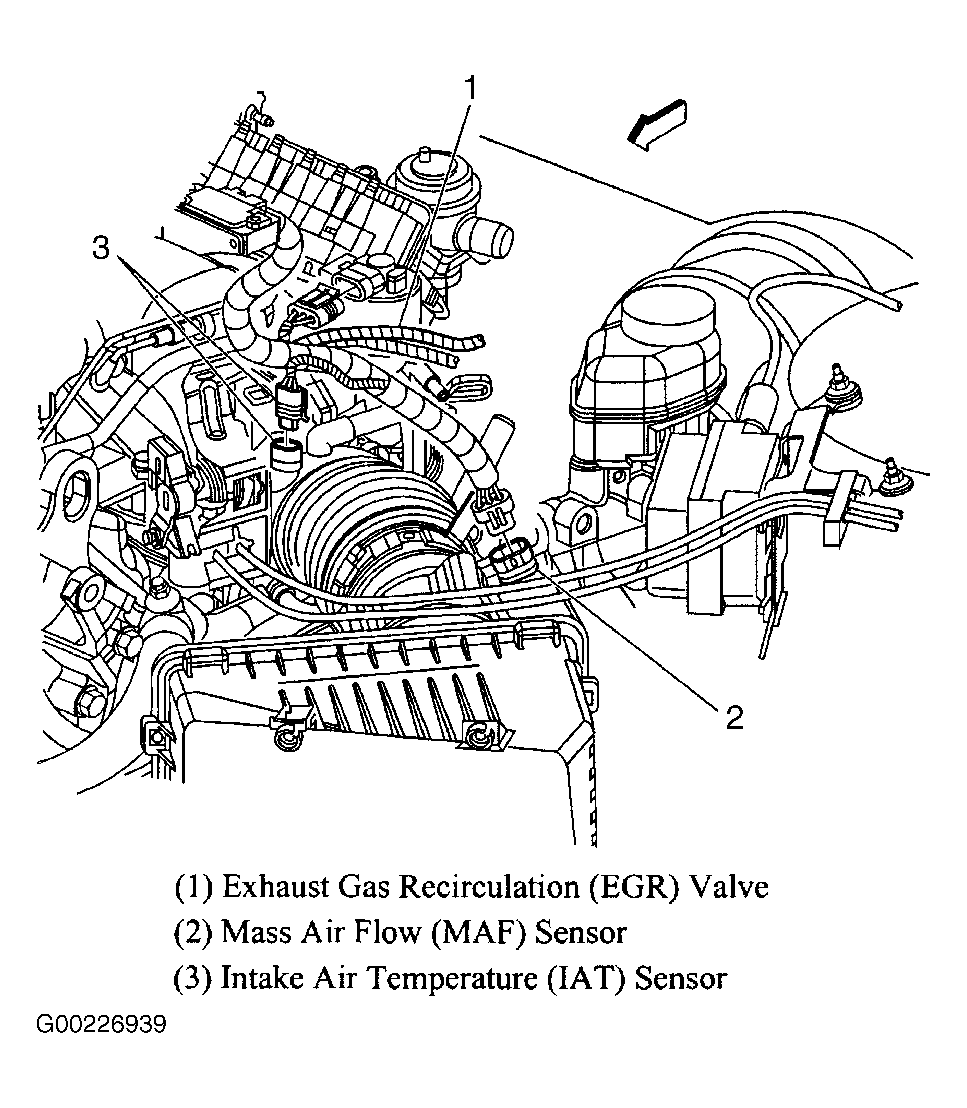

Fig 5: Locating EGR Valve, MAF Sensor & IAT Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 6: Locating EGR Valve, EVAP Canister Purge Solenoid & Idle Air Control Valve
Courtesy of GENERAL MOTORS CORP.
Fig 7: Locating ECT Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 8: Locating CKP Sensor "A", KS Sensor, EOP Sensor, A/C Compressor Clutch & Fusible Links
Courtesy of GENERAL MOTORS CORP.

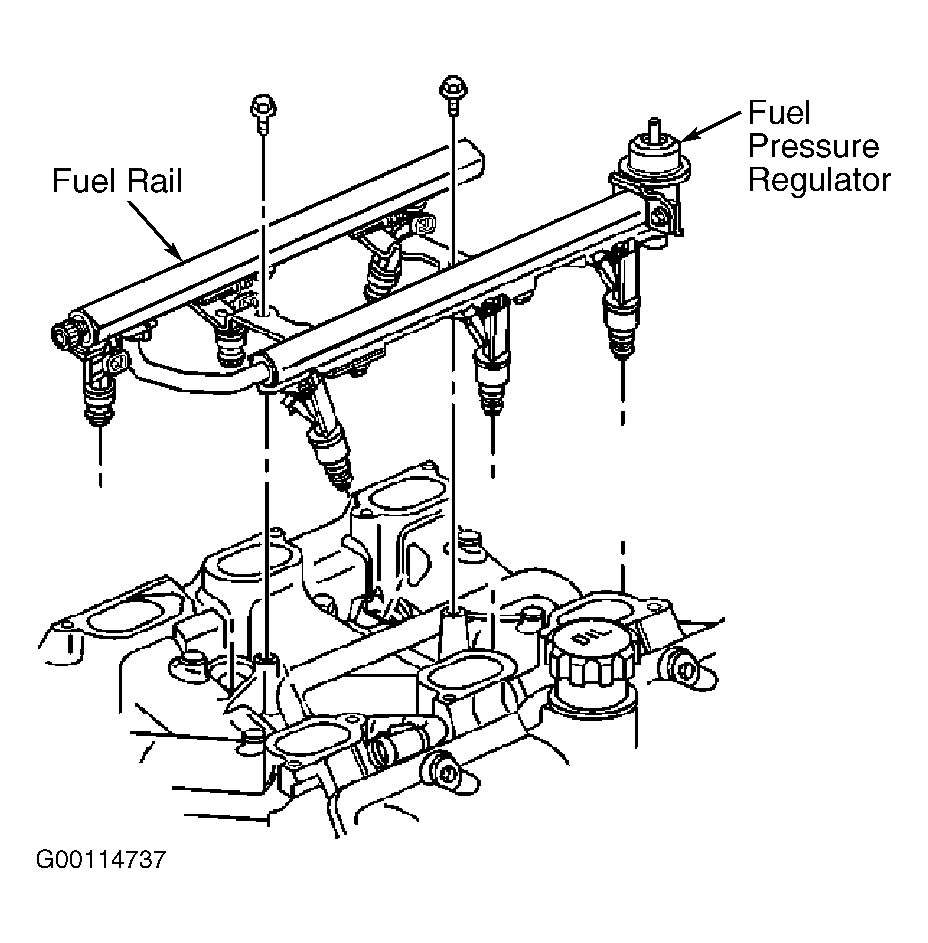

Fig 9: Identifying Fuel Rail Assembly, Fuel Pressure Regulator & Injectors
Courtesy of GENERAL MOTORS CORP.

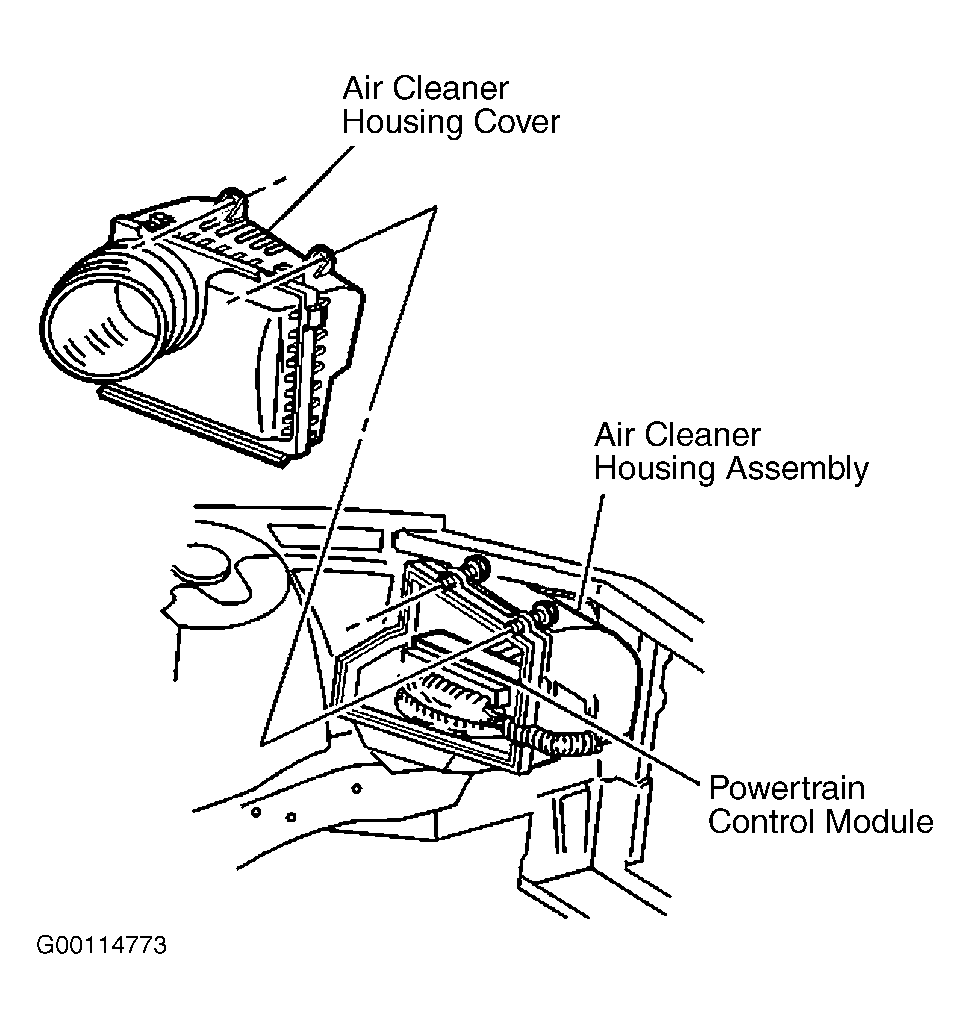

Fig 10: Locating PCM (Alero & Grand Am)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Locating PCM (Impala & Monte Carlo)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Locating & Identifying Fuel Pump & Sender Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 13: Locating CKP Sensor "A" (24X)
Courtesy of GENERAL MOTORS CORP.

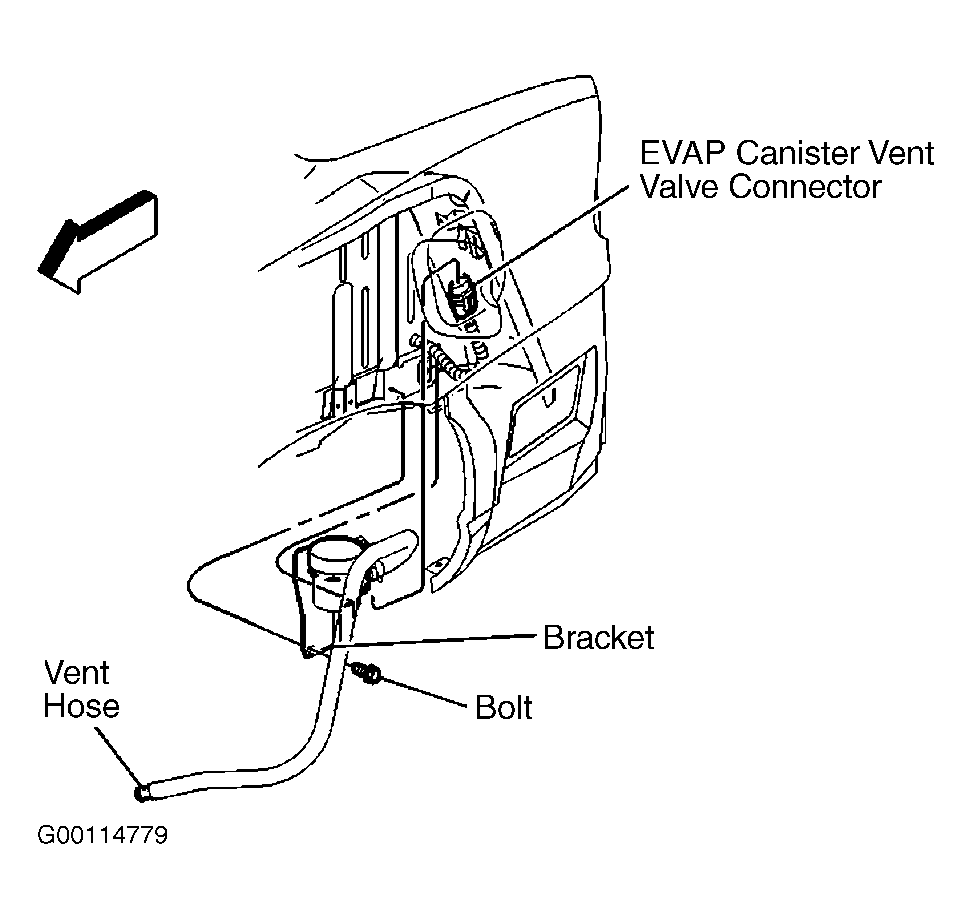

Fig 14: Locating EVAP Canister Vent Valve (Impala & Monte Carlo)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Locating EVAP Canister & EVAP Canister Vent Valve (Alero & Grand Am)
Courtesy of GENERAL MOTORS CORP.

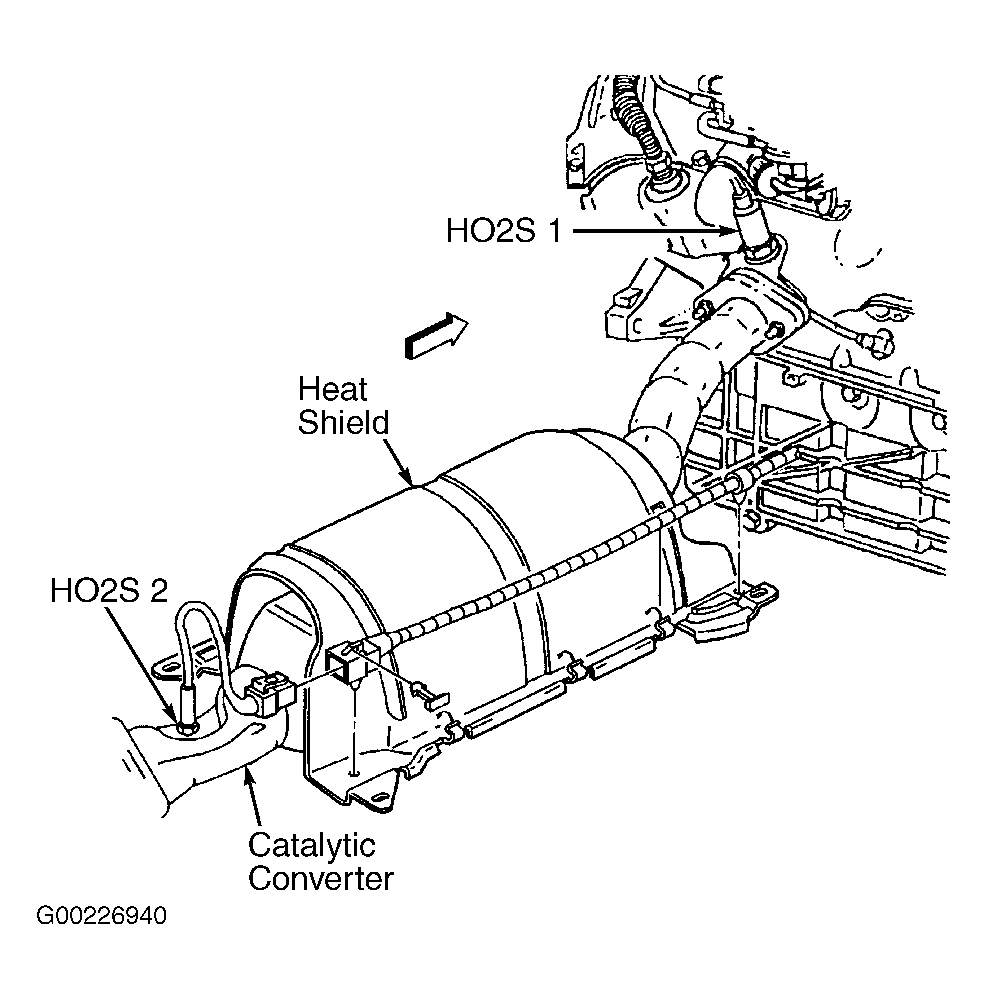

Fig 16: Locating HO2S 1 & 2
Courtesy of GENERAL MOTORS CORP.

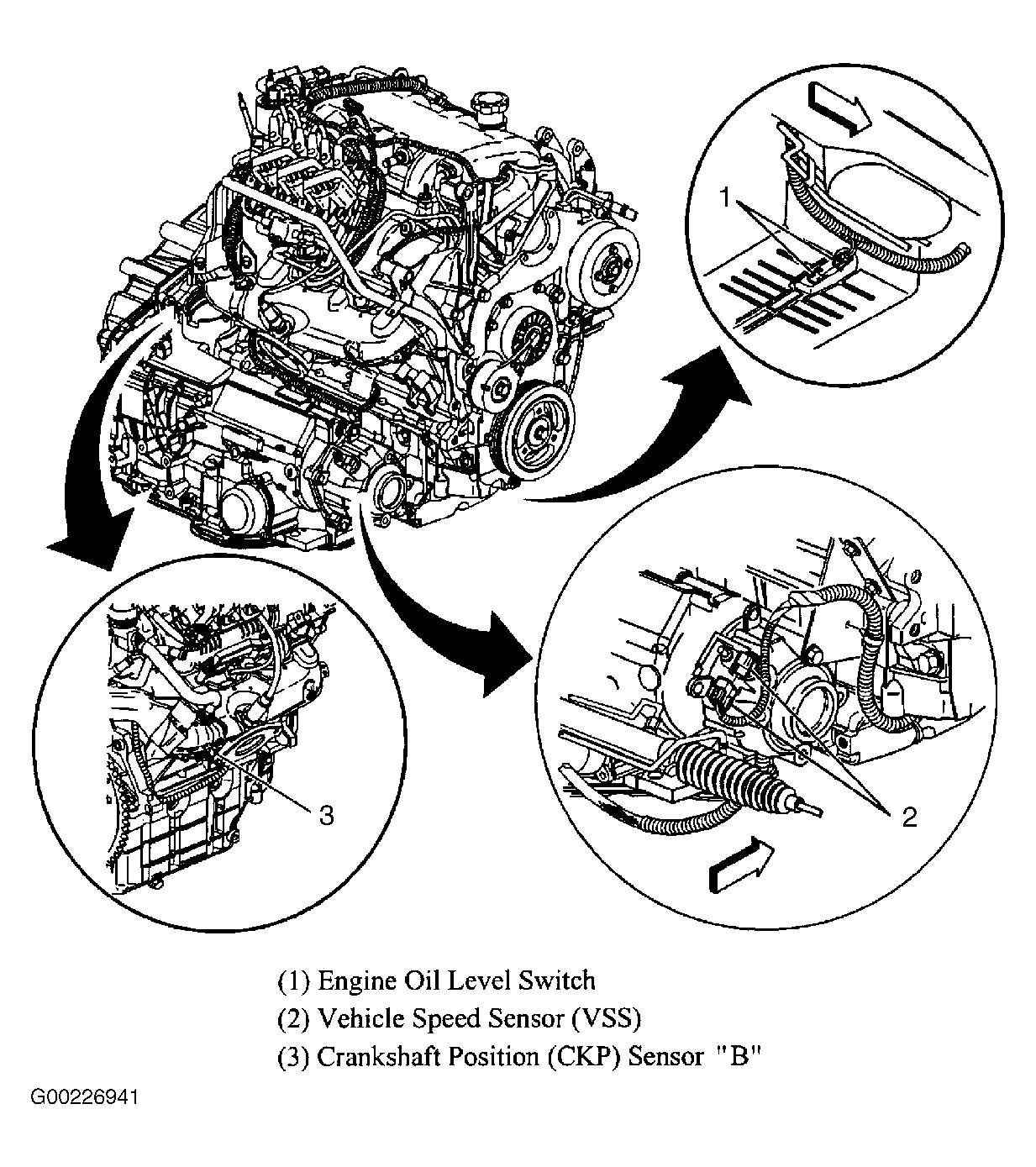

Fig 17: Locating Engine Oil Level Switch, Vehicle Speed Sensor & CKP Sensor "B" (Impala & Monte Carlo)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Locating EVAP Hose Components & Routing
Courtesy of GENERAL MOTORS CORP.
Fig 19: Locating VSS Sensor (Alero & Grand Am A/T)
Courtesy of GENERAL MOTORS CORP.

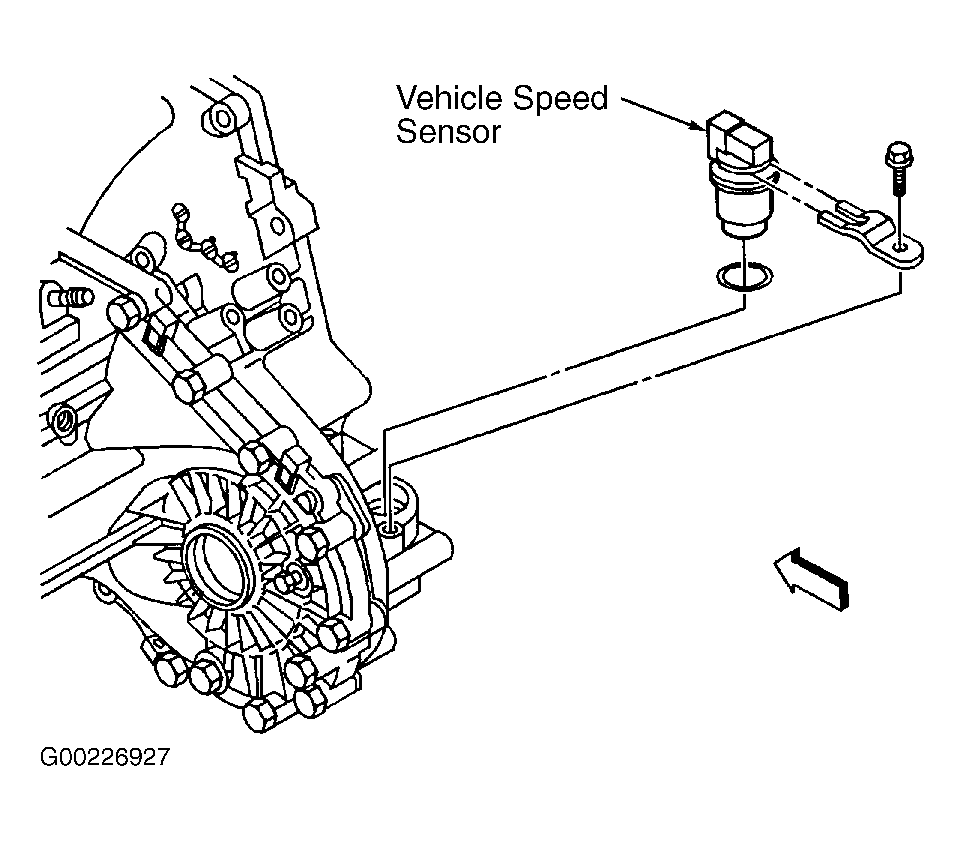

Fig 20: Locating Manual Transmission Vehicle Speed Sensor
Courtesy of GENERAL MOTORS CORP.
