Connector Identification

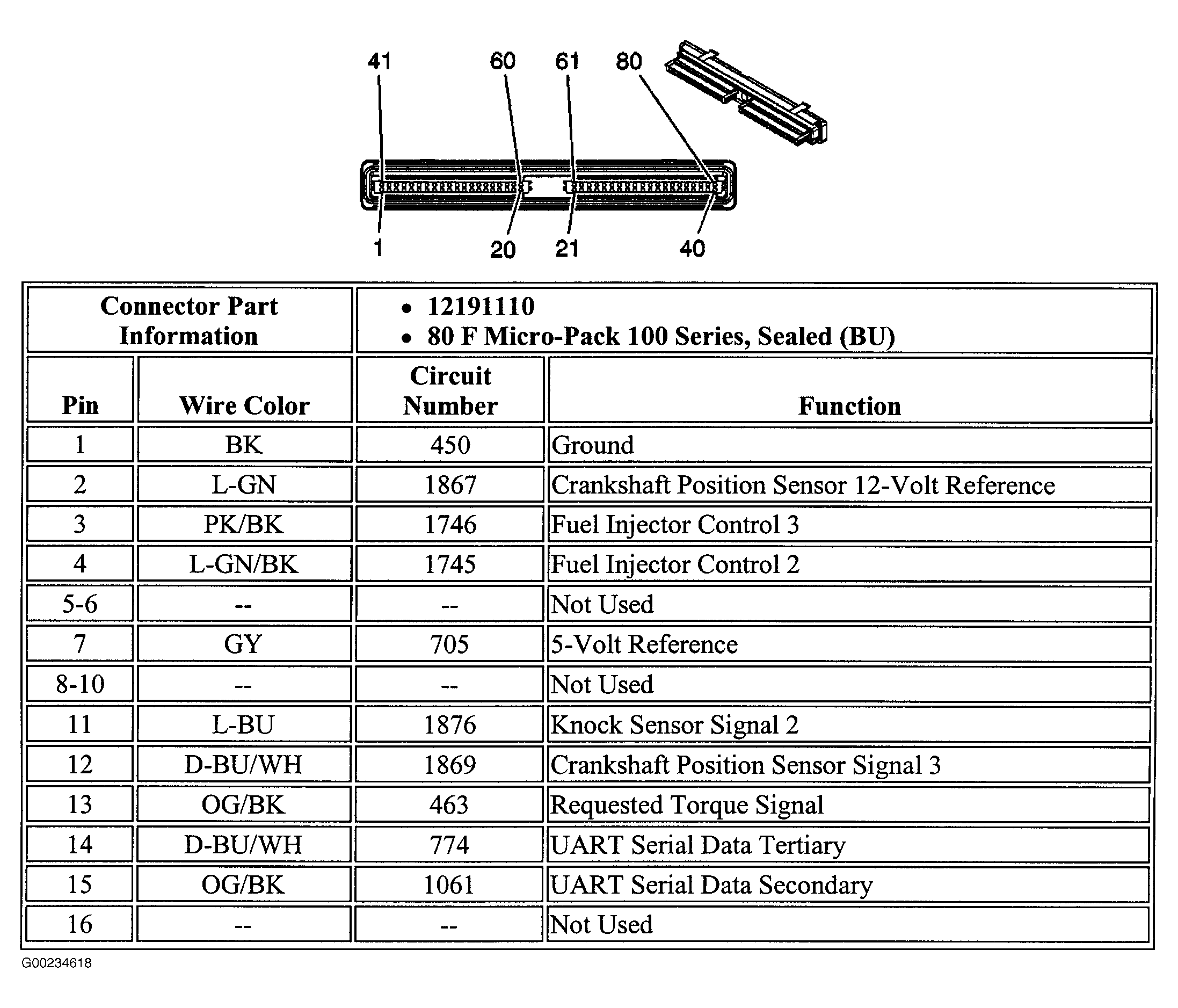

Fig 1: Identifying PCM Connector C1 (1 Of 3)
G00234618Courtesy of GENERAL MOTORS CORP.

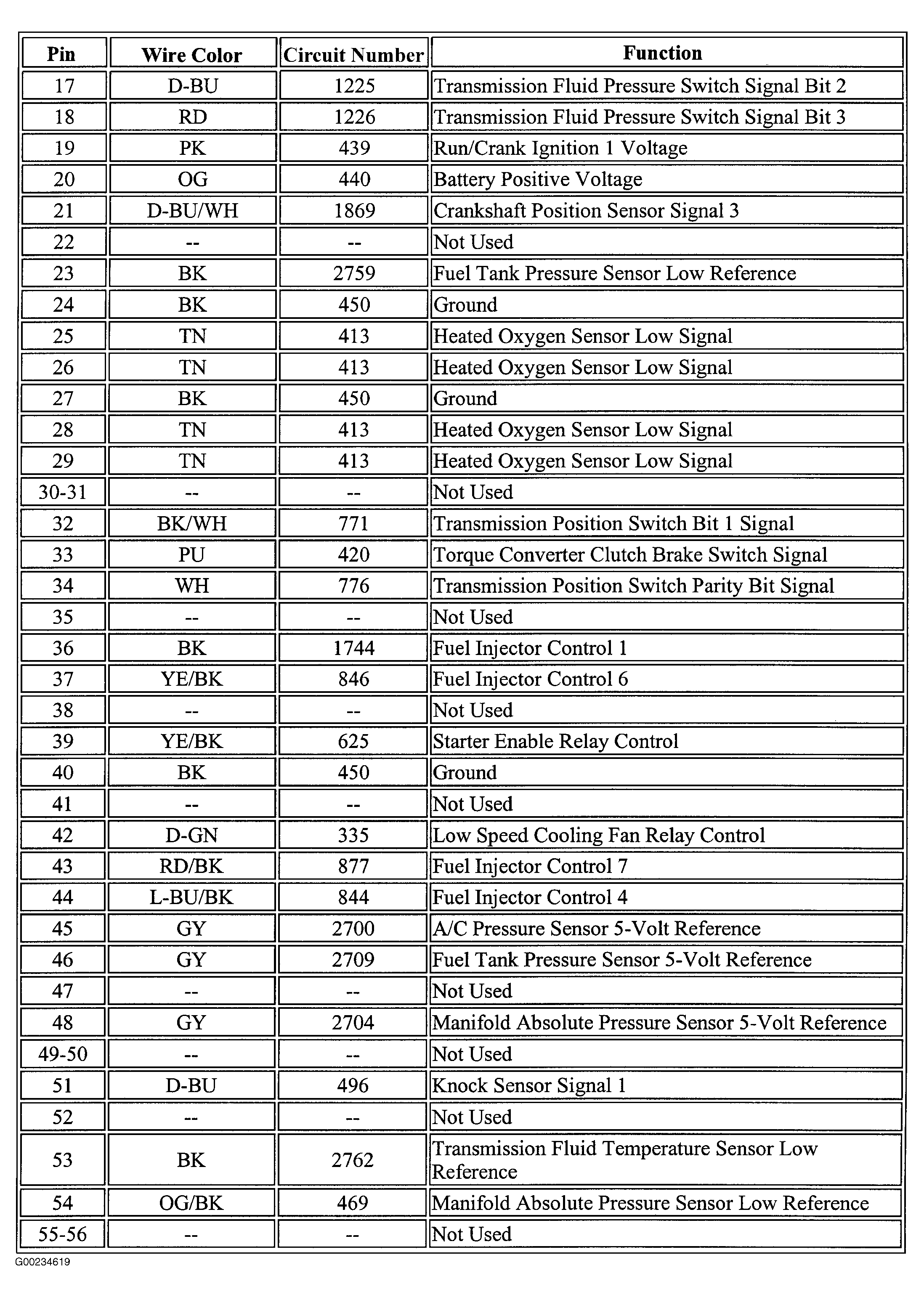

Fig 2: Identifying PCM Connector C1 (2 Of 3)
G00234619Courtesy of GENERAL MOTORS CORP.

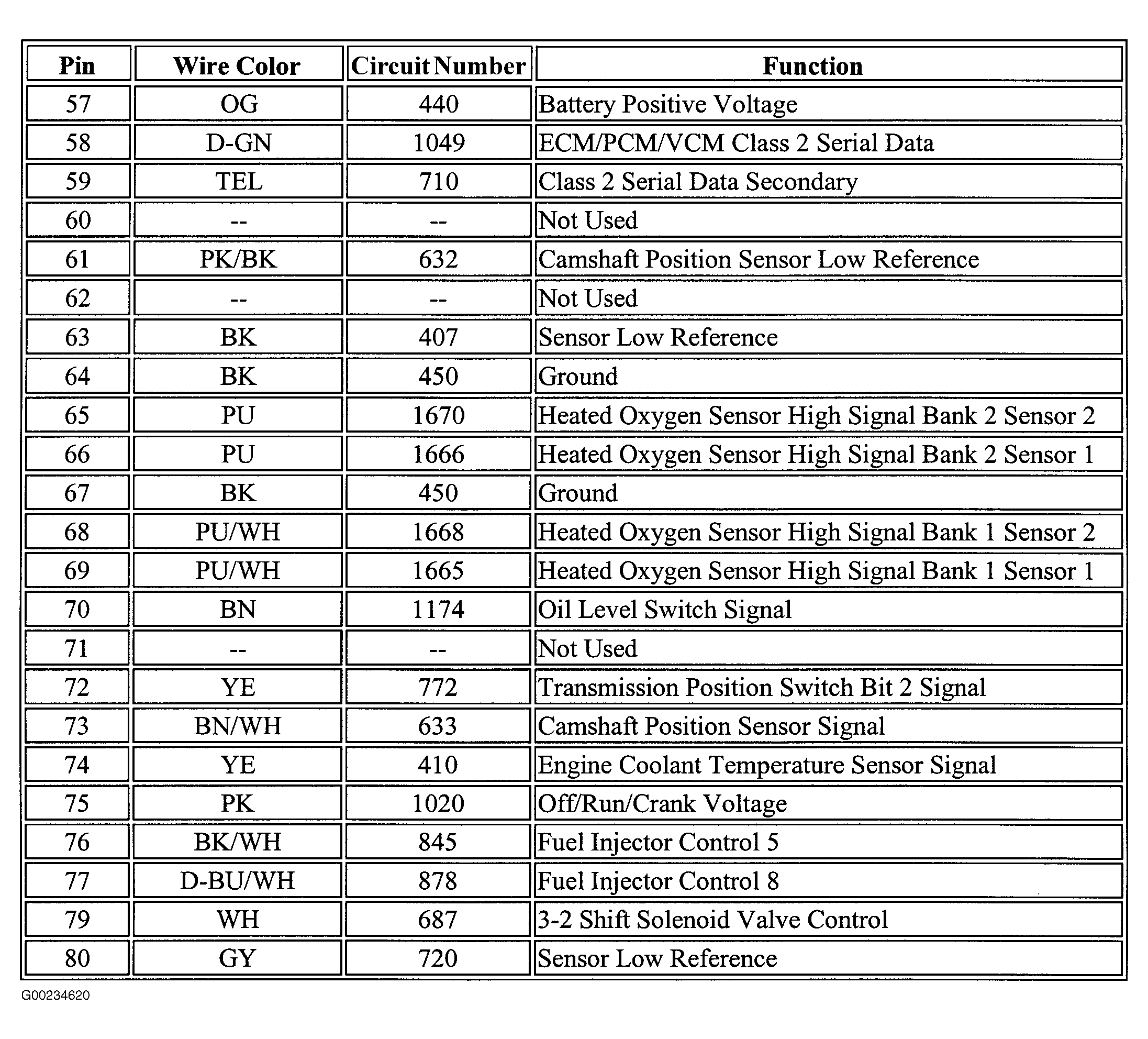

Fig 3: Identifying PCM Connector C1 (3 Of 3)
G00234620Courtesy of GENERAL MOTORS CORP.

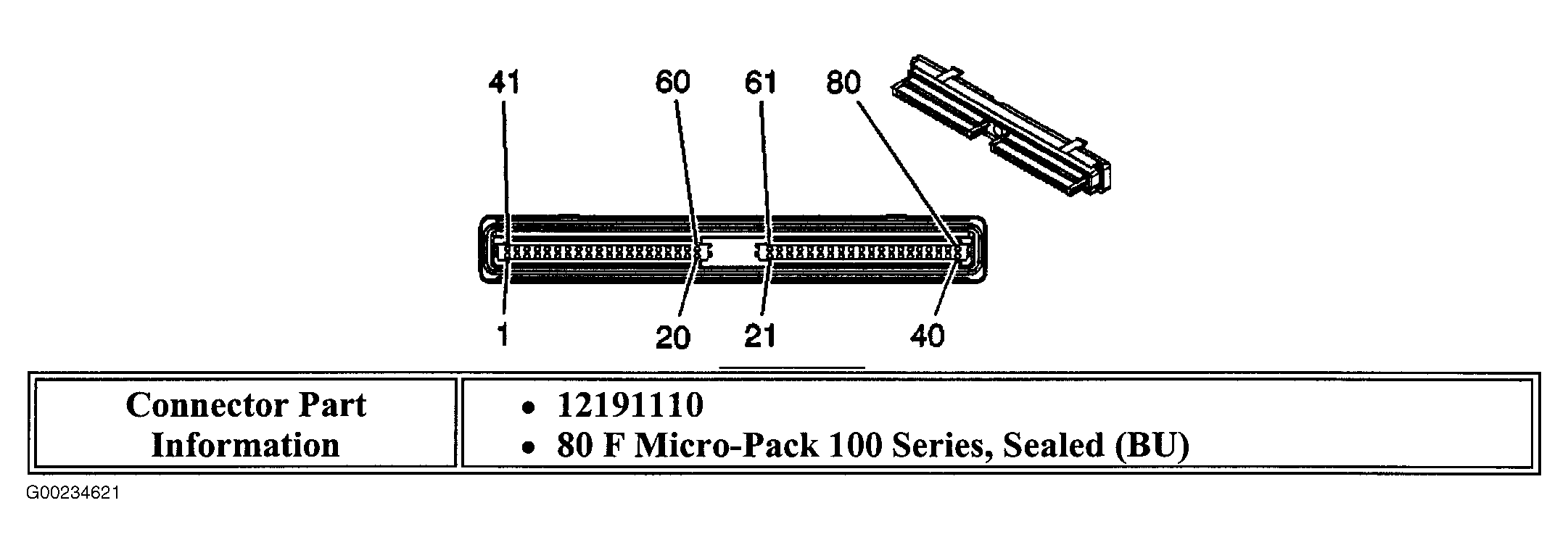

Fig 4: Identifying PCM Connector C2 (1 Of 3)
G00234621Courtesy of GENERAL MOTORS CORP.

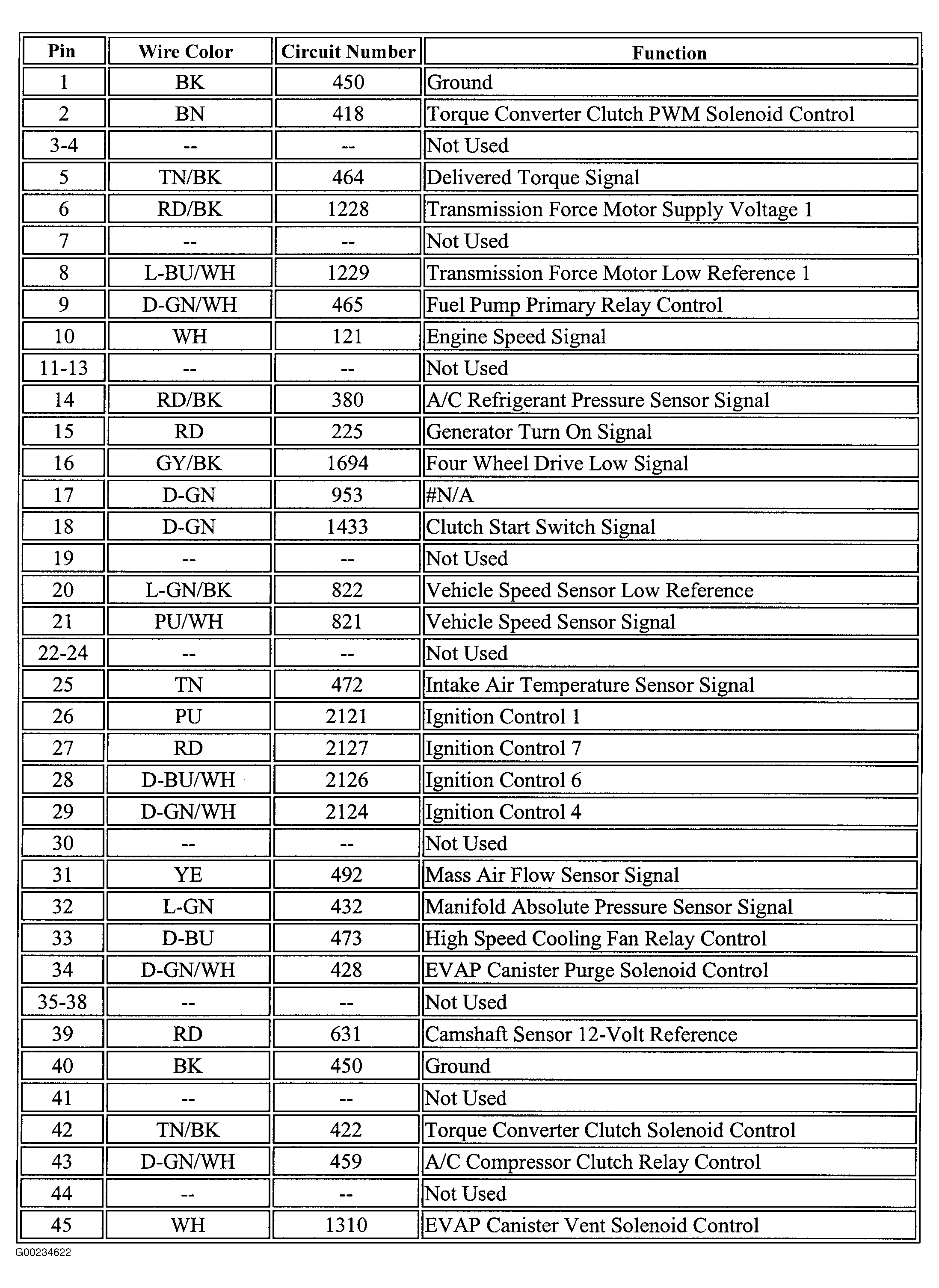

Fig 5: Identifying PCM Connector C2 (2 Of 3)
G00234622Courtesy of GENERAL MOTORS CORP.

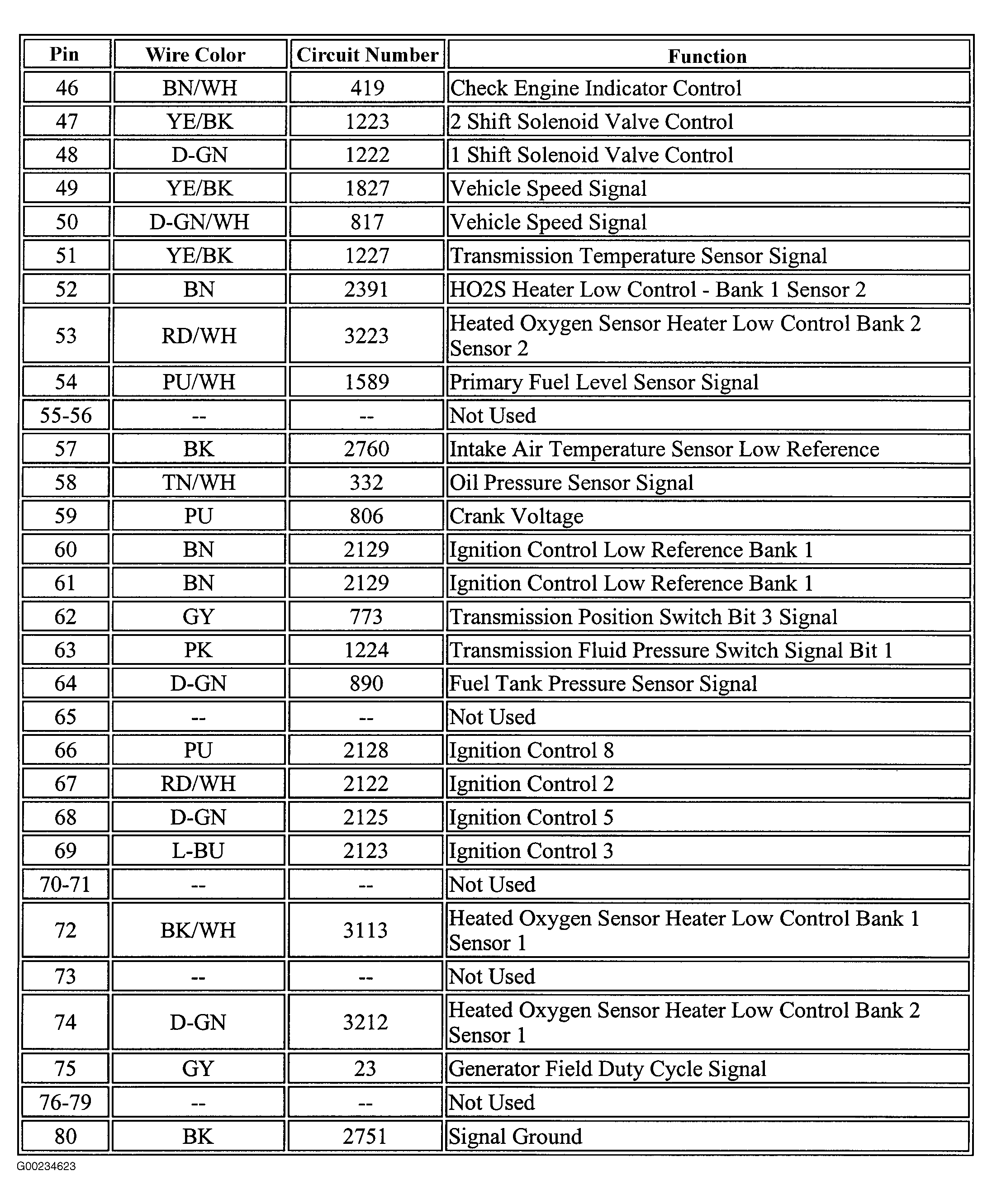

Fig 6: Identifying PCM Connector C2 (3 Of 3)
G00234623Courtesy of GENERAL MOTORS CORP.
