Removal Procedure

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
    2. Fig 1: Identifying Rear Battery Cover & Bolts
    GM1231396Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear battery cover bolts (1) and cover (2).
  3. Disconnect the negative and positive battery cables.
    4. Fig 2: Identifying Lower Battery Box Slide Nuts
    GM1231902Courtesy of GENERAL MOTORS CORP.
  4. Loosen the lower battery box slide nuts (1).

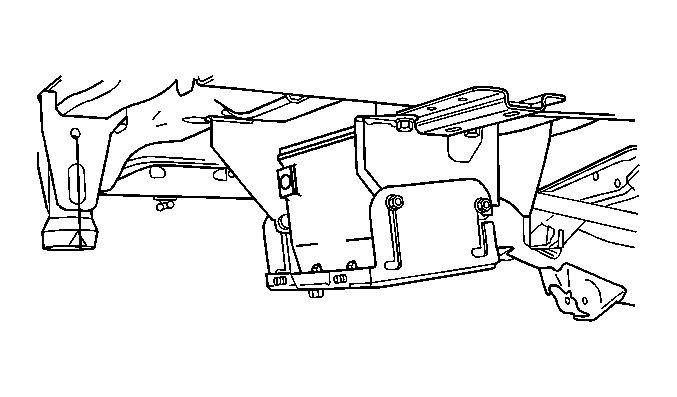

    5. Fig 3: View of Lower Battery Box
    GM1231561Courtesy of GENERAL MOTORS CORP.
  5. Drop down the lower battery box to access battery.
    6. Fig 4: View of Battery Hold Down
    GM1232267Courtesy of GENERAL MOTORS CORP.
  6. Remove the battery hold-down bolt and hold-down.
    7. Fig 5: View of Battery & Lower Battery Box
    GM1231624Courtesy of GENERAL MOTORS CORP.
  7. Remove the battery from lower battery box.
