Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Interlock System
>>
Schematic and Routing Diagrams
>>
Automatic Transmission Shift Lock Control Schematics
Automatic Transmission Shift Lock Control Schematics

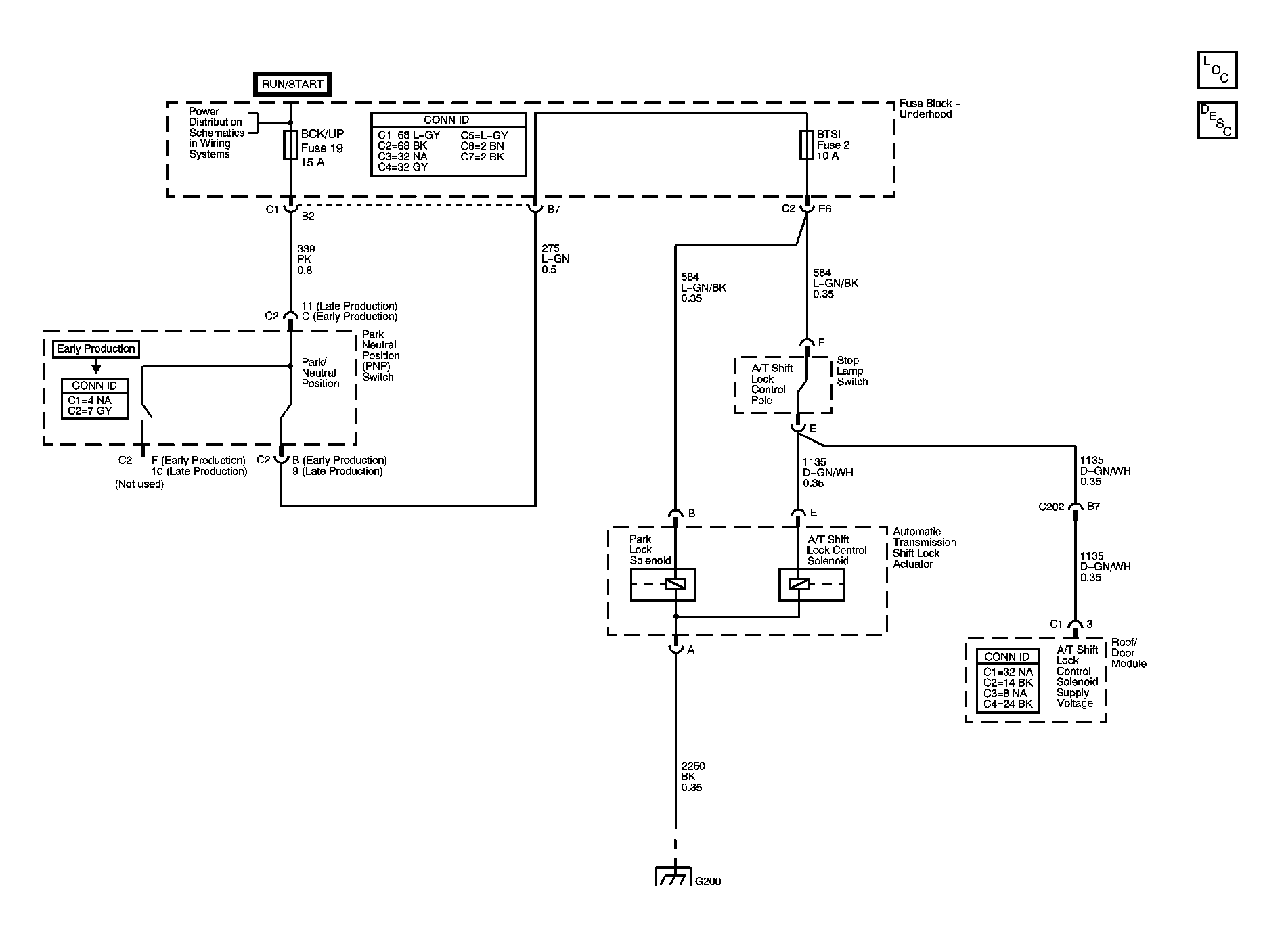

Fig 1: Automatic Transmission Shift Lock Control Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
