Installation Procedure

  1. Install the LDM (1) to the printed circuit.
  2. Install the Instrument Cluster Assembly (2). Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages and Console.
  3. Perform DIAGNOSTIC SYSTEM CHECK - ABS .

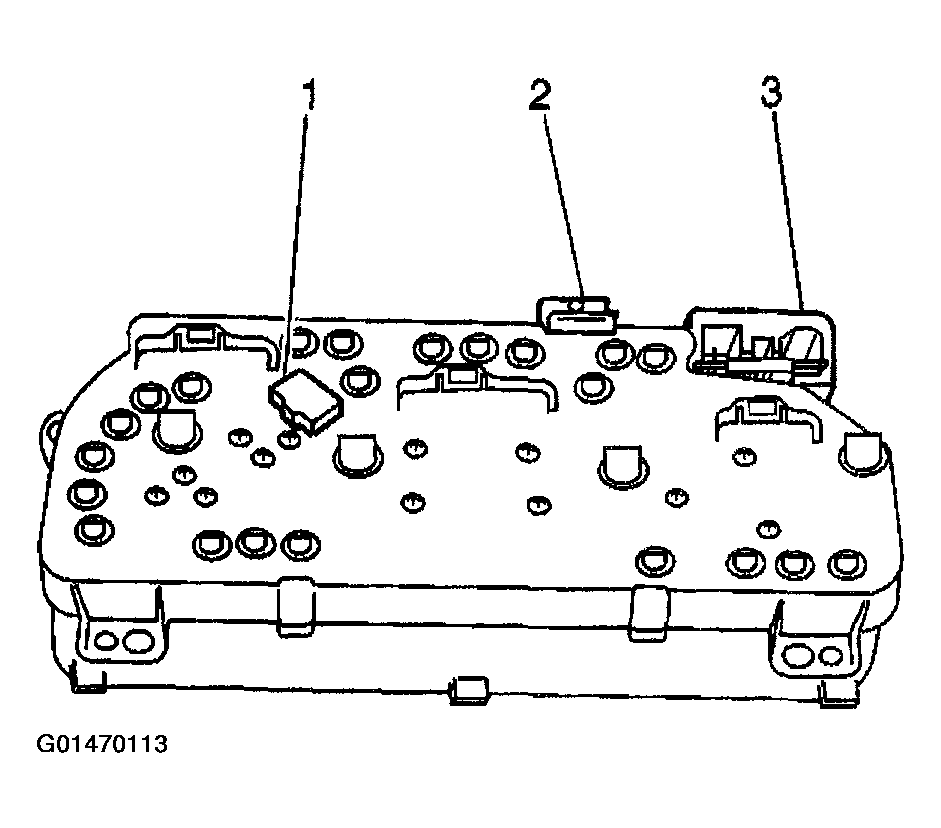

    Fig 1: Instrument Cluster Assembly & Lamp Driver Module
    G01470113Courtesy of GENERAL MOTORS CORP.
