Automatic Transmission Shift Lock Control Component Views

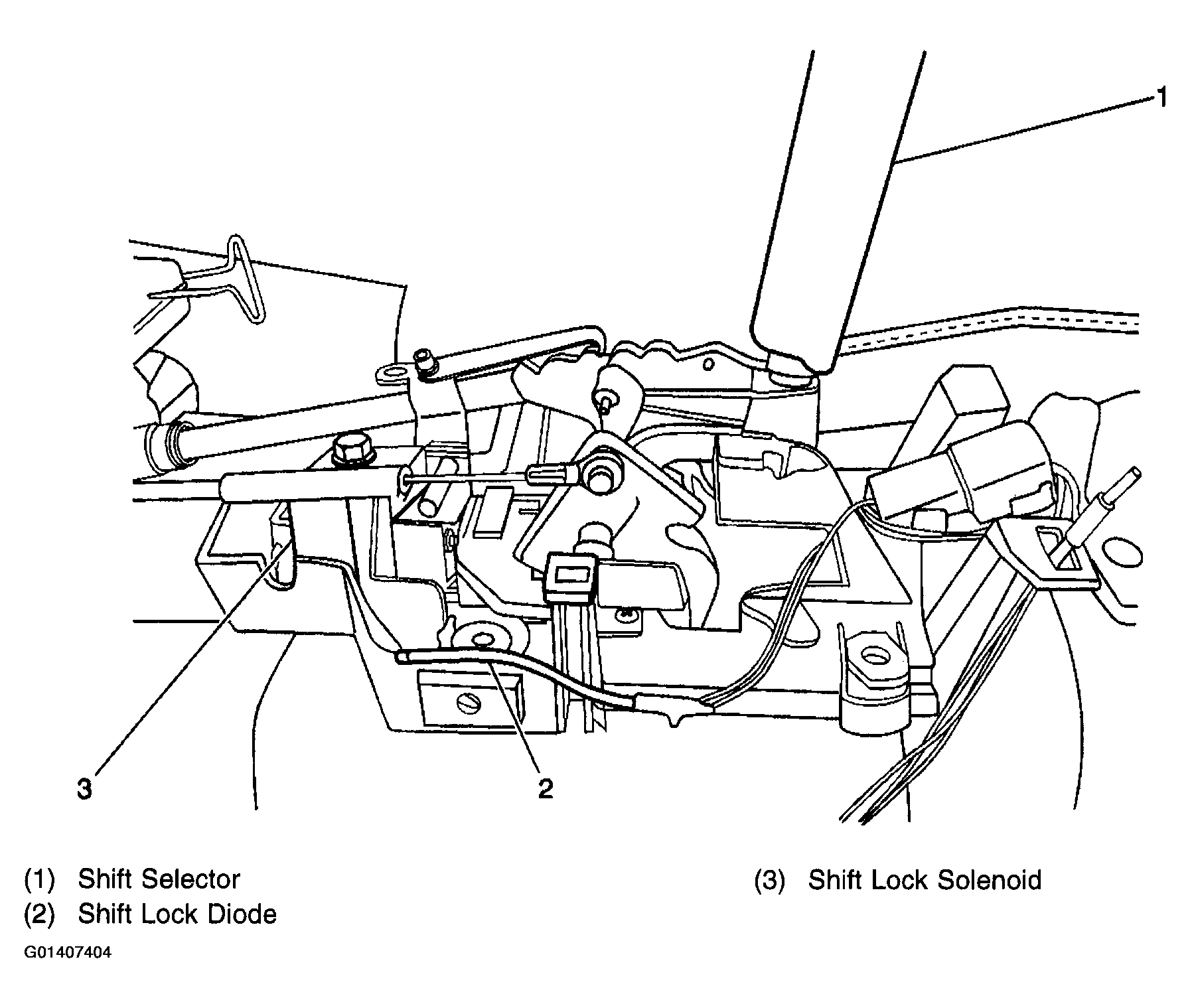

Fig 1: Center Floor Console

G01407404

Courtesy of GENERAL MOTORS CORP.

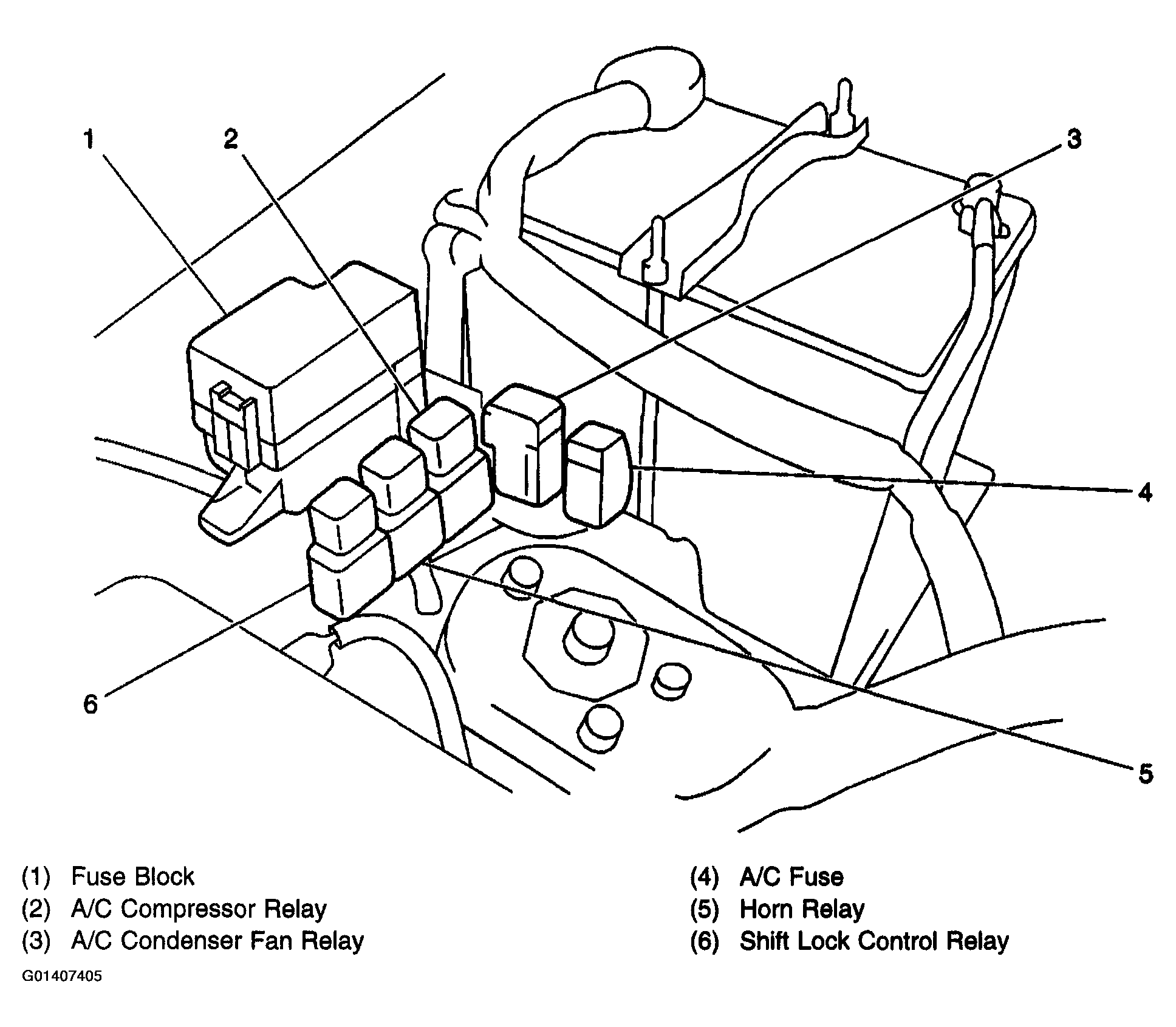

Fig 2: Relays

G01407405

Courtesy of GENERAL MOTORS CORP.
